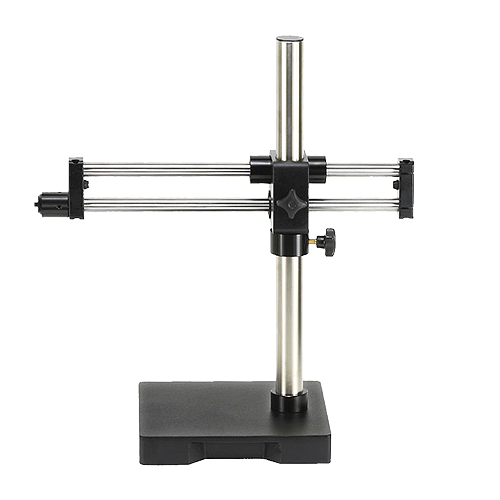

Double-arm Boom Stand with Heavy Duty Base

Double-arm Boom Stand with Heavy-Duty Base

Item no. HD-070

Industrial-type double-arm boom stand with UNC ¼”-20 mounting screw spigot for Inspectis Digital Microscopes.

Sturdy solid metal 245mm x 245mm x 40mm base for excellent stability. Provides complete flexibility and stability for horizontal, vertical and angular adjustment.

Download data sheet
Spigot for articulated boom stand

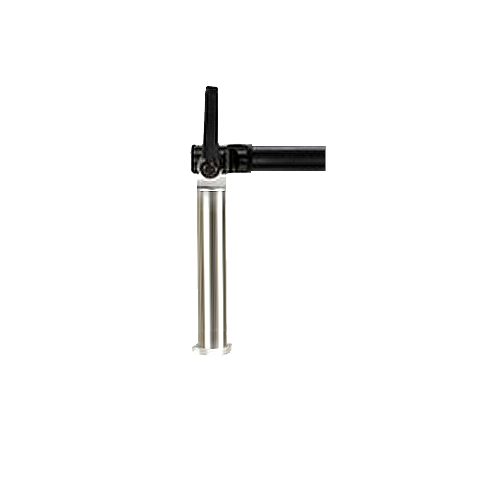

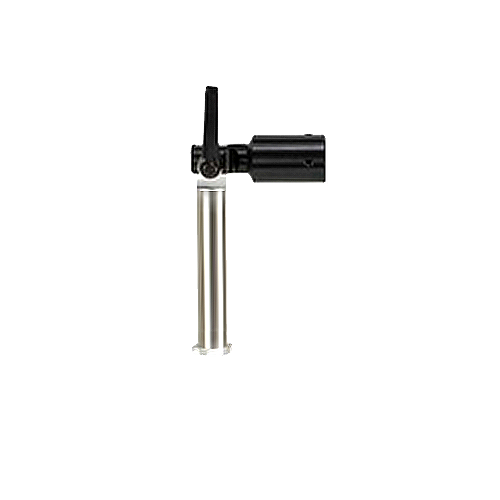

XY-tilt module and Rack&Pinion Adapter for Heavy Duty Double-arm Boom Stand

Item no. HD-061-AA

Industrial-grade spigot for mounting Inspectis Rack&Pinion focusing unit on articulated-arm boom stand.

Provides flexibility for Z-movement, tilt and angular adjustment of the Digital Microscope.

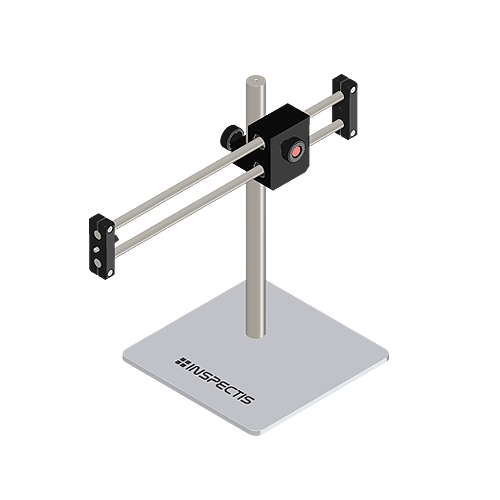

Inspectis Double-arm Boom Stand, Light

Item no. HD-071

Industrial-type light double-arm boom stand with UNC ¼”-20 mounting screw for Inspectis Digital Microscopes.  Solid metal 240mm x 240mm x 8mm base for stability and double-rod boom with ball bearing for smooth rigid horisontal movement of the Digital Microscope.

Provides stability and flexibility for horizontal and vertical adjustment of the Digital Microscope across object filed.

Download data sheet

Inspectis Double-arm Boom Stand, Light, ESD-protected

Item no. HD-071-E

Industrial-type light double-arm boom stand with UNC ¼”-20 mounting screw for Inspectis Digital Microscopes.  Solid metal 240mm x 240mm x 8mm base for stability and double-rod boom with ball bearing for smooth rigid horisontal movement of the Digital Microscope.

ESD-protected for use in EPA environments.

Provides stability and flexibility for horizontal and vertical adjustment of the Digital Microscope across object filed.

Download data sheet

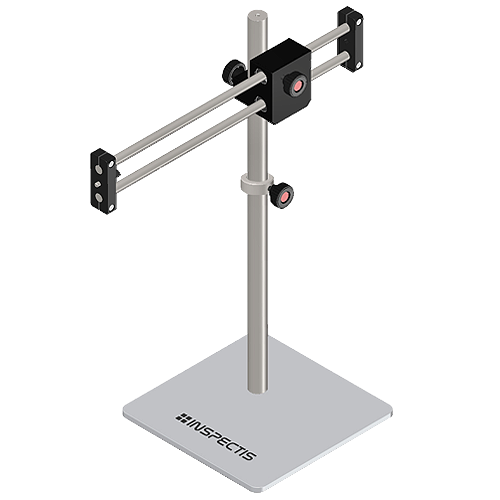

Inspectis Double-arm Boom Stand, Light, LWD, L400mm Boom length

Item no. HD-071-EXT

Industrial-type light double-arm boom stand with UNC ¼”-20 mounting screw and 600mm post for long working distance Inspectis Digital Microscopes.

Solid metal 240mm x 240mm x 8mm base double-rod boom with ball bearing for smooth horisontal movement of the Digital Microscope.

Provides complete flexibility for horizontal and vertical adjustment.

Download data sheet

Inspectis Double-arm Boom Stand, Light, LWD, L400mm Boom length, Antistatic

Item no. HD-071-EXT-E

Industrial-type light double-arm boom stand with UNC ¼”-20 mounting screw and 600mm post for long working distance Inspectis Digital Microscopes. Solid metal 240mm x 240mm x 8mm base double-rod boom with ball bearing for smooth horisontal movement of the Digital Microscope.

ESD-protected for use in EPA environments.

Provides complete flexibility for horizontal and vertical adjustment.

Download data sheet

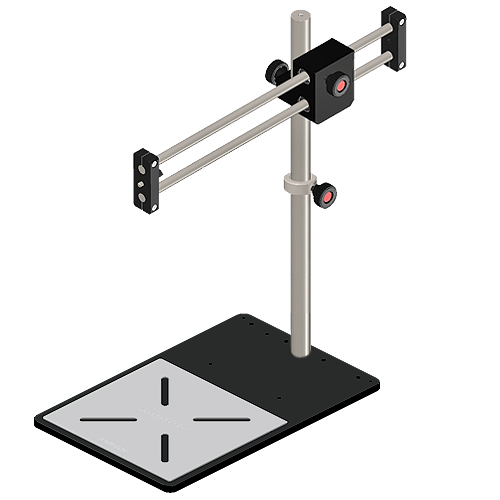

Inspectis Double-arm Boom Stand, Large Base, ESD-protected

Item no. HD-071-LB-E

Industrial-type double-arm boom stand with UNC ¼”-20 mounting screw, 600mm post and ESD-protected large base for Inspectis Digital Microscopes. Solid metal 240mm x 240mm x 8mm base double-rod boom with ball bearing for smooth horisontal movement of the Digital Microscope. Ideal for use with XY-stages.

ESD-protected for use in EPA environments.

Provides complete flexibility for horizontal and vertical adjustment.

Rack-&-Pinion Focusing z-movement

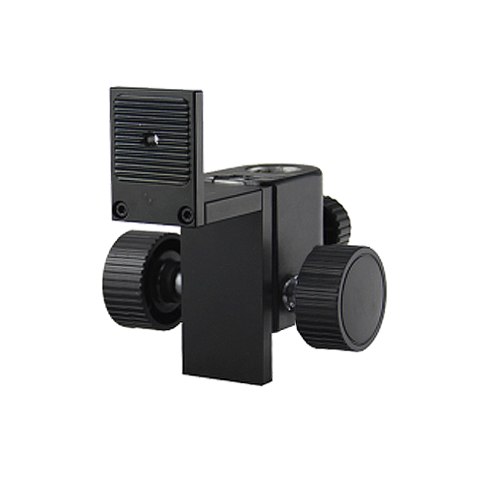

Rack-&-Pinion Focusing module, Standard

Item no. HD-090

Industrial-grade Rack & Pinion focusing module with 25mm mounting hole and 50mm stroke. For adjusting working distance and/or focus of the  Digital Microscopes.

Download data sheetSee video
Coarse-Fine z-adjustment

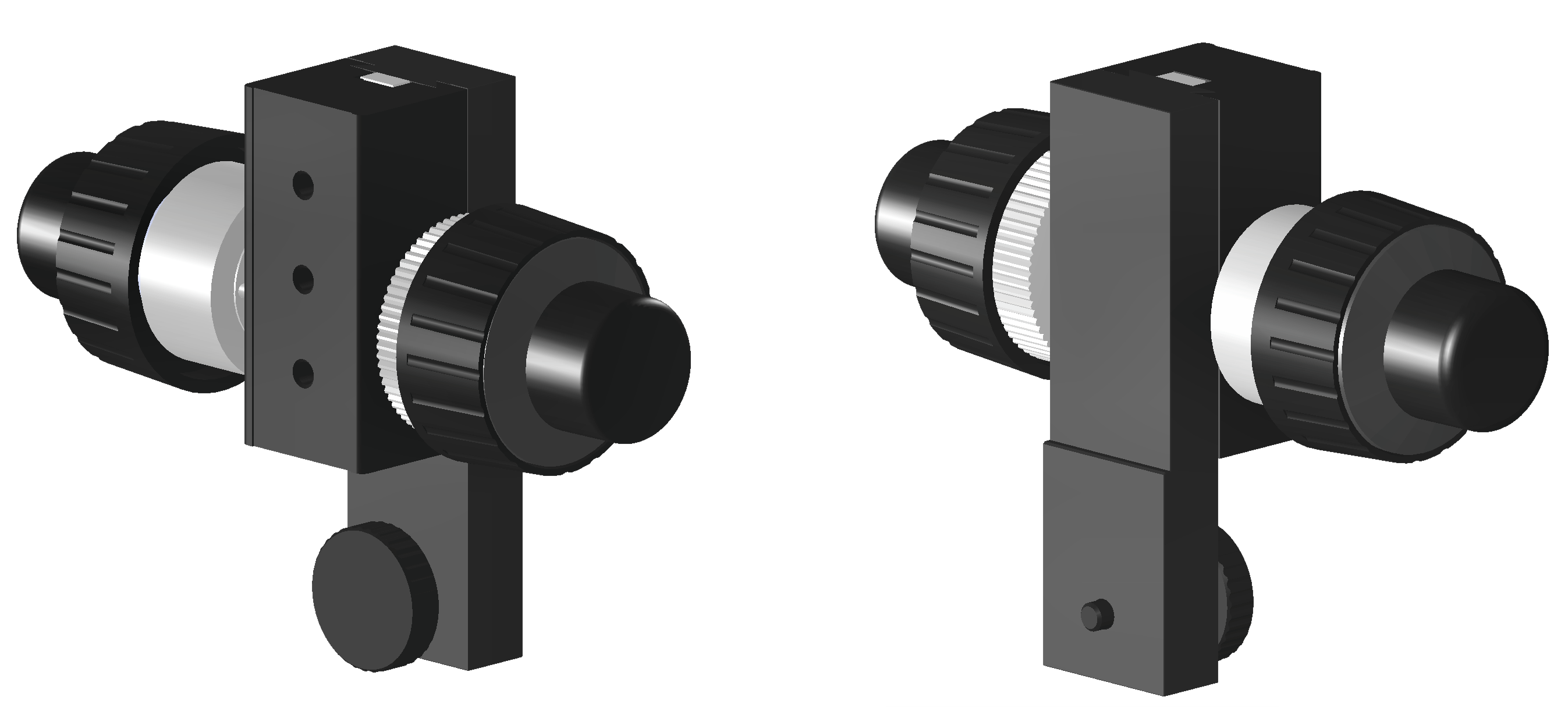

Rack-&-Pinion Focusing module,Coarse/Fine motion

Item no. HD-090-CF

Industrial-grade Rack & Pinion focusing module with 25mm mounting hole and 65mm stroke. For adjusting working distance and/or focus of the Digital Microscopes.

The Coarse/Fine feature of this device makes it ideal for precise focus adjustment of the Digital Microscope when high diopter +10, +28 and +56 close-up lenses are used.

Download data sheet

Inspectis VESA Monitor Holder for LWD Boom Stand

Item no. HD-182

Standard VESA adapter for mounting 21” to 24” displays on vertical post of Inspectis LWD Stands. Mounting the display on the Stand, directly behind the inspection area, creates an ergonomic working position for operators of Inspectis Long Working Distance Digital Microscopes.

Compatible with all Inspectis f25mm (post) LWD Boom Stands. Compatible with 100x100mm and 75x75mm Display VESA-sizes.

Download data sheet

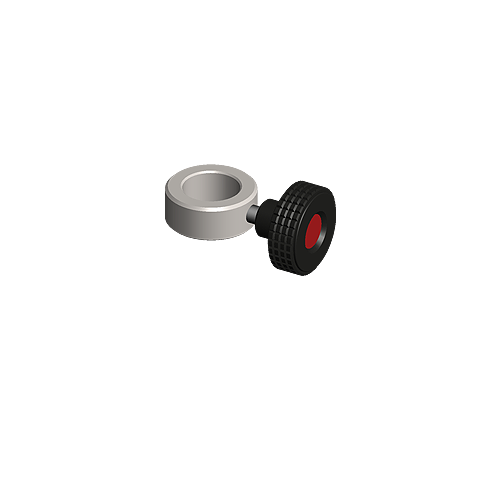

Inspectis Stop Ring, Ø25mm for Single-arm Boom Stands

Item no. HD-183

Ø 25mm stop ring with knurled fixing screw for limiting vertical travel of Stand Boom. Using a stop ring is a convenient and quick way to reference an alternative working distance when using an additional lens.

Compatible with Inspectis Single-arm Boom Stands and light version of Double-arm Boom Stands.

Download data sheet

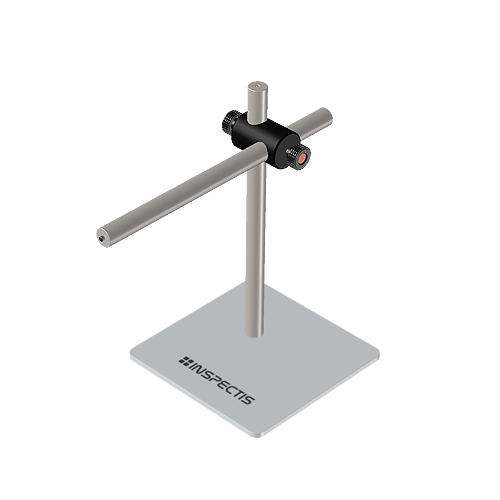

Inspectis Single-arm Boom Stand

Item no. HD-060

Industrial-type boom stand with sturdy base and Ø 25mm diameter vertical and horisontal post in Stainless Steel that extends over the working area.

Provides complete flexibility for horisontal and vertical adjustment of Digital Microscope.

Download data sheetSee video

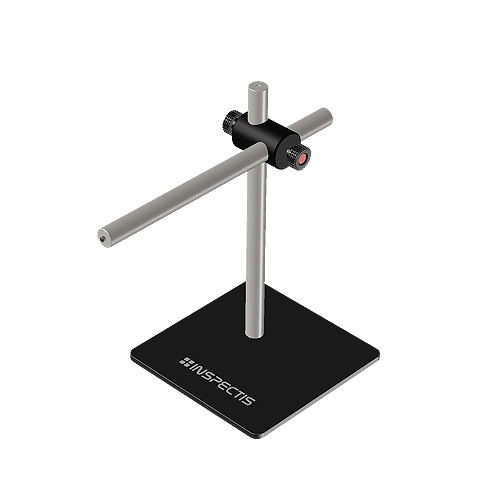

Inspectis Single-arm Boom Stand, ESD-protected

Item no. HD-060-E

Industrial-type boom stand with sturdy base and Ø 25mm diameter vertical and horisontal post in Stainless Steel that extends over the working area. ESD-protected for EPA environments. Designed for Inspectis Digital Microscopes.

Provides complete flexibility for horisontal and vertical adjustment of Digital Microscope.

Download data sheetSee video

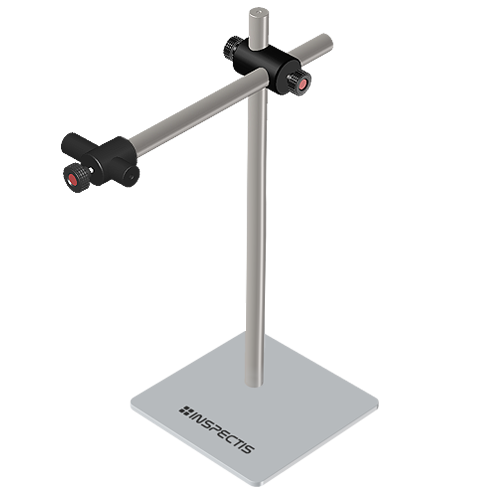

Inspectis Single-arm Boom Stand, Long Working Distance

Item no. HD-060-EXT

Industrial-type boom stand with extended L630mm and φ25mm diameter vertical post and φ25mm L380mm boom in Stainless Steel that extends over the working area. Equipped with 90° crossed-adapter and extra L100mm rod for side-mounting of digital microscopes.

Provides complete flexibility for horizontal and vertical adjustment of Digital Microscope. Designed for Inspectis LWD Digital Microscopes.

Download data sheet

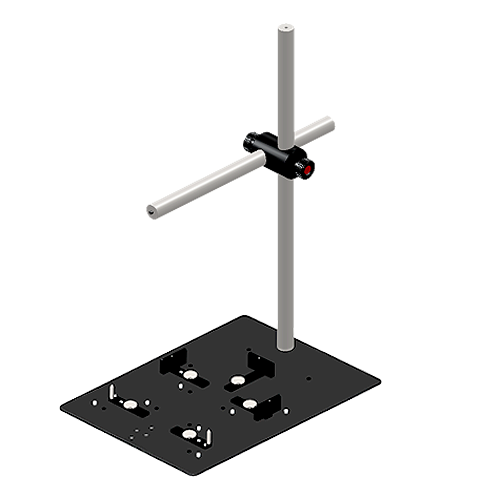

Inspectis Single-arm Boom Stand, LWD, Large Base with PCB Holder, ESD-Protected

Item no. HD-060-LWD-LB-E

Industrial-type boom stand with extended L630mm and φ25mm diameter vertical post and φ25mm L380mm boom in Stainless Steel that extends over the working area. Equipped with adjustable PCB holders and Pegs for easy alignment of the PCB boards under the microscope on the baseplate.

Provides complete flexibility for horizontal and vertical adjustment of Inspectis Digital Microscope. Delivered with 5 pcs PCB holders and 4 pcs stainless steel pegs. ESD-protected  for EPA environments.

Designed for Inspectis Digital Microscopes used with INSPECTIS© OAI software.

Download data sheet

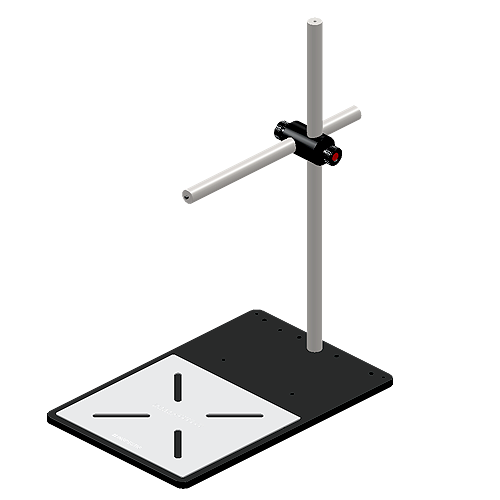

Inspectis Single-arm Boom Stand, LWD, Heavy Duty Base, ESD-Protected

Item no. HD-060-LWD-HD-E

Industrial-type boom stand with extended L630mm and φ25mm diameter vertical post and φ25mm L380mm boom in Stainless Steel that extends over the working area. Heavy duty, stable base with extra threaded holes for mounting U30, F35 and F30 all-in-one Digital Microscopes and/or Motorised Stages.

ESD-protected  for EPA environments.

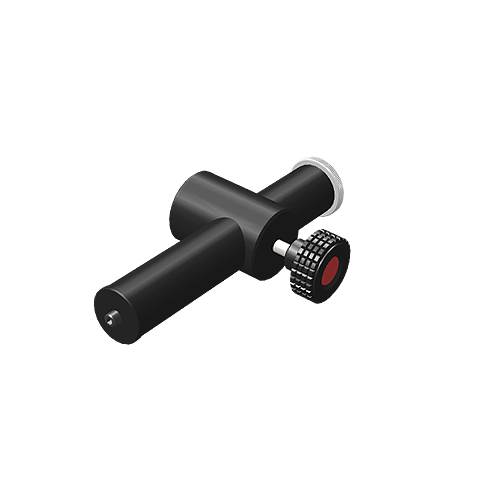

XY-tilt module and Rack & Pinion Focusing Adapter for Single-arm Boom Stand

Item no. HD-061

Mechanical adapter designed to attach on horizontal rod of the Inspectis single-arm boom stands for 90° turning and/or tilting Digital Microscope. In addition, this adapter makes it possible to attach Inspectis Rack & Pinion Focusing units to Single-arm Boom Stands.

Provides angular flexibility for Inspectis Digital Microscopes.

Download data sheetSee video

Inspectis VESA Monitor Holder for LWD Boom Stand

Item no. HD-182

Standard VESA adapter for mounting 21” to 24” displays on vertical post of Inspectis LWD Stands. Mounting the display on the Stand, directly behind the inspection area, creates an ergonomic working position for operators of Inspectis Long Working Distance Digital Microscopes.

Compatible with all Inspectis f25mm (post) LWD Boom Stands. Compatible with 100x100mm and 75x75mm Display VESA-sizes.

Download data sheet

Inspectis Stop Ring, Ø25mm for Single-arm Boom Stands

Item no. HD-183

Ø 25mm stop ring with knurled fixing screw for limiting vertical travel of Stand Boom. Using a stop ring is a convenient and quick way to reference an alternative working distance when using an additional lens.

Compatible with Inspectis Single-arm Boom Stands and light version of Double-arm Boom Stands.

Download data sheet

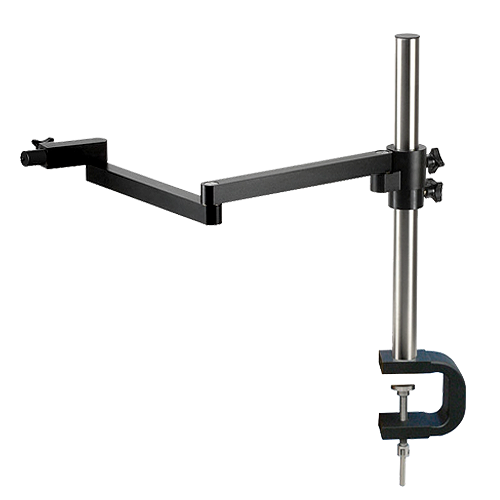

Articulated-arm Boom Stand Clamp Microscope

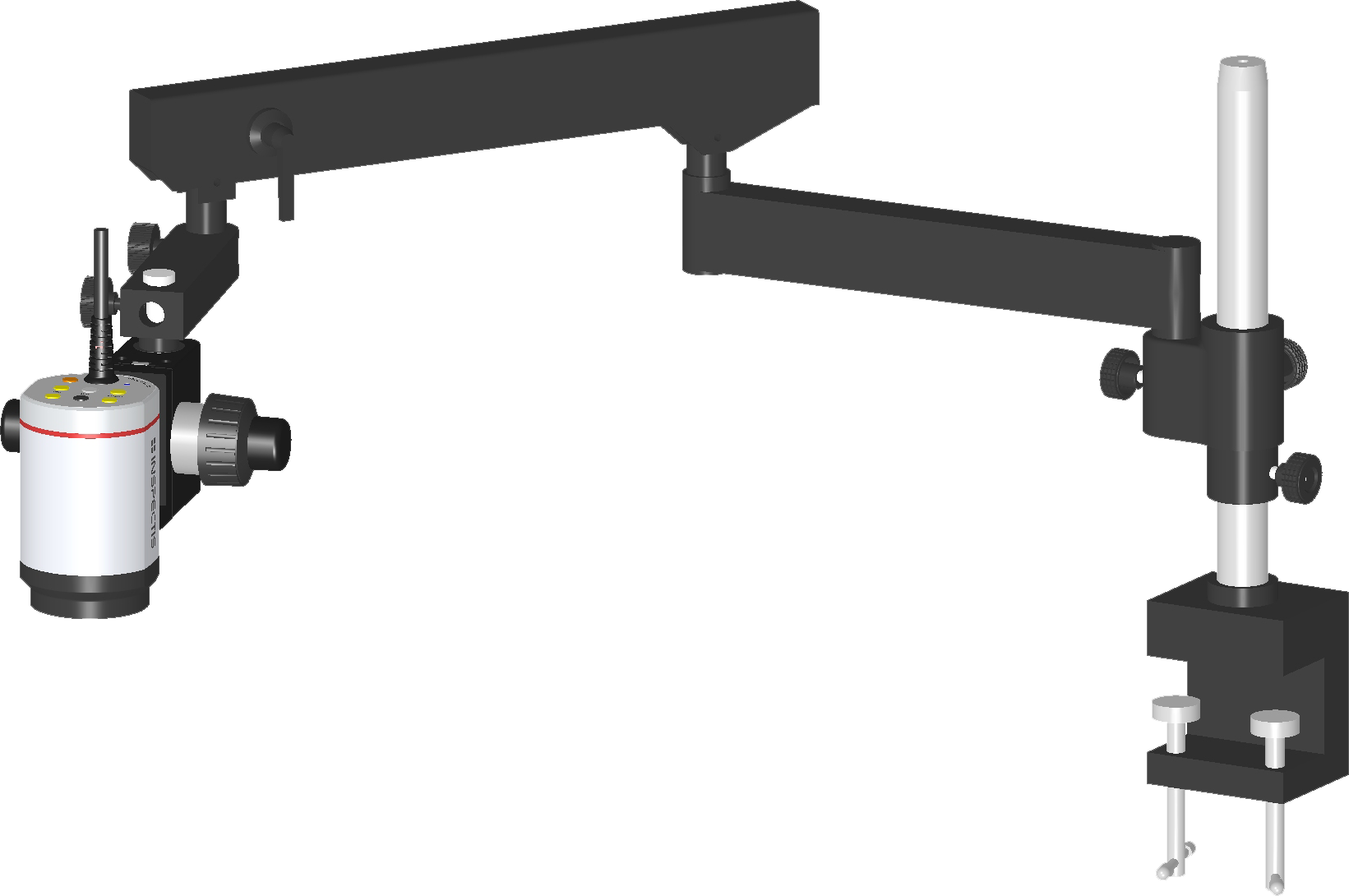

Articulated-arm Boom Stand with Bench-top Clamp

Item no. HD-080

Industrial-type heavy duty swing arm boom with UNC ¼”-20 mounting adapter for Inspectis Digital Microscopes. Working distance of Microscope remains fixed when travelled across the object.

Sturdy bench-top clamp for excellent stability. Provides complete flexibility for horizontal, vertical and angular adjustment.

Download data sheet
Inspectis boom stand

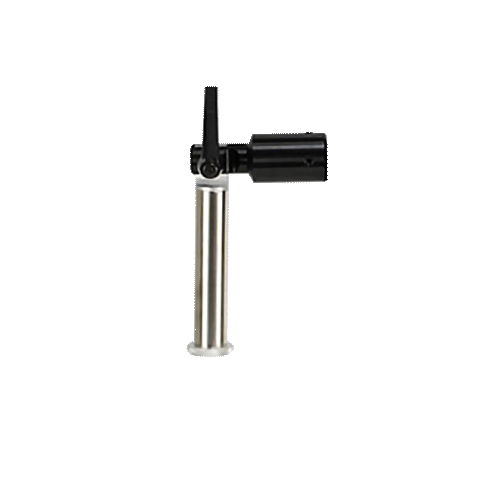

XY-tilt module and Rack&Pinion Adapter for Heavy Duty Double-arm Boom Stand

Item no. HD-061-DA

Industrial-grade spigot for mounting Inspectis Rack&Pinion focusing unit on heavy duty double-arm boom stand.

Provides flexibility for Z-movement, tilting and angular adjustment of the Digital Microscope.

3-axis Articulated-arm stand

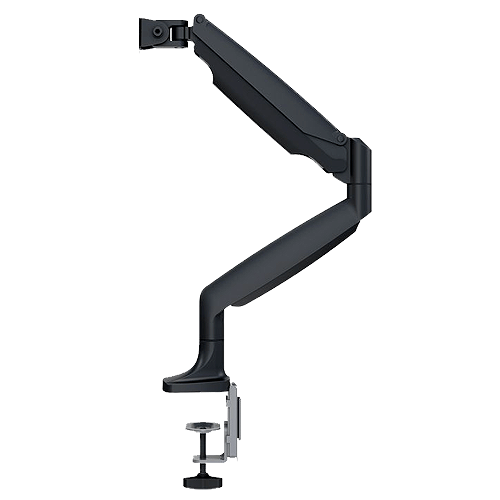

 3-axis Articulated-arm Light Stand with Bench-top Clamp

Item no. HD-081

Gas-spring articulated arm stand with UNC ¼”-20 mounting adapter for Inspectis Digital Microscopes. Weight balanced to hold the digital microscope steady in all positions.

Sturdy bench-top clamp for excellent stability. Provides complete flexibility for horizontal, vertical, and angular adjustment.

Optional camera grip handle is provided for ease of use.

Download data sheet

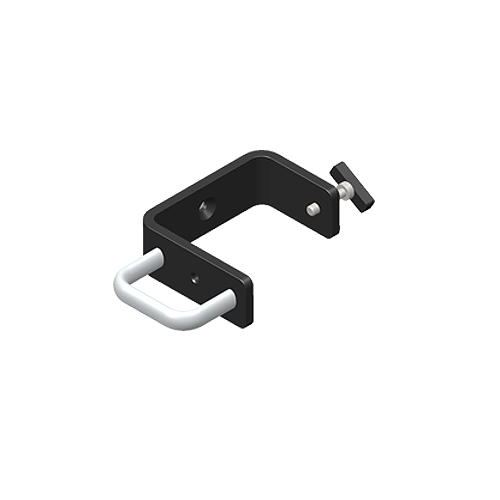

Inspectis Camera handle grip

Item no. HD-173

Handle grip designed for Inspectis 3-axis articulated and XY travel stands. For user friendly displacement of the Digital Microscope over inspection object.

Download data sheet
Rack-&-Pinion Focusing z-movement

Rack-&-Pinion Focusing module, Standard

Item no. HD-090

Industrial-grade Rack & Pinion focusing module with 25mm mounting hole and 50mm stroke. For adjusting working distance and/or focus of the  Digital Microscopes.

Download data sheet
Coarse-Fine z-adjustment

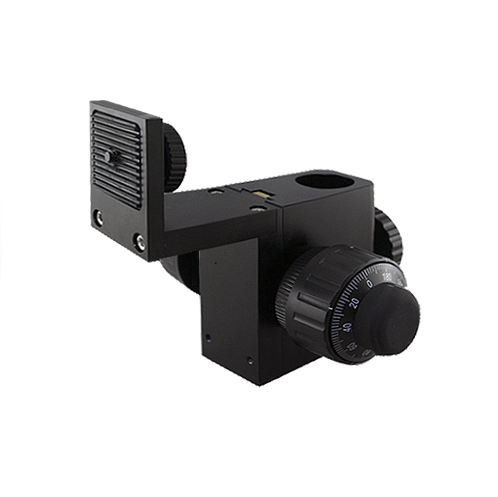

Rack-&-Pinion Focusing module,Coarse/Fine motion

Item no. HD-090-CF

Industrial-grade Rack & Pinion focusing module with 25mm mounting hole and 65mm stroke. For adjusting working distance and/or focus of the Digital Microscopes.

The Coarse/Fine feature of this device makes it ideal for precise focus adjustment of the Digital Microscope when high diopter +10, +28 and +56 close-up lenses are used.

Download data sheet

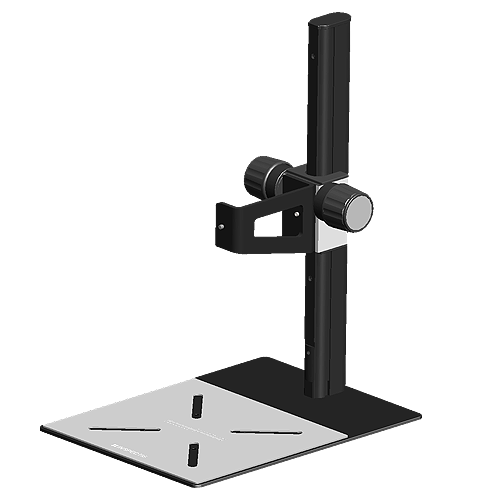

Track stand antistatic

Track stand, Large Base with focusing WD 35-410mm, ESD-Protected base

Item no. HD-210-LB-E

Industrial-quality track stand with large size antistatic coated base and rack & pinion for focus and working distance adjustment of Digital Microscopes.

Track height of 500mm provides a practical range that allows easy viewing of small and large objects. Compatible with all Inspectis modular Digital Microscopes.

Download data sheet

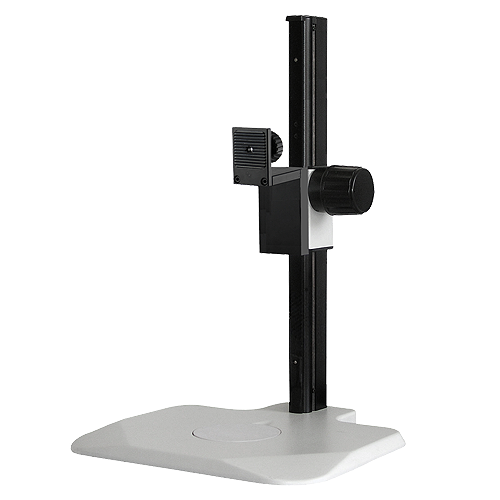

Track stand digital microscope

Track stand with Focusing WD 35-410mm

Item no. HD-210

Standard track stand with sturdy base and rack & pinion for focus and working distance adjustment of Digital Microscope

Provides flexibility for fine focusing of the image or working distance adjustment, specially when extra diopter lenses are used.

Track height of 500mm provides a practical range that allows easy viewing of small and large objects.

Download data sheet
Stroke stand

XY-travel Stand, Table-top

Item no. HD-180

Industrial grade XY-travel stand providing smooth lateral movement of the Digital Microscope over the object under inspection. Designed for inspection of  large objects or for processes where object handling is undesirable.

Custom cut linear guiding system mounted on high density aluminum profile for X-travel and a rigid custom sized double-arm boom for Y-stroke. The height of the linear guide can be adjusted and set for desired working distance of the Digital Microscope.

4-direction tilt unit, Camera grip handle, and Z-extender brackets are available for XY-travel Stand as extra accessories.

Extra long travel range with 80x40mm X-profile and twin-housing design is available on request.

Download data sheet
XY stroke

XY-travel Stand, In-Line

Item no. HD-170

Industrial grade XY-travel rack mount providing smooth lateral movement of the Digital Microscope over inspection object. Designed for installation in commonly used industrial racks to provide fully integrated online inspection solutions. Ideal for assembly over conveyor lines or for processes where object handling is undesirable.

Custom cut linear guiding system mounted on high density aluminum profile for X-travel and a rigid custom sized double-arm boom for Y-travel. The X profile is fitted with mounting brackets to allow the correct setting of working distance during installation in the user’s rack system.

4-direction tilt unit, Z-extender bracket and camera grip handle are available for XY-travel Stand as extra accessories.

Download data sheet

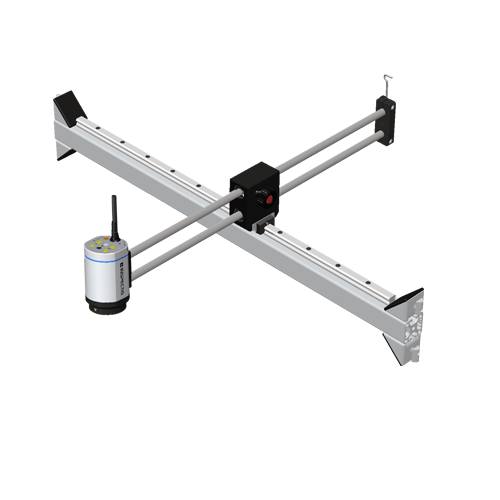

conveyor line stand

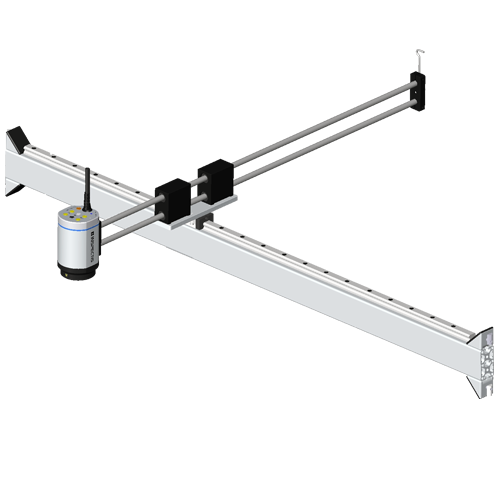

XY-travel Stand, In-Line, Long Range

Item no. HD-170-LR

Industrial grade long range XY-travel rack mount providing smooth lateral movement of the Digital Microscope over inspection object. Designed for installation in commonly used industrial racks to provide fully integrated online inspection solutions. Ideal for assembly over conveyor lines or for processes where object handling is undesirable.

Custom cut linear guiding system mounted on 80x40mm aluminium-profile for X-travel and twin-housing design custom sized double-arm boom for Y-travel. The X profile is fitted with mounting brackets to allow the correct setting of working distance during installation in the user’s rack system.

4-direction tilt unit, Z-extender bracket and camera grip handle are available for XY-travel Stand as extra accessories.

tilt unit for digital microscopes

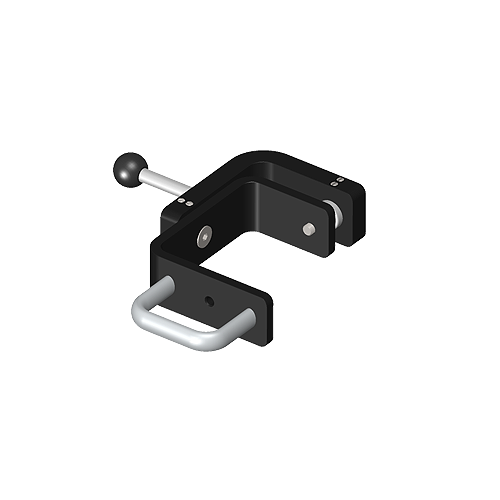

4-direction Tilt Unit for Travel Stands

Item no. HD-171

The Inspectis 4-direction tilt unit provides quickly repeatable ± 30° slope angles along both X and Y-axes. Designed for side viewing of the object under inspection whilst retaining the position within the  standard working distance of the Inspectis Digital Microscope. Equipped with individual X- and Y-handles and discrete stops at 30°angles for easy operation.

Made of high quality aluminum and Stainless Steel parts.

Download data sheetSee video
Z-movement

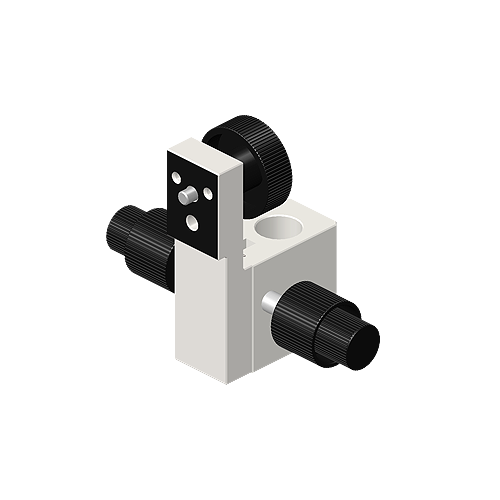

Rack-&-Pinion Focusing module for travel stands, Coarse/Fine

Item no. HD-172

Industrial-type Rack & Pinion module with Coarse/Fine motion for axial Z-movement of Inspectis digital cameras mounted on XY-travel stands.

Especially advantageous when macro lenses +3, +5 or +10 macro lenses are used.

Download data sheet

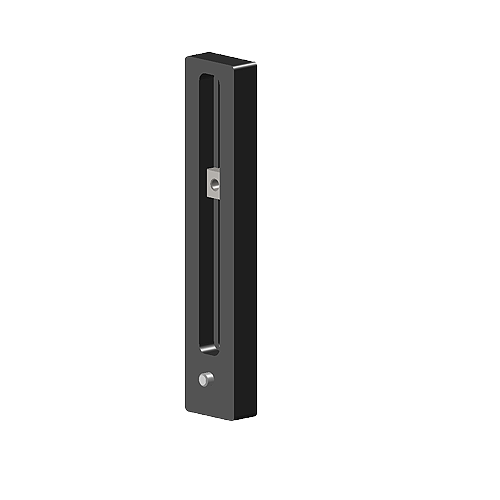

Z-movement bracket for XY-travel Stands, 115mm travel

Item no. HD-181

Z-movement Bracket enables vertical (height) adjustment of the Digital Microscope over inspection object when extra diopter lenses are attached to the camera.

Working Distance of F and U series Digital Microscopes can be adjusted by 115mm without changing vertical position of the stand rail using Z-movement Bracket.

Extended 200mm travel is available on request.

Download data sheet

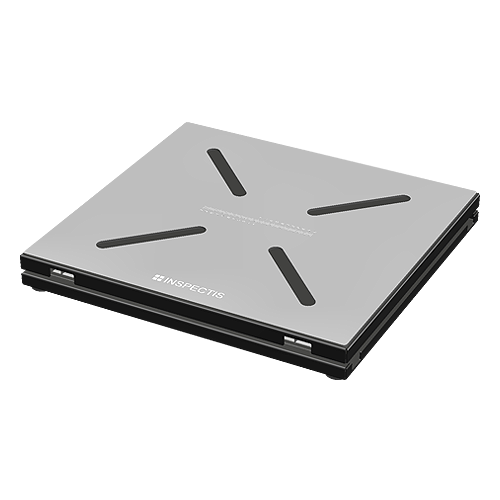

xy-board large

XY Floating Board

Item no. HD-028

XY Floating board with large stroke (± 160mm x ± 145mm) and smooth lateral movement of PCB:s and other objects under the microscope.

The working surface is covered by a high friction antistatic mat that keeps your inspection object in place. 4 slots are available for attaching optional magnetic pegs or custom made fixtures and holders.

Made of high quality antistatic coated material.

Download data sheet
large xy-board PCB inspection

XY Floating Board with Position Lock

Item no. HD-028-S

XY Floating board with large stroke (± 160mm x ± 145mm) and smooth lateral movement of PCB:s and other objects under the microscope. Equipped with position locking mechanism for maximum stability.

The working surface is covered by a high friction antistatic mat that keeps your inspection object in place. 4 slots are available for attaching optional magnetic pegs or custom made fixtures and holders.

Made of high quality antistatic coated material.

Download data sheet

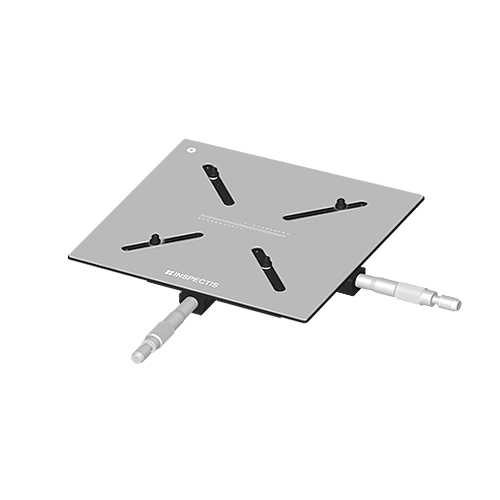

XY-board precision

 Precision XY-stage 50x50mm travel

Item no. HD-184

Precistion XY-stage with 50x50mm stroke and micrometer screw drives for accurate lateral movement of objects under the microscope.

The working surface is covered by a high friction antistatic mat that keeps your inspection object in place. 4 slots are available for attaching included magnetic pegs or custom made fixtures and holders. GND connection point is provided on the stage.

Made of high quality antistatic coated material.

Motorised XY-stages with controller

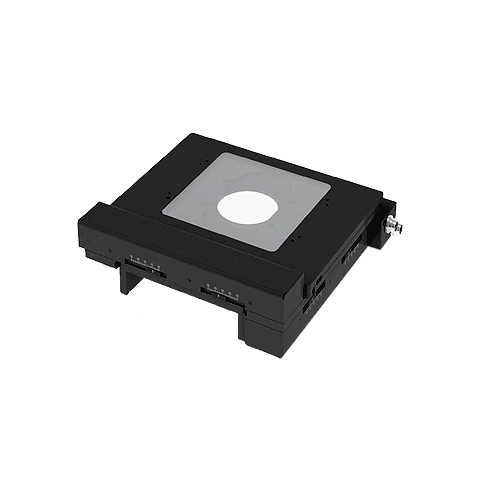

 Precision Motorised XY-stage, 100x100mm travel

Item no. HD-186

Precistion motorised XY-stages from Märzhäuser with 100x100mm stroke for accurate lateral movement of objects under the microscope.

Complete kit including Controller, Joy-stick and Software. Options include:
100x100mm travel
150x150mm travel
200x200mm travel
300x300mm travel
Märzhäuser 2-axis Joystick for TANGO Controller
Märzhäuser TANGO 2 PCI-E Controller for operation of 2 motor axes
Märzhäuser TANGO 2 Desktop controller for operation of 2 motor axes
Märzhäuser TANGO 3 mini for control of up to 3 motor axes
Heavy duty Base Plate for Motorised XY-stages

tilt-table

 Tilt Board

Item no. HD-029

Tilt board for smooth movement of the inspection objects up to 30 degrees angle in all directions.

Working surface of the board is covered by high friction antistatic mat to keeps your inspection object in place. 4 slots are available for attaching magnetic pegs or custom made fixtures and holders.

Made of high quality antistatic coated material.

Download data sheet

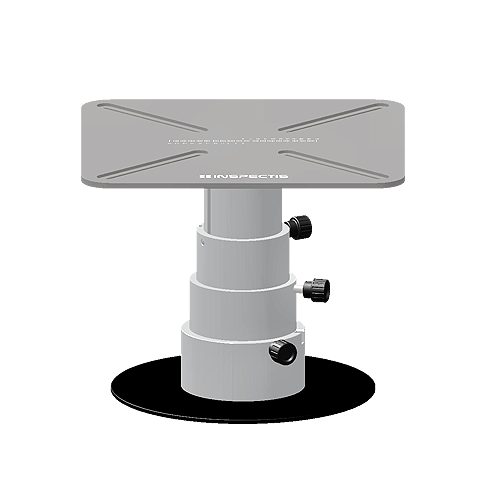

Digital Microscope

Telescopic Height Adjustment Table

Item no. HD-050

The Inspectis Telescopic Height Adjustment Table provides 103mm vertical displacement of your inspection objects along optical axis of the digital microscope.

The working surface is covered by a high friction antistatic mat that keeps your inspection object in place. 4 slots are available for attaching optional magnetic pegs or custom-made fixtures and holders.

Designed to adjust Working Distance of  F30, F35 and U30 Digital Microscopes to your inspection object when +1, +2, +3 and +5 dipoter macro lenses are used.  Made of high quality antistatic coated material.

Download data sheet
Digital microscope

Telescopic Height Adjustable Tilt Table

Item no. HD-150

The Inspectis Telescopic Height Adjustment Table provides 103mm vertical displacement of your inspection objects along optical axis and up to 30 degrees angle of the inspection objects under digital microscope.

The working surface is covered by a high friction antistatic mat that keeps your inspection object in place. 4 slots are available for attaching optional magnetic pegs or custom-made fixtures and holders.

Designed to adjust Working Distance of  F30, F35 and U30 Digital Microscopes to your inspection object when +1, +2, +3 and +5 dipoter macro lenses are used.  Made of high quality antistatic coated material.

Download data sheet
for PCB inspection

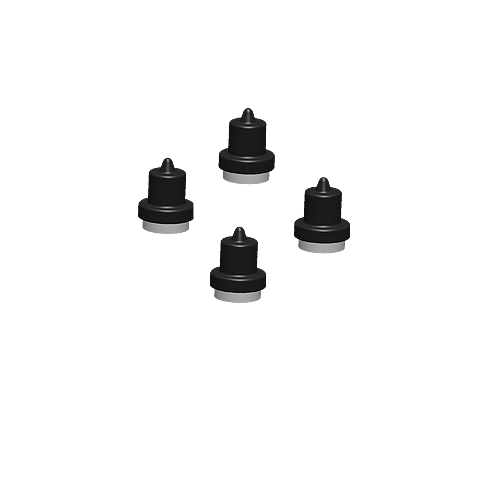

Magnetic pegs (4x kit)

Item no. HD-128

Antistatic rubber coated magnetic pegs for stable holding of objects under inspection. Compatible with Inspectis Stands, XY-floating tables, Telescopic height adjustment tables and Tilt boards.

xy-board large

XY Floating Board

Item no. HD-028

XY Floating board with large stroke (± 160mm x ± 145mm) and smooth lateral movement of PCB:s and other objects under the microscope.

The working surface is covered by a high friction antistatic mat that keeps your inspection object in place. 4 slots are available for attaching optional magnetic pegs or custom made fixtures and holders.

Made of high quality antistatic coated material.

Download data sheet
xy-board large

XY Floating Board

Item no. HD-028

XY Floating board with large stroke (± 160mm x ± 145mm) and smooth lateral movement of PCB:s and other objects under the microscope.

The working surface is covered by a high friction antistatic mat that keeps your inspection object in place. 4 slots are available for attaching optional magnetic pegs or custom made fixtures and holders.

Made of high quality antistatic coated material.

Download data sheet
