4K Performance with 30x Optical Zoom and On-board controls

Preminum Image Quality

Best-on-the-market Ultra High Definition 8.3 megapixel modular Digital Microscope with 30:1 motorised optical zoom, swift centre-spot auto focus, and easy-to-access on-board lens & camera controls.  Standard UNC 1/4-20″ mount for assembly on most standard stands.

Endlessly Versatile

Modular design of  the U30s in industrial grade aluminium housing and excellent cable management allows easy configuration of your optical inspection system with a wide range of stands, mounts, illuminations and control consoles   according to your needs.

When you require the best

Inspectis U30s digital microscope with its superior image quality, high contrast and true colours is the best choice for High Resolution Optical Inspection, Analysis, Quality Control, R&D, Metrology, Reporting and Documentation of objects up to 840x magnification.

Modular

Easy to Use

Reliable

Optimized For Optical Inspection of Fine Detail

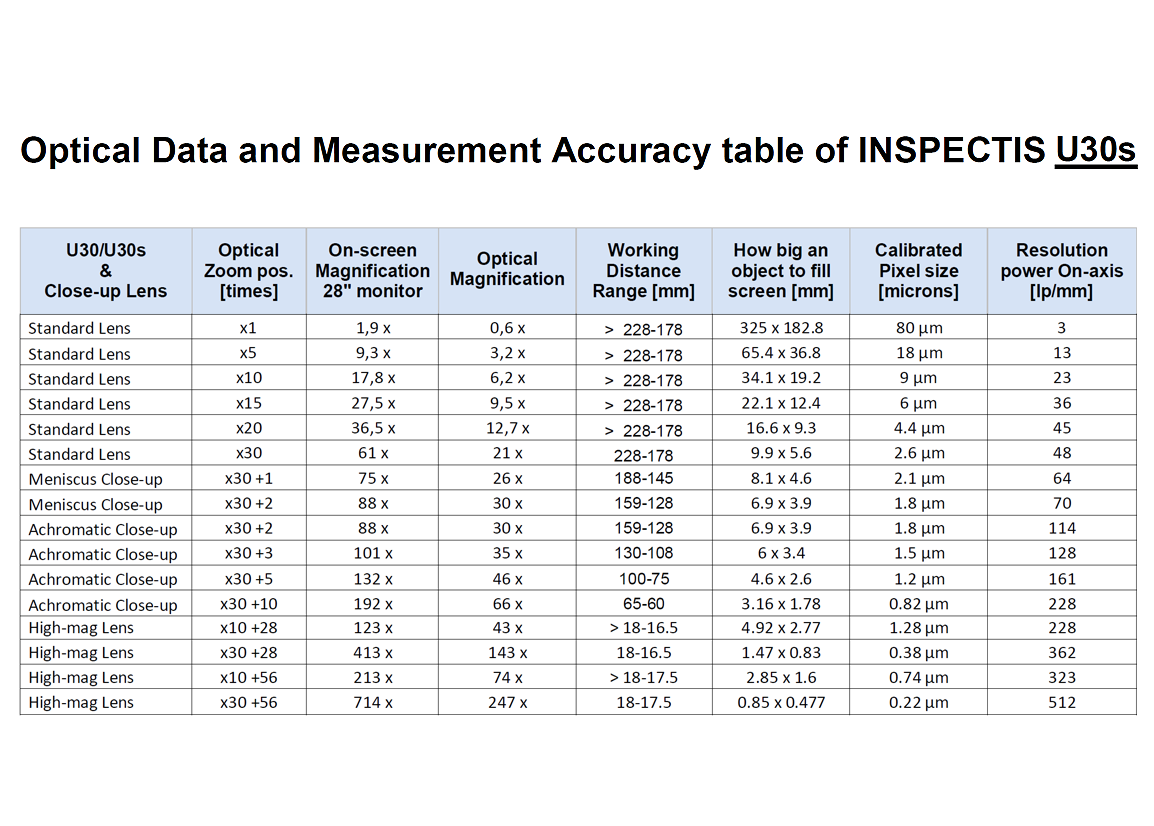

The system’s standard 30:1 zoom optics produces ~ 2.1 – 61.4x magnification on 28” monitor. With extra dioptre macro lenses attached, up to 719x magnification equal to 0.84 (H) x 0.48 (V) mm field of view and 512 lp/mm resolution power can be achieved.

Precise Camera and Lens Control

On-board controls of U30s provides direct access to camera and lens attributes like optical zoom, aperture size, focus and colour balance.

SDK is supplied for integration and control of the the digitial microscopes in 3:th party systems.

Remote Control Consoles

A wide range of remote controls are available for further adjustments of camera and lens attributes, including zoom, brightness, lens aperture size (iris), manual focus, white balance and various filters. Features such as the zoom factor display, cross-hair overlay on live image, can be turned on. In addition 2-7 memory settings and quick recalls is provided with remote controls.

Configurable with Bench-top XY-Travel  Stand

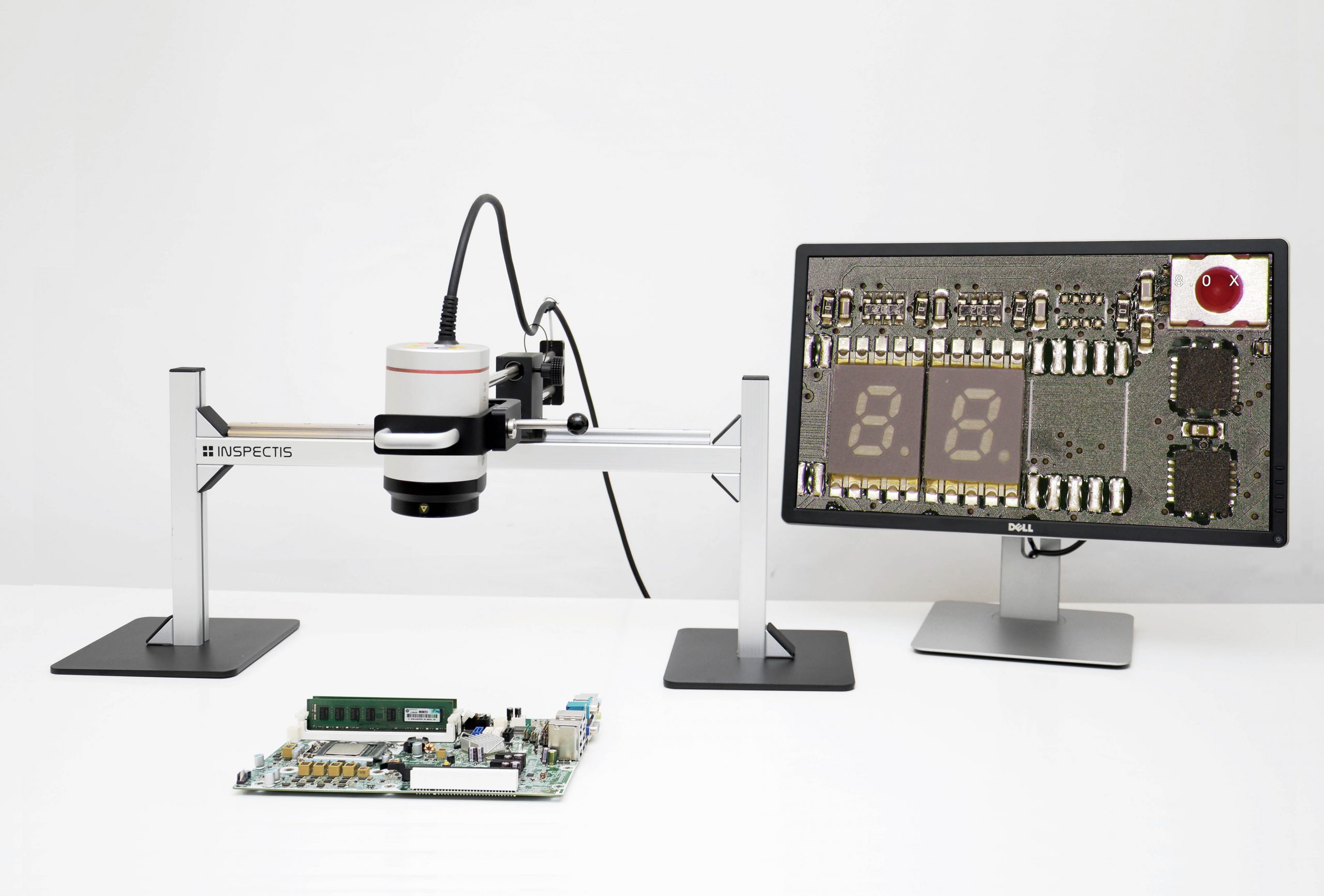

Inspectis U30s digital microscope can be assembled on the long-range XY-stands with all-direction tile unit for touch-free inspection of large PCBs or other objects.

X- and Y-travel lengths of the stand can be defined according to your specification.

Configurable for In-Line Inspection

With its excellent durable single-cable design the U30s is the best choise for in-line optical inspection and quality control tasks.

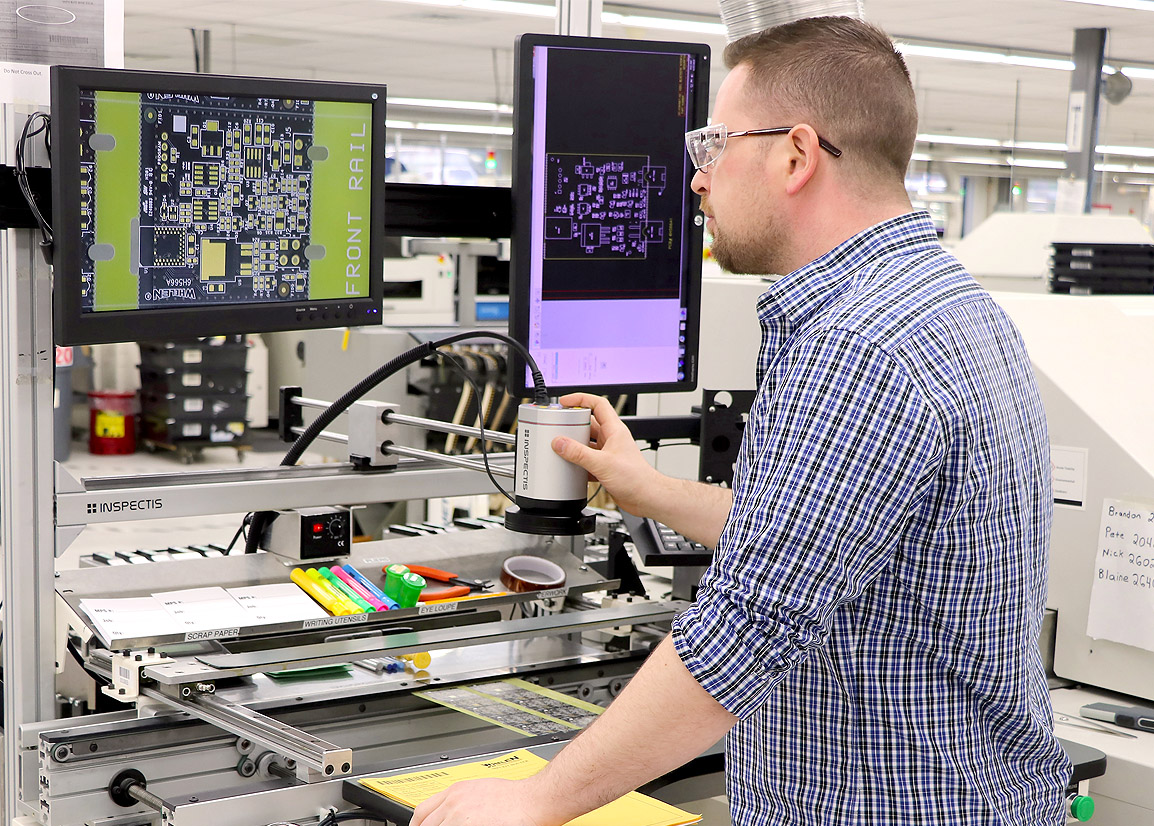

Together with Inspectis industrual grade XY-travel stands, the optical system can be easily adapted to existing SMT production lines over the convayer belt.

Customised Mounting Solutions

Personalise U30s to your exact requirement by selecting from a comprehensive range of Boom-type, Rack-type or Articulated-arm stands.

Go to Stands and Mounts

Power U30s by INSPECTIS© Software

In addition to direct view of the live image on a 4K monitor via HDMI a variaty of software options with different functionality levels are available for U30s.

INSPECTIS© Basics
INSPECTIS© Pro
INSPECTIS© ProX
INSPECTIS© OAI

Go to INSPECTIS© product page

Included items when you order HD-016

  • Inspectis U30s, Ultra HD 2160p Modular Digital Inspection Macroscope, x30 Zoom.
  • Power supply.
  • Instructions manual and other document.
  • Two years new product warrany.
Inspectis 4K

Downloads

Download Product Matrix

Brochure_Inspectis-U30-U30s

Download Brochure

Send download link to:

I have read and agree to the Inspectis privacy policy. *

Product video

Specifications

SYSTEM
Video OutputUltra HD 2160p/30, switchable to Full HD 1080p/60 (by Software). HDMI type A Male connector
Imager8.5 Mpixels. 3840(H) x 2160(V) 16:9 format. Progressive scan CMOS image sensor
Onboard ControlsZoom, Iris, Auto Focus on/off, White Balance, 4K to Full HD format swap
Remote Control Unit (optional )Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, White Balance, Picture Quality Mode, Display Text, Haircross overlay, Image Rotate, Image Freeze, Memory Save/Recall (2 pcs), Foot-switch, Video Output Format and Frame Rate.
OPTICS
Video OutputUltra HD 2160p/30, switchable to Full HD 1080p/60 (by Software). HDMI type A Male connector
Imager8.5 Mpixels. 3840(H) x 2160(V) 16:9 format. Progressive scan CMOS image sensor
Onboard ControlsZoom, Iris, Auto Focus on/off, White Balance, 4K to Full HD format swap
Remote Control Unit (optional )Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, White Balance, Picture Quality Mode, Display Text, Haircross overlay, Image Rotate, Image Freeze, Memory Save/Recall (2 pcs), Foot-switch, Video Output Format and Frame Rate.

Optional accessories

Ring-light White LED

Ring Light White LED with detachable diffuser

Item no. HD-024-B

LED illuminator containing high power white LED lamps for a various incident light applications. Detachable diffuser filter and integrated brightness control for smooth and soft illumination included. Powered directly via AUX output of Inspectis Digital Microscopes for excellent cable management.

Explore Illuminations
+5 diopter macro lens

Macro Lens +5 Diopter, 67mm

Item no. HD-039

+5 diopter optical power achromatic close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 210%.

Explore other Lenses
Antistatic boom stand for digital microscope

Inspectis Double-arm Boom Stand, Light, ESD-protected

Item no. HD-071-E

Industrial-type light double-arm boom stand with UNC ¼”-20 mounting screw for Inspectis Digital Microscopes.  Solid metal 240mm x 240mm x 8mm base for stability and double-rod boom with ball bearing for smooth rigid horisontal movement of the Digital Microscope.

ESD-protected for use in EPA environments.

Provides stability and flexibility for horizontal and vertical adjustment of the Digital Microscope across object filed.

Explore Stands & Stages
INSPECTIS Overlay comparision software

Upgrade to INSPECTIS© ProX Image Capture and Metrology software with Real-time Camera Control

Item no. -PX

Advanced metrology, analysis and utility software with real-time camera and lens controls. Besides metrology, analysis and documentation features, ProX provides following extra tools:

• Automatic focus stacking (Field of view extender)
• Manual focus stacking
• Time lapse video recording
• Time interval Overlay Assisted Inspection (OAI)
• Optical edge detection and DXF export
• DXF new, import, edit and export
• Drawing toolbox for DXF edit
• DXF overlay on live image
• DXF export as PNG file
• PNG overlay on live image as digital graticule
• Automatic alignment of overlaid image to live image
• Automatic rescaling of overlaid image through zoom

Explore INSPECTIS© software, SDK & Converters
4K HDMI Image Capture & video recorder

Inspectis 4K External HDMI Image Capture and Video Recorder for U-microscopes

Item no. HD-140-U

High-quality, plug-&-play 4K HDMI Capture and Video Recorder device with 4K video loop-through. Compatible with 2160p output signal of Inspectis U30, U30s, U10 and U10s Digital Microscopes. Captures still pictures at UHD resolution and digital video at FHD format on a Micro SD-card without need of a host computer.

Live loop through video output at 4K, 2160p format. Supplies date and time stamp on still picture and recorded video. Delivers with power supply, HDMI A-type male cable and Micro SDHC-card.

Assembled in industrial grade aluminium housing with stainless-steel bottom plate.

Explore Image Capture Devices

More accessories:

A wide variety of accessories are available for INSPECTIS digital microscopes.
