Illumination

Inspectis White RingLight, Large Aperture with Diffuser and Dimmer

Item no. HD-124-LA

Industrial grade large diameter ring light containing 48 white LEDs and built-in low-haze diffuser filter for a wide range
of oblique incident lighting applications. Particularly useful for highly reflective objects such as PCBs and metallic parts.

The large aperture ring light creates high intensity and homogeneous illumination with a wide incidence angle and a
colour temperature optimized for INSPECTIS digital microscopes. Its integrated controller with electronic dimmer and
brightness indication lamps enables the operator to set the brightness in 5 repeatable levels.

For optimal cable management, the ring light is powered directly via the Inspectis digital microscope.

White RingLight with Dimmer and Segment Control

Item no. HD-124

Industrial grade ring light containing 32 white LEDs arranged along a ring in 4 selectable segments. For a wide range of incident straight or oblique lighting applications. Homogenous and high-intensity light output with optimal color temperature. Integrated controller with electronic dimmer. Individual segment control and automatic rotation of segments around the ring.

For optimal cable management, the ring light is powered directly via the Inspectis digital microscope. Optional Diffuser filters and Polariser/Analyser filters are available for use with the ring light.

Ring Light White LED with detachable diffuser

Item no. HD-024-B

LED illuminator containing high power white LED lamps for a various incident light applications. Detachable diffuser filter and integrated brightness control for smooth and soft illumination included. Powered directly via AUX output of Inspectis Digital Microscopes for excellent cable management.

Diffuser Filter For Dual White & UV Ring Light

Item no. HD-124-D

The diffuser scatters the emitted light from LED light sources, turning small, bright, and directional point sources into a larger, broader, and more uniform illumination. In addition to improving colour accuracy, the diffuser eliminates the intense reflections on shiny surfaces. This allows the camera to capture the actual colour, texture, and topography of the specimen without being affected by hotspots.

Made of black anodized aluminium and opal filter. The Diffuser Filter is easily mounted on Inspectis Dual White & UV RingLight with Segment Control and secured with a thumb screw.

RingLight UV LED including protection glass

Item no. HD-025-B

Flicker free UV LED ring light with homogeneous illumination at 365nm wavelength range. Integrated ON/OFF switch and brightness control. Ring light is powered directly via AUX output of the Inspectis Digital Microscopes or via optional power supply for compatibility with other devices.

UV-protection glasses (one pair included with kit) must be used when working with this illuminator.

Dual White & UV RingLight with Dimmer and Segment Control

Item no. HD-124-WUV

Industrial grade ring light containing 32 white, and 8 high power UV LEDs arranged along two rings. For applications where sequential or independent white and UV illumination is needed. Homogenous and high-intensity light output. Integrated On/Off switch with electronic dimmer. Dedicated switches for UV and segment control.

For optimal cable management, the ring light is powered directly via the Inspectis digital microscope. Optional Diffuser filters and Polariser/Analyser filters are available for use with the ring light.

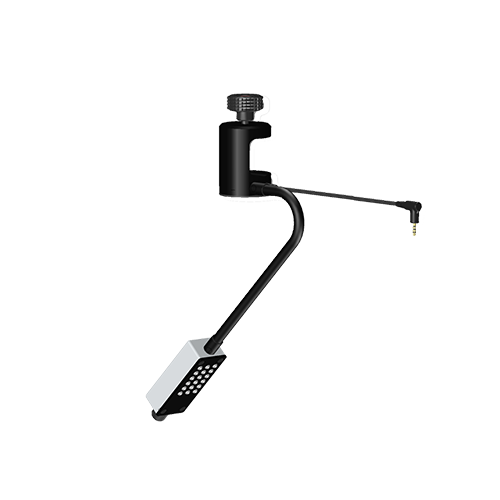

 Single-Spot LED matrix light with gooseneck

Item no. HD-125

LED illuminator containing 18 ultra-bright white LED lamps mounted on gooseneck arm for various oblique incident light applications. Equipped with a universal clamp compatible with all Inspectis microscope Stand models. Optimised for illumination of large and shiny surfaces like electronics PCBs and metal parts.

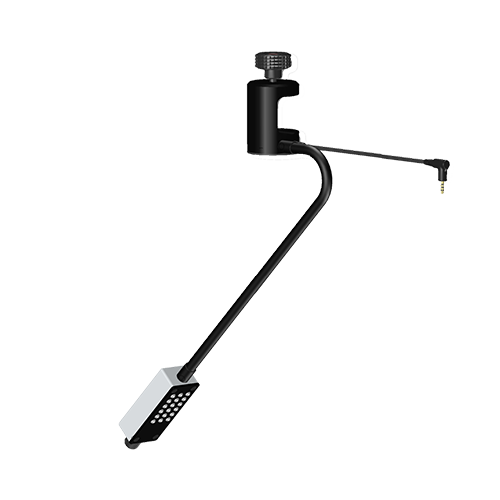

 Single-Spot LED matrix light with long gooseneck

Item no. HD-125-L

LED illuminator containing 18 ultra-bright white LED lamps mounted on gooseneck arm for various oblique incident light applications. Equipped with a universal clamp compatible with all Inspectis microscope Stand models. Long gooseneck for use together with LWD digital microscopes.

Optimised for illumination of large and shiny surfaces like electronics PCBs and metal parts.

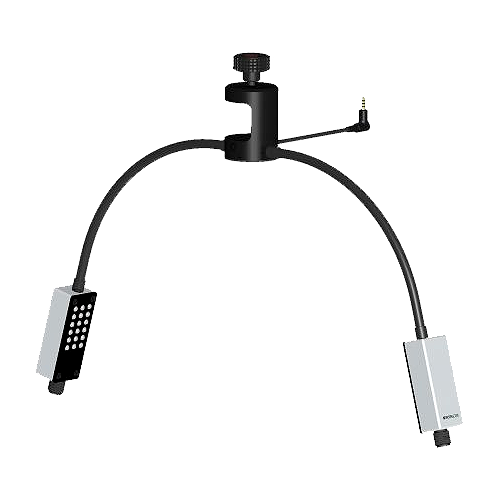

 Double-Spot LED matrix light with gooseneck

Item no. HD-126

Double-spot LED illuminator containing 2×18 ultra-bright white LED lamps mounted on gooseneck and individual intensity control arm for various oblique incident light applications. Equipped with a universal clamp compatible with all Inspectis microscope Stand models. For high-contrast illumination of different specimens and applications.

Long gooseneck for use together with LWD digital microscopes.

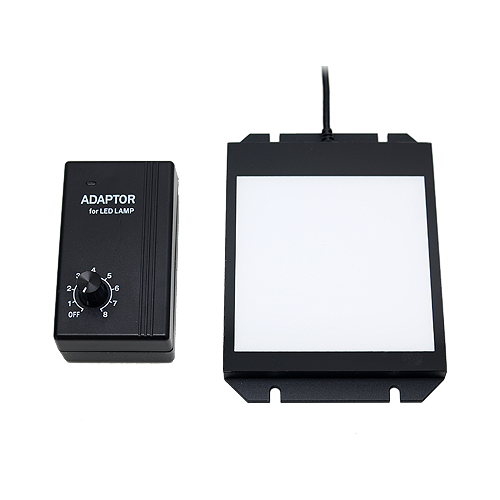

Universal LED Transmitted Backlight with intensity adjustment control

Item no. HD-127

Slim Light panel with homogeneous white light for bright-field illumination of inspection objects. Inspectis universal LED backlight contains LED light sources mounted across a diffuser with protecting glass for uniform and soft illumination.

Delivers with power supply and EU, US or UK type mains cable.

Polarisation filter set for RingLight, 67mm

Item no. HD-024-P-U

Polarising filter set consists of a polariser which is attached on front of the LED RingLight and an analyser which is screwed on the camera lens.

For polarised light microscopy and for eliminating glare from highly reflective objects like solder joints.

Download Brochure for Inspectis Ring-Lights
