Advanced 4K & Full HD Inspection & Measurement. Superior image quality for quick and reliable inspection and measurement. Available in both 4K and Full HD. Our Digital Microscopes deliver up to 60fps video technology, Powered by INSPECTIS© software.
4K & Full HD inverted optical inspection system with motorized zoom, auto-focus, and large aperture illumination. Designed specifically for weld bead analysis and measurement. Complete with dedicated INSPECTIS© software for documentation and reporting.
High-speed 4K & Full HD modular digital microscope with 60 fps, and a totally configurable industrial design. Our versatile optical systems offer advanced measuring capabilities for optical inspection, quality control and metrology, adaptable to any application.
Premium imaging quality for fast and flexible inspection, measurement and documentation of hidden solder joints of BGA, μBGA. FipChip, CSP, CGA and SMD components.
Plug-and-play 4K & Full HD optical systems, ready to use. Connect to a monitor or configure with a wide range of accessories to meet any optical inspection task.
Non-invasive nailfold video capillaroscopy for morphologic analysis of microcirculation, certified to ISO 13485. Analysis of microcirculation abnormalities in rheumatic diseases. Designed for efficient screening and diagnosis of Systemic sclerosis, Raynaud’s phenomenon, and related disorders.
Item no. HD-036
+1 diopter optical power single-element close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 23%.

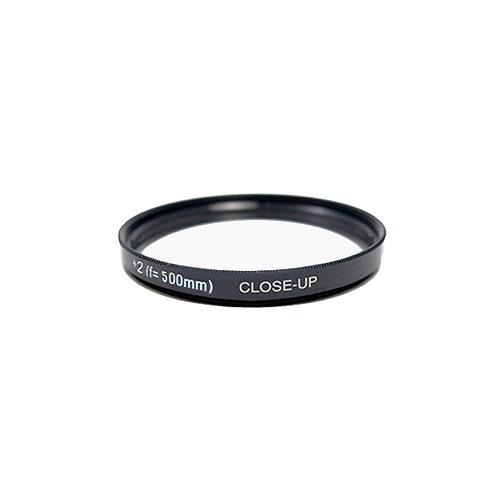

Item no. HD-037
+2 diopter optical power single-element close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 45%.

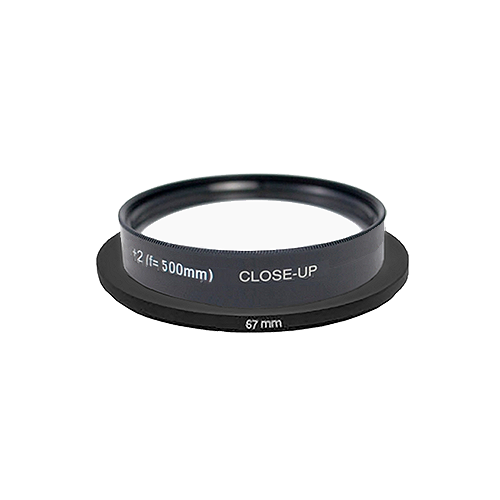

Item no. HD-037-A
+2 diopter optical power achromatic doublet close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 45%.
Item no. HD-038
+3 diopter optical power achromatic close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 65%.
Item no. HD-039
+5 diopter optical power achromatic close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 210%.

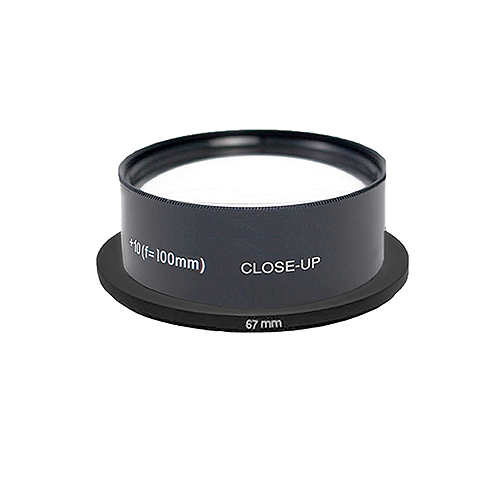

Item no. HD-123
+10 diopter optical power achromatic close-up lens attachable to the standard lens of Inspectis digital microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 320%.

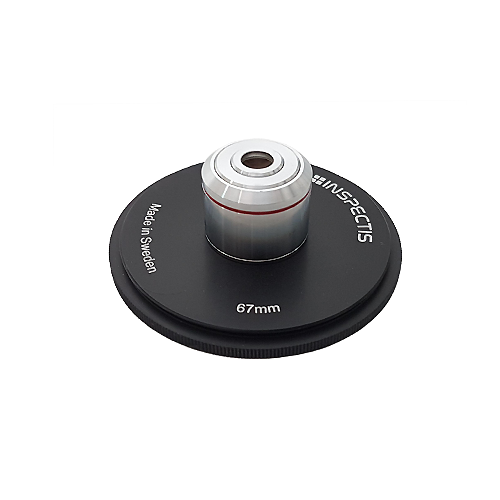

Item no. HD-142
+28 diopter optical power close-up lens attachable to the standard lens of Inspectis digital microscopes. For high magnification applications. Increases overall magnification of F and U microscopes by approximately 6.3 times.

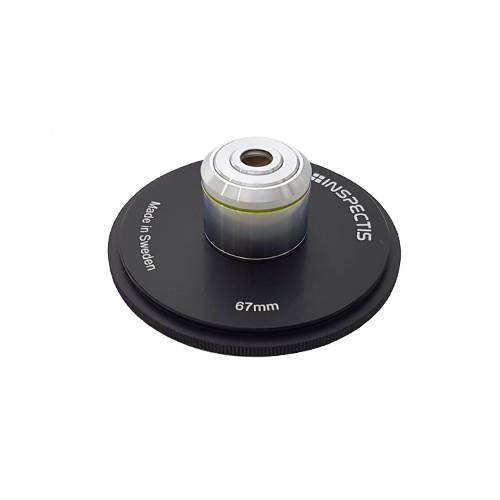

Item no. HD-143
+56 diopter optical power close-up lens attachable to the standard lens of Inspectis digital microscopes. For high magnification applications. Increases overall magnification of F and U microscopes approximately 11.5 times.

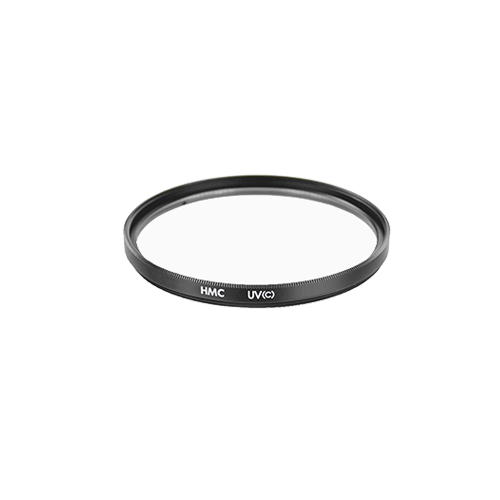

Item no. HD-067
Lens protecting window made of high quality optical glass with multi-layer anti reflection coating. Can be directly attached on Inspectis U and F series digital microscopes or on +1, +2, +3 and +5 macro lenses.
Item no. HD-041
360° rotating viewer for rotating the image at 32° oblique angle by manipulating the optical path without touching the object. Designed for side view inspection of objects while both the digital microscope and the inspection object remain stationary.
Inspectis Rotating Viewer operates in both “side-view” and standard “right-angle-view” modes. Equipped with an optical lens to maintain the working distance in both operating modes without having to change the axial position of the camera.
