4K Performance with 550mm WD and x30:1 Motorised Zoom

Preminum Image Quality

Modular 8.3 megapixel digital microscope featuring long working distance and wide field of view optics that deliver superior, 4K Definition image quality with 550 mm working distances providing magnified imaging where and how you need it!

Endlessly Versatile

Modular design of  the U30s LWD in industrial grade aluminium housing and excellent cable management allows easy configuration of your optical inspection system with a wide range of stands, mounts, illuminations and control consoles according to your needs.

Designed for Ergonomic Use

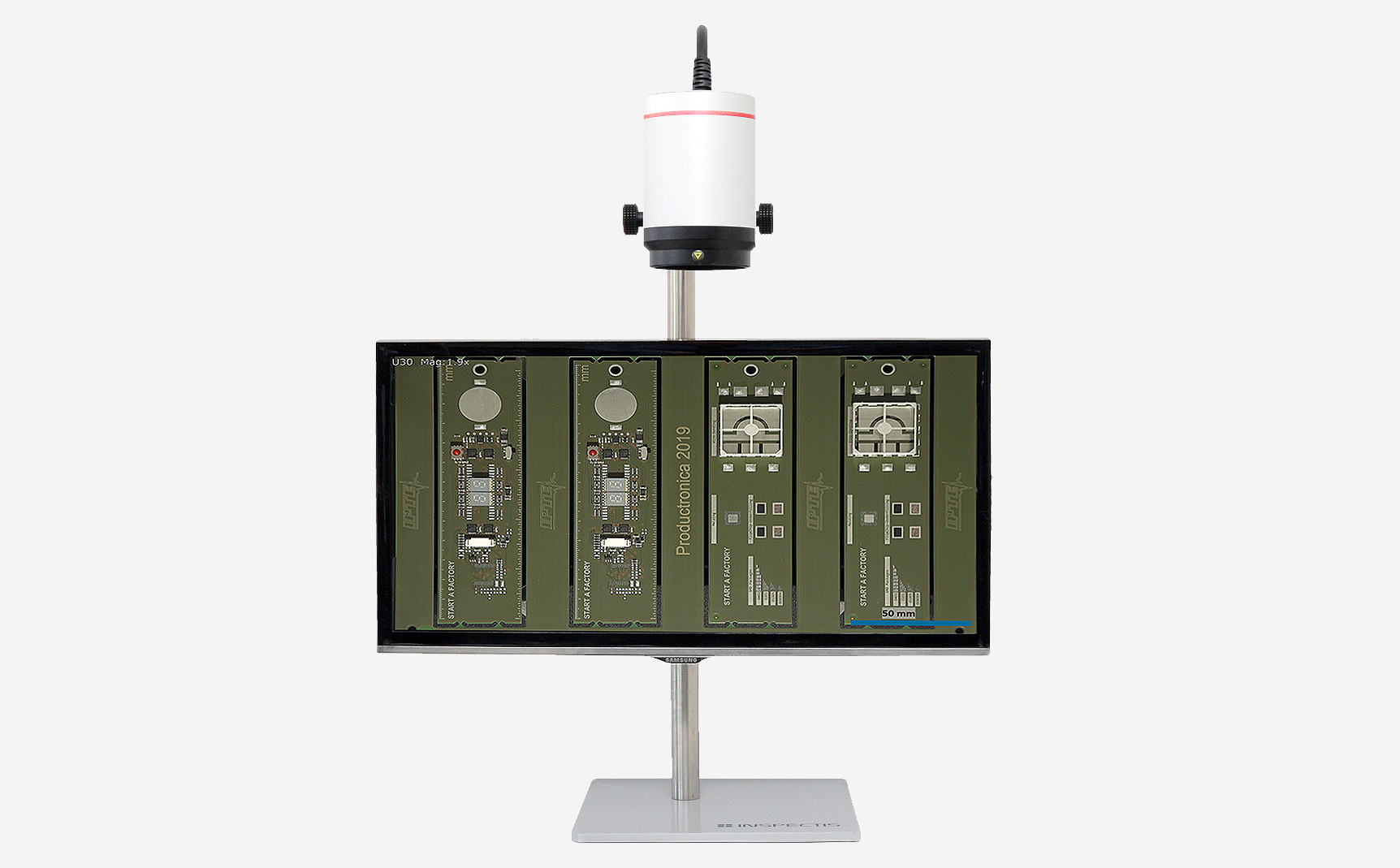

Inspectis U30s LWD provides relief to eyes, neck and shoulders. The extended 550mm working distance provides clear and clutter free bench space for working on objects that you can observe on the monitor right on front of you. You sit comfortably in a good working position and carry out your optical inspection tasks efficiently.

Modular

Long Working Distance

High Resolution

Free View to the Display

The extended 310-550mm working distance range provides clear and clutter free bench space for working on objects that you can observe on the monitor right on front of you. You sit comfortably in a good working position and carry out your optical inspection tasks efficiently.

Precise Camera and Lens Control

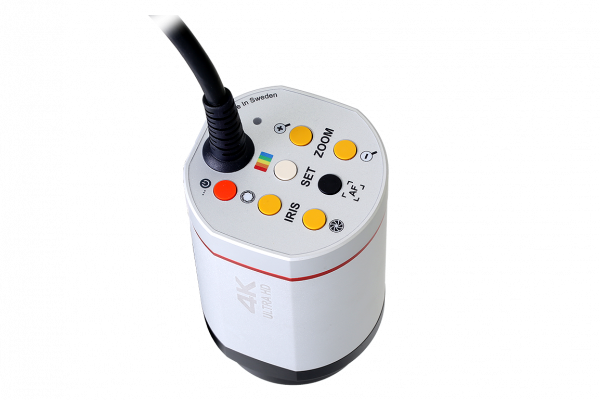

On-board controls of U30s-LWD provides direct access to camera and lens attributes like optical zoom, aperture size, focus and colour balance.

SDK is supplied for integration and control of the the digitial microscopes in 3:th party systems.

Remote Control Consoles

A wide range of remote controls are available for further adjustments of camera and lens attributes, including zoom, brightness, lens aperture size (iris), manual focus, white balance and various filters. Features such as the zoom factor display, cross-hair overlay on live image, can be turned on. In addition 2-7 memory settings and quick recalls is provided with remote controls.

Configurable with Bench-top XY-Travel  Stand

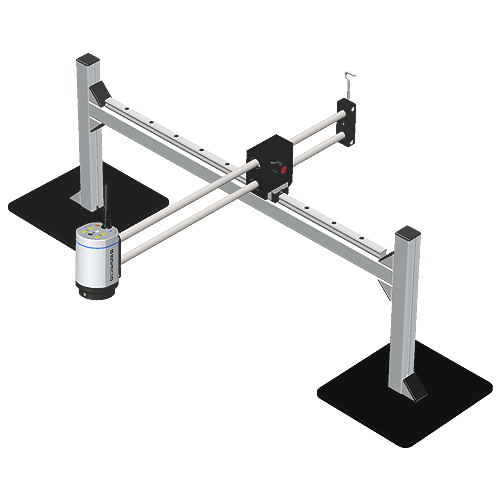

Inspectis U30s LWD digital microscope can be assembled on the long-range XY-stands with all-direction tile unit for touch-free inspection of large PCBs or other objects.

X- and Y-travel lengths of the stand can be defined according to your specification.

Stroke stand

Configurable for In-Line Inspection

With its excellent durable single-cable design the U30s LWD can be configured for in-line optical inspection and quality control tasks.

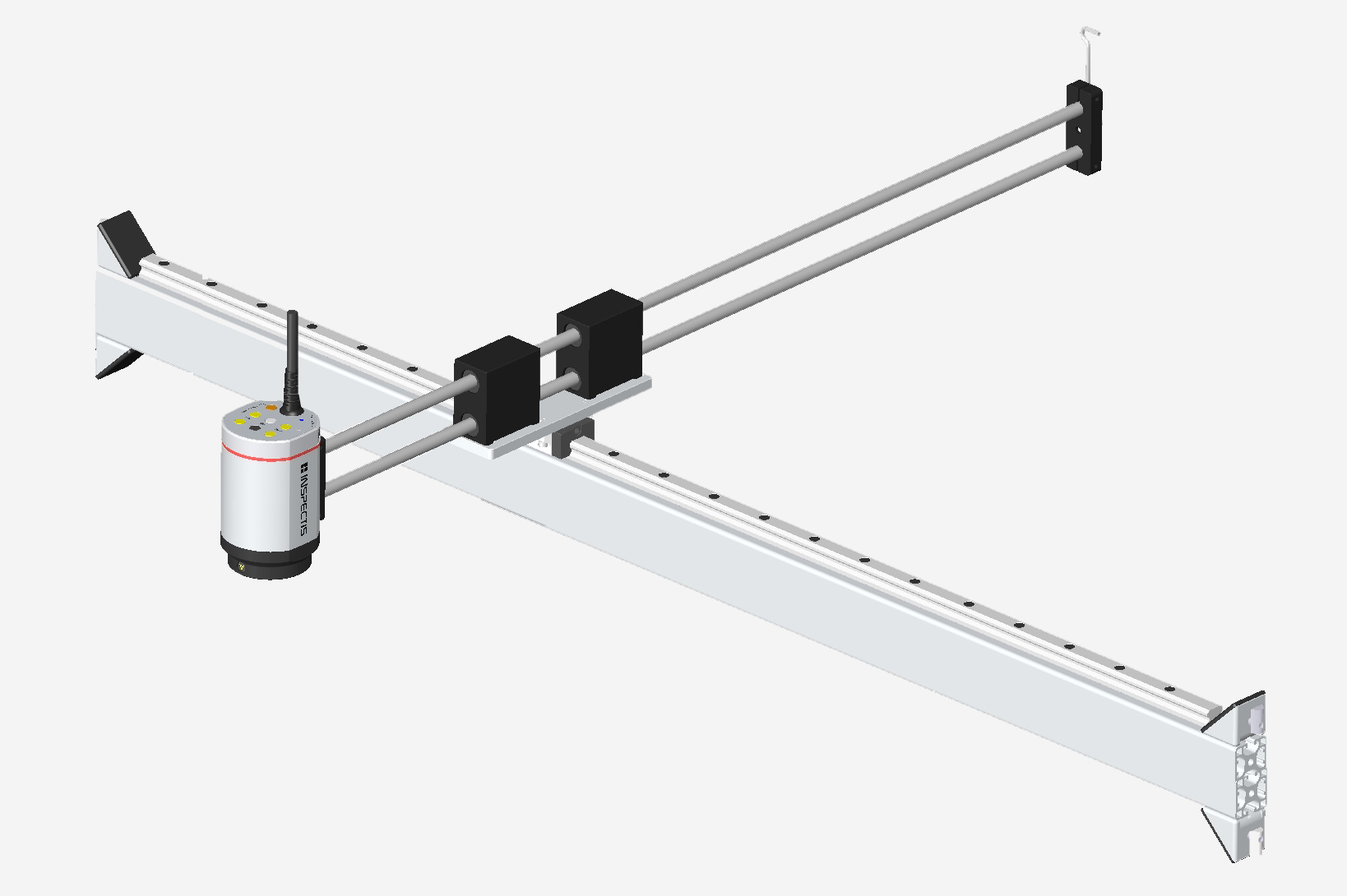

Together with Inspectis industrual grade XY-travel stands, the optical system can be easily adapted to existing SMT production lines over the convayer belt.

U30s-LWD

Customised Mounting Solutions

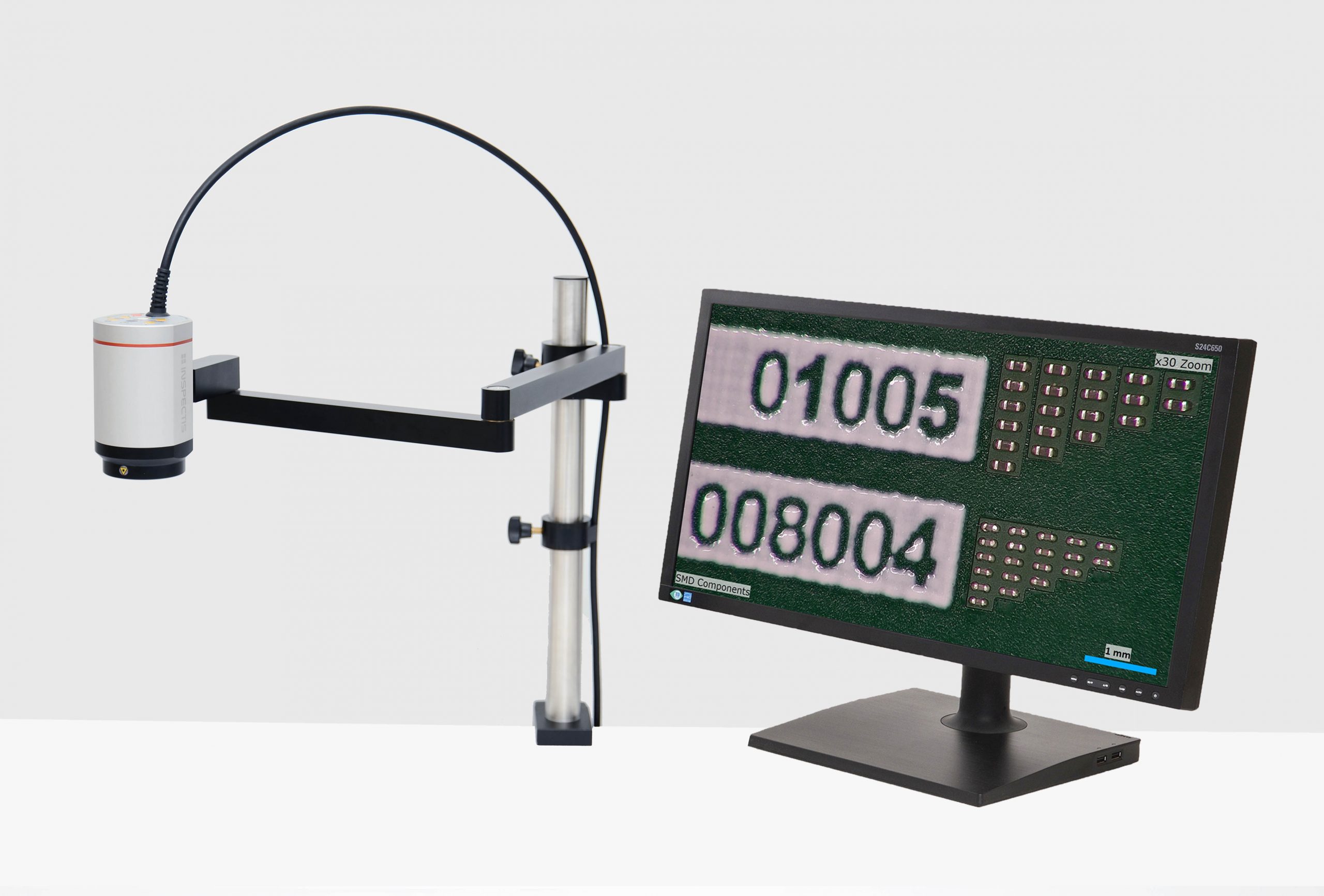

Personalise the U30s LWD to your exact requirement by selecting from a comprehensive range of Boom-type, Rack-type or Articulated-arm stands.

Go to Stands and Mounts

Power by INSPECTIS© Software

In addition to direct view of the live image on a 4K monitor via HDMI a variaty of software options with different functionality levels are available for U30s LWD.

INSPECTIS© Basics
INSPECTIS© Pro
INSPECTIS© ProX
INSPECTIS© OAI

Go to INSPECTIS© product page

Included items when you order HD-016-WD500

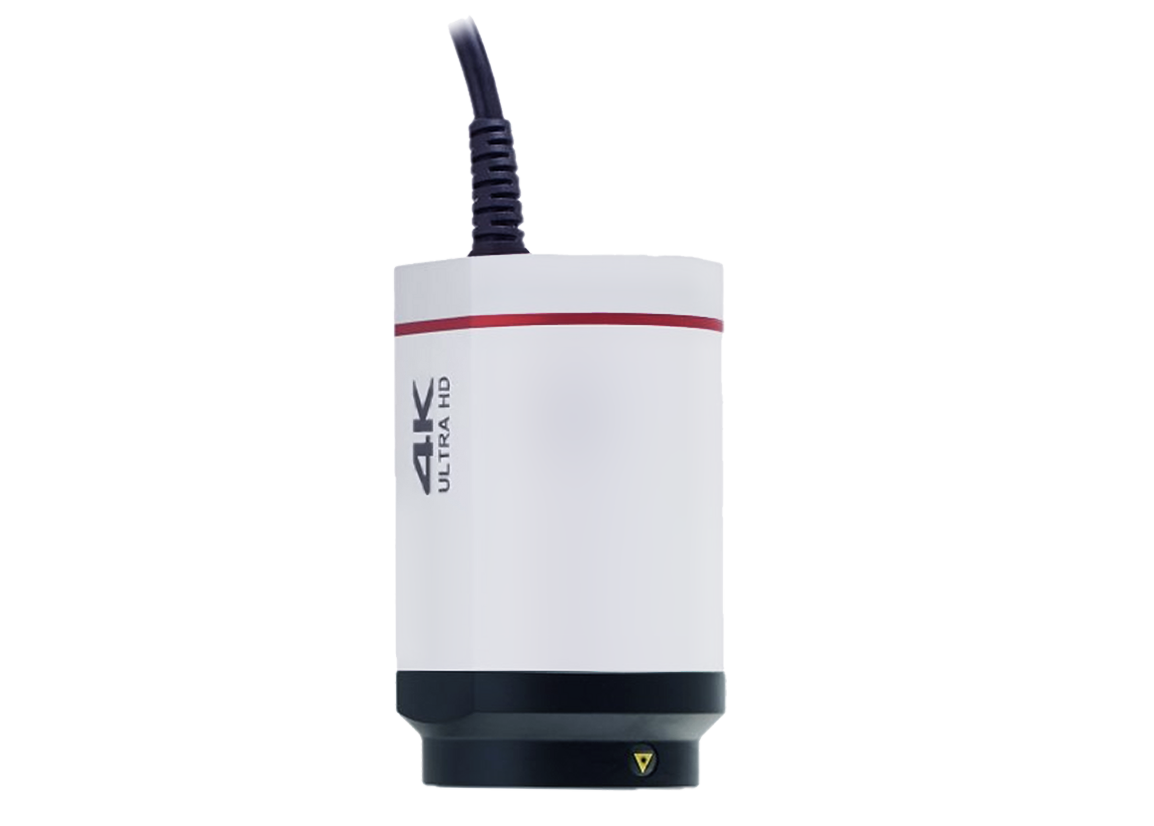

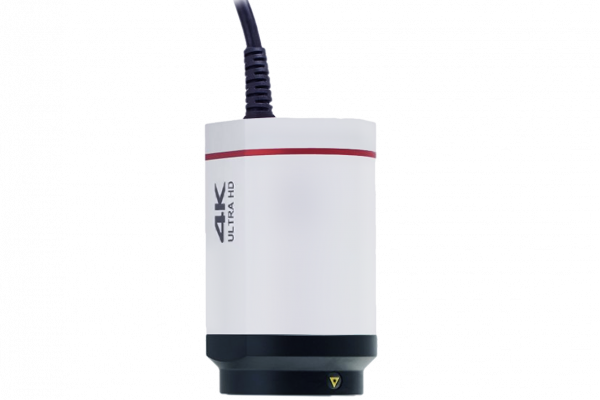

  • Inspectis U30s LWD, Ultra HD 2160p Modular Digital Microscope WD ~ 350mm-550 mm
  • Power supply.
  • Instructions manual and other document.
  • Two years new product warrany.
Inspectis 4K

Downloads

Download Product Matrix

Brochure_Inspectis-U30-U30s

Download Brochure

Send download link to:

I have read and agree to the Inspectis privacy policy. *

Product video

Specifications

System

Video Output Ultra HD 2160p/30 fps switchable to FHD 1080p/60 fps
Imager 8.5 Mpixels. 3840(H)x2160(V) 16:9 format. Progressive scan CMOS image sensor
Pixel Size (resolution) 1.62 μm x 1.62 μm
Optics Megapixel motorised 30:1 zoom lens with autofocus and iris control
Magnification range 0.86x (x1 zoom) to 27x (x30 zoom) on 28” monitor. 162x with optional +10 macro lens attached)
Filed of View 704mm (x1 zoom) to 22.5mm (x30 zoom). 3.75mm with optional +10 close-up
Working Distance range 310 – 550 mm
I/O Ports HDMI video output, 5P MiniDin power input, 8P MiniDin for communication.
Camera and lens control via top buttons Zoom, Iris, Auto Focus on/off, White Balance
Remote Control via Console (Optional) Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, White Balance, Picture Quality Mode, Display Text, Crosshairs overlay, Image Rotate, Image Freeze, Memory Save/Recall (2 pcs), Foot-switch port
Control via Software (optional) Zoom, Iris, Shutter-speed, Manual/Auto Brightness, Gain, Manual/Auto Focus, Contrast, White Balance, Clarity, FlipV, FlipH, NIR-mode, Video Frame Rate
SDK Available for lens & camera control and digital video acquisition
Mount UNC 1/4-20” threaded hole
Storage Environment -20° – +65°C, 20 – 95% RH, non-condensing
Operating Environment  -5 ° – +45°C, 20 – 95% RH, non-condensing
Size, Weight  Ø86.5 x 137mm exclusive cable, 1.1 kg.

Optional accessories

Long working distance stand microscope

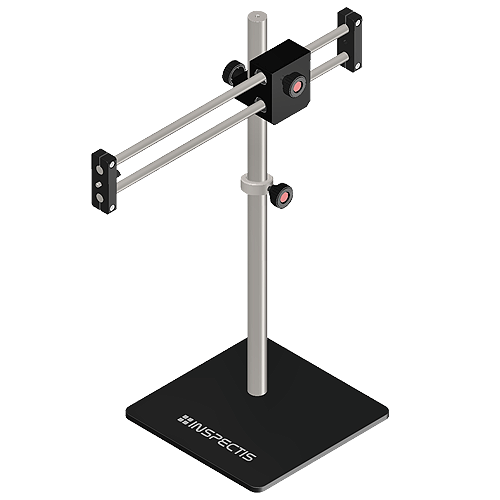

Inspectis Double-arm Boom Stand, Large Base, ESD-protected

Item no. HD-071-LB-E

Industrial-type double-arm boom stand with UNC ¼”-20 mounting screw, 600mm post and ESD-protected large base for Inspectis Digital Microscopes. Solid metal 240mm x 240mm x 8mm base double-rod boom with ball bearing for smooth horisontal movement of the Digital Microscope. Ideal for use with XY-stages.

ESD-protected for use in EPA environments.

Explore Illuminations
Ring-light White LED

Ring Light White LED with detachable diffuser

Item no. HD-024-B

LED illuminator containing high power white LED lamps for a various incident light applications. Detachable diffuser filter and integrated brightness control for smooth and soft illumination included. Powered directly via AUX output of Inspectis Digital Microscopes for excellent cable management.

Explore Illuminations
+5 diopter macro lens

Macro Lens +5 Diopter, 67mm

Item no. HD-039

+5 diopter optical power achromatic close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 210%.

Explore other Lenses
large xy-board PCB inspection

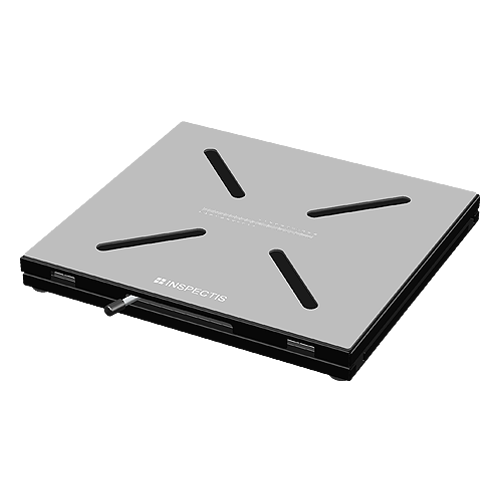

XY Floating Board with Position Lock

Item no. HD-028-S

XY Floating board with large stroke (± 160mm x ± 145mm) and smooth lateral movement of PCB:s and other objects under the microscope. Equipped with position locking mechanism for maximum stability.

The working surface is covered by a high friction antistatic mat that keeps your inspection object in place. 4 slots are available for attaching optional magnetic pegs or custom made fixtures and holders.

Made of high quality antistatic coated material.

Explore Stands & Stages
INSPECTIS Overlay comparision software

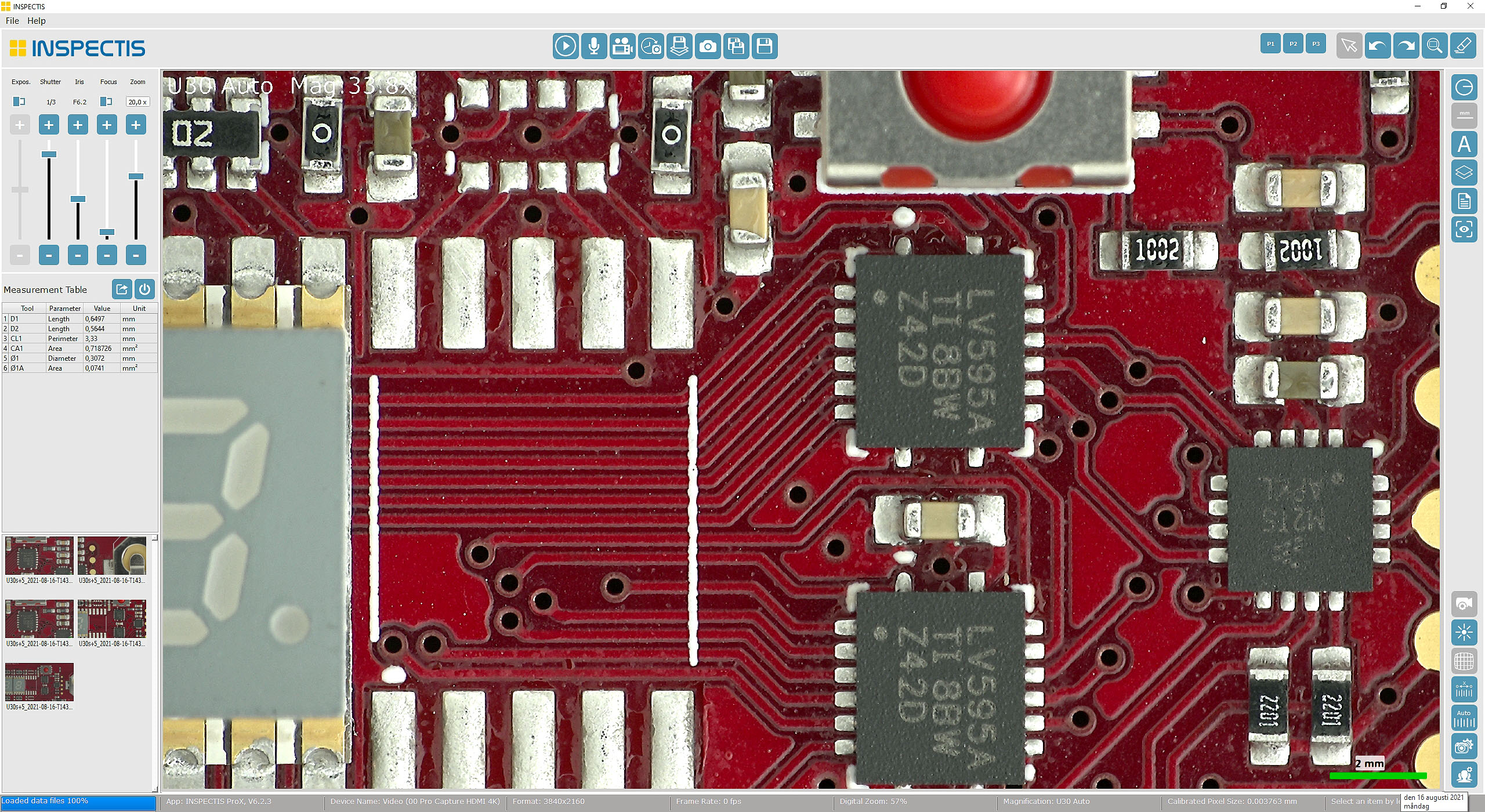

Upgrade to INSPECTIS© ProX Image Capture and Metrology software with Real-time Camera Control

Item no. -PX

Advanced metrology, analysis and utility software with real-time camera and lens controls. Besides metrology, analysis and documentation features, ProX provides following extra tools:

• Automatic focus stacking (Field of view extender)
• Manual focus stacking
• Time lapse video recording
• Time interval Overlay Assisted Inspection (OAI)
• Optical edge detection and DXF export
• DXF new, import, edit and export
• Drawing toolbox for DXF edit
• DXF overlay on live image
• DXF export as PNG file
• PNG overlay on live image as digital graticule
• Automatic alignment of overlaid image to live image
• Automatic rescaling of overlaid image through zoom

Explore INSPECTIS© software, SDK & Converters

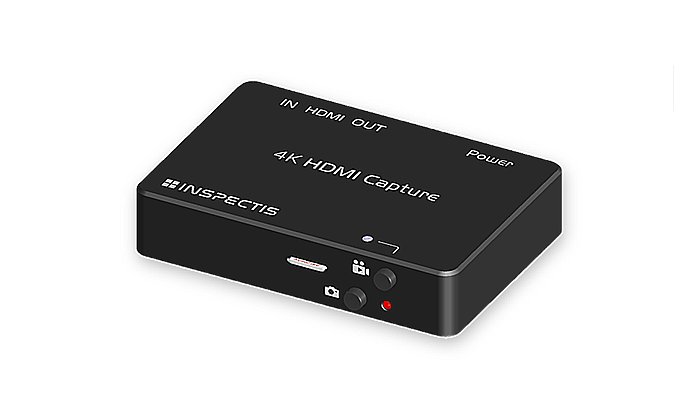

4K HDMI Image Capture & video recorder

Inspectis 4K External HDMI Image Capture and Video Recorder for U-microscopes

Item no. HD-140-U

High-quality, plug-&-play 4K HDMI Capture and Video Recorder device with 4K video loop-through. Compatible with 2160p output signal of Inspectis U30, U30s, U10 and U10s Digital Microscopes. Captures still pictures at UHD resolution and digital video at FHD format on a Micro SD-card without need of a host computer.

Live loop through video output at 4K, 2160p format. Supplies date and time stamp on still picture and recorded video. Delivers with power supply, HDMI A-type male cable and Micro SDHC-card.

Assembled in industrial grade aluminium housing with stainless-steel bottom plate.

Explore Image Capture Devices

More accessories:

A wide variety of accessories are available for INSPECTIS digital microscopes.
