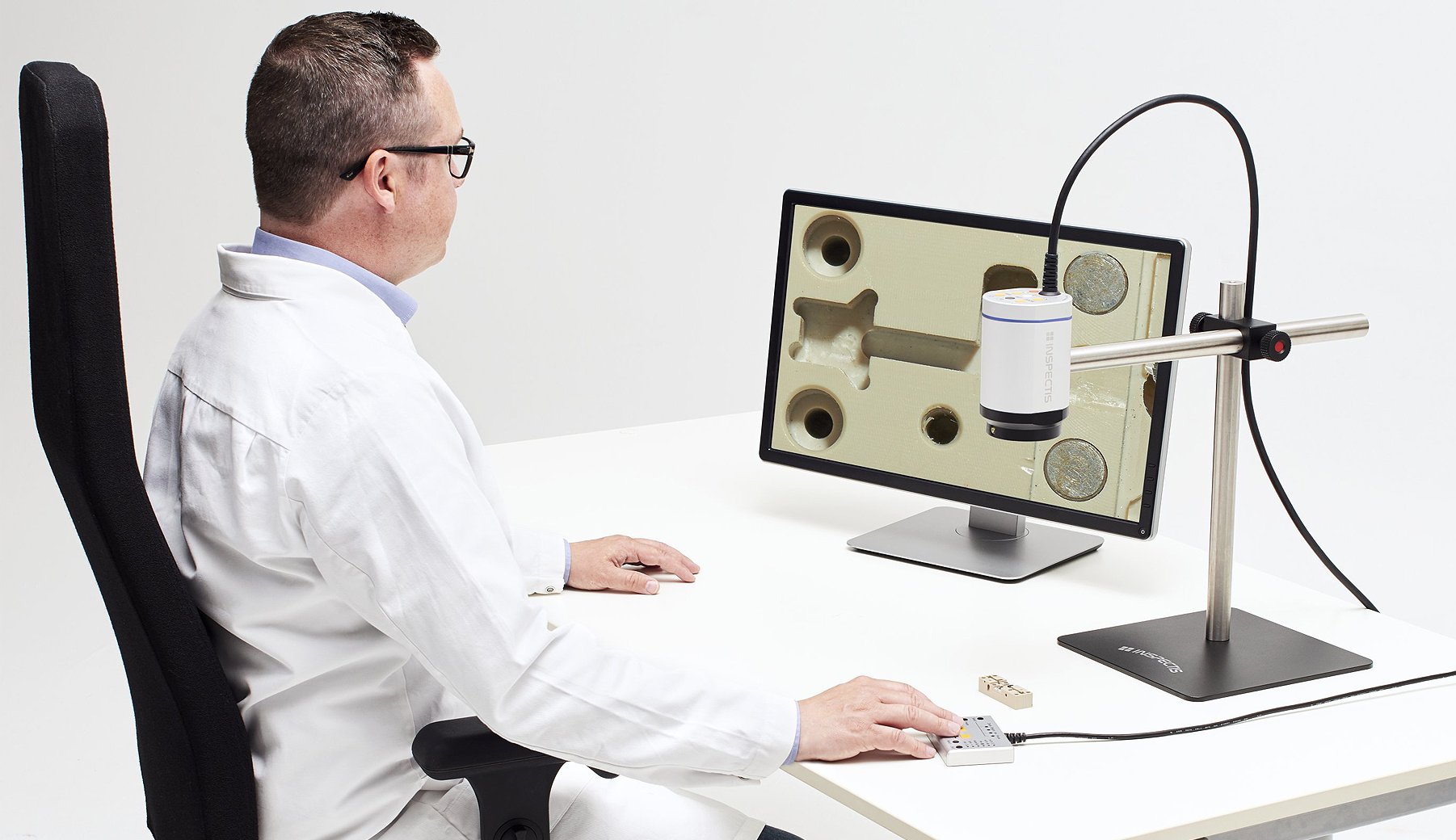

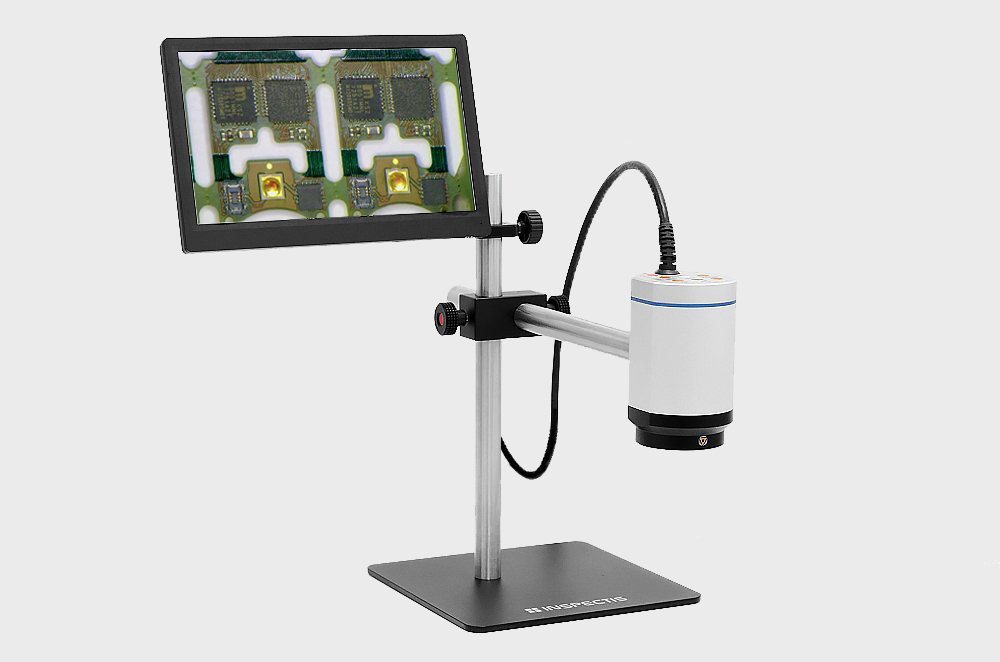

F35s Modular Digital Microscope with Full HD Performance

Optimized for Optical Inspection of Moving Objects

The system’s standard 35:1 zoom optics produces ~ 1.7 – 61.4x magnification on 24” monitor. With extra dioptre macro lenses attached, up to 720x magnification (24″ monitor) equal to 0.72 (H) x 0.41 (V) mm field of view and 362 lp/mm resolution power can be achieved.

Thanks to its 60fps video and quick auto-focus it is the best choice for live inspection of the moving objects.

Remote Control Consoles

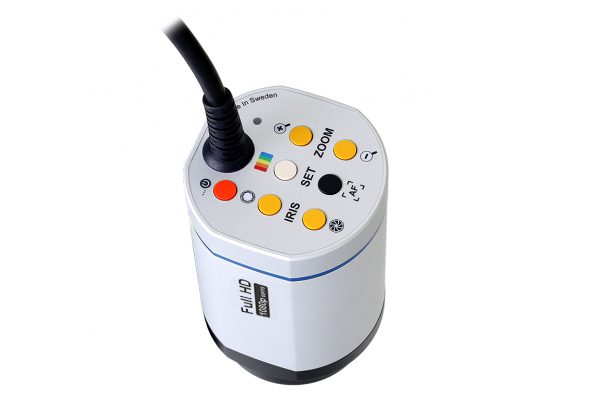

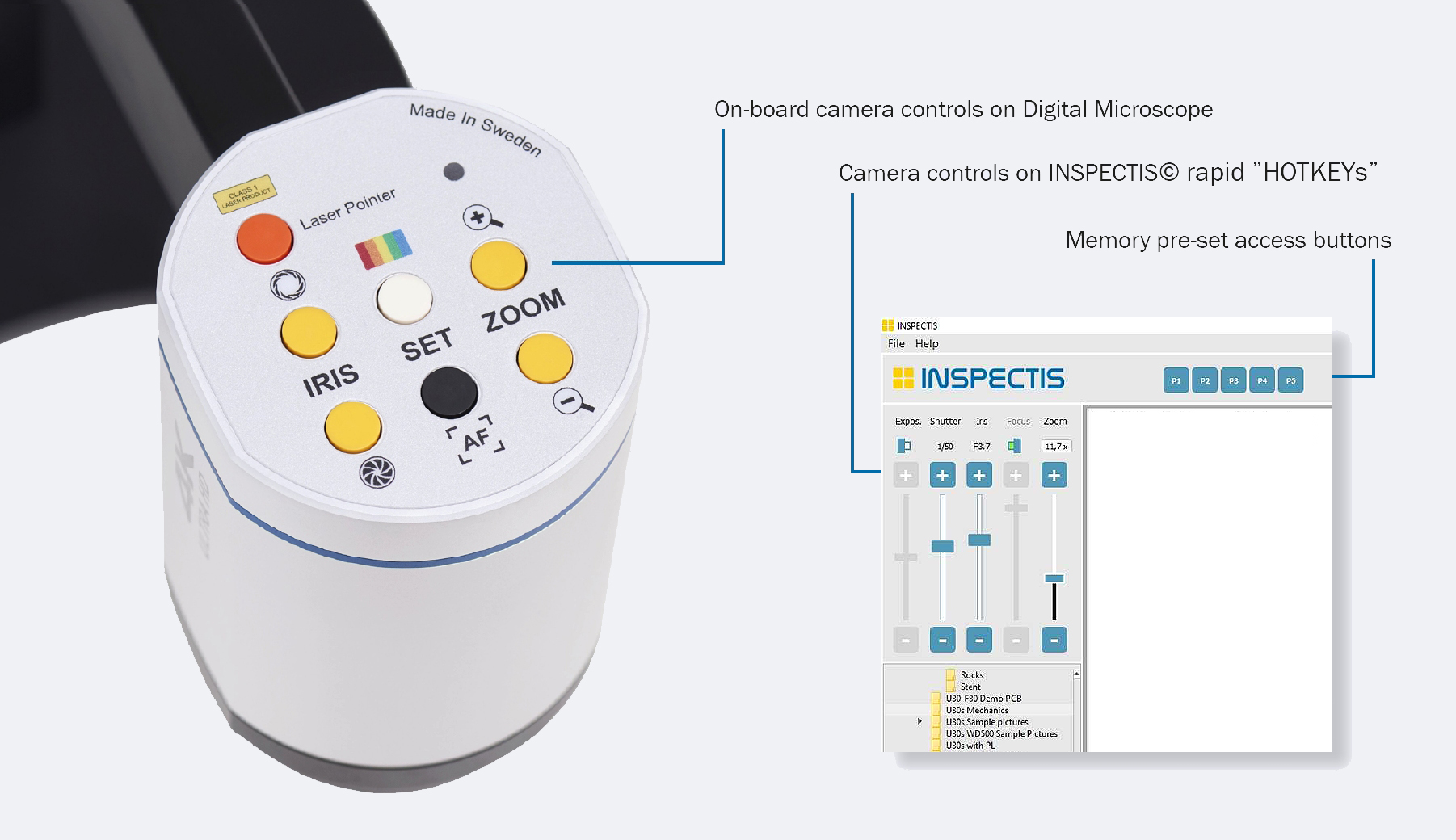

A wide range of remote controls are available for further adjustments of camera and lens attributes, including zoom, brightness, lens aperture size (iris), manual focus, white balance and various filters. Features such as the zoom factor display, cross-hair overlay on live image, can be turned on. In addition 2-7 memory settings and quick recalls is provided with remote controls.

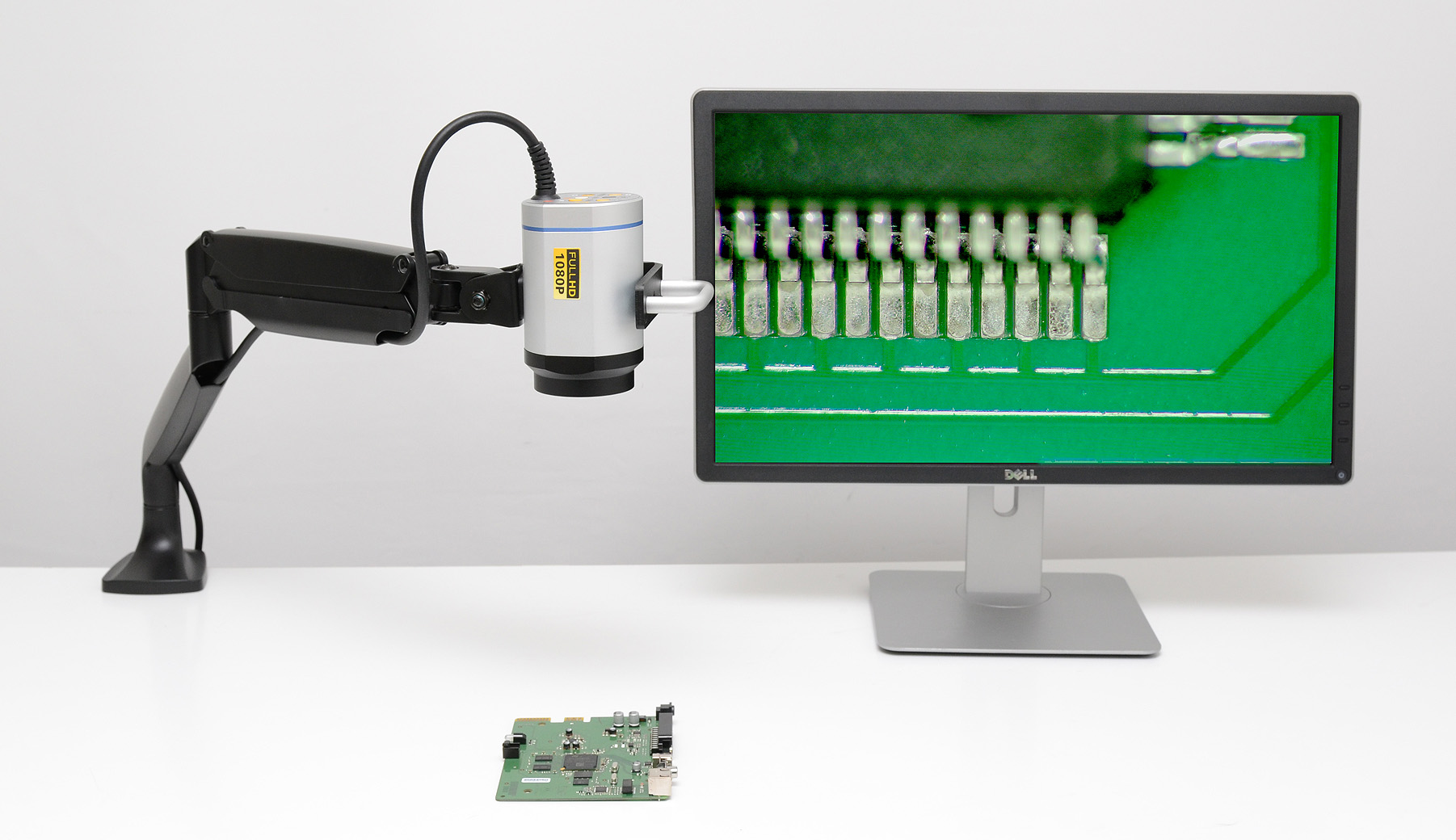

Configurable for In-Line Inspection

With its excellent durable single-cable design and low weight, the F35s is suitable for in-line optical inspection and quality control tasks.

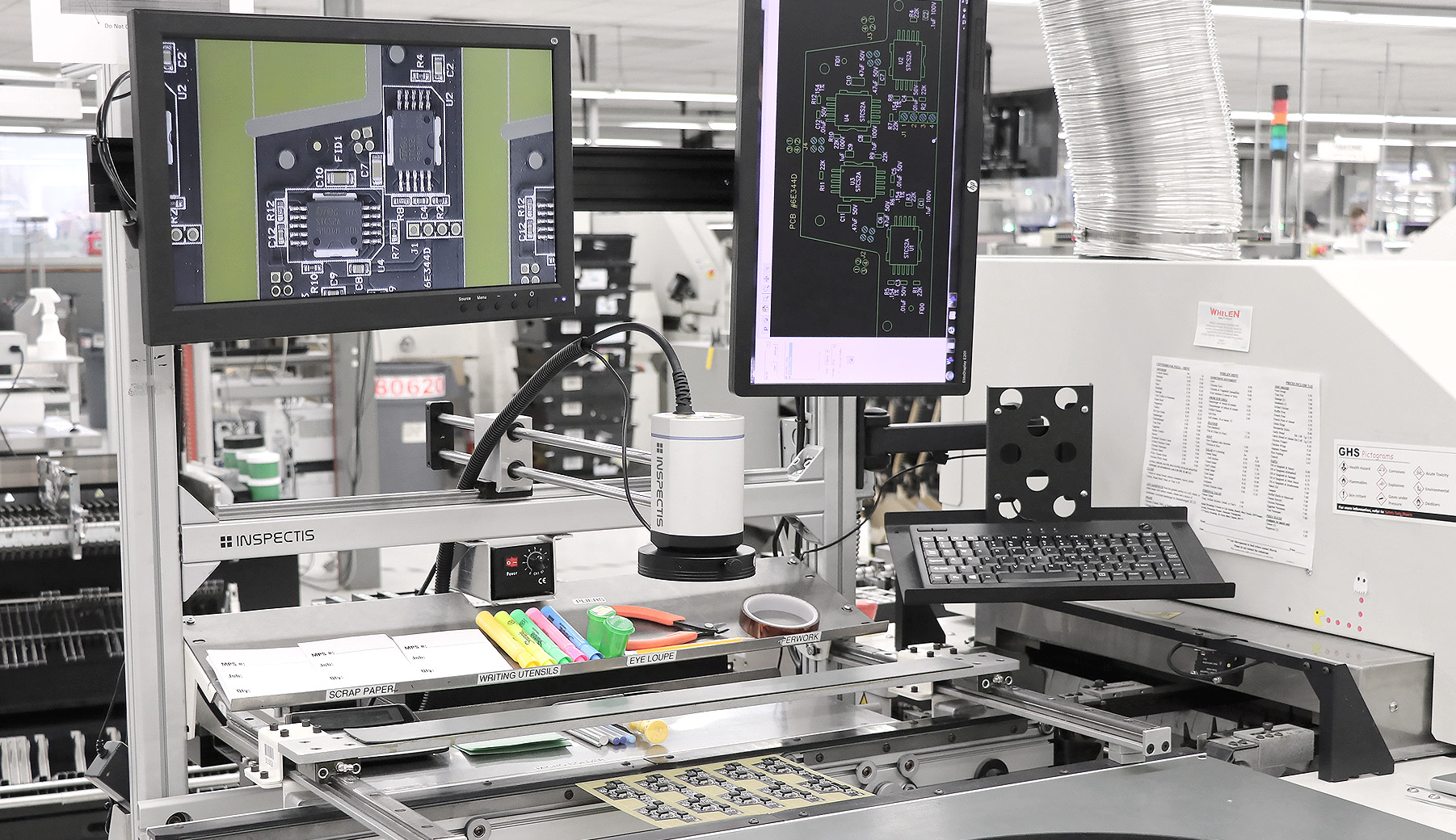

Together with Inspectis industrual grade XY-travel stands, the optical system can be easily adapted to existing SMT production lines over the convayer belt.

Power F35s by INSPECTIS© Software

In addition to direct view of the live image on a FHD monitor via HDMI a variaty of software options with different functionality levels are available for F35s.

INSPECTIS© Basics
INSPECTIS© Pro
INSPECTIS© ProX
INSPECTIS© OAI
SDK for customer integration

Go to INSPECTIS© product page

Included items when you order HD-113

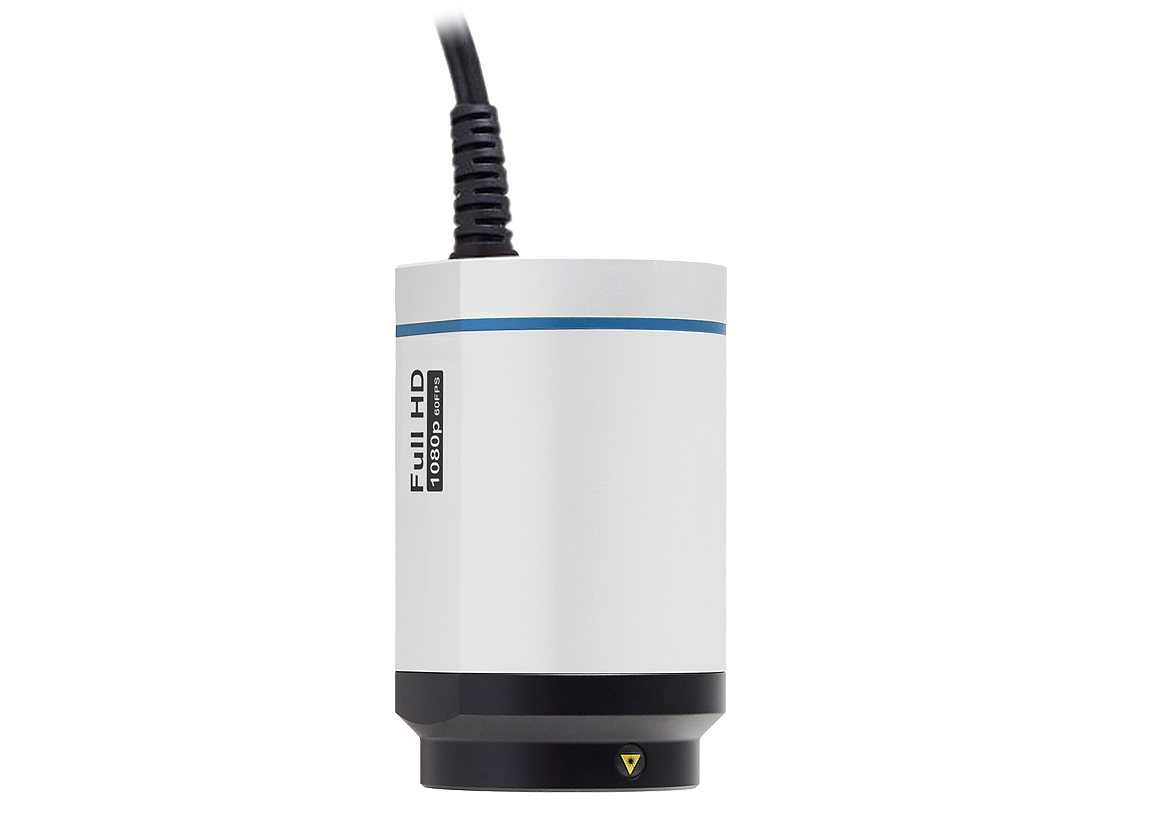

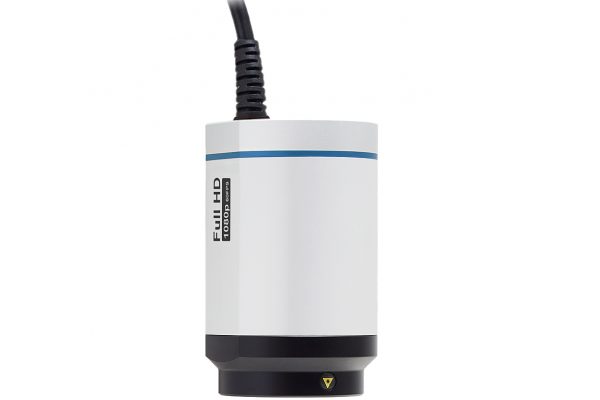

• Inspectis F35s, FHD 1080/60p Modular Digital Inspection Macroscope, x35 Zoom.
• Power supply.
• Instructions manual and other document.
• Two years new product warrany.

Dual White & UV RingLight with Dimmer and Segment Control

Item no. HD-124-WUV

Industrial grade ring light containing 32 white, and 8 high power UV LEDs arranged along two rings. For applications where sequential or independent white and UV illumination is needed. Homogenous and high-intensity light output. Integrated On/Off switch with electronic dimmer. Dedicated switches for UV and segment control.

For optimal cable management, the ring light is powered directly via the Inspectis digital microscope. Optional Diffuser filters and Polariser/Analyser filters are available for use with the ring light.

Ring Light White LED with detachable diffuser

Item no. HD-024-B

LED illuminator containing high power white LED lamps for a various incident light applications. Detachable diffuser filter and integrated brightness control for smooth and soft illumination included. Powered directly via AUX output of Inspectis Digital Microscopes for excellent cable management.

Macro Lens +5 Diopter, 67mm

Item no. HD-039

+5 diopter optical power achromatic close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 210%.

Inspectis 360 degrees Rotating Viewer

Item no. HD-041

360° rotating viewer for rotating the image at 32° oblique angle by manipulating the optical path without touching the object. Designed for side view inspection of objects while both the digital microscope and the inspection object remain stationary.

Inspectis Rotating Viewer operates in both “side-view” and standard “right-angle-view” modes. Equipped with an optical lens to maintain the working distance in both operating modes without having to change the axial position of the camera.

Inspectis Double-arm Boom Stand, Light, ESD-protected

Item no. HD-071-E

Industrial-type light double-arm boom stand with UNC ¼”-20 mounting screw for Inspectis Digital Microscopes.  Solid metal 240mm x 240mm x 8mm base for stability and double-rod boom with ball bearing for smooth rigid horisontal movement of the Digital Microscope.

ESD-protected for use in EPA environments.

Provides stability and flexibility for horizontal and vertical adjustment of the Digital Microscope across object filed.

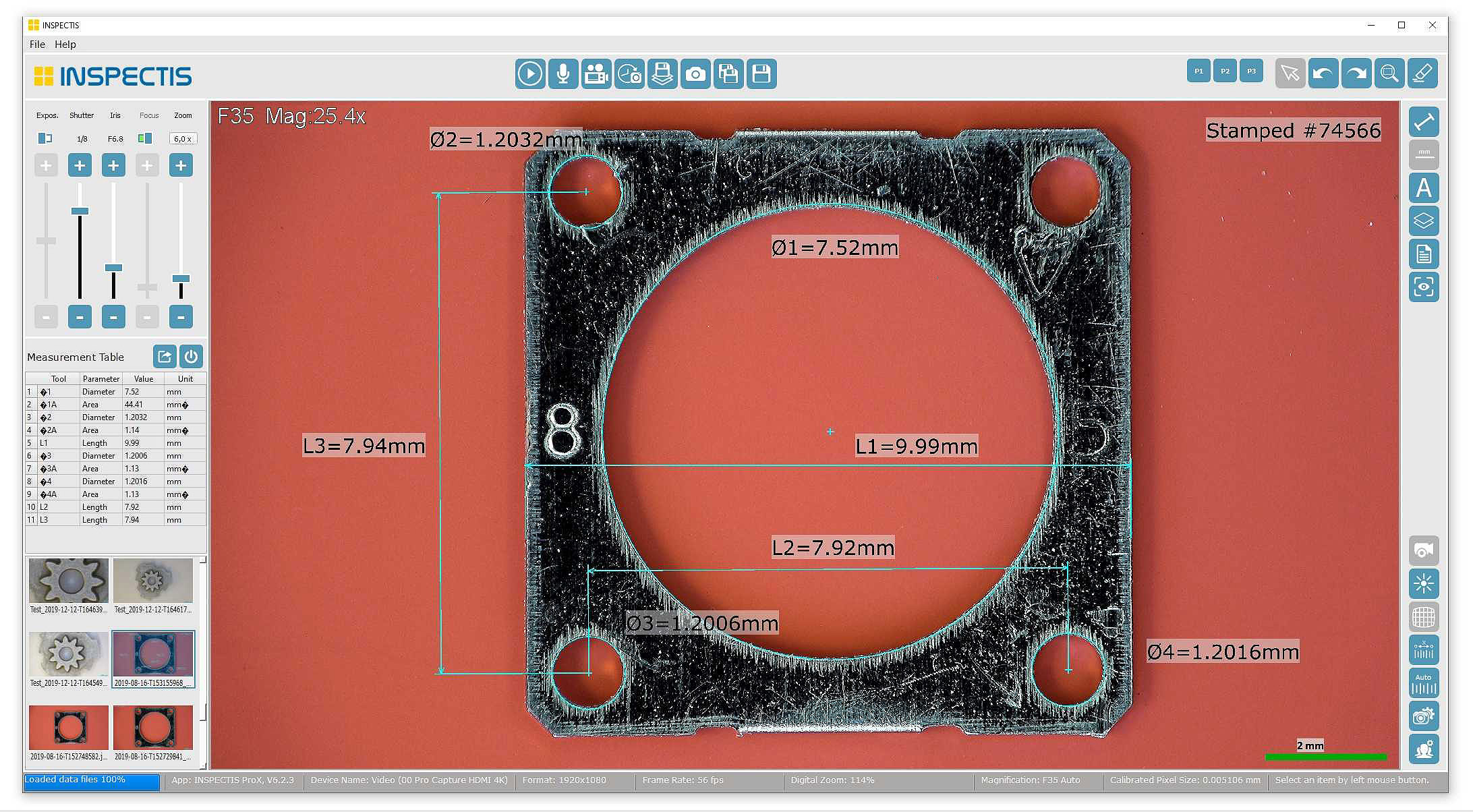

Upgrade to INSPECTIS© ProX Image Capture and Metrology software with Real-time Camera Control

Item no. -PX

Advanced metrology, analysis and utility software with real-time camera and lens controls. Besides metrology, analysis and documentation features, ProX provides following extra tools:

• Automatic focus stacking (Field of view extender)
• Manual focus stacking
• Time lapse video recording
• Time interval Overlay Assisted Inspection (OAI)
• Optical edge detection and DXF export
• DXF new, import, edit and export
• Drawing toolbox for DXF edit
• DXF overlay on live image
• DXF export as PNG file
• PNG overlay on live image as digital graticule
• Automatic alignment of overlaid image to live image
• Automatic rescaling of overlaid image through zoom

Inspectis 4K External HDMI Image Capture and Video Recorder for U-microscopes

Item no. HD-140-U

High-quality, plug-&-play 4K HDMI Capture and Video Recorder device with 4K video loop-through. Compatible with 2160p output signal of Inspectis U30, U30s, U10 and U10s Digital Microscopes. Captures still pictures at UHD resolution and digital video at FHD format on a Micro SD-card without need of a host computer.

Live loop through video output at 4K, 2160p format. Supplies date and time stamp on still picture and recorded video. Delivers with power supply, HDMI A-type male cable and Micro SDHC-card.

Assembled in industrial grade aluminium housing with stainless-steel bottom plate.
