U30s System Package, Software

Flexible Ultra HD Optical Inspection System

Flexible digital microscope system package with 30:1 zoom optics, auto-focus and plug & play USB3.0 interface. Powered by INSPECTIS© Basics software with automatic zoom tracking, pre-calibrated optics and direct camera control.

Easy to Setup and to Use

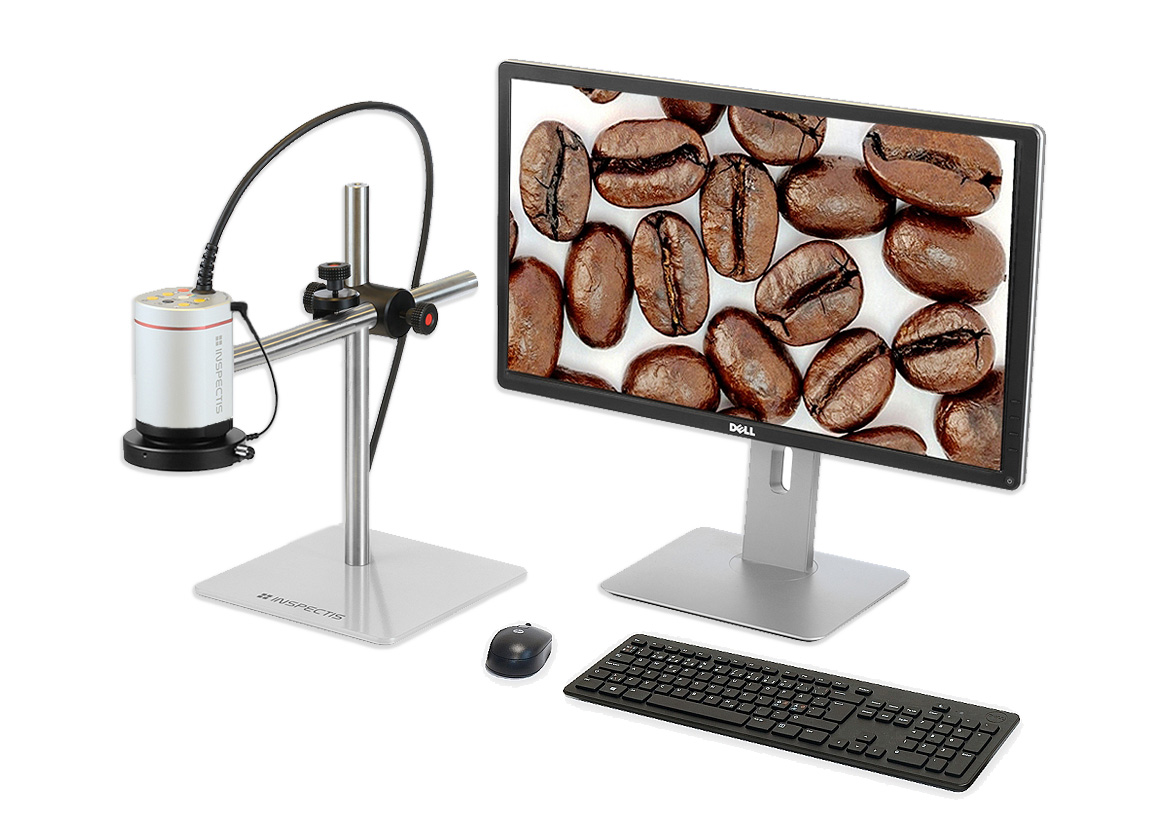

Delivered as a complete  optical inspection system with adjustable single-arm boom stand and LED ring light with detachable diffuser for soft and sharp incident illumination. Excellent cable management allows keeping working bench clean and free.

Useful for a Wide Range of Applications

A cost efffective optical inspection system with image view, capture, non-contact distance measurement and annotation tools directly in your computer. Available in cost-effective Full HD version.

Cost Effective

High Resolution

Easy to Use

Premium imaging quality

Thanks to its sensitive 8.3 Mp image sensor and superior mega resolution optics, U30s provides ultra sharp images of the objects with true colours at entire field of view.

An optional built-in laser pointer ( -L ) aims at the area of interest and assists in locating it on the screen. Inspectis U30s can also be ordered as ESD protected ( -E ) and with hermetic sealed housing (-S) for required environments.

Economically Designed

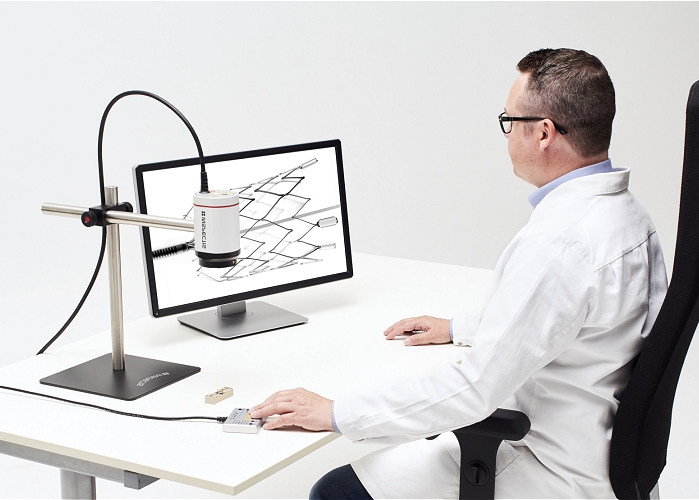

Inspectis Ultra HD digital microscopes provide relief to eyes, neck and shoulders through the unique ergonomic design and 230 mm free working distance. By allowing operators to sit comfortably in a good working position, their inspection tasks can be carried out more efficiently.

Powered by INSPECTIS© Basics

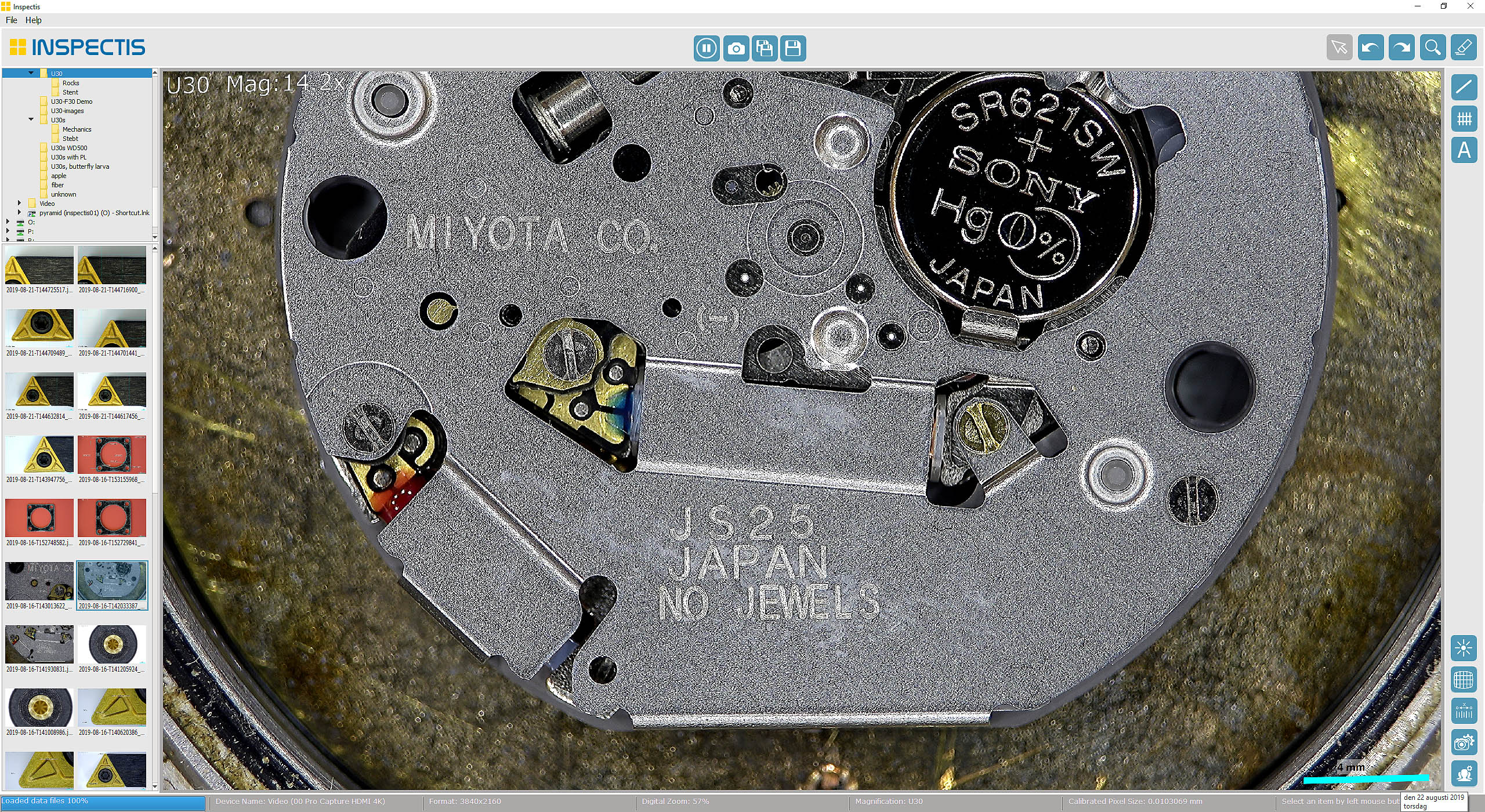

The system is powered by easy-to-use image view, capture and documentation software INSPECTIS© Basic.

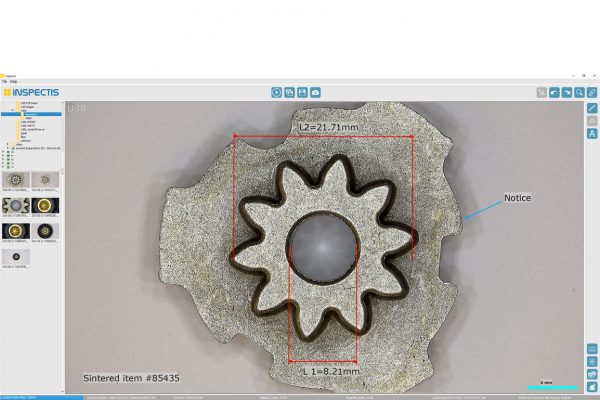

INSPECTIS© Basics is pre-calibrated across entire zoom range of the U30s microscope and provides basics tools for image view, capture and distance measurement .

Additional tools such as direct camera and lens control, 16 memories, automatic distortion control, digital zoom, contrast enhancement, annotation, grid-, rectangle- and crosshair overlays on live image are available.

Upgradable to INSPECTIS© Pro and ProX

INSPECTIS© Basics can be upgraded to INSPECTIS© Pro or ProX if more advanced tools like advance geometrical measurements, advance overlays functions, image comparison, digital graticule, focus-stacking, time-lapse video recording and data reporting are desired.

INSPECTIS Overlay comparision software

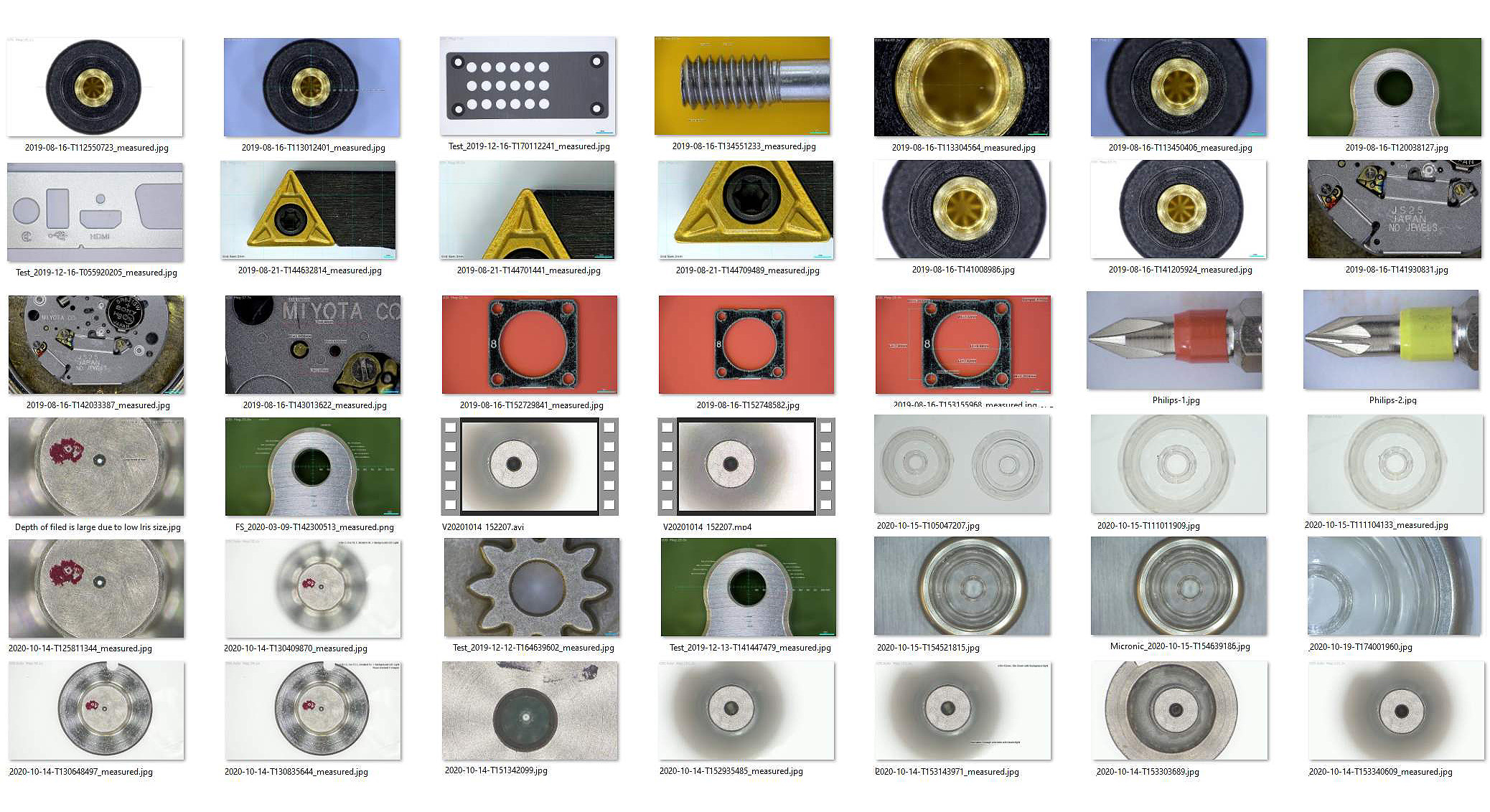

Smart choice for Optical Inspection with Image Capture

U30s System Software is an easy-to-use yet powerful digital microscope configuration when optical inspection along with digital image acquisition and documentaion are primary requirements.

Included items when you order HD-016-KIT-SOFT

  • Inspectis U30s, Ultra HD 2160p Modular Digital Inspection Microscope, x30 Zoom
  • Inspectis Single-arm Boom Stand
  • Inspectis RingLight White LED with detachable diffuser
  • Inspectis 4K HD USB3.0 Capture Pro with INSPECTIS© Basics software
  • Annual Service and Support for INSPECTIS software (one year)

System package can also be ordered with Full HD digital microscope F30s or F35s as HD-013-KIT-SOFT and HD-113-KIT-SOFT

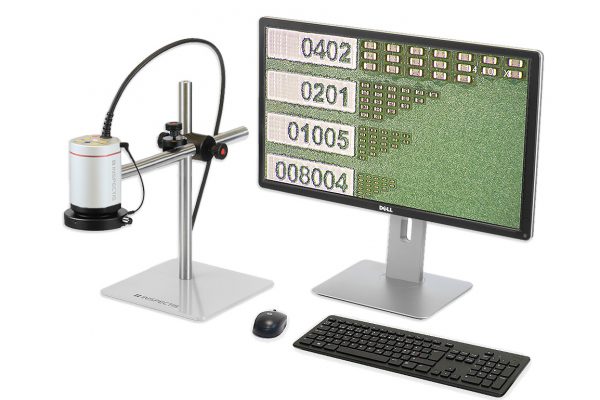

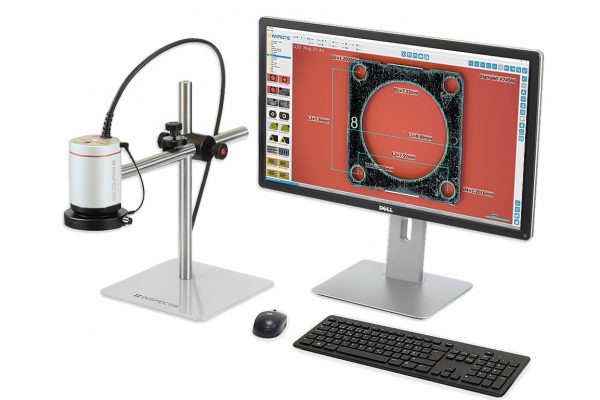

4K Optical Inspection System with Software



Download Brochure

Send download link to:

I have read and agree to the Inspectis privacy policy. *

Download Product CatalogueDownload U30s Optical Data

Product video



Video Output Ultra HD 2160p/30 fps switchable to FHD 1080p/60 fps
Imager 8.5 Mpixels. 3840(H)x2160(V) 16:9 format. Progressive scan CMOS image sensor
Pixel Size (resolution) 1.62 μm x 1.62 μm
Lens Megapixel motorised 30:1 zoom with auto-focus, iris control and pre-calibrated optics
I/O Ports HDMI video output, 5P MiniDin power input, 8P MiniDin PC communication
Filed of View 290mm (x1 zoom) to 9.9mm (x30 zoom). Down to 0.84mm with +58 macro attached
Working distance 178 to 230 mm with standard lens
Magnification range 2.1x (x1 zoom) to 61.4x (x30 zoom) on 28” monitor. Up to 720x with +58 macro attached
Illumination LED RingLight with detachable diffuser and electronic dimmer. Directly powered via digital microscope
PC interface USB3.0, USB3.1 A-type (PCIe on request)
Software INSPECTIS Basics, upgradeable to Pro, ProX and OAI
Image Capture Via software. Foot-pedal (optional)
Image / Video Capture format 4K still pictures in JPG and PNG. Full HD 60fps video recording in AVi with .
Camera and lens control via top buttons Zoom, Iris, Auto Focus on/off, White Balance
Camera and lens control via software Zoom, Iris, Shutter-speed, Manual/Auto Brightness, Gain, Manual/Auto Focus, Contrast, White Balance, Clarity, FlipV, FlipH, NIR-mode
Pre-set memories 16 save/recall memories with editable names and quick access buttons
Stand Single-arm Boom Stand with Z- and Y-adjustment
Options ESD-protected. Laser pointer. Hermetic sealed housing.
Storage Environment -20° – +65°C, 20 – 95% RH, non-condensing
Operating Environment  -5 ° – +45°C, 20 – 95% RH, non-condensing
Size / Weight 240 (W) x 470 (D)x 390 (H) mm / ~ 8.5 kg.

Optional accessories

+3 diopter macro lens

Macro Lens +3 Diopter, 67mm

Item no. HD-038

+3 diopter optical power achromatic close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 65%.

Explore other lenses –>

Polarisation filter set for RingLight, 67mm

Polarisation filter set for RingLight, 67mm

Item no. HD-024-P-U

Polarising filter set consists of a polariser which is attached on front of the LED RingLight and an analyser which is screwed on the camera lens.

For polarised light microscopy and for eliminating glare from highly reflective objects like solder joints.

Explore lighting options –>

large xy-board PCB inspection

XY Floating Board with Position Lock

Item no. HD-028-S

XY Floating board with large stroke (± 160mm x ± 145mm) and smooth lateral movement of PCB:s and other objects under the microscope. Equipped with position locking mechanism for maximum stability.

The working surface is covered by a high friction antistatic mat that keeps your inspection object in place. 4 slots are available for attaching optional magnetic pegs or custom made fixtures and holders.

Made of high quality antistatic coated material.

Explore XY-stages & mounts–>

More accessories:

A wide variety of accessories are available for INSPECTIS digital microscopes.
