4K Long Working Distance Inspectis System, 550mmWD

Home / Configured Digital Microscopes / 4K Long Working Distance Inspectis System, 550mmWD

Long Working Distance Ultra HD (4k) Digital Microscope System Package

Making Optical Inspection Enjoyable

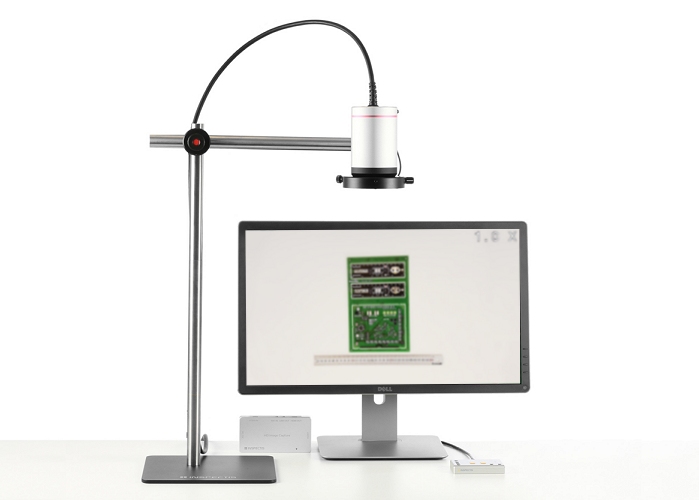

Inspectis large working distance U30s-LWD is a premium all-in-one Ultra High Definition 8.3 megapixel optical inspection system with 30:1 optical zoom range, fast auto focus and extended 550 mm working distance. Packed and ready-to-use with LWD Boom Stand, Advanced Remote Control and Ring Light.

Designed for Ergonomic Use

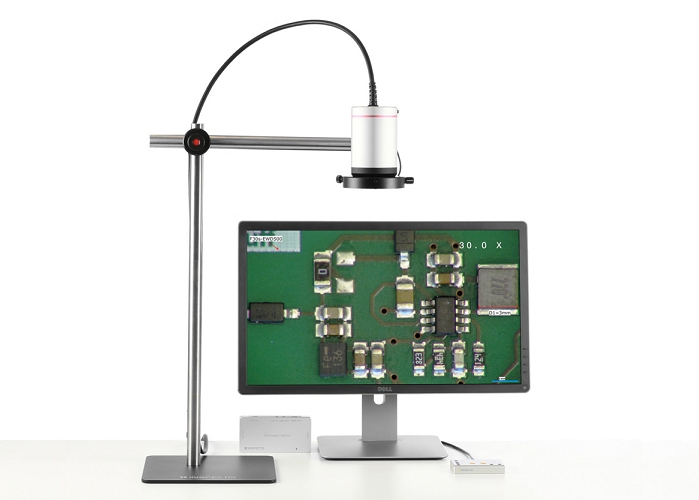

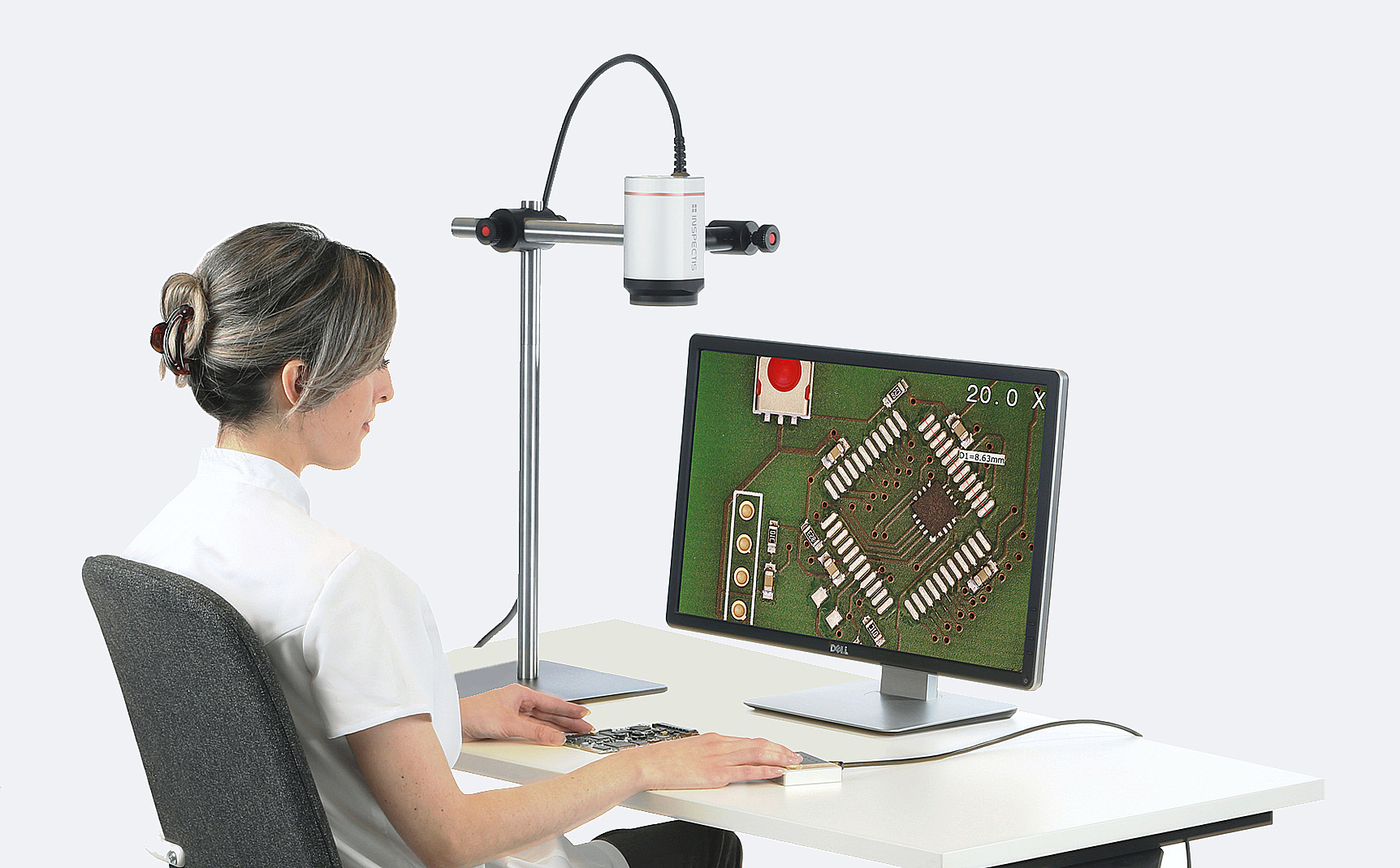

Through its unique ergonomic design and large free working distance, Inspectis U30s-WD500 system provides relief to eyes, neck and shoulders

For Inspection of Large Objects

Besides 550mm working distance, large field-of-view of the U30s-LWD system allows optical inspection of up to 700 mm wide objects!

Ergonomic

Free View

Reliable

Free View to the Display

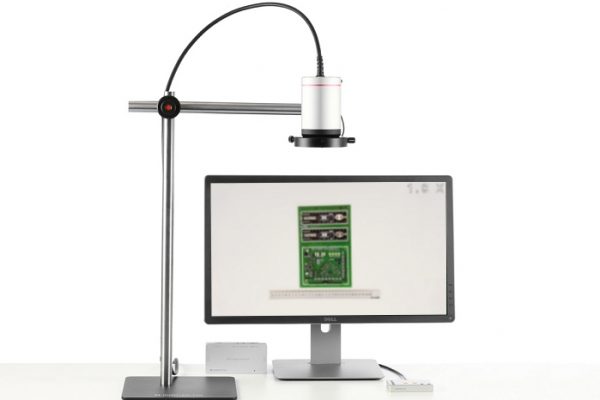

The extended 310-550mm working distance range provides clear and clutter free bench space for working on objects that you can observe on the monitor right on front of you. You sit comfortably in a good working position and carry out your optical inspection tasks efficiently.

Long working distance digital microscope

Remote Controller for Ease of Use

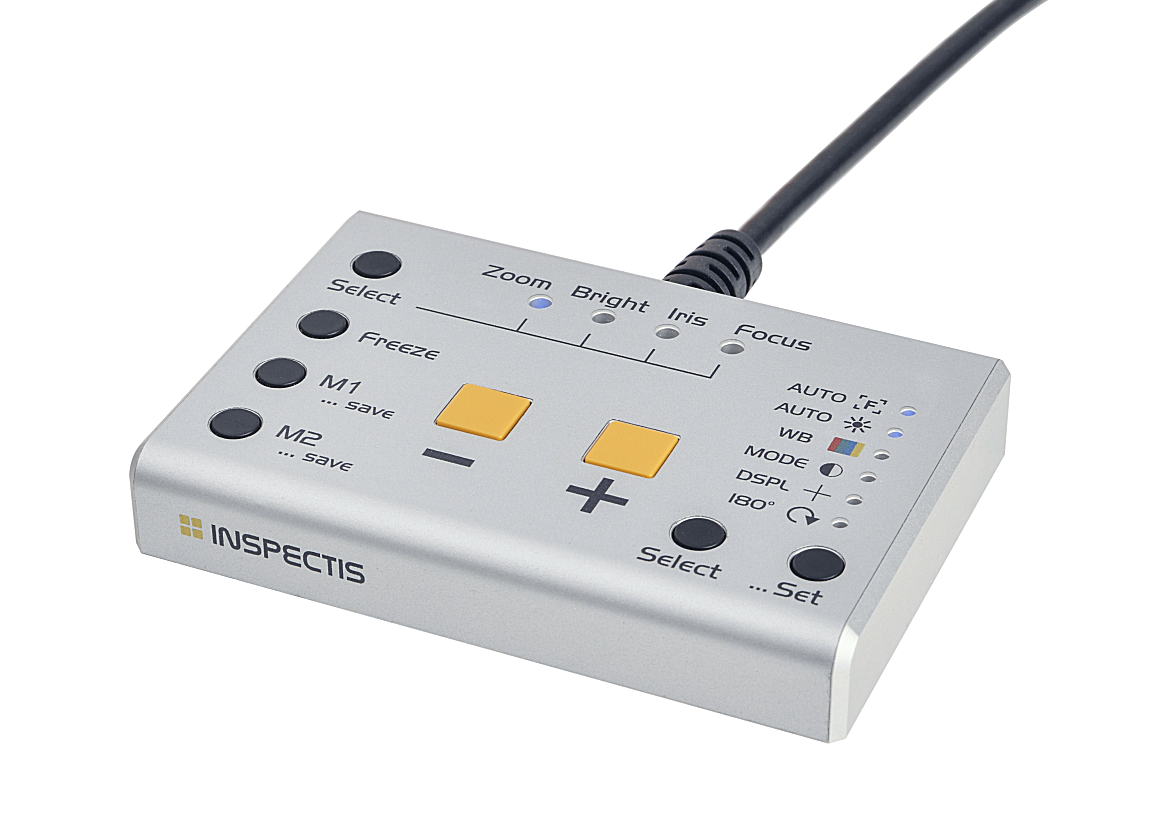

System is delivered with an advanced external remote control for ease of use.

The Advanced Remote Control allows the excellence of the imaging system to be exploited further and additional useful inspection aids to be selected.

To further simplify operations, selected controller functions can be controlled by a foot pedal.

Ergonomic Inspection of PCBs

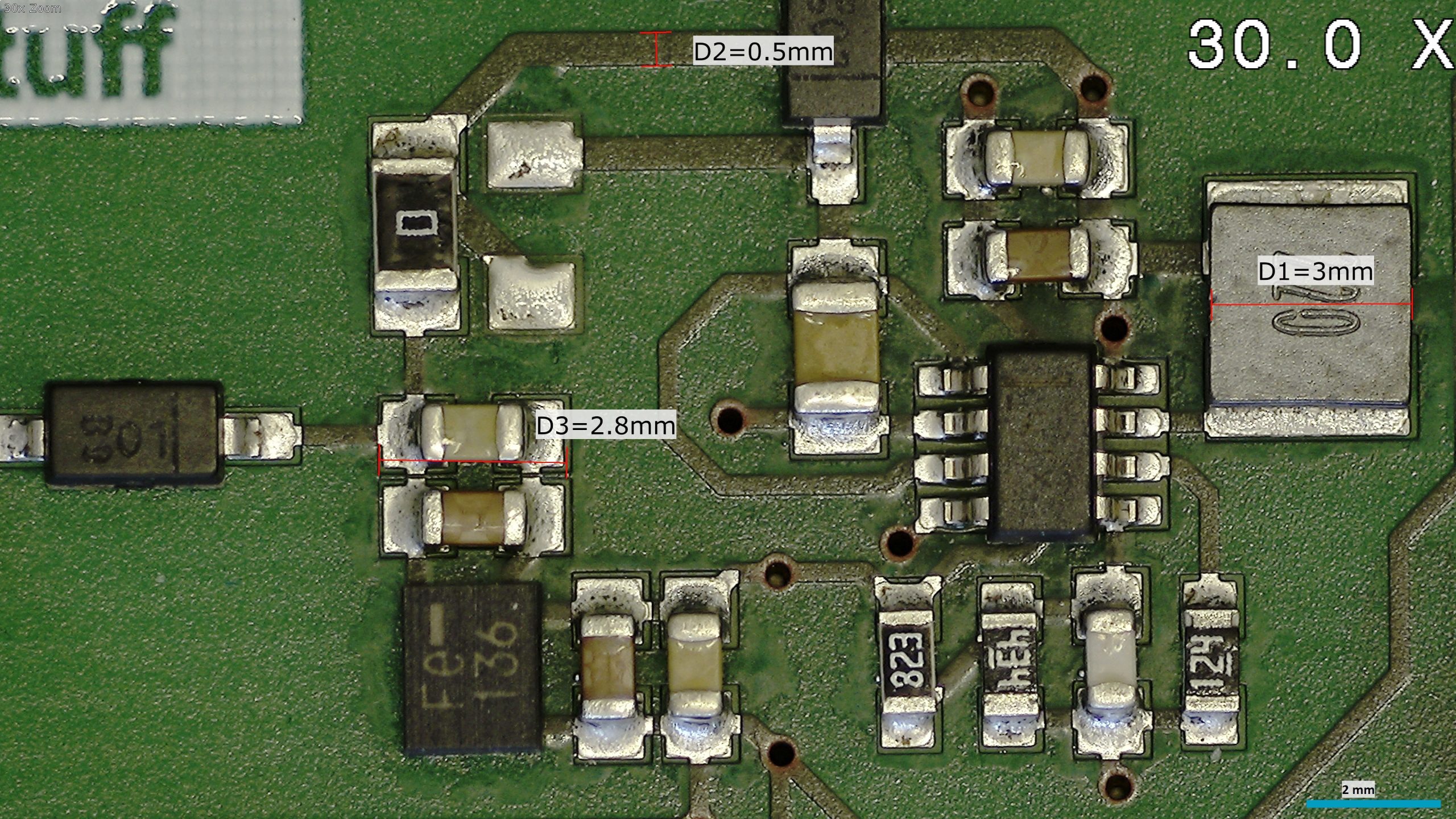

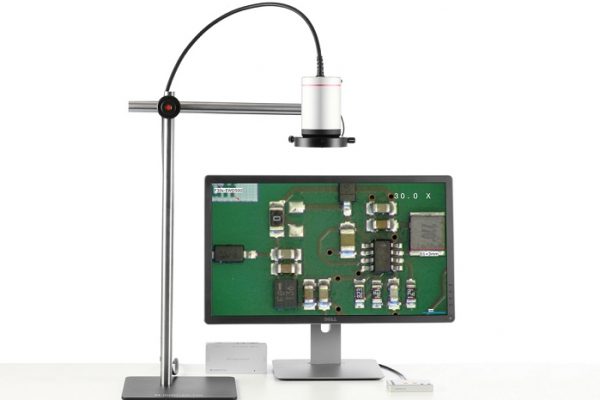

Thanks to its mega-pixel optics, 8.3 mega pixel image sensor, and brilliant optics, U30s LWD provides an excellent image of inspecting object, especially solder joints on electronic components and assemblies PCB with minimum glare and reflections.

Best Chaise for Inspection of Large PCB:s, Plastic, Metallic and Rubber Parts

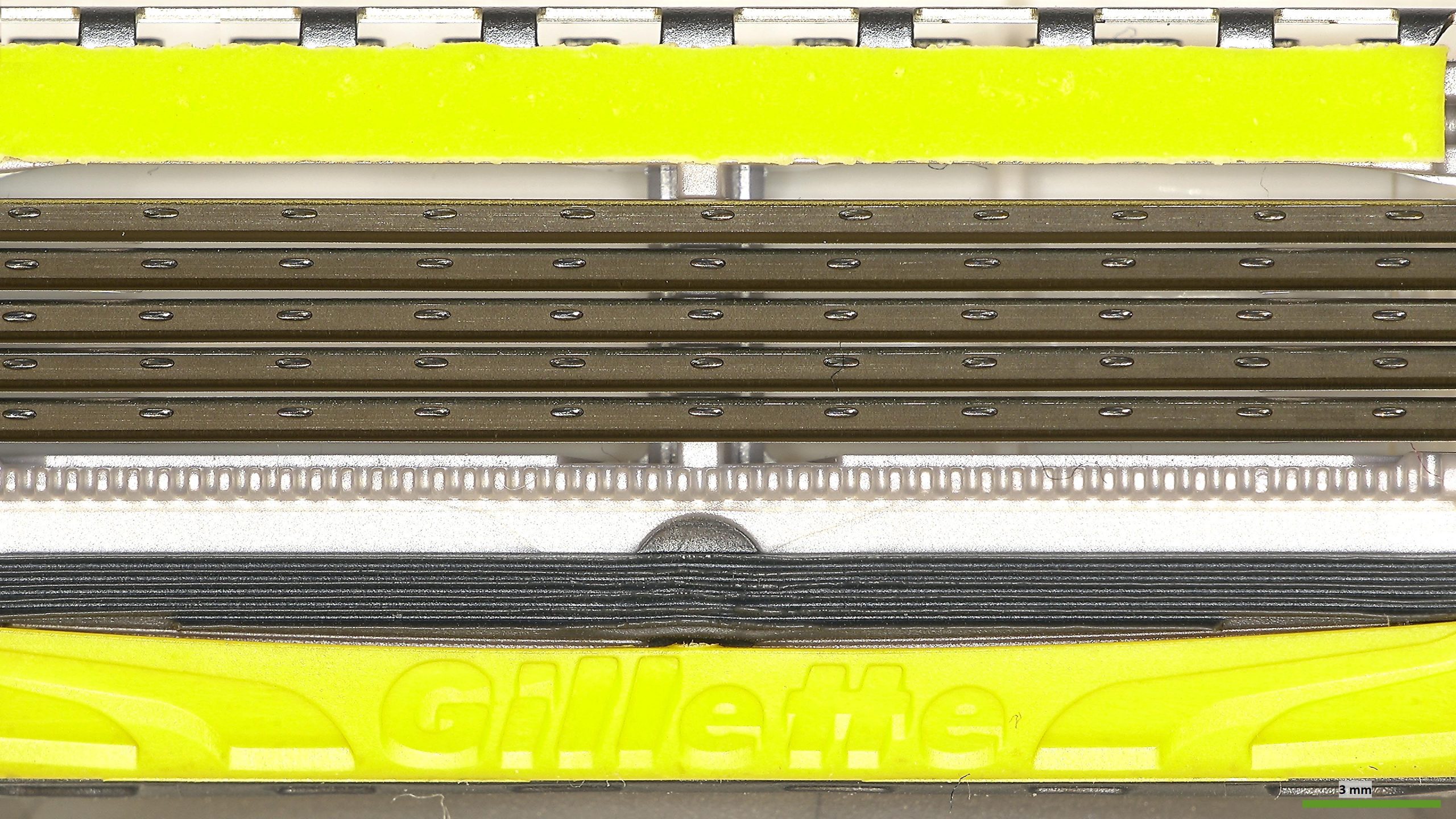

With its extra-wide field of view and 30:1 optical zoom, the system is a suitable choice for coarse and fine inspection, measurement and documentation of large objects like large size PCB:s, sheet metal parts, assemblies, and plastic parts.

Highlights

Ultra High Definition (4K) 8.3 megapixel images for inspection of fine details.
700mm field of view with outstanding optical performance for inspection of large objects.
Advanced external remote control with memory presets and foot switch output for hand-free control of camera or len.
Soft white LED ring light with detachable diffuser and electronic dimmer.
VESA monitor holder attached to the stand post provides an ergonomic position for operator with unobstructed view to the monitor.
Options include ESD-protected housing and a built-in laser pointer

Included items when you order HD-016-KIT-LWD

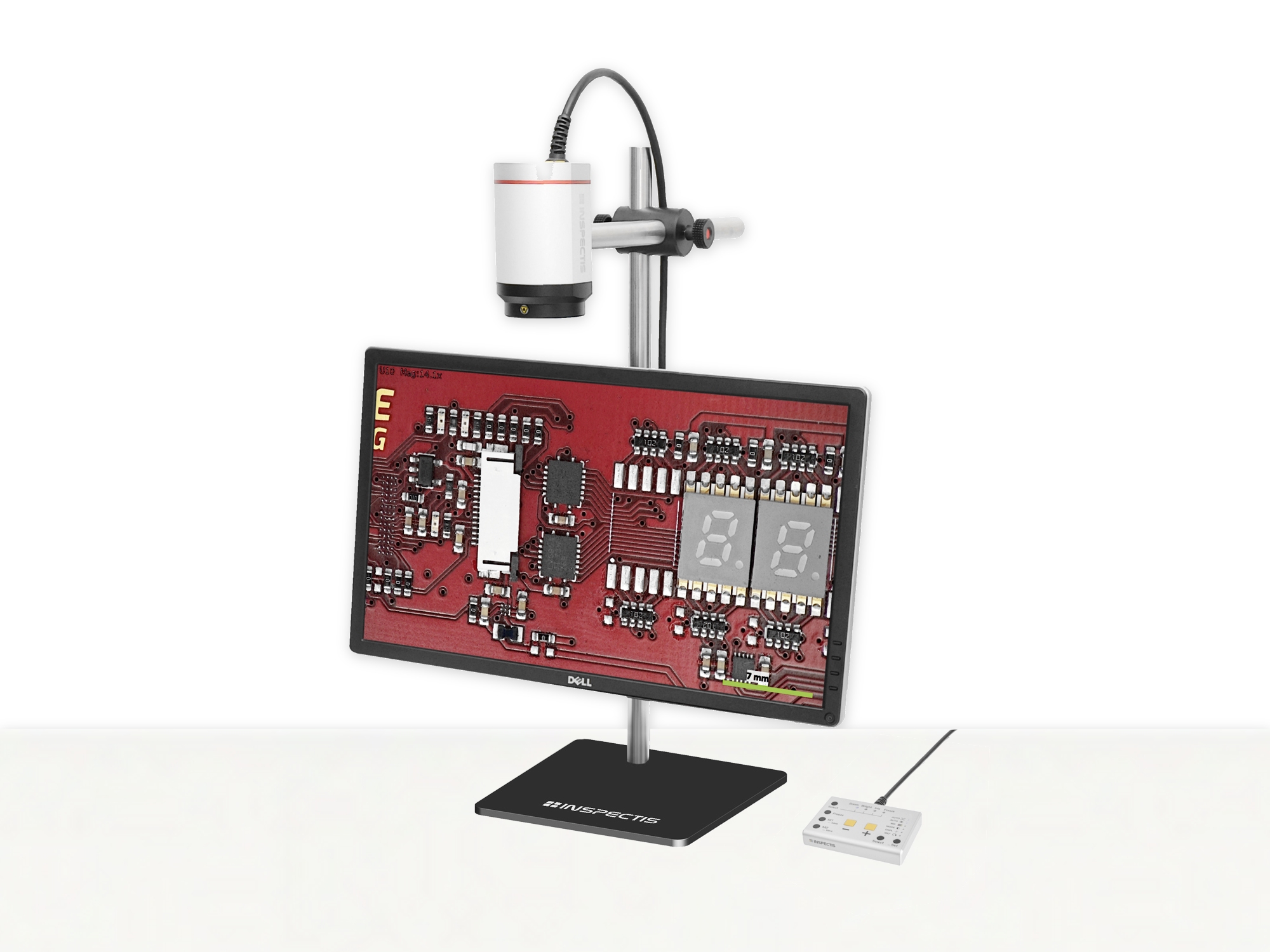

U30s LWD, Ultra HD 2160p Digital Microscope WD ~ 350mm-550 mm

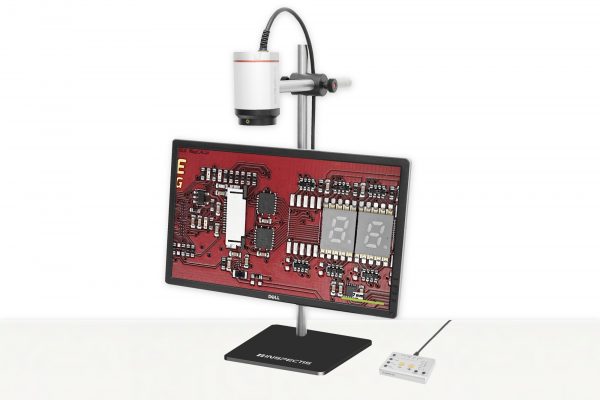

Single-arm Boom Stand, LWD, ESD-Protected
Advance Camera Control with memory presets
White LED RingLight with electronic dimmer and detachable diffuser

Included items when you order HD-013-KIT-LWD

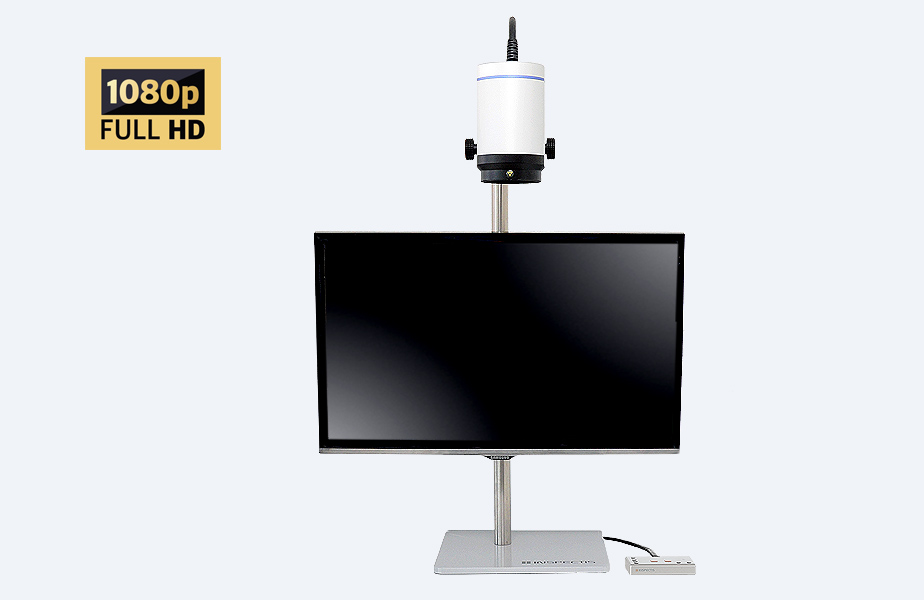

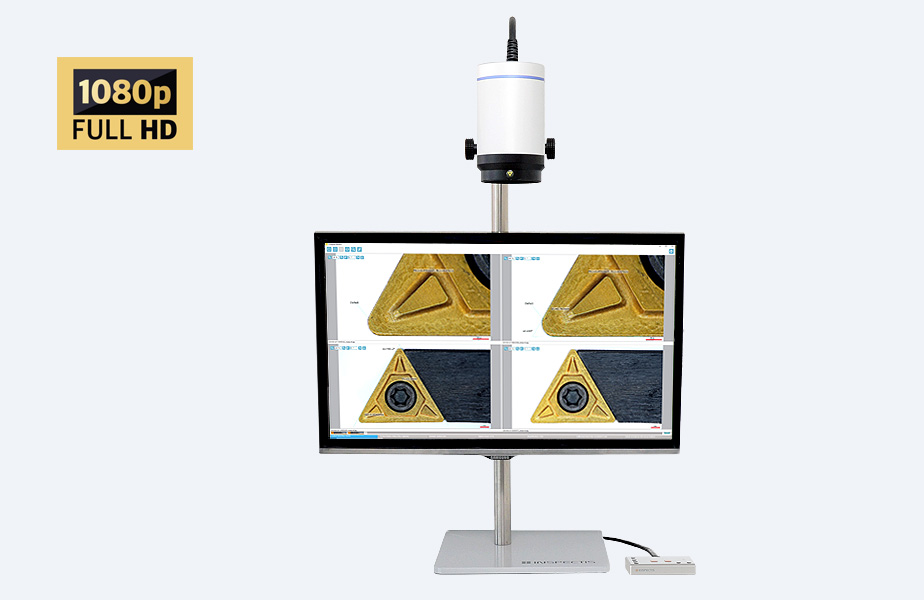

F30s LWD, 1080p Modular Digital Macroscope, 30x zoom, WD ~ 350mm-495 mm
Single-arm Boom Stand, LWD, ESD-Protected
Remote Camera Control with Advanced Adjustments
VESA Monitor Holder for LWD Boom Stand

System package can also be ordered with F35s as HD-113-KIT-LWD

Downloads

Brochure_Inspectis-U30s_LWD

Download Brochure

Send download link to:

Download Product Catalouge Inspectis product diagram

Specifications

System 4K

Video Output	Ultra HD 2160p/30 fps switchable to FHD 1080p/60 fps
Imager	8.5 Mpixels. 3840(H)x2160(V) 16:9 format. Progressive scan CMOS image sensor
Pixel Size (resolution)	1.62 μm x 1.62 μm
Optics	Megapixel motorised 30:1 zoom lens with autofocus and iris control
Magnification range	0.86x (x1 zoom) to 27x (x30 zoom) on 28” monitor. 162x with optional +10 macro lens attached)
Field of View	704mm (x1 zoom) to 22.5mm (x30 zoom). 3.75mm with optional +10 close-up
Working distance	310 to 550 mm
I/O Ports	HDMI video output, 5P MiniDin power input, 8P MiniDin for communication.
Camera and lens control via top buttons	Zoom, Iris, Auto Focus on/off, White Balance
Remote Control via Console	Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, White Balance, Picture Quality Mode, Display Text, Crosshairs overlay, Image Rotate, Image Freeze, Memory Save/Recall (2 pcs), Foot-switch port
Pre-set memories	2 save/recall with quick access buttons
Illumination	White LED Ring Light with electronic dimmer. Powered directly from digital microscope
Image & Video Capture (optional)	4K still image capture, FHD video recording on MicroSD card
Software (optional)	INSPECTIS© Basics, OAI, Pro and ProX
Stand	Single-arm Boom Stand, 590mm(V) 328mm(H) travel range
Storage Environment	-20° – +65°C, 20 – 95% RH, non-condensing
Operating Environment	-5 ° – +45°C, 20 – 95% RH, non-condensing
Size, Weight	6400 x 400 x 429 mm, 9.0 kg.

System Full HD

Video Output	FHD 1080p/60 fps switchable to Full HD 1080/50p (by Remote Camera Control).
Imager	3.2M pixels. 1920(H) x 1080(V) 16:9 format progressive scan
Pixel Size (resolution)	2.5 μm x 2.5 μm
Optics	High resolution motorised 30:1 zoom with auto-focus, iris control and pre-calibrated optics
Magnification range	0.86x (x1 zoom) to 27x (x30 zoom) on 28” monitor. 162x with optional +10 macro lens attached)
Field of View	704mm (x1 zoom) to 22.5mm (x30 zoom). 3.75mm with optional +10 close-up
Working distance	340 to 550 mm
I/O Ports	HDMI video output, 5P MiniDin power input, 8P MiniDin for communication.
Camera and lens control via top buttons	Zoom, Iris, Auto Focus on/off, White Balance
Remote Control via Console	Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, White Balance, Picture Quality Mode, Display Text, Crosshairs overlay, Image Rotate, Image Freeze, Memory Save/Recall (2 pcs), Foot-switch port
Pre-set memories	2 save/recall with quick access buttons
Illumination (optional)	White LED Ring Light with electronic dimmer. Double-spot LED Matrix Light with electronic dimmer. Powered directly from digital microscope
Image & Video Capture (optional)	FHD image capture and video recording on USB flash
Software (optional)	INSPECTIS© Basics, OAI, Pro and ProX
Stand	Single-arm Boom Stand, 590mm(V) 328mm(H) travel range with VESA holder
Storage Environment	-20° – +65°C, 20 – 95% RH, non-condensing
Operating Environment	-5 ° – +45°C, 20 – 95% RH, non-condensing
Size, Weight	6400 x 400 x 429 mm, 9.1 kg.

Optional accessories

Macro Lens +3 Diopter, 67mm

Item no. HD-038

+3 diopter optical power achromatic close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 65%.

Find more Lenses

Dual White & UV RingLight with Dimmer and Segment Control

Item no. HD-124-WUV

Industrial grade ring light containing 32 white, and 8 high power UV LEDs arranged along two rings. For applications where sequential or independent white and UV illumination is needed. Homogenous and high-intensity light output. Integrated On/Off switch with electronic dimmer. Dedicated switches for UV and segment control.

For optimal cable management, the ring light is powered directly via the Inspectis digital microscope. Optional Diffuser filters and Polariser/Analyser filters are available for use with the ring light.

Explore Illuminations and Polarisers

Inspectis 360 degrees Rotating Viewer

Item no. HD-041

360° rotating viewer for rotating the image at 32° oblique angle by manipulating the optical path without touching the object. Designed for side view inspection of objects while both the digital microscope and the inspection object remain stationary.

Inspectis Rotating Viewer operates in both “side-view” and standard “right-angle-view” modes. Equipped with an optical lens to maintain the working distance in both operating modes without having to change the axial position of the camera.

XY Floating Board with Position Lock

Item no. HD-028-S

XY Floating board with large stroke (± 160mm x ± 145mm) and smooth lateral movement of PCB:s and other objects under the microscope. Equipped with position locking mechanism for maximum stability.

The working surface is covered by a high friction antistatic mat that keeps your inspection object in place. 4 slots are available for attaching optional magnetic pegs or custom made fixtures and holders.

Find more Stages and Mounts

Inspectis 4K External HDMI Image Capture and Video Recorder for U-microscopes

Item no. HD-140-U

High-quality, plug-&-play 4K HDMI Capture and Video Recorder device with 4K video loop-through. Compatible with 2160p output signal of Inspectis U30, U30s, U10 and U10s Digital Microscopes. Captures still pictures at UHD resolution and digital video at FHD format on a Micro SD-card without need of a host computer.

Live loop through video output at 4K, 2160p format. Supplies date and time stamp on still picture and recorded video. Delivers with power supply, HDMI A-type male cable and Micro SDHC-card.

Assembled in industrial grade aluminium housing with stainless-steel bottom plate.

Find more Image Captures
