U30s Ultra HD (4k) Digital Microscope System Package

Advanced Ultra HD Optical Inspection System

Complete package including best-on-the-market Ultra High Definition 8.3 megapixel Digital Microscope with 30:1 Optical Zoom Range, swift Auto Focus, extra +10 diopter Macro Lens, Fine Focusing Track Stand, LED Ring light, large working area XY-Floating Board and poweful INSPECTIS© Pro Utility and Metrology Software.

Designed for Ergonomic Use

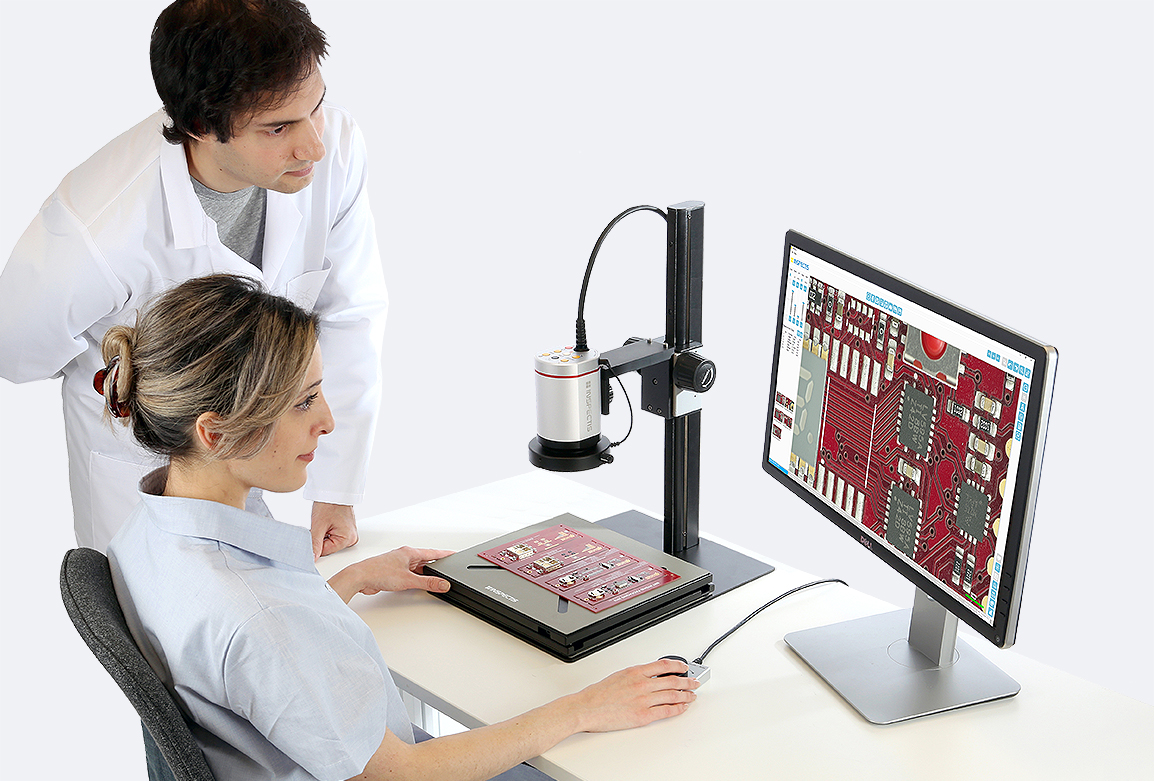

Inspectis Ultra HD digital microscopes provide relief to eyes, neck and shoulders through the unique ergonomic design and large free working distance. By allowing operators to sit comfortably in a good working position, their inspection tasks can be carried out more efficiently.

When You Require the Best

Inspectis U30s digital microscope with its superior image quality, high contrast and true colours is the best choice for High Resolution Optical Inspection, Analysis, Quality Control, R&D, Metrology, Reporting and Documentation of objects up to 720x magnification.

Ergonomic

High Resolution

Reliable

Optimized for Optical Inspection of Fine Detail

The system’s standard  30:1 zoom optics produces ~ 2.1 – 61.4x magnification o 28” monitor. With included +10 diopter attached, magnification can be zoomed up to 193x while you still can take advantage of 290mm large filed of view at 1x zoom factor.

4K Digital Microscope Powered by INSPECTIS©

The system is powered by INSPECTIS© Pro software. Powerful yet easy-to-use live image view, capture, analysis, metrology and reporting software.

INSPECTIS© Pro is pre-calibrated across entire zoom range of the U30s microscope and provides tools measurements, image overlays, comparison, video & audio recording, drawings, annotations, and reporting. INSPECTIS© provides direct access to camera and lens attributes like optical zoom, aperture size, shutter speed, contrast, focus and colour balance.

Precise Camera and Lens Control

INSPECTIS© provides direct access to camera and lens attributes like optical zoom, aperture size (iris), shutter speed, contrast, focus and colour balance.

1 to 16 camera and lens configurations can be named and saved in memory for quick recall through P1 to P16 icons on software

Developed for Ease-of-Use

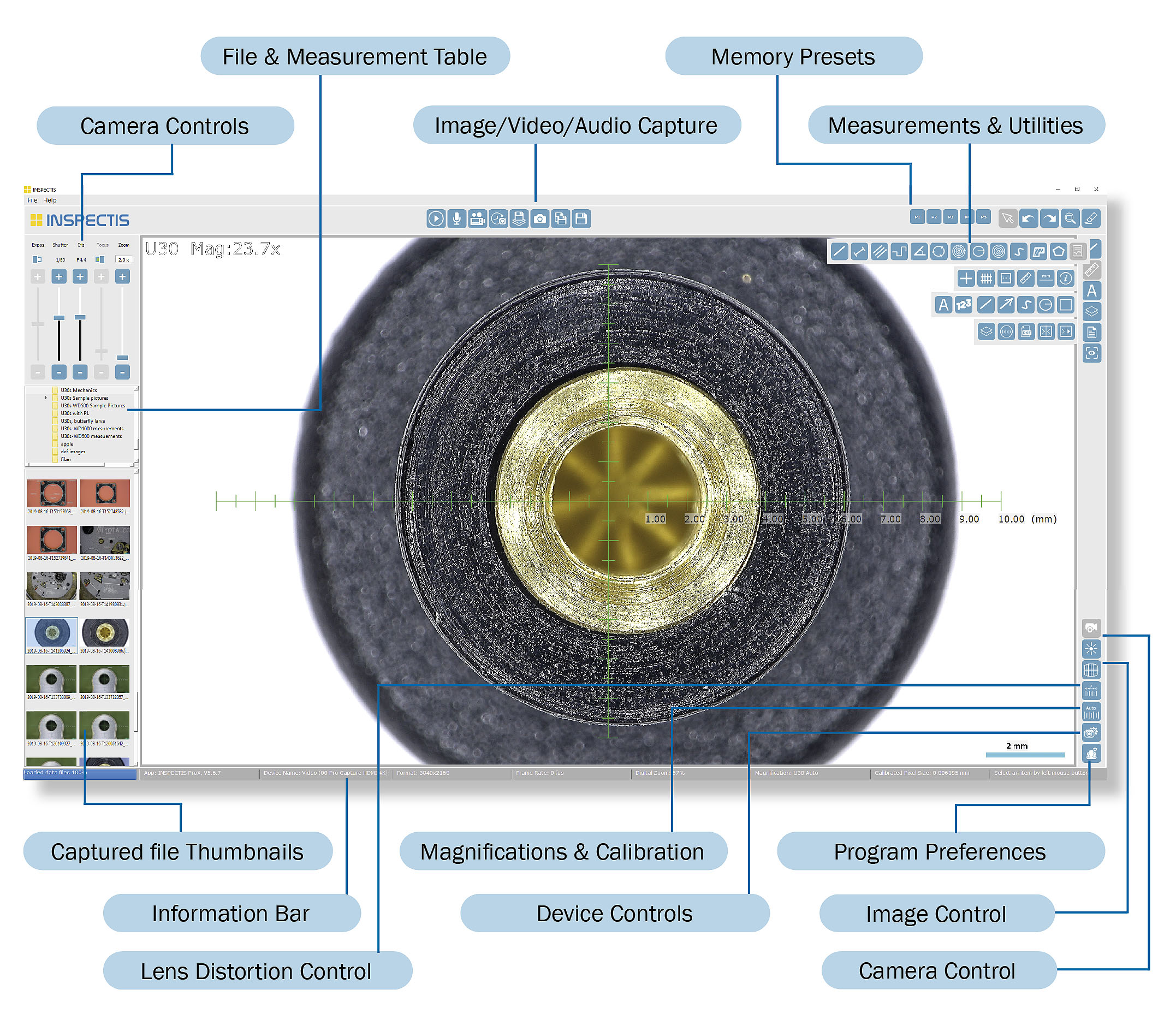

Icon based graphical user interface of the INSPECTIS© makes it intuitive, quick and easy-to-use.

Easy image capture and sharing options makes collaboration, reporting and training easy tasks. Thanks to its powerful video processing engine, user-friendly interface and streamlined workflow, INSPECTIS© reduces time
spent on capture, analysis, measurements and documentation of your inspection objects.

Fully Configurable Optical System

Inspectis 4K Advanced system can be further adapted to your application and has a wide range of accessories. Options included:

  • Transmitted brightfield white illumination
  • Incident UV ring-light illumination
  • +3, +5, +28 or +56 diopter extra lenses
  • ESD protected housing
  • Self-adjusting laser pointer
  • Hermetic sealed housing
  • Motorised XY-stage with joystick control

Included items when you order HD-016-KIT-ADV

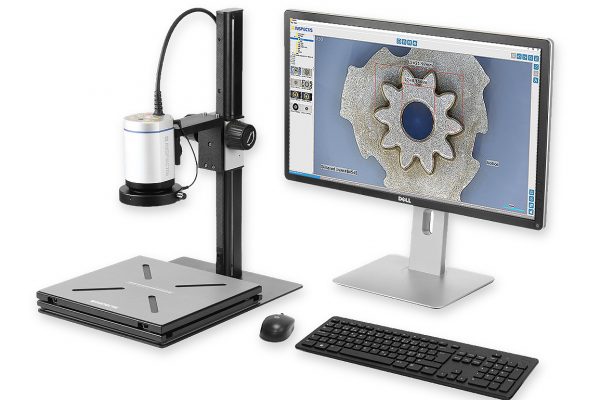

  • Inspectis U30s, Ultra HD 2160p Modular Digital Inspection Macroscope, x30 Zoom
  • Macro lens +10 diopter, 67mm (replaceable with other lenses on request)
  • Track stand, Large Base with focusing WD 35-410mm, ESD-Protected base
  • XY Floating Board with magnetic pegs (4x kit)
  • RingLight White LED with detachable diffuser
  • 4K HD USB3.0 Capture Pro with INSPECTIS© Pro software and USB-COM cable
  • Annual Service and Support for INSPECTIS© Pro (one year)

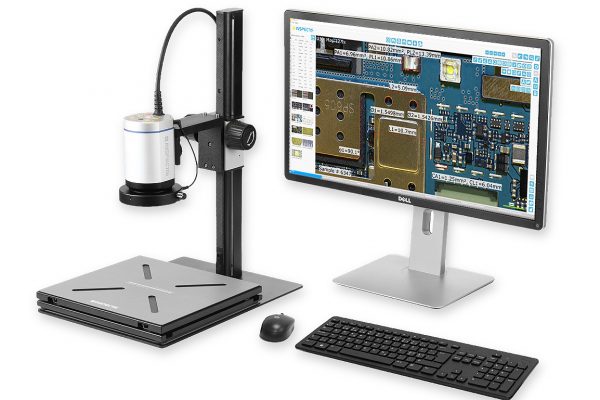

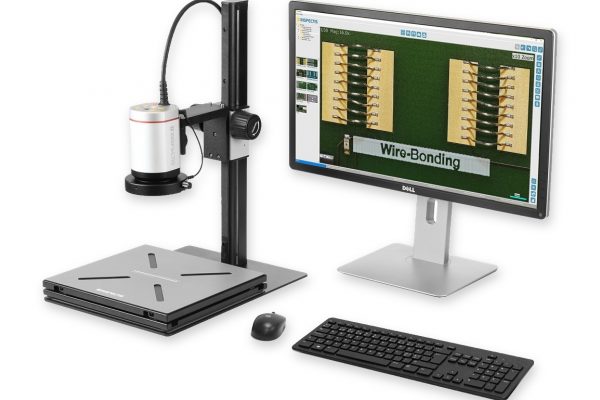

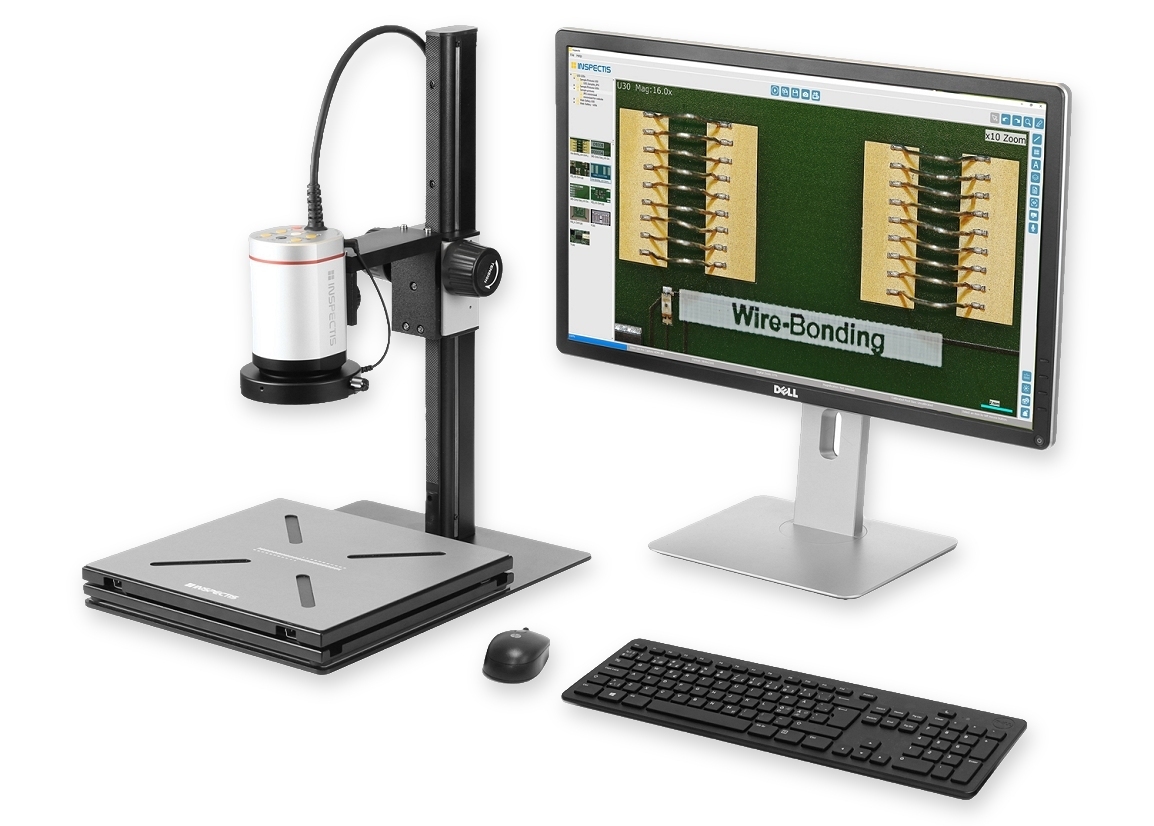

4K digital microscope

Included items when you order HD-013-KIT-ADV

  • Inspectis F30s, Full HD 1080p Modular Digital Inspection Macroscope, x30 Zoom
  • Macro lens +10 diopter, 67mm (replaceable with other lenses on request)
  • Track stand, Large Base with focusing WD 35-410mm, ESD-Protected base
  • XY Floating Board with magnetic pegs (4x kit)
  • RingLight White LED with detachable diffuser
  • Full HD USB3.0 Capture with INSPECTIS© Pro software and USB communication cable
  • Annual Service and Support for INSPECTIS© Pro (one year)

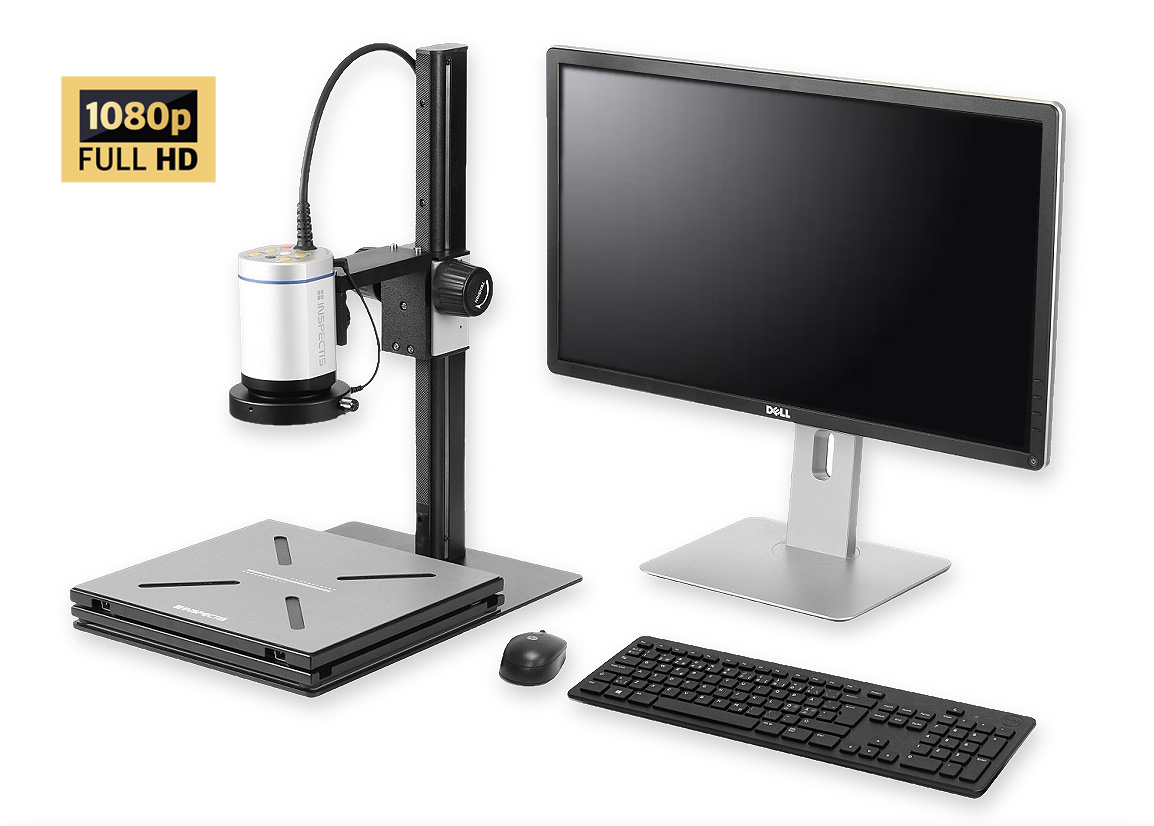

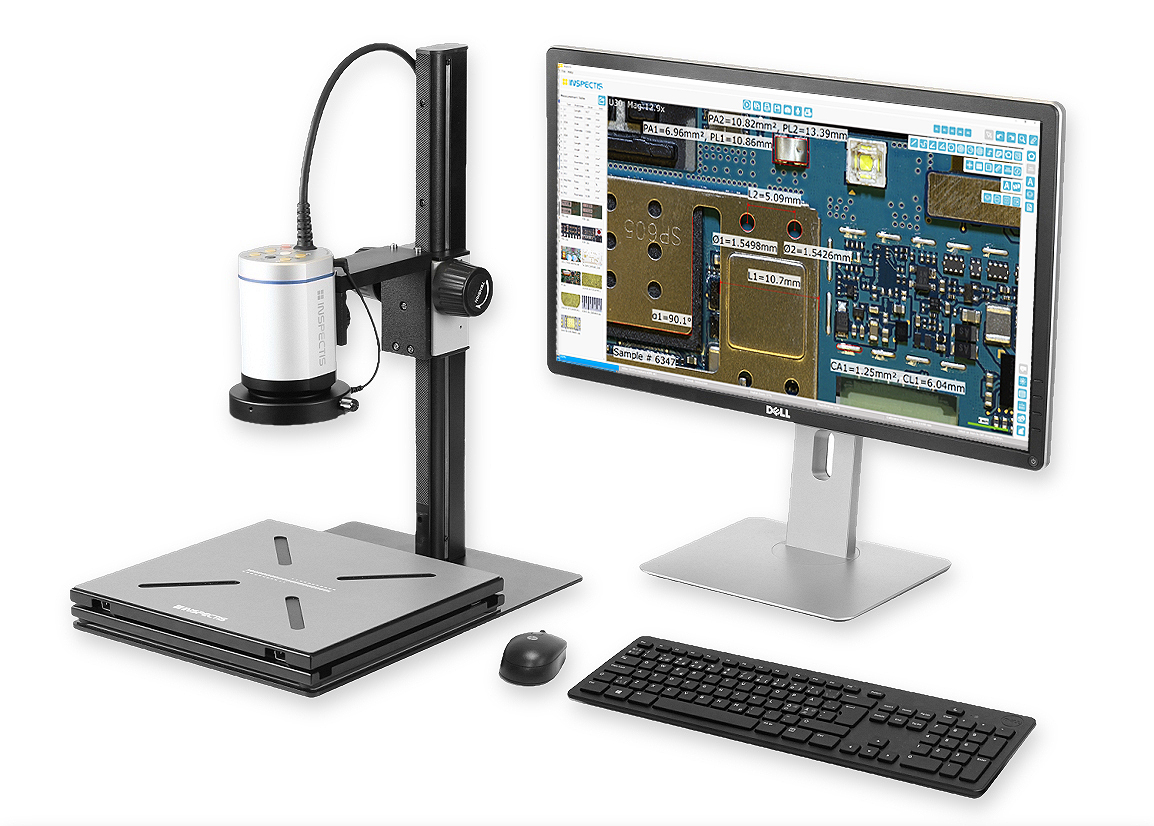

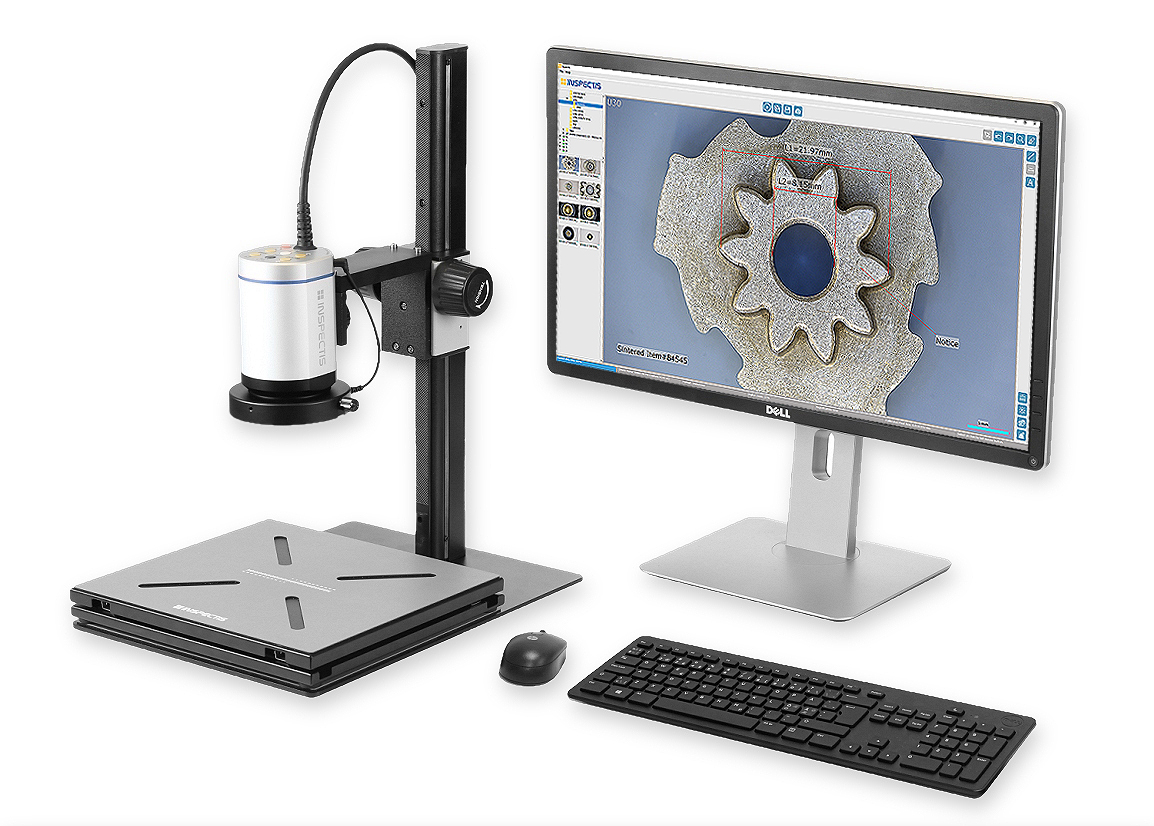

Full-HD digital microscope

Downloads

Brochure_Inspectis U30s Advanced

Download Product Brochure

Send download link to:

I have read and agree to the Inspectis privacy policy. *

Download Optical DataBrochure Inspectis systems

Product video

Specifications

System 4K

Video Output Ultra HD 2160p/30 fps switchable to FHD 1080p/60 fps
Imager 8.5 Mpixels. 3840(H)x2160(V) 16:9 format. Progressive scan CMOS image sensor
Pixel Size (resolution) 1.62 μm x 1.62 μm
Optics Megapixel motorised 30:1 zoom lens with autofocus, iris control and pre-calibrated optics with automatic zoom tracking
Magnification range 2.1x (x1 zoom) to 193x (x30 zoom with +10 close-up) on 28” monitor
Filed of View 290mm (x1 zoom) to 3.15mm (x30 zoom with +10 close-up)
Working distance 178 to 230 mm
I/O Ports HDMI video output, 5P MiniDin power input, 8P MiniDin for communication. USB3.0 for image capture. (PCIe on request)
Camera and lens control via top buttons Zoom, Iris, Auto Focus on/off, White Balance
Camera and lens control via software Zoom, Iris, Shutter-speed, Manual/Auto Brightness, Gain, Manual/Auto Focus, Contrast, White Balance, Clarity, FlipV, FlipH, NIR-mode, Video Frame Rate
PC interface USB3.0, USB3.1 A-type (PCIe on request)
Software INSPECTIS© Pro, upgradeable to ProX
Pre-set memories 16 save/recall memories with editable names and quick access buttons
Image / Video Capture format 4K still pictures in JPG and PNG. Full HD 60fps video recording in AVI with 4 selectable video compressions
Image / Video Capture Via software. Foot-pedal (optional)
Illumination White LED Ring Light with detachable diffuser and electronic dimmer
XY-stage Floating board X ± 160mm Y ± 145mm travel range, Antistatic
Stand Track stand with rack & pinion z-movement 35 – 410mm working distance range
Storage Environment -20° – +65°C, 20 – 95% RH, non-condensing
Operating Environment  -5 ° – +45°C, 20 – 95% RH, non-condensing
Size, Weight  510 x 400 x 295 mm, 9.8 kg.

System F30s Full HD

Video Output FHD 1080p/60 fps switchable to Full HD 1080/50p (by Remote Camera Control).
Imager 3.2M pixels. 1920(H) x 1080(V) 16:9 format progressive scan
Pixel Size (resolution) 2.5 μm x 2.5 μm
Optics High resolution motorised 30:1 zoom with auto-focus, iris control and pre-calibrated optics with automatic zoom tracking
Magnification range 2.3x (x1 zoom) to 179x (x30 zoom with +10 close-up) on 24” monitor.
Filed of View 265mm (x1 zoom) to 3.4mm (x30 zoom with +10 close-up)
Working distance 195 to 230 mm
I/O Ports HDMI video output, 5P MiniDin power input, 8P MiniDin for communication, USB3.0 for image capture.
PC interface USB3.0, USB3.1 A-type (PCIe on request)
Camera and lens control via top buttons Zoom, Iris, Auto Focus on/off, White Balance
Camera and lens control via software Zoom, Iris, Shutter-speed, Manual/Auto Brightness, Gain, Manual/Auto Focus, Contrast, White Balance, Clarity, FlipV, FlipH, NIR-mode
Software INSPECTIS© Pro, upgradeable to ProX
Pre-set memories 16 save/recall memories with editable names and quick access buttons
Image / Video Capture format FHD still pictures in JPG and PNG. Full HD 60fps video recording in AVI with 4 selectable video compressions
Image / Video Capture Via software. Foot-pedal (optional)
Illumination White LED Ring Light with detachable diffuser and electronic dimmer
XY-stage Floating board X ± 160mm Y ± 145mm travel range, Antistatic
Stand Track stand with rack & pinion z-movement 35 – 410mm working distance range
Storage Environment -20° – +65°C, 20 – 95% RH, non-condensing
Operating Environment  -5 ° – +45°C, 20 – 95% RH, non-condensing
Size, Weight  510 x 400 x 295 mm, 9.8 kg.

Optional accessories

+5 diopter macro lens

Macro Lens +5 Diopter, 67mm

Item no. HD-039

+5 diopter optical power achromatic close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 210%.

Explore other Lenses
Polarisation filter set for RingLight, 67mm

Polarisation filter set for RingLight, 67mm

Item no. HD-024-P-U

Polarising filter set consists of a polariser which is attached on front of the LED RingLight and an analyser which is screwed on the camera lens.

For polarised light microscopy and for eliminating glare from highly reflective objects like solder joints.

Explore Illuminations and Polarisers
INSPECTIS Overlay comparision software

Upgrade to INSPECTIS© ProX Image Capture and Metrology software with Real-time Camera Control

Item no. -PX

Advanced metrology, analysis and utility software with real-time camera and lens controls. Besides metrology, analysis and documentation features, ProX provides following extra tools:

• Automatic focus stacking (Field of view extender)
• Manual focus stacking
• Time lapse video recording
• Time interval Overlay Assisted Inspection (OAI)
• Optical edge detection and DXF export
• DXF new, import, edit and export
• Drawing toolbox for DXF edit
• DXF overlay on live image
• DXF export as PNG file
• PNG overlay on live image as digital graticule
• Automatic alignment of overlaid image to live image
• Automatic rescaling of overlaid image through zoom

Explore INSPECTIS© software, SDK & Converters

More accessories:

A wide variety of accessories are available for INSPECTIS digital microscopes.
