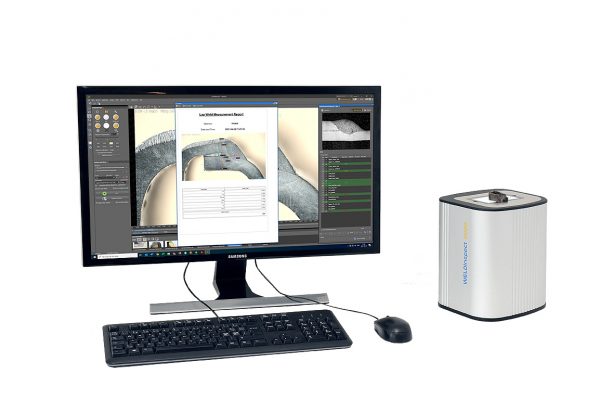

• FHD Inverted Microscope for Weld Measurement

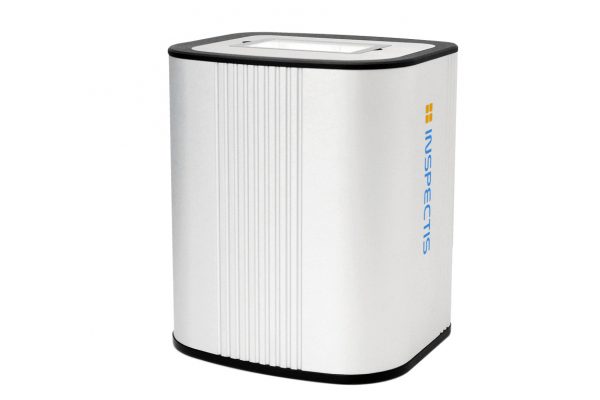

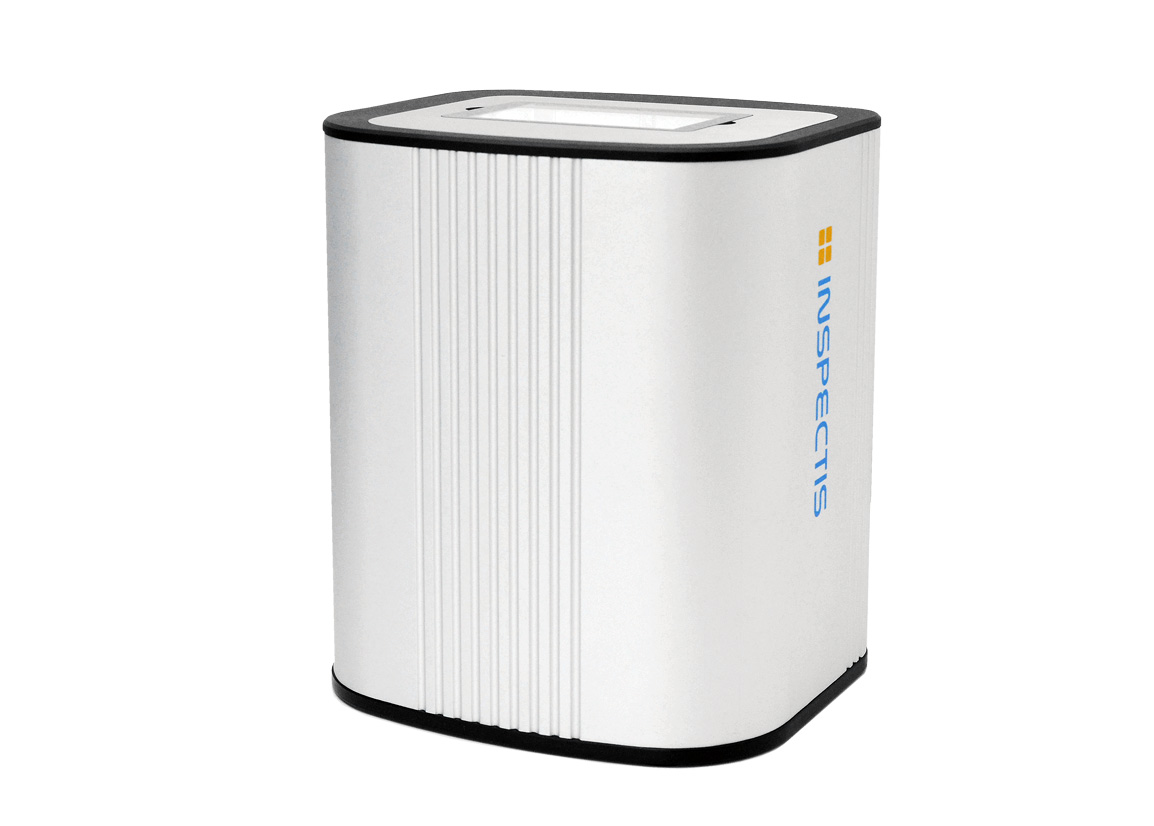

  • DIM Microscope for Weld Measurement

Inverted Microscope for Weld Analysis and Documentation

Dedicated digital inverted microscope with Full HD image quality. Large field of view range, ~ 84 to 3 mm (~3.3” to 0.12”), equivalent to ~2.5x to 71x optical magnification or ~ 7.2 to 205x on screen magnification.

Developed for Ease-of-Use

Turn on the WELDinspect, start INSPECTIS© software and place the prepared sample on top of the device. The inverted, pre-calibrated optical system ensures that the sample is imaged brightly and sharply without any effort.

Dedicated Software

Powerful and customizable Nikon Metrology NIS-Elements software with user-friendly sequential measurements, pre-defined weld templates and step-by-step instructions.

Cost Effective

Reliable

Easy to Use

Developed with emphasis on Quality and Cost Efficiency

All-in-One optical inspection system with x26:1 motorised zoom lens and swift auto-focus designed for performing reliable weld bead analysis, measurement, and documentation.

Upgradeable with x35 zoom optics providing ~ 54.3 to 1.66 mm (~2.14” to 0.065”) FoV, equivalent to ~3.9x to 127x optical magnification or ~11.2 to 367x on screen magnification.

Modern and cost-effective inverted imaging system with high performance and robust design.

4K Digital Microscope for Weld Analysis

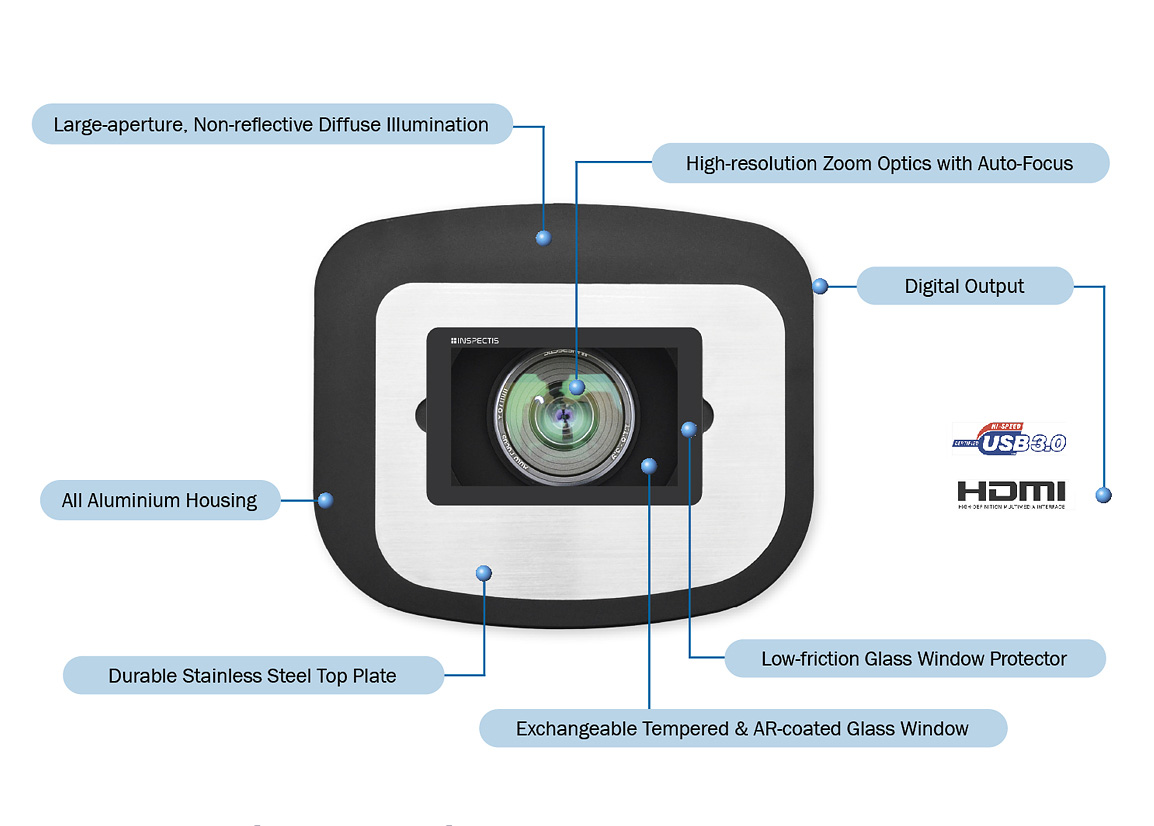

Robust Desgin for Ease-of-Use

Turn on the WELDinspect, start the software and position the prepared sample on its aperture window. The inverted calibrated optical system ensures the sample to be imaged sharply without any effort.

The robust aluminium housing with steel base-plate and stainless-steel top-plate creates maximum stability and hazzle free operation.

A microscope cover is included for protection of the device aginst dust when not in use.

Robust Desgin for Ease-of-Use

Turn on the WELDinspect, start the software and position the prepared sample on its aperture window. The inverted calibrated optical system ensures that the sample is imaged sharply without any effort.

The robust aluminium housing with steel base-plate and stainless-steel top-plate creates maximum stability and hazzle free operation.

A cover is included for protection of the device aginst dust when not in use.

Weld bead Measurement

Fast and Accurate Measurements

Powered by INSPECTIS© software for fast and accurate image acquisition, analysis, measurement and data sharing.

Pre-calibrated optics with automatic zoom tracking and auto-focus ensures quick and accurate measurements. Built-in camera controls with 16 quick access memory buttons makes image adjustment and acquisition simple and intuitive.

Software for Weld measurement

Dedicated Nikon NIS-Elements Software

Powerful and customizable Nikon Metrology NIS-Elements software with user-friendly sequential measurements, pre-defined weld templates and step-by-step instructions.

Use a pre-defined weld template or define your specific measurement sequence according to individual standards and acceptance criteria.

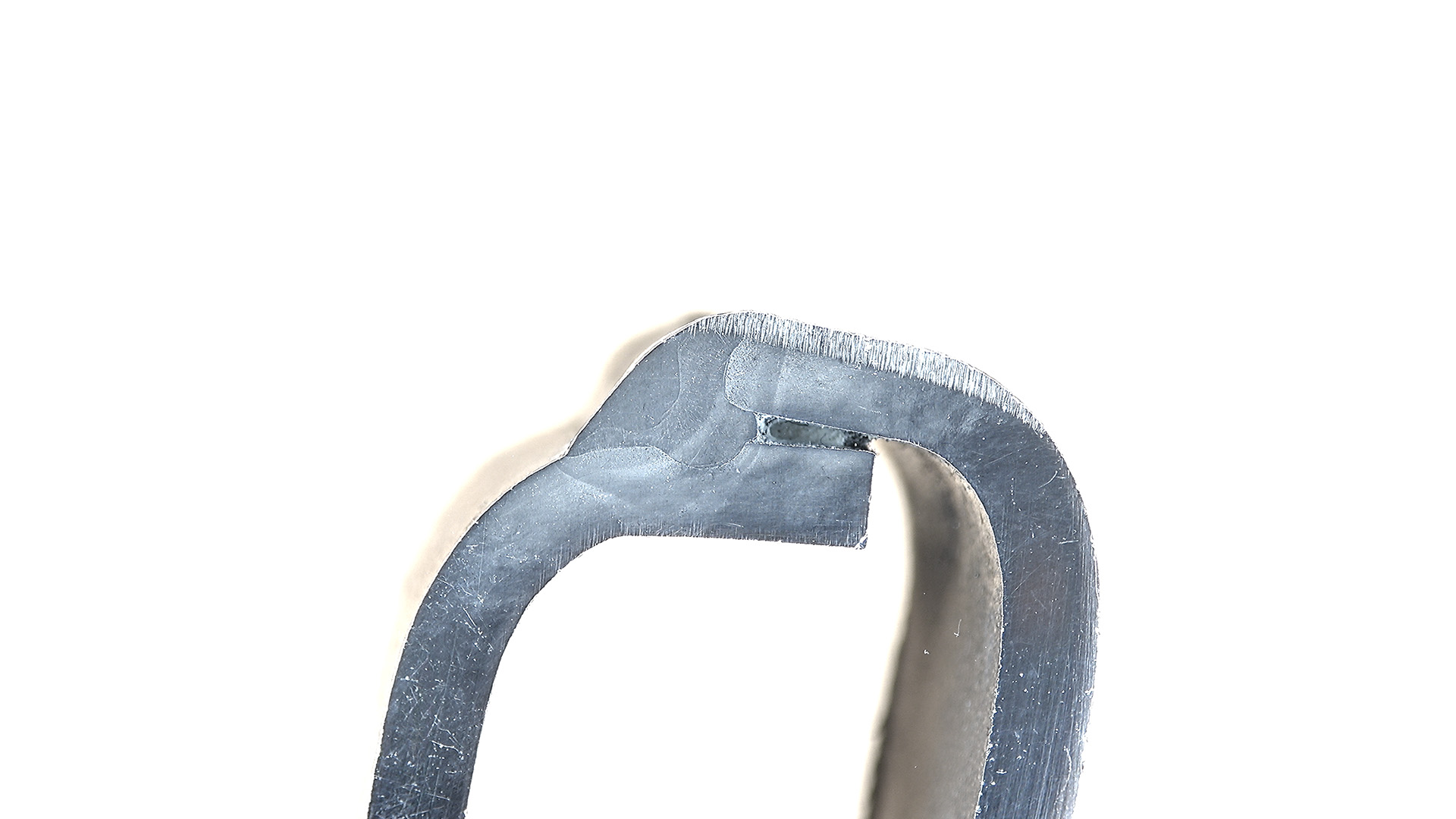

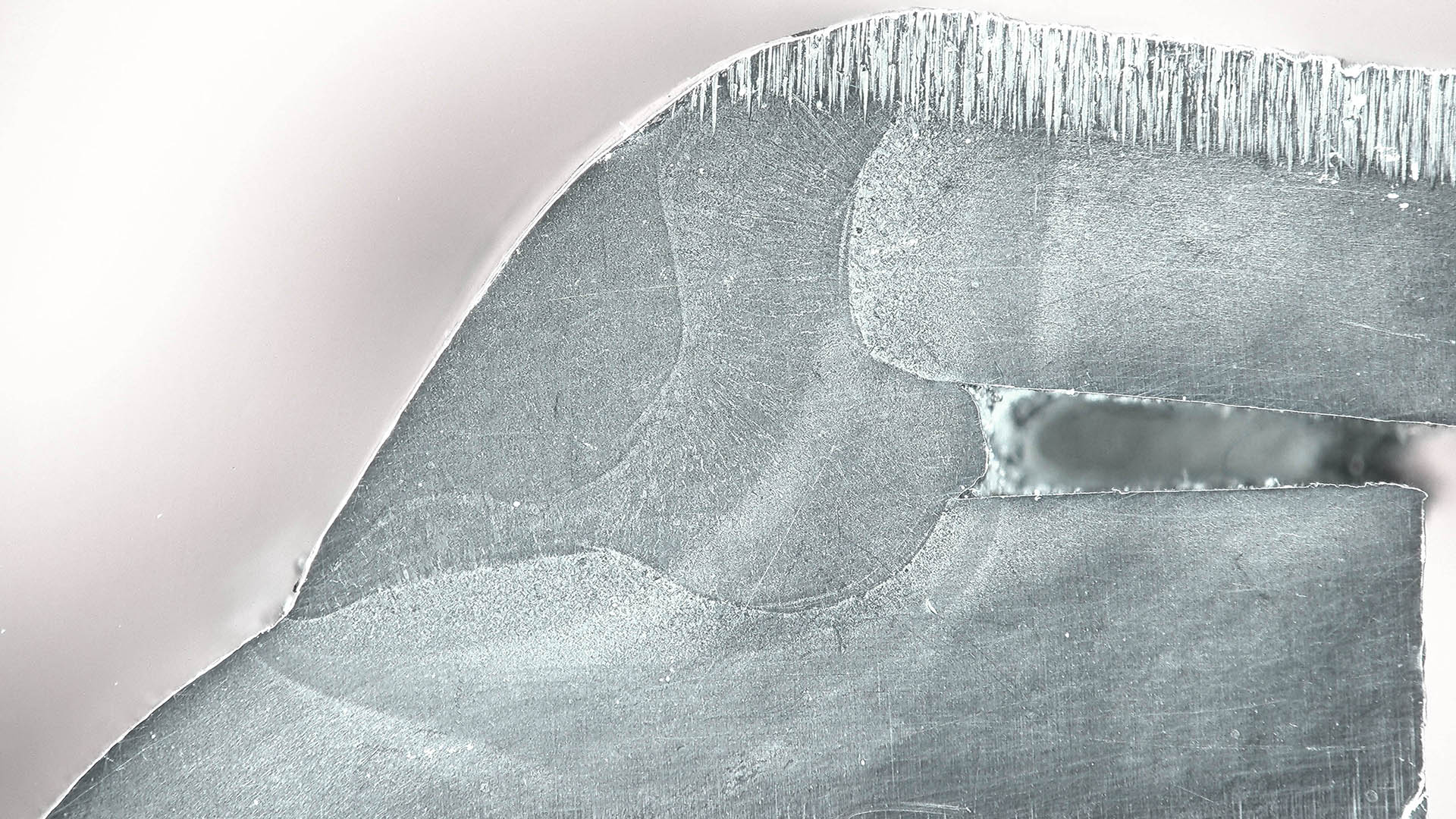

Lap-Weld measurement

Data Export and Report

Export finished measurements as a group to a Report, Microsoft Excel, Clipboard or a File format. The report can further be saved in PDF format.

The measurement definition and the report can be edited according to the specific customers needs.

NIS-Element Fillet-Weld-report

Included items when you order HD-240

  • DIM-F, Inspectis Digital Inverted Microscope 2.1MP Full HD with 26x Zoom, Auto-focus and large aperture LED RingLight
  • Full HD USB3.0 Capture Pro Device
  • INSPECTIS© Basics Image Capture software
  • Nikon NIS Elements D software bundle  with sequential measurement and weld templates (to be ordered seperately)
  • Inspectis USB communication Cable and HDMI Cable, 1.5m
  • Inspectis Hardened glass windows (5 pcs kit)
  • Dust Cover for the instrument
  • Power Supply
  • Annual Service and Support for INSPECTIS software (one year)

Options include:

  • Upgrade INSPECTIS© software from Basics to ProX including USB dongle

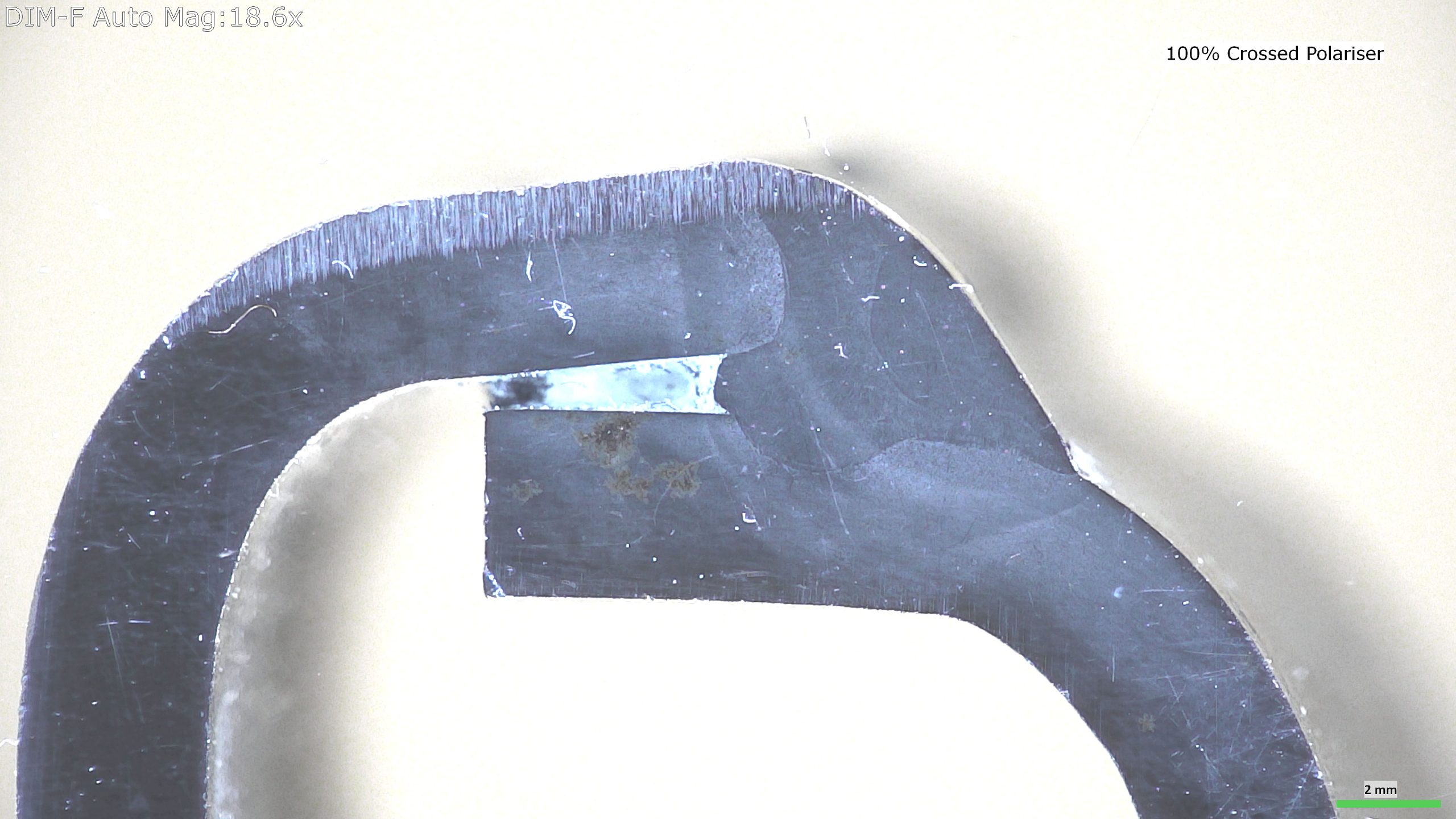

  • Upgrade with Crossed Polariser Filter set
  • Upgrade to DIM-FX with 35x zoom and 365x Magnification Optics
  • Flight Case for WELDinspect and accessories

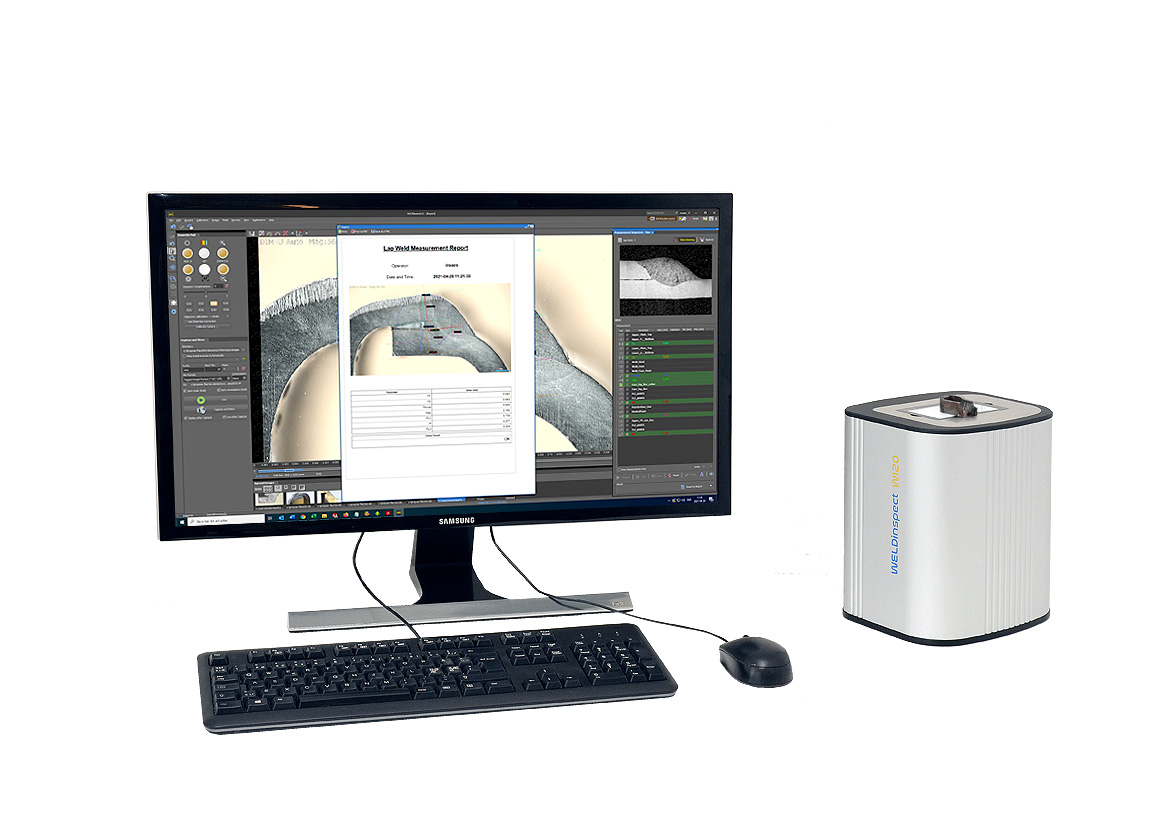

WELDinspect system

Downloads

Brochure-WELDinspect-Inverted-Microscope

Download Brochure

Send download link to:

I have read and agree to the Inspectis privacy policy. And consent to receive communications *

Download Optical DataDownload Flyer Measurement SequencerDownload Product Catalogue

Product video




1
1

Specifications

System

Video Output Full HD 1080p/60 fps
Imager 2.3 Mpixels. 1920(H)x1080(V) 16:9 format. Progressive scan CMOS image sensor
Pixel Size (resolution) 2.5 μm x 2.5 μm
Lens High-resolution motorised zoom with auto-focus. Pre-calibreted for geometrical software measurements.
I/O Ports HDMI video output, 5P MiniDin power input, 8P MiniDin PC communication
Camera and Lens controls Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, Contrast, Gain, Clarity, White Balance, NIR-mode.
Illumination Built-in large-aperture white LED ring light with diffuser. (Crossed polariser filter set is ordered separately)
Storage / Operating Environment -20° – +60°C, 20 – 95% RH, non-condensing / -5 ° – +40°C, 20 – 95% RH, non-condensing
Size / Weight 200 (W) x 170 (D)x 235 (H) mm / ~ 5.2 kg.

Optional accessories

Digital Inverted Macroscope

Light cover for WELDinspect

Item no. HD-249

Cover for preventing interference of the ambient light into the optical system. Creates a dark background and enhances contrast of the weld sample image. Vertical position of the cover can be adjusted for achieving best result.

Made of light and durable black coated aluminium.

WELDinspect

Hardened glass window

Item no. HD-241

Tempered 110x65x3 mm glass windows for DIM and WELDinspet and other type Inspectis Digital inverted Microscopes. Aperture edge of the windows are black coated for minimising glare and back-reflection of the incident illumination into the optics.

HD-241 contains 5 windows.

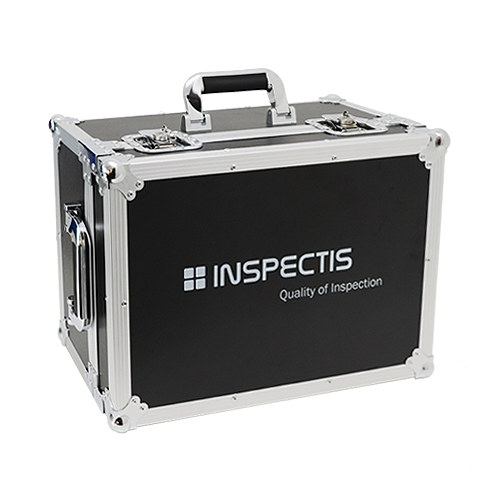

Transport case WELDinspect

 Flight Case for WELDinspect and accessories

Item no. HD-248

Rigid flight case with specially designed foam for safe transportation of complete WELDinspect systems HD-240 and HD-250.

More accessories:

Extra items are availble for WELDinspect digital inverted microscopes

Find more accessories here:
