Item no. HD-241
Tempered 110x65x3 mm glass windows for DIM and WELDinspet and other type Inspectis Digital inverted Microscopes. Aperture edge of the windows are black coated for minimising glare and back-reflection of the incident illumination into the optics.
HD-241 contains 5 windows.
Item no. HD-242
Rigid metallic plates with stainless steel finish and 3 different aperture sizes for optical inspection of prepared samples with Inspectis Digital Inverted Microscopes.
Compatible with all type of samples moulded in thermoplastic, epoxy, acrylic, conductive or other type of resins.
Item no. HD-245
Tempered 9H glass screen protector with low friction and premium scratch resistance. Deliveres in 5 pack kit.
Item no. HD-249
Cover for preventing interference of the ambient light into the optical system. Creates a dark background and enhances contrast of the weld sample image. Vertical position of the cover can be adjusted for achieving best result.
Made of light and durable black coated aluminium.
Item no. HD-243

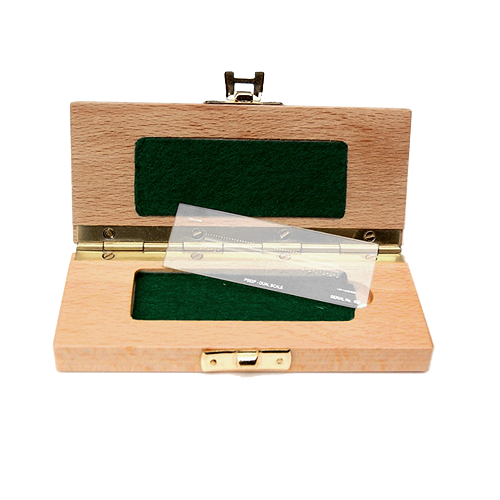

High accuracy calibration ruler with 100mm length scale subdivided into 1.0 mm divisions.
The scale is produced as a vacuum deposited chrome image on a glass disc, with a cover-glass cemented on top supplied in a polished wooden case.
For high-accuracy custom calibration of the DIM optics in INSPECTIS© and NIS-elements software.
Item no. HD-244
High accuracy calibration ruler with 100mm length scale subdivided into 1.0 mm divisions and accredited UKAS certificate.
The scale is produced as a vacuum deposited chrome image on a glass disc, with a cover-glass cemented on top supplied in a polished wooden case. Internationally traceable certificates of calibration are available to satisfy the requirements of ISO.
For high-accuracy custom calibration of the DIM optics in INSPECTIS© and NIS-elements software.
Item no. HD-051
USB foot switch for hands free image capture in Inspectis software. Foot switch is plugged into the USB port of computer and automatically recognized by the INSPECTIS software.
Item no. HD-248
Rigid flight case with specially designed foam for safe transportation of complete WELDinspect systems HD-240 and HD-250.
