Cost-Effective Professional Capillaroscopy

Video Capillarocope with PC and Android Software

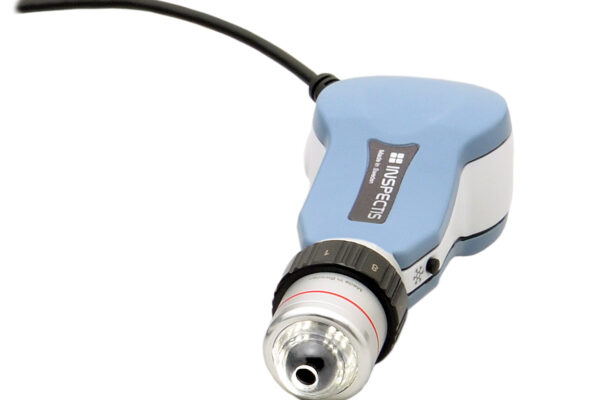

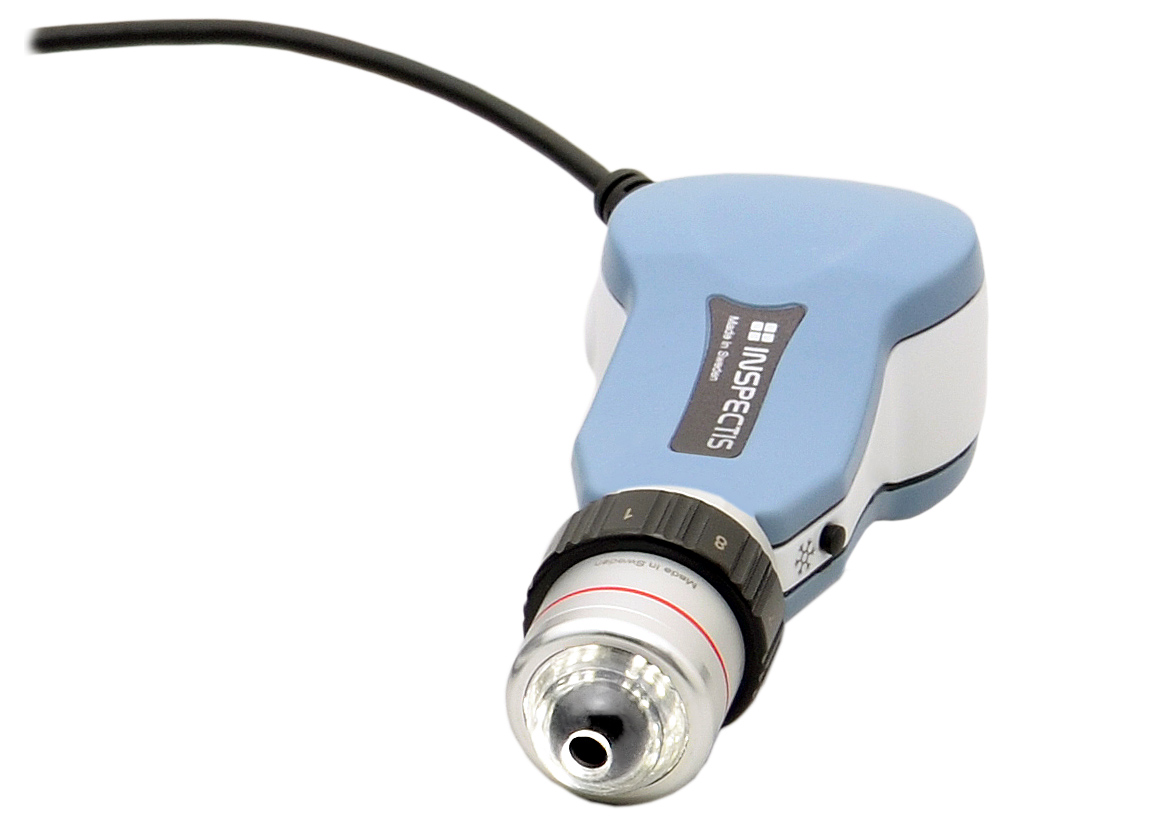

CapiScope is a compact video capillaroscopy microscope with integrated lens, on-board image capture switch and Inspectis innovative CapiDome lighting, designed for smaller clinics with moderate cases. CapiScope systems are designed for simple screening using INSPECTIS© APP or windows based INSPECTIS© CAP Basics software as well as advanced cases study by deploying INSPECTIS©  CAP Pro software.

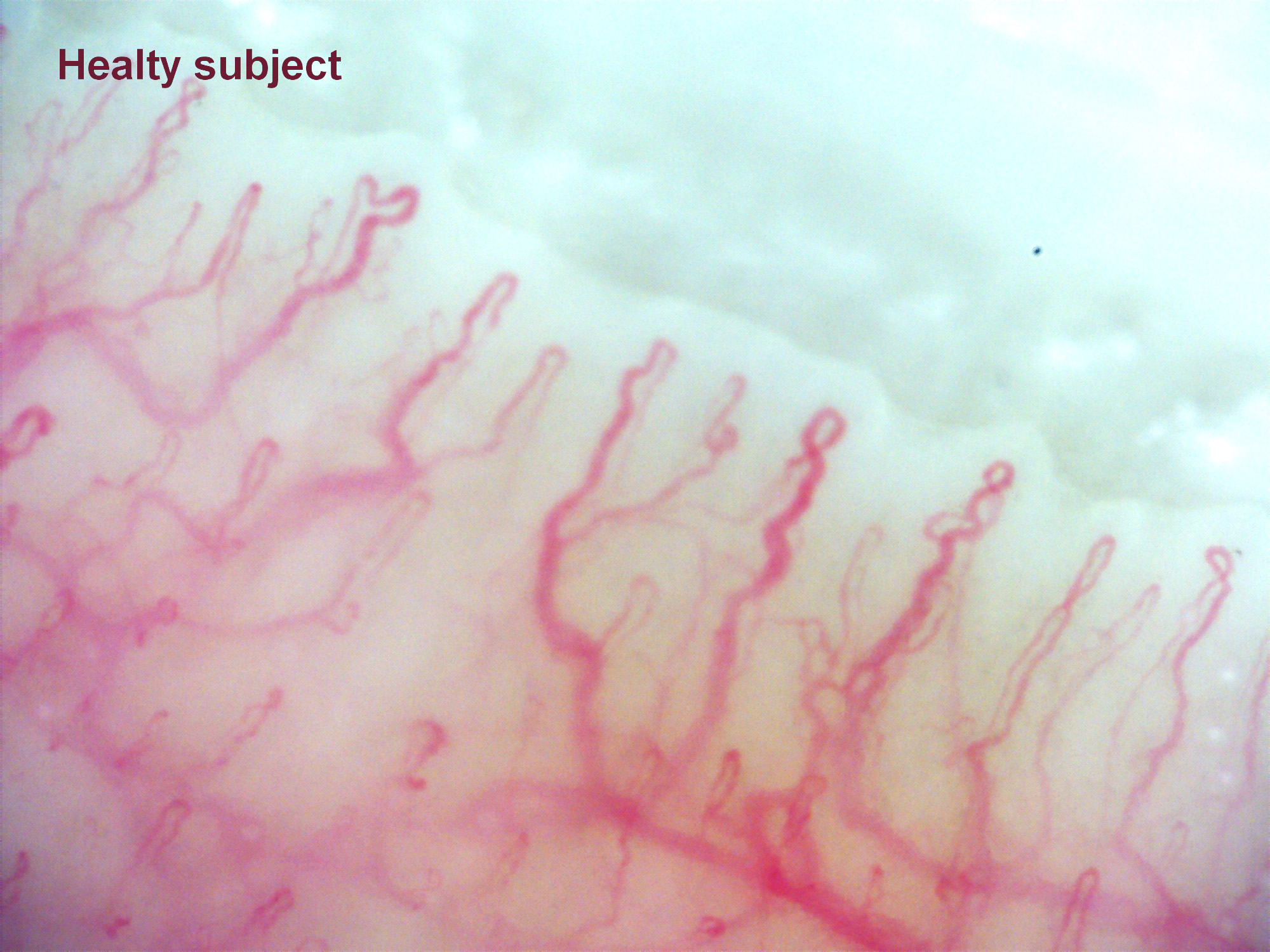

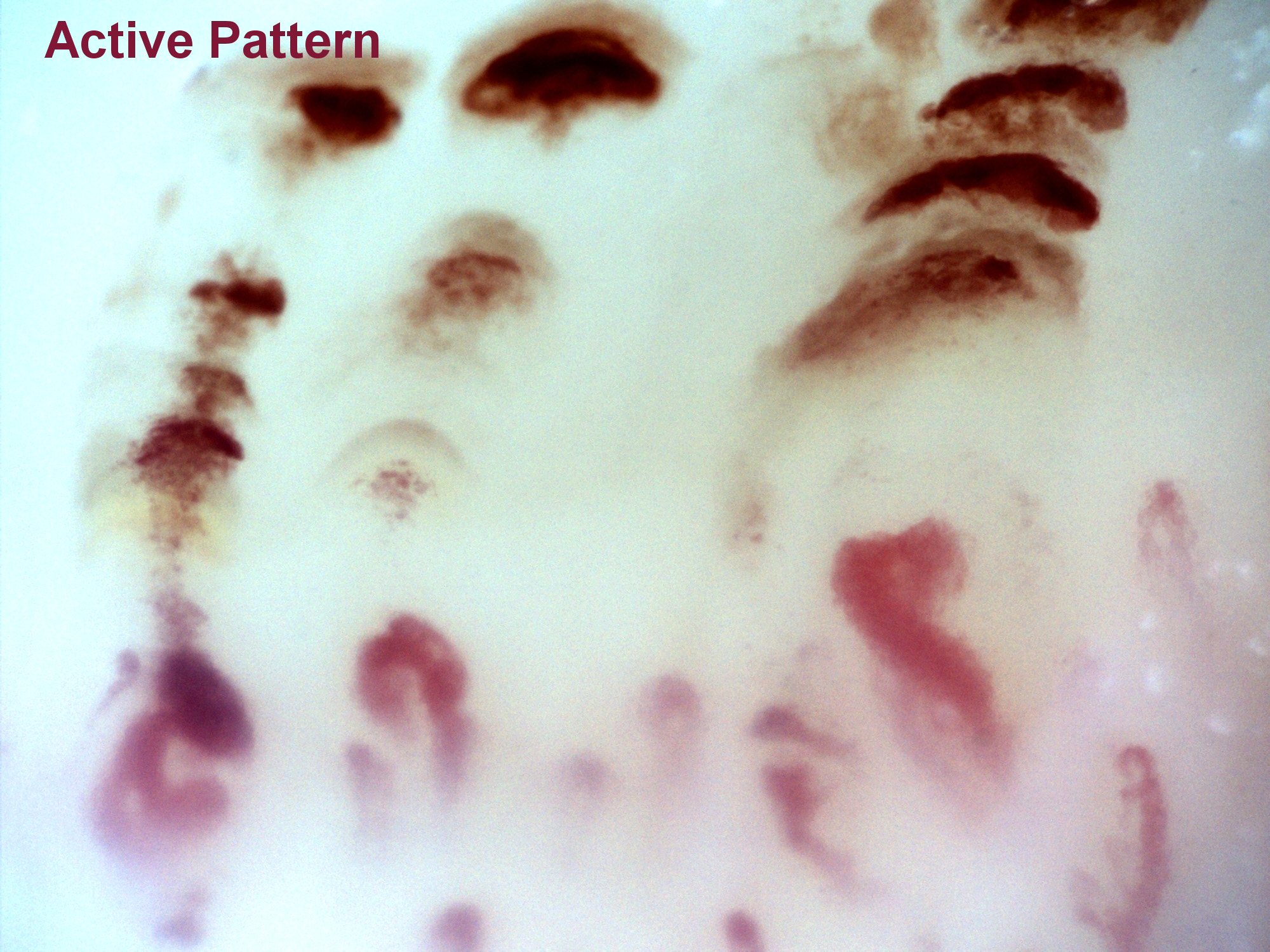

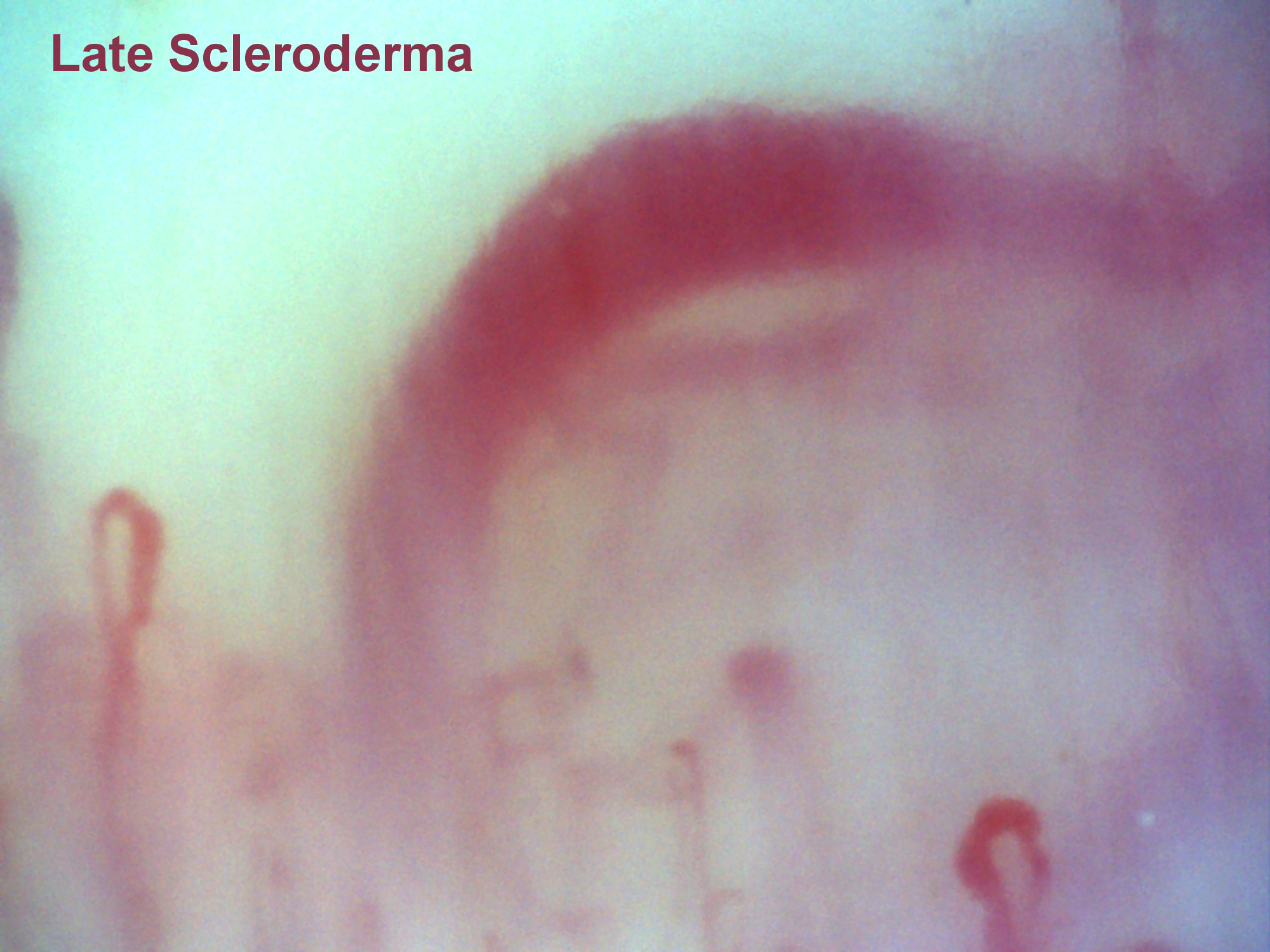

Crisp Live Images of Capillaries

Thanks to it’s superior optics, fast USB interface, and efficient Capidome illumination, CapiScope creates sharp, vivid and calibrated images of capillaries at standard 200x magnification.

Versatile System for Secondary Care Service Levels

Provided in three functionality and price levels with INSPECTIS© CAP Basics or INSPECTIS© Pro Software including patient data management, follow-up and reporting. INSPECTIS© APP for Android provides easy and practical tools for simple screening and image sharing on Android smart phones and tablets.

Professional

Android Compatible

Easy to Use

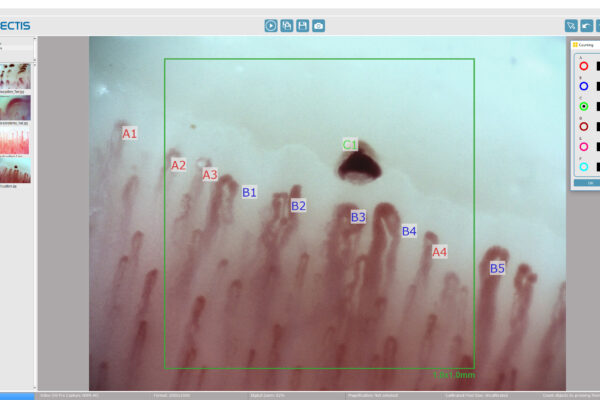

Comprehensive and Flexible Assessment

Nailfold video capillaroscope with powerful tools meeting all the needs of internationally recognised  examination techniques are easily accessible. Assessment of saved images can be made during or after an examination. Accuracy and efficiency are assured with pre-calibrated optics.

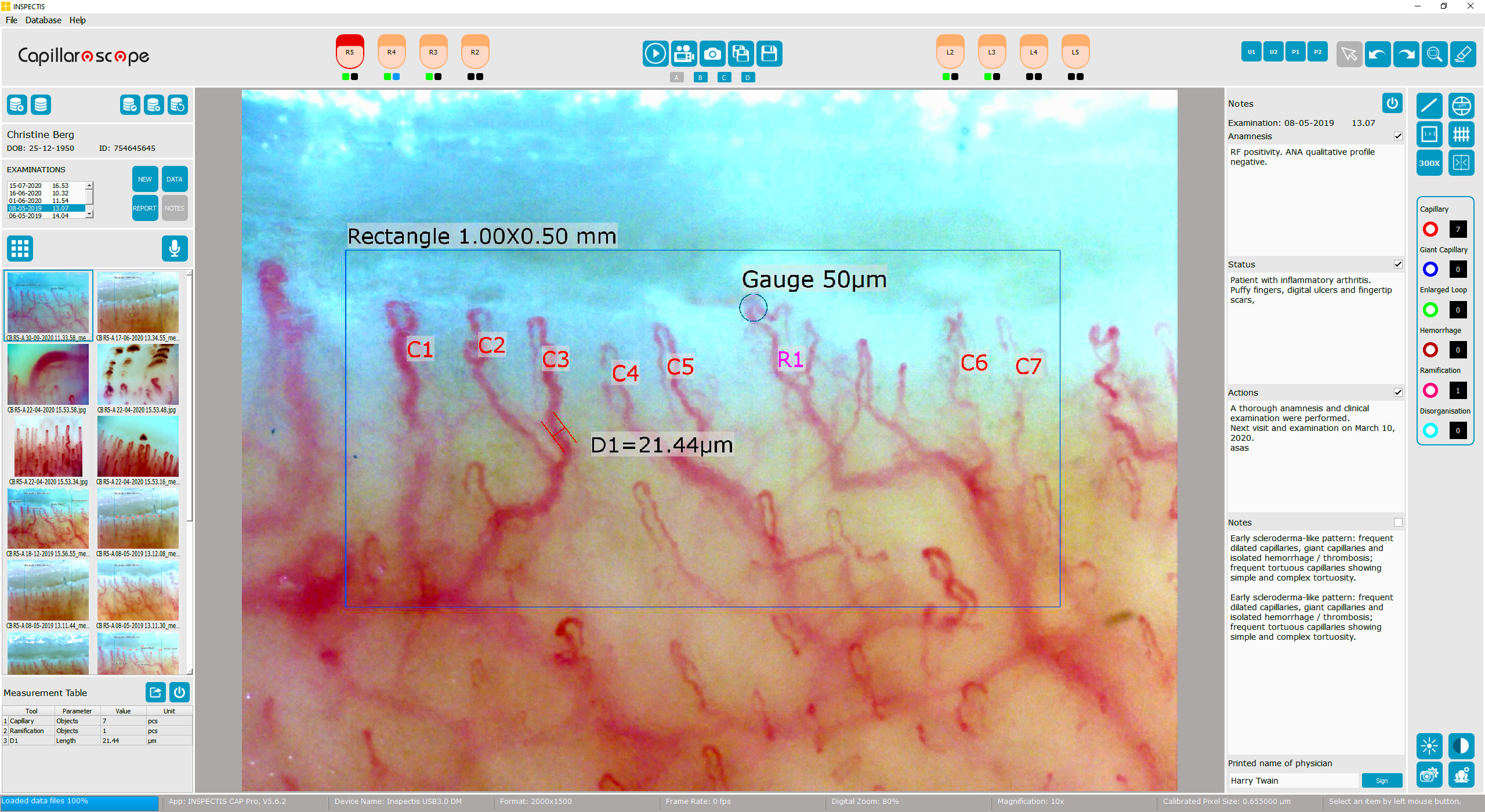

Dedicated Software with Data & Patient Management

All patient and examination data is INSPECTIS© nailfold capillaroscopy software held in an encrypted database. Multiple databases may be created and managed for easy handling of specific cohorts or studies. Focused databases can be fully edited, and cases can be copied or moved between databases.

Powerful search function finds specific patient information and patient examinations. Adaptable for local or network.

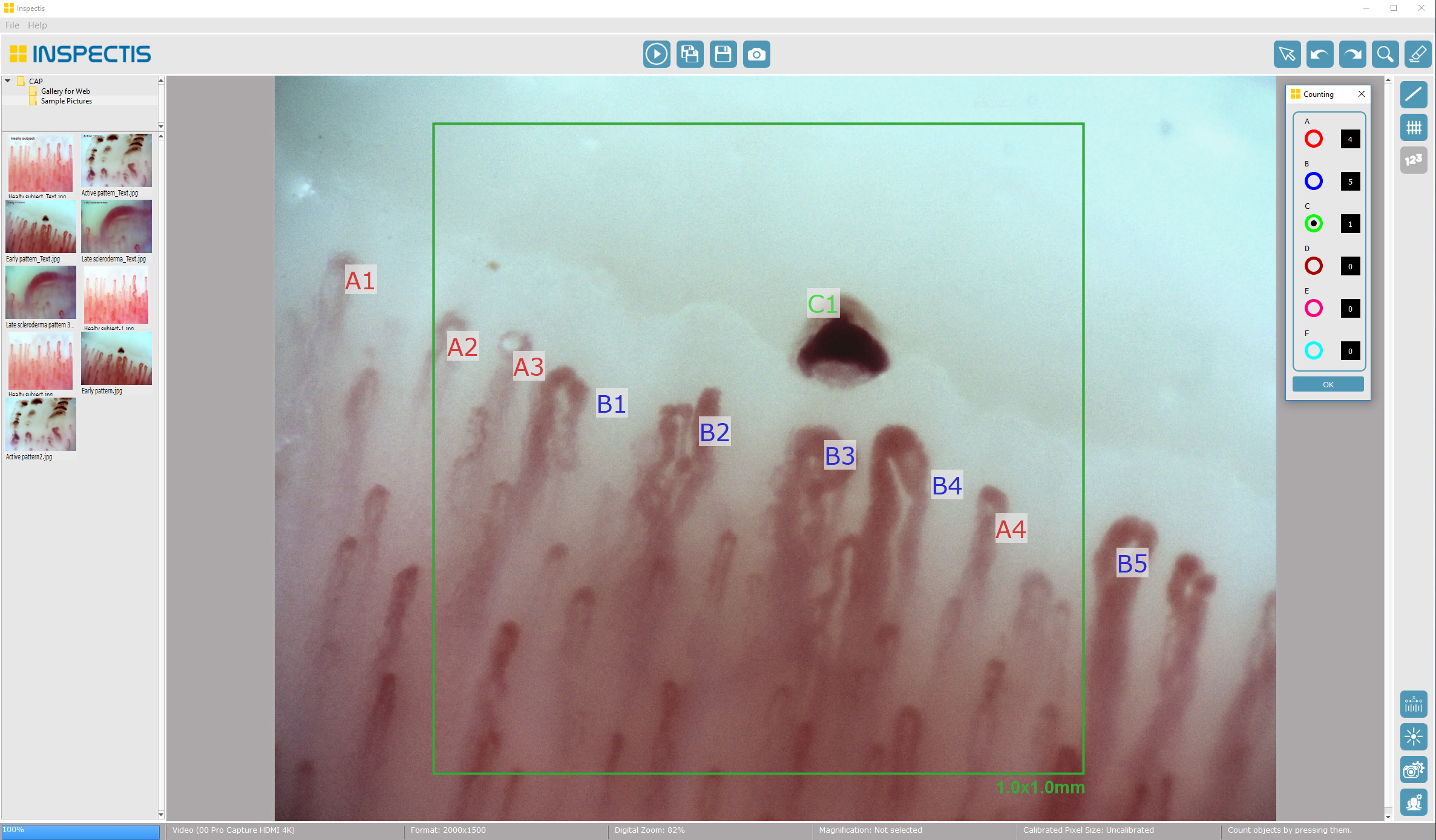

nailfold capillaroscopy software

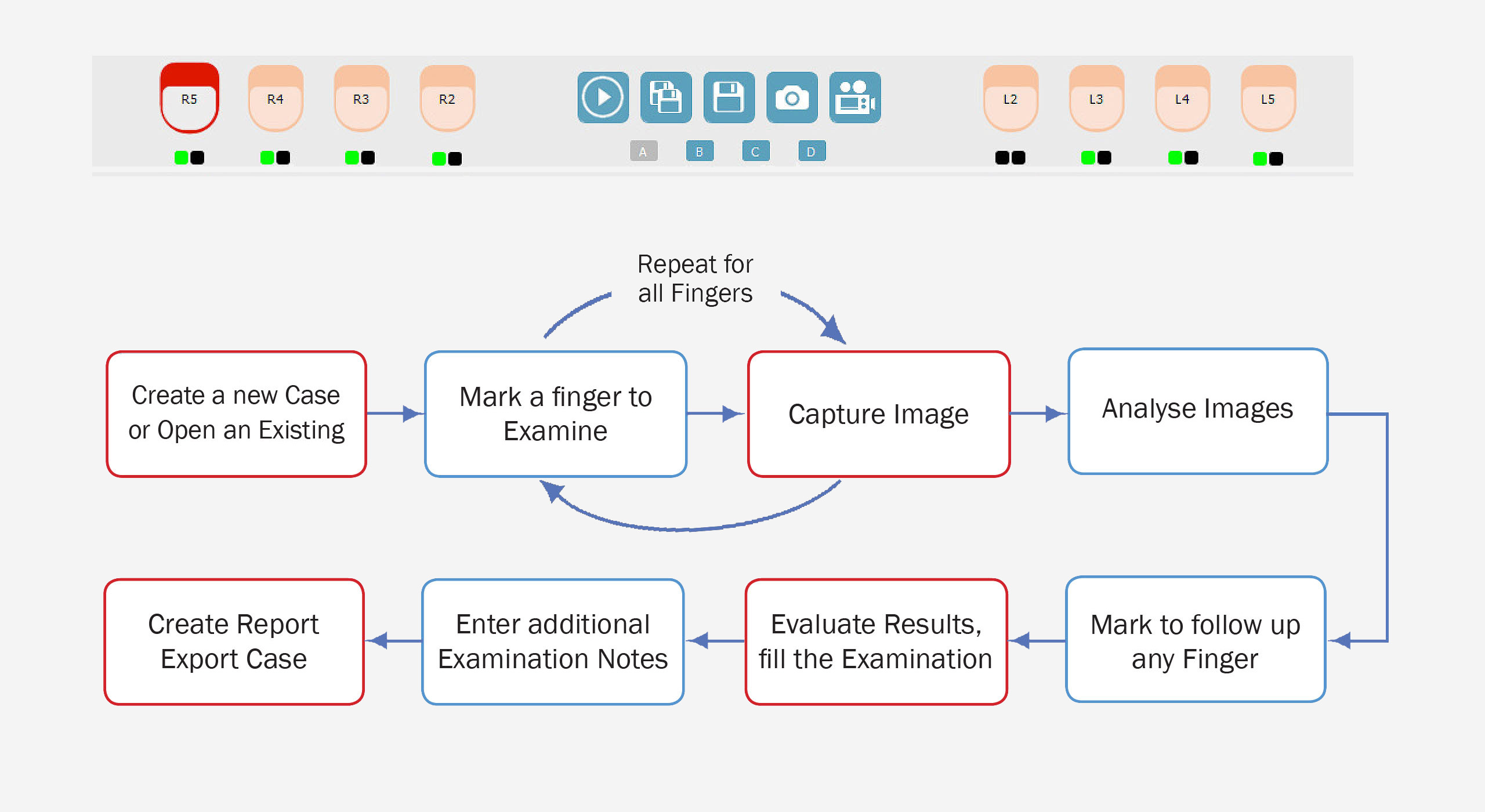

Streamlined Workflow

Hand mapping linked imaging and data storage functions provide guidance to the user during the examination, assessment and follow-up tasks assisting quick and methodical examinations.

Default file names tag each image with locational and temporal data.

All functions are presented graphically and accessible via Icons in a user-friendly graphical interface environment.

digital capillaroscope

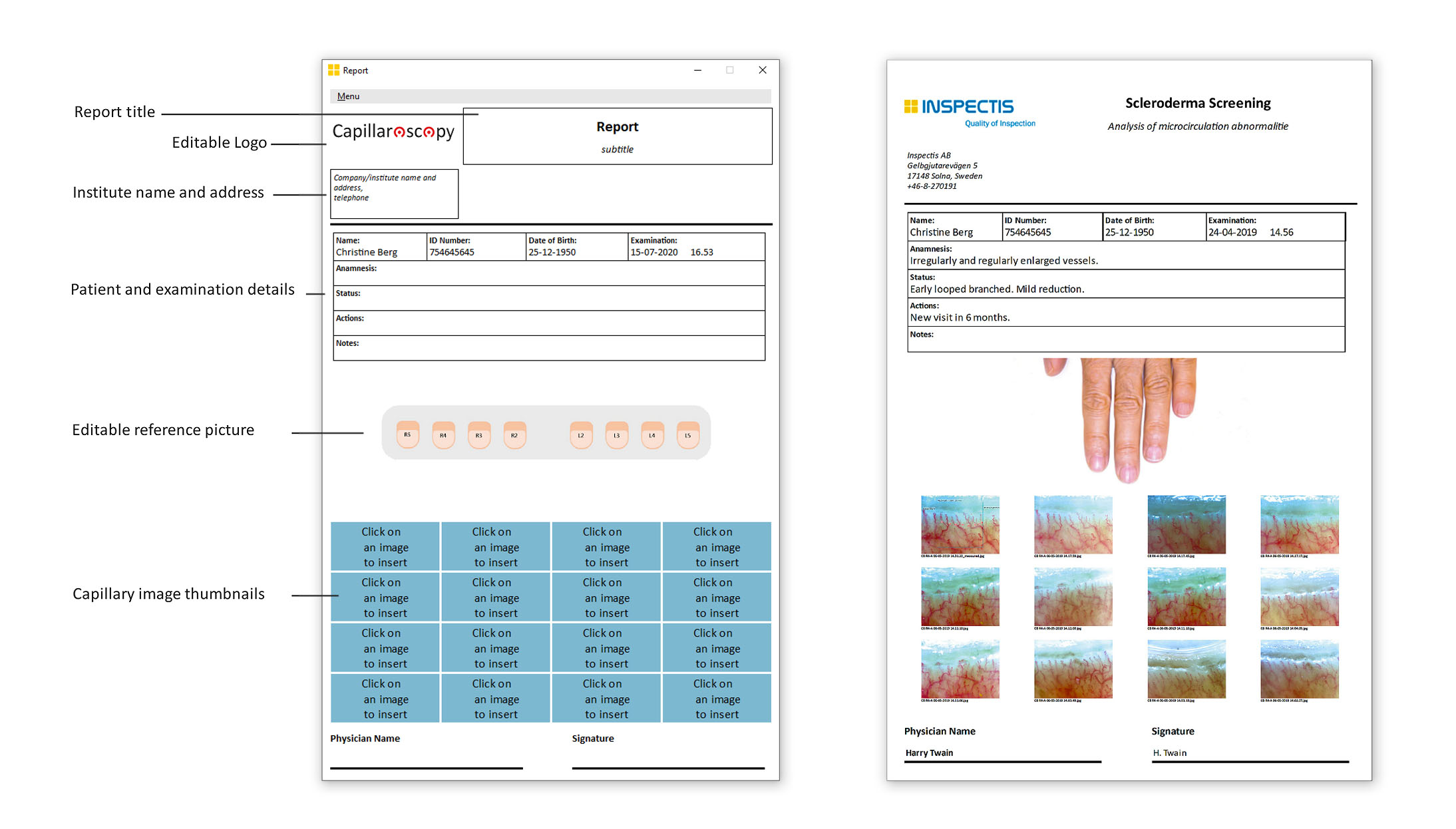

Data Export and Reporting

Software includes a report generator with user-defined templates. Patient data and comments are automatically imported including high-resolution images captured by nailfold video capillaroscope for archiving, uploading to other patient journal systems or hand-over to the patient.

Data table is generated automatically and linked to the measured image and printed in Report for uploading to the patient journal systems or hand over to the patient.

Results can also be exported to Excel or other programs for further analysis and extracting statistics.

Capillaroscopy examination Report

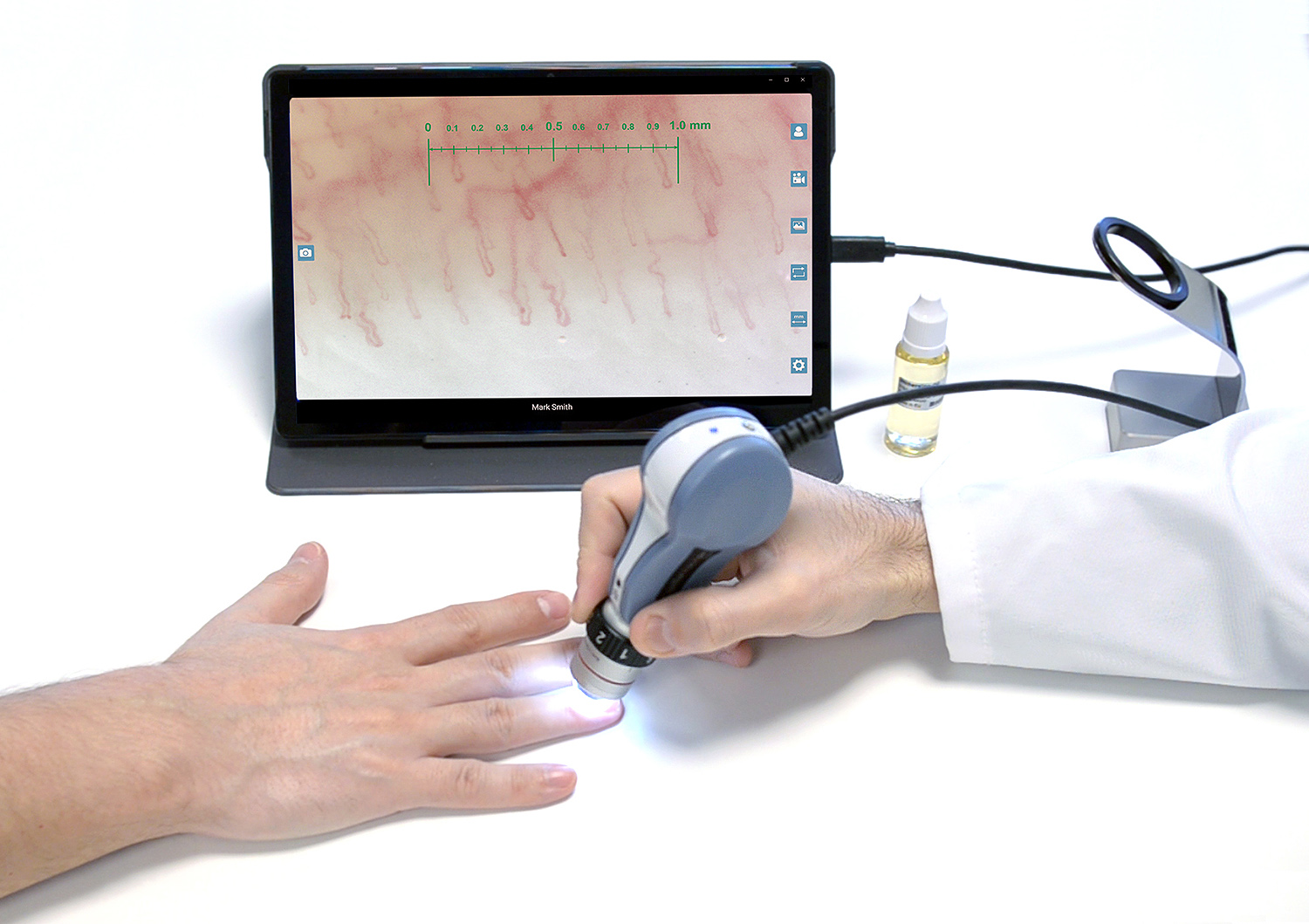

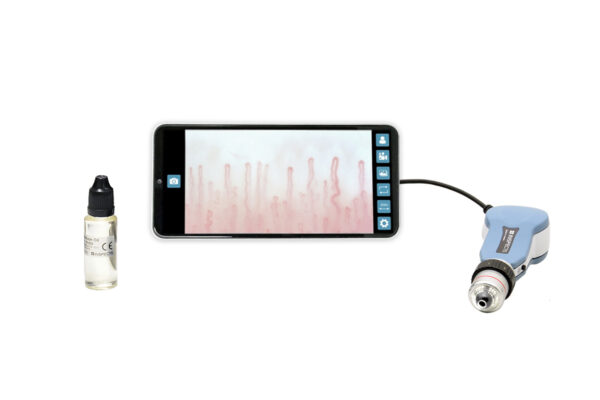

Android APP for Easy Image & Video Capture

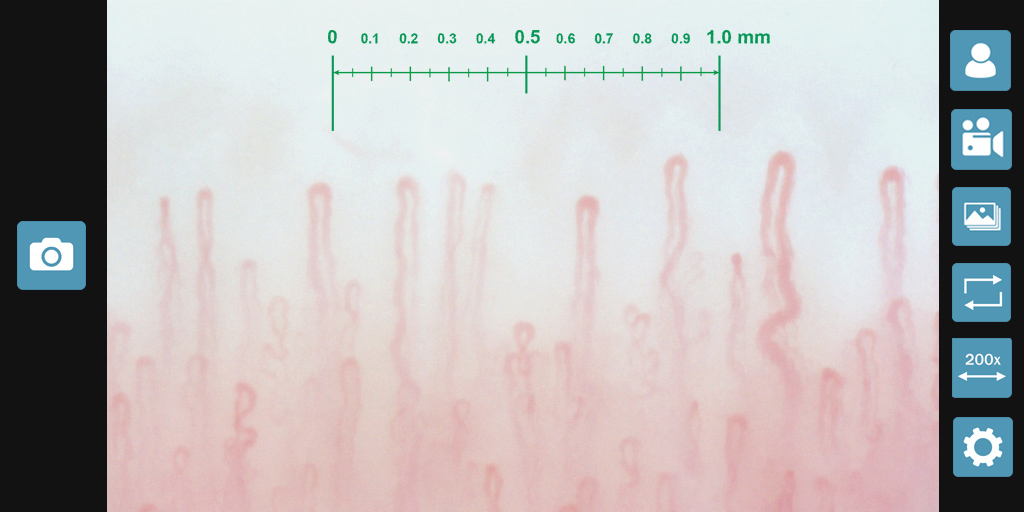

CapiScope is compatible with INSPECTIS APP for Android Mobile phones and Tablets featuring following tools:

  • Patient name or ID number assignment and stamp on the image and video
  • Still image capture and video recording
  • Still image and video gallery
  • Screen rotation

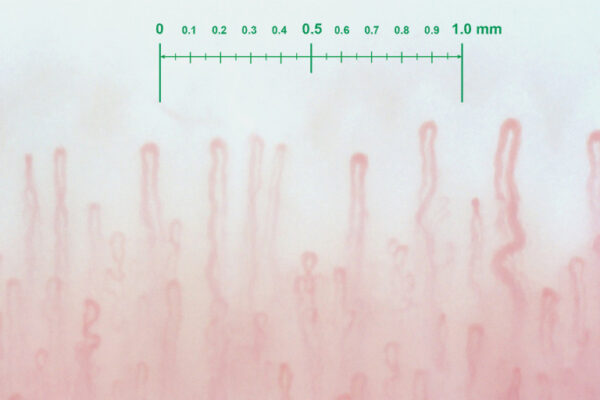

  • Millimeter scale overlay for 200x and 50x magnifications
  • Image resolution and format setting

Compatible with Android 5.0 and later versions.

Simplified still Professional Features

CapiScope is provided in three functionality levels with INSPECTIS CAP Basics or Pro Software with patient management database and reporting tools.

All CapiScope packages provide free use of the INSPECTIS APP for Android.

Quality & Support

Inspectis quality management system is certified to Medical Devices ISO 13485.

Inspectis corporate management systems comply with regulatory requirements and marketing authorisation.

From the moment you engage with us, you can be confident of receiving the best possible assistance including product training, software upgrades and help in the unlikely event of something going wrong.

Learn more about Quality System of Inspectis

Capillaroscope Medical Devices ISO 13485

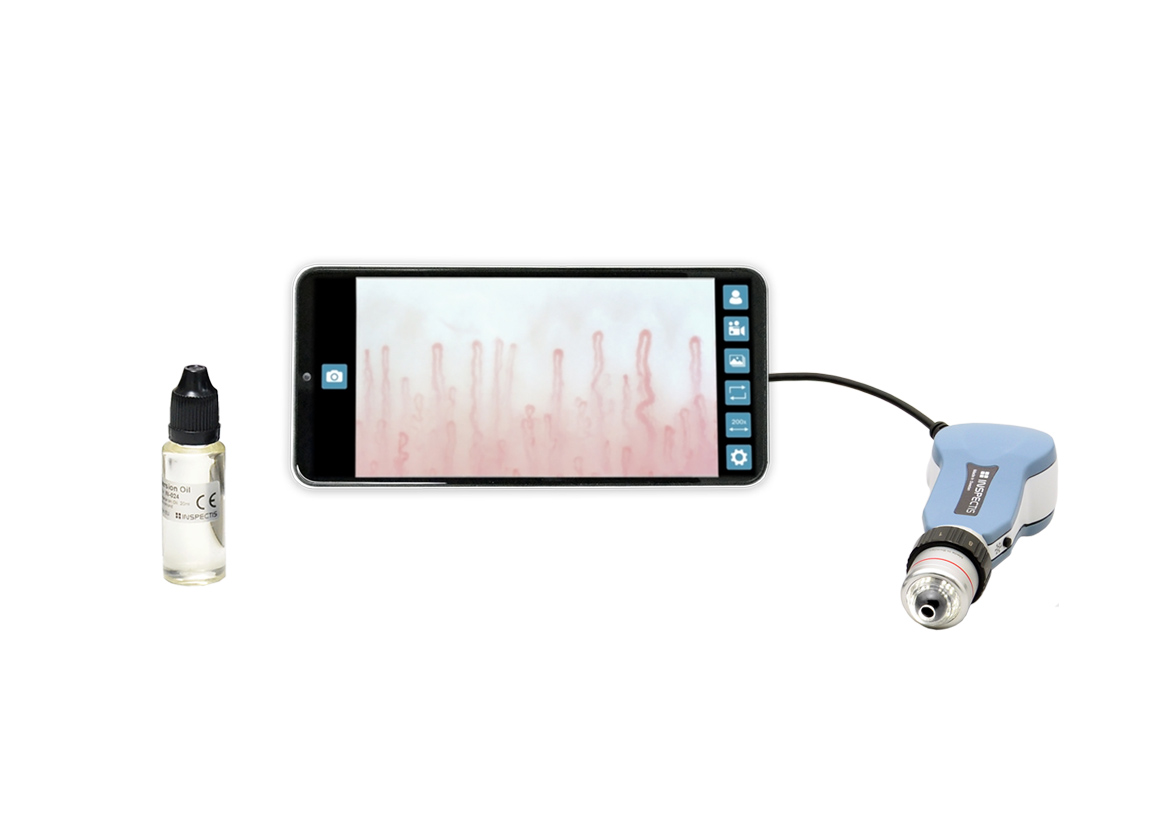

Included items when you order DM-120

  • CapiScope, USB Digital Capillaroscope with integrated 200x Optics
  • INSPECTIS APP for Android OS
  • INSPECTIS© CAP Basics software with report generator, 1 year free subscription
  • Immersion Oil Dropper
  • Instructions Manual
  • EVA Carrying Case
  • One year Service and Support via email
    Two years new Product Warranty

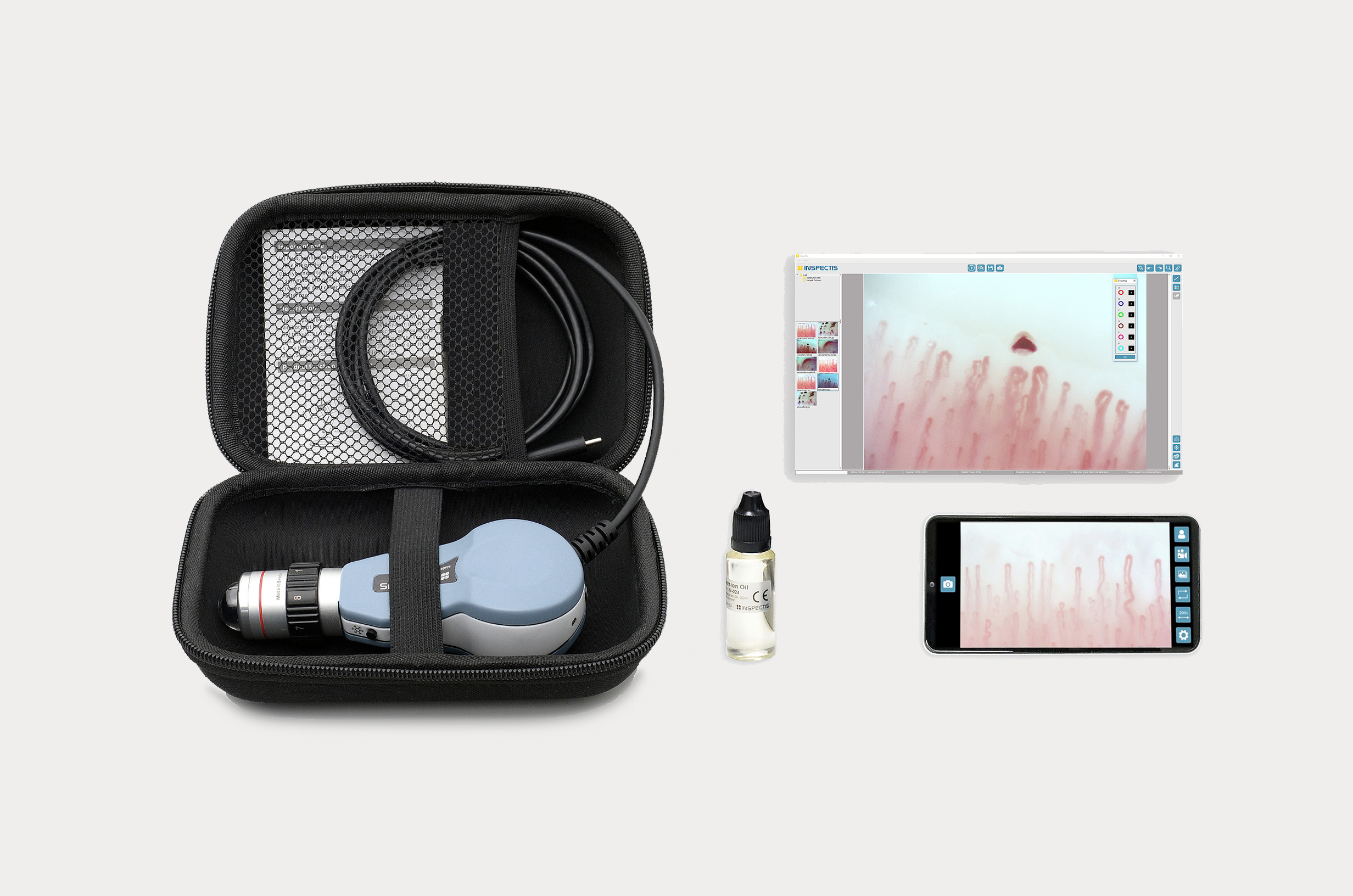

Included items when you order DM-121

  • CapiScope, USB Digital Capillaroscope with integrated 200x Optics
  • INSPECTIS APP for Android OS
  • INSPECTIS© CAP Basics software with report generator, unlimited use
  • Immersion Oil Dropper
  • Instructions Manual
  • Eva Carrying Case
  • One year Software update & maintenance agreement INSPECTIS© Basics
  • One year Service and Support via email
  • Two years new Product Warranty

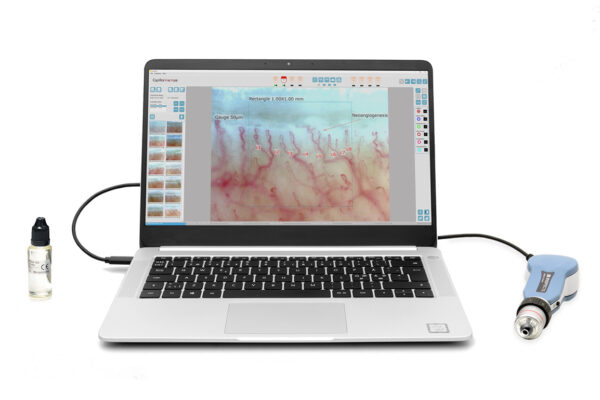

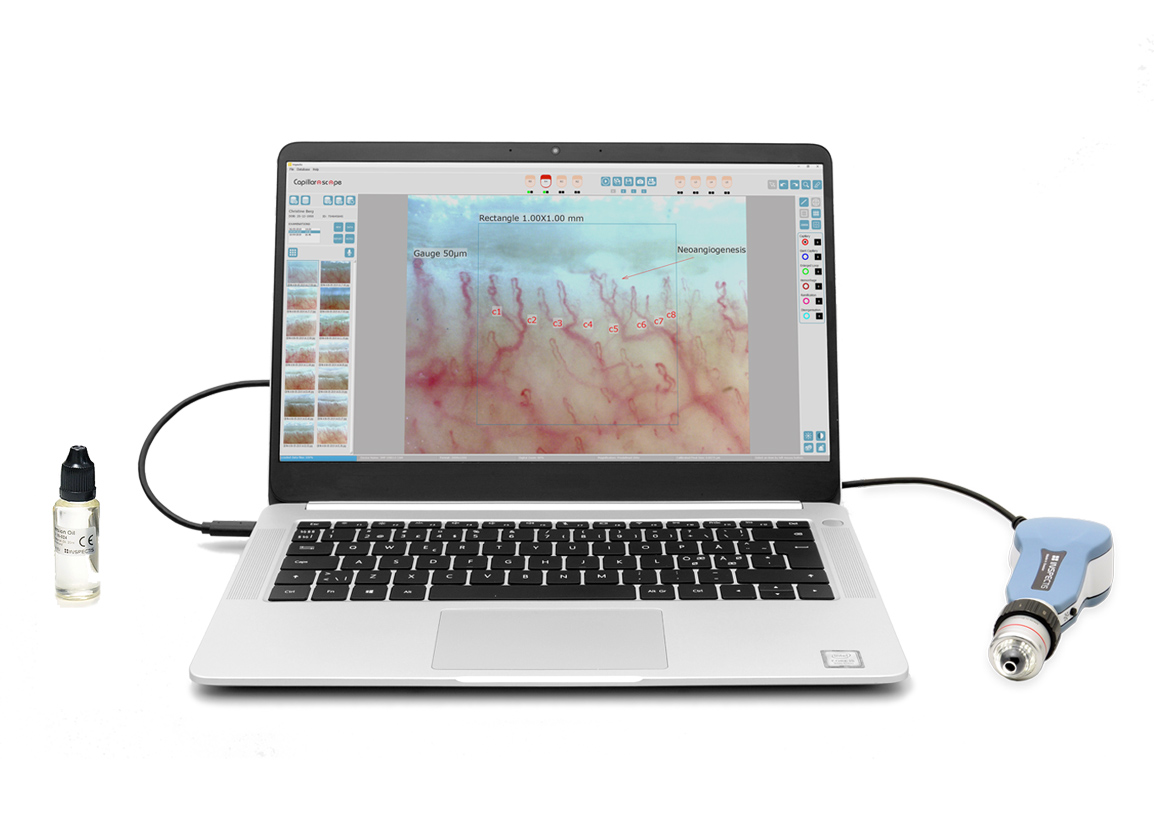

Included items when you order DM-122

  • CapiScope, USB Digital Capillaroscope with integrated 200x Optics
  • INSPECTIS APP for Android OS
  • INSPECTIS© CAP Pro software
  • Immersion Oil Dropper
  • Instructions Manual
  • Aluminium Carrying Case
  • One year Software update & maintenance agreement INSPECTIS© CAP Pro
  • One year Service and Support via email
  • Two years new Product Warranty

Downloads

Download CAP MiniFolder

CapiScope Brochure

Download Brochure

Send download link to:

I have read and agree to the Inspectis privacy policy. And consent to receive communications *

Product video

Specifications

CapiScope

Imager 5.0Mp Colour CMOS
Aspect Ratio 16:9 and 4:3 depending on video format
Video resolution 2592×1944, 2000×1500, 1920×1080, 1500×1400, 1280×720
frame rate 15 fps
PC and Android interface USB2.0, USB3.0 or USB3.1, Android 5.0 and above
Connector interface USB-C type
Still image / Video capture Soft-touch button on device, by footswitch and by software/APP
Still Image / Video formats Still images in JPG. Video in MJPG. Same format as video resolution
Adjustable parameters Brightness, contrast, gamma, sharpness, colour, backlight compensation
Memories  2 predefined and 2 user-definable with quick access buttons
Dimensions and Weight 135 x 50 x 37 mm 200 g
Stand mount Standard Camera mount UNC 1/4″ – 20

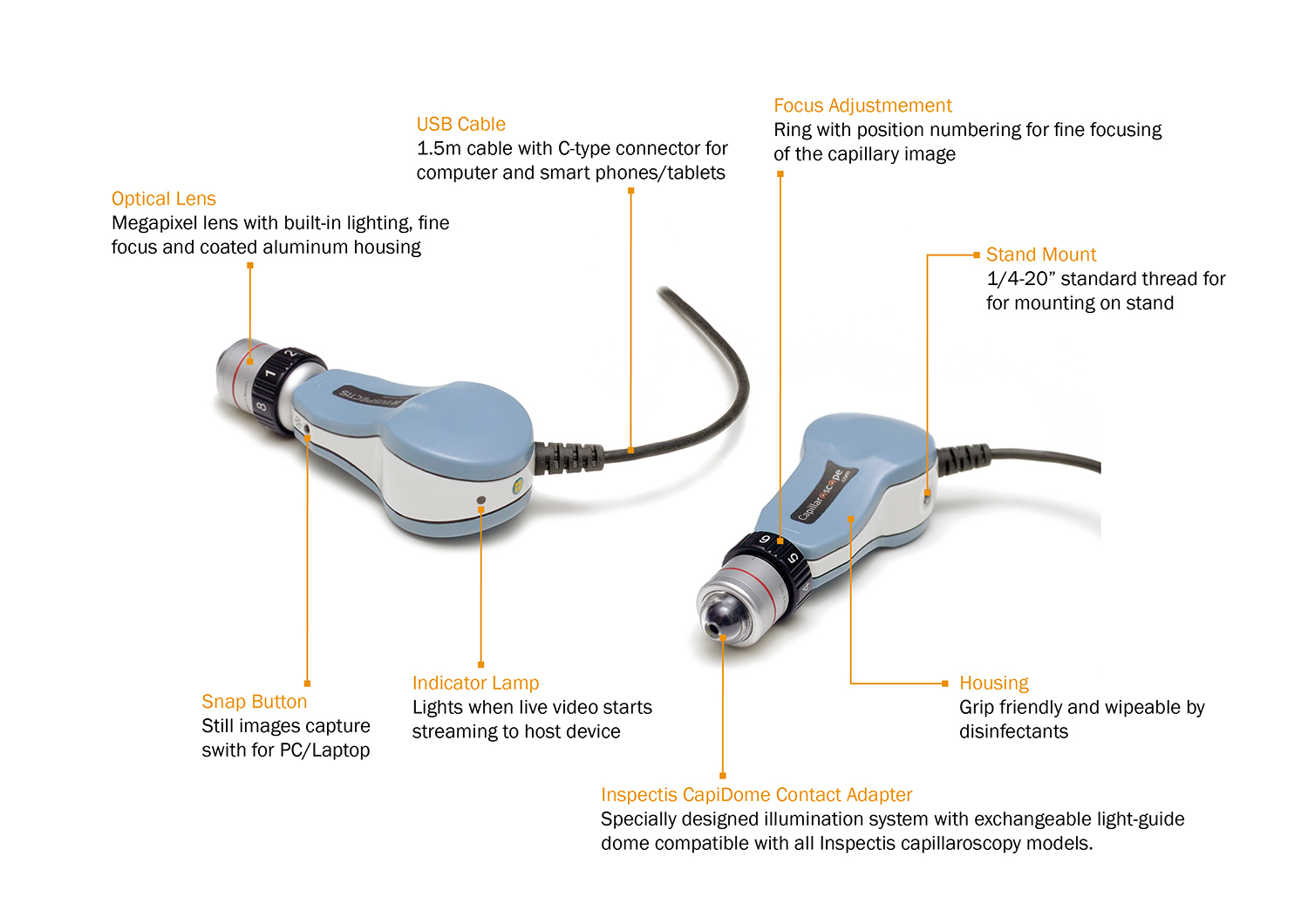

Optics

Fix Focal length Lens 200x High-resolution lens with focus adjustment, built-in LED illumination and exchangeable Capidome adapter
Field of View  1.7 (H) x 0.96 (V) mm
Illumination Integrated pure white LED ring light, Colour Temperature 5800K (Kelvin)

Optional accessories

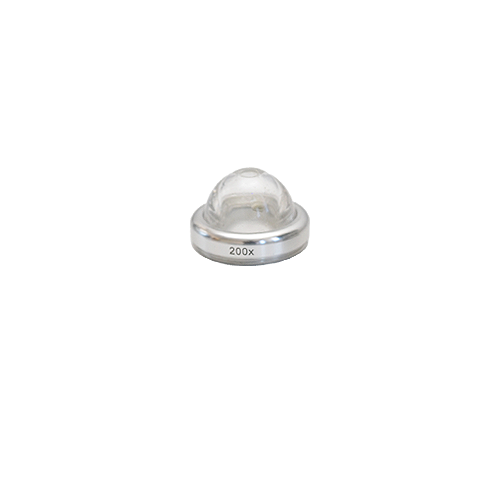

Tip dome for 200x Lens (spare part)

Item no. IN-015

Spare part for replacement of aged skin-contact adapter of all Inspectis Capillaroscopes with 200x lens

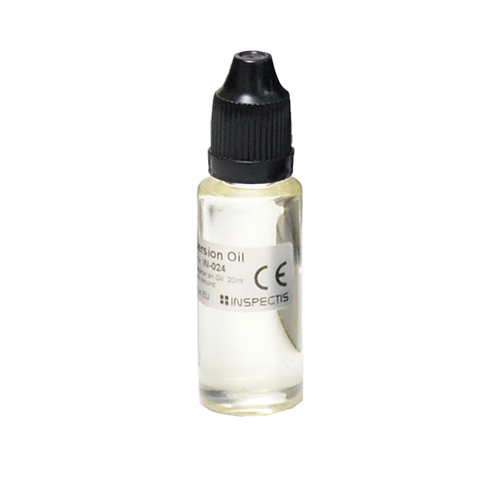

Oil dropper

Immersion Oil Dropper

Item no. IN-024

20 ml immersion oil and dropper.

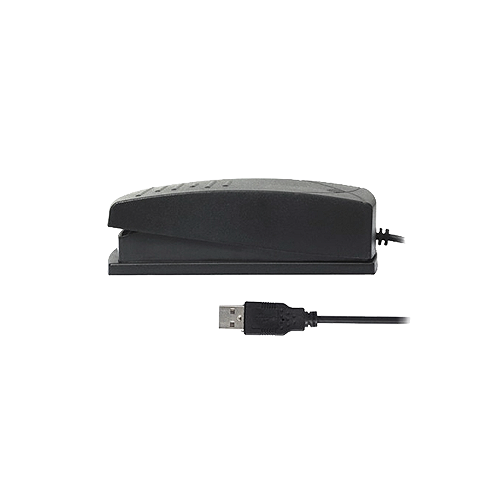

USB Foot switch for Inspectis Software, 1-pedal

Single-pedal Foot-switch for hand-free image capture

Item no. IN-033

USB foot switch for hands free image capture in INSPECTIS© software. Foot switch is plugged into the USB port of computer and automatically recognized by the software.

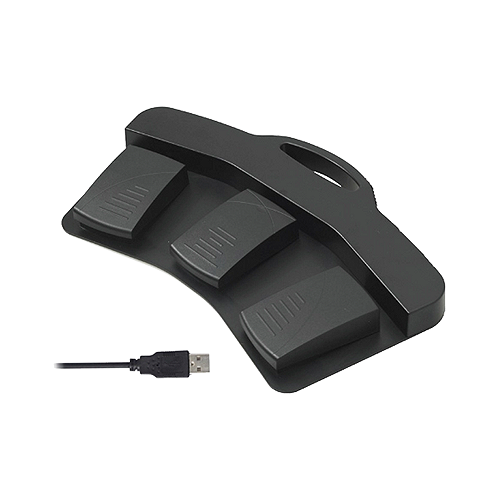

USB Foot switch for Inspectis Software, 3-pedala

Tripple-pedal Foot-switch for hand-free image capture and navigation in software

Item no. IN-034

USB foot switch for  image capture and quick finger map navigation in INSPECTIS© CAP Pro software. Foot switch is plugged into the USB port of computer and automatically recognized by the software.

M. Cutolo

Atlas of Capillaroscopy in Rheumatic Diseases, M. Cutolo

Item no. IN-032

Author: M Cutolo
Publisher ‏ : ‎ Elsevier (September 30, 2015)
Publication date ‏ : ‎ September 30, 2015
Language ‏ : ‎ English
