BGA inspection

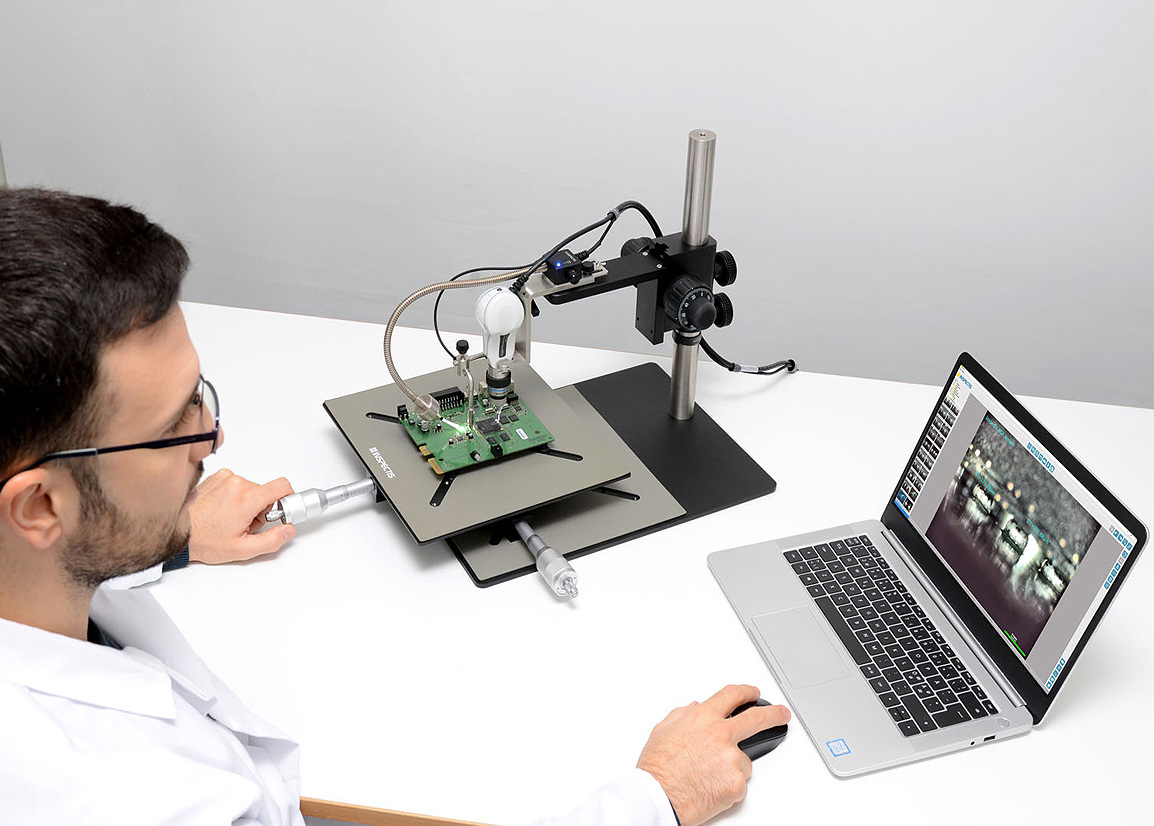

Side-view Optical System for BGA Inspection

Superior Optical Performance

New generation side-view BGA inspection system, designed for easy and flexible inspection, analysis and documentation of hidden solder joints of BGA, μBGA. FipChip, CSP, CGA and top-view SMD components.

Powered by INSPECTIS© Basics

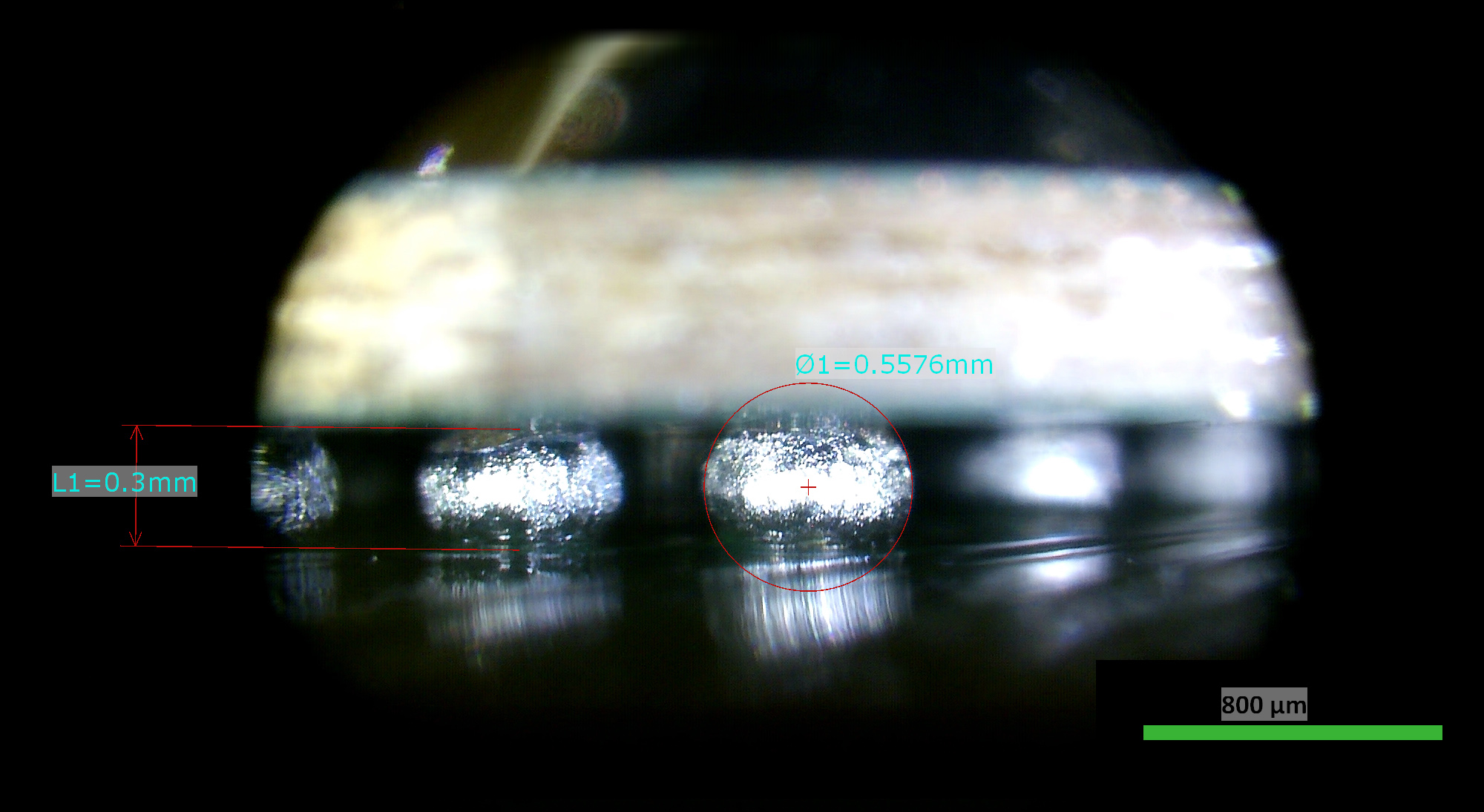

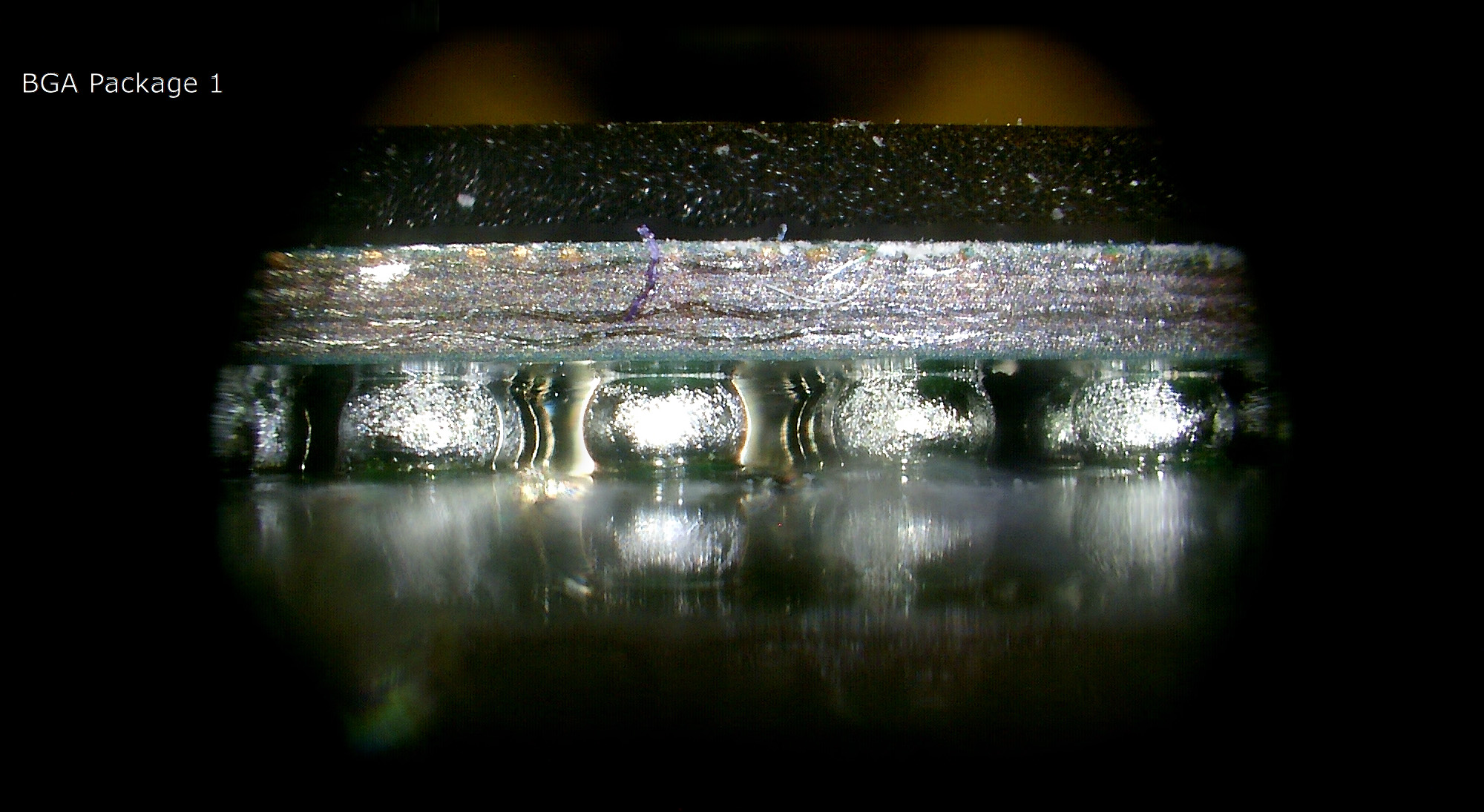

Powerful still easy-to-use software providing tools for live image view, image capture, advance camera controls, geometrical measurements, image comparision and documentation.

Developed for Productivity and Cost Efficiency

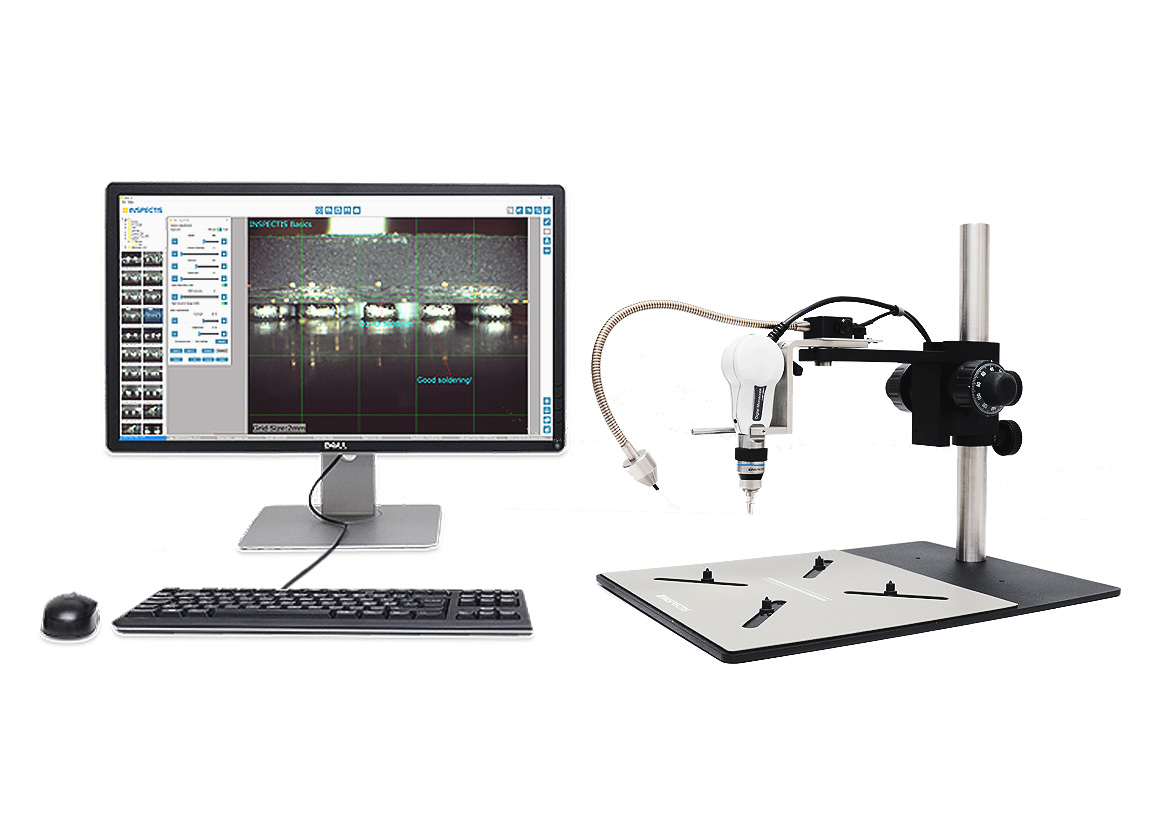

Basic system configured with a robust high resolution optical probe and Inspectis fast 5.0MP, USB3.0 digital microscope. Deliveted with an innovative stand and background lighting system.

Robust

Cost Effective

Easy to Use

Flexible and Reliable BGA Inspection System

Variable focus capability of the optics allows the user to image from first to up to 20 rows of BGA solder bumps with its flexible, electronically dimmable fibre brush light as background illumination.

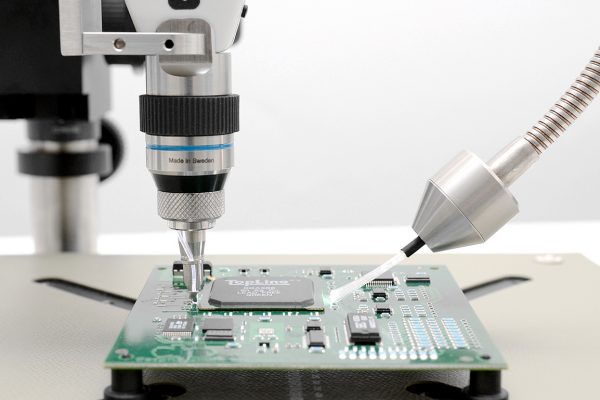

5.0Mp USB3.0 digital camera with custom-designed side-view optics and built-in incident twin-lighting creates bright images of hidden solder joints down to 40 microns stand-off.

BGA probe

Desgined for Ease-of-Use

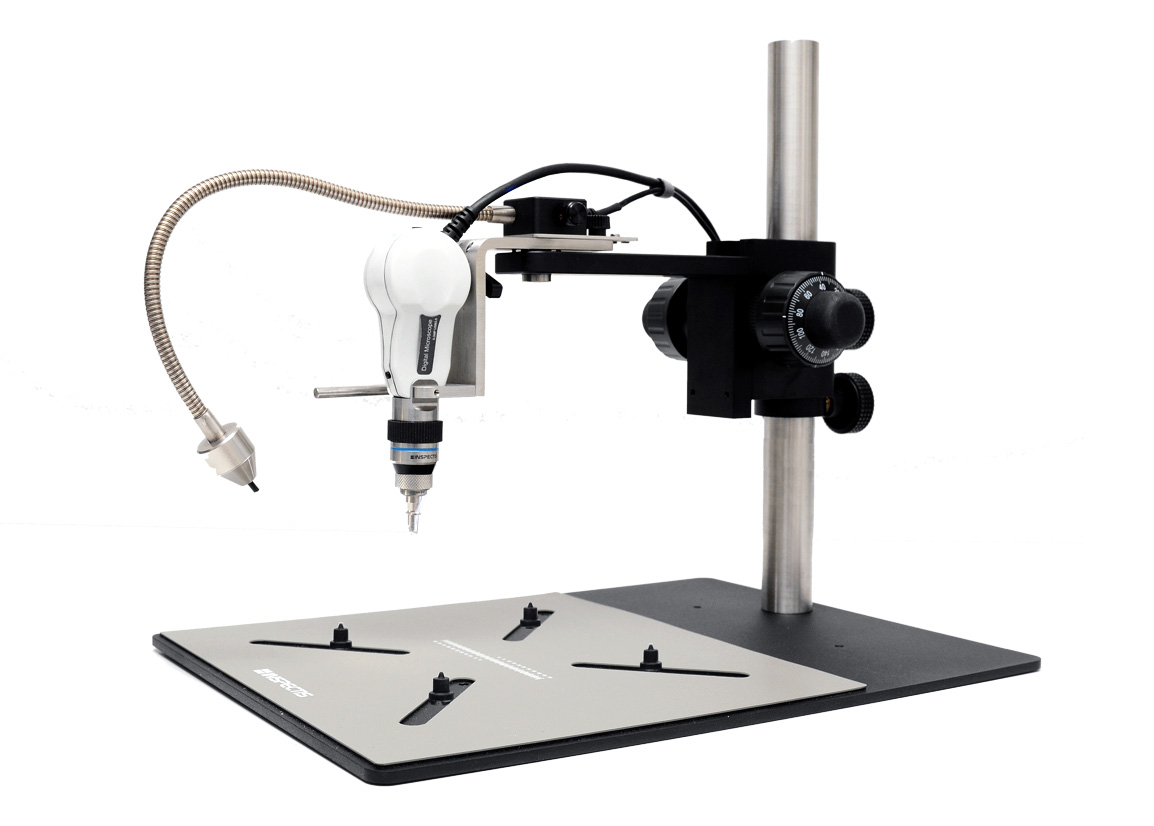

Rigid stand with course/fine axial alignment, large base and precision xy-stage. An innovative soft-touch mechanism design in the stand bracket protects the micro-prisms in the optical probe tip from damage when positioned on surface of the inspection PCB.

Integrated micro-prism and soft fiber-brush background light with electronic dimmer.

180º pivoting mechanism for easy alignment of the probe along 3 different sides of the BGA package.

Robust Optical Probe

Precision micro-prisms and specially designed low-aperture optics carefully assembled in stainless steel housing.

The optical probe in the BGA inspection system is robust, durable and entails low maintenance costs.

Side-view-lens

Easy to Use Software

The system is supplied with INSPECTIS© BGA Basics software. Powerful yet easy-to-use live image view, capture, analysis, utility, and distance measurement software.

Upgradeable to INSPECTIS© BGA ProX featuring extra tools for advanced measurements, live image overlay, comparison, focus stacking, annotations and reporting.

Explore INSPECTIS© Software

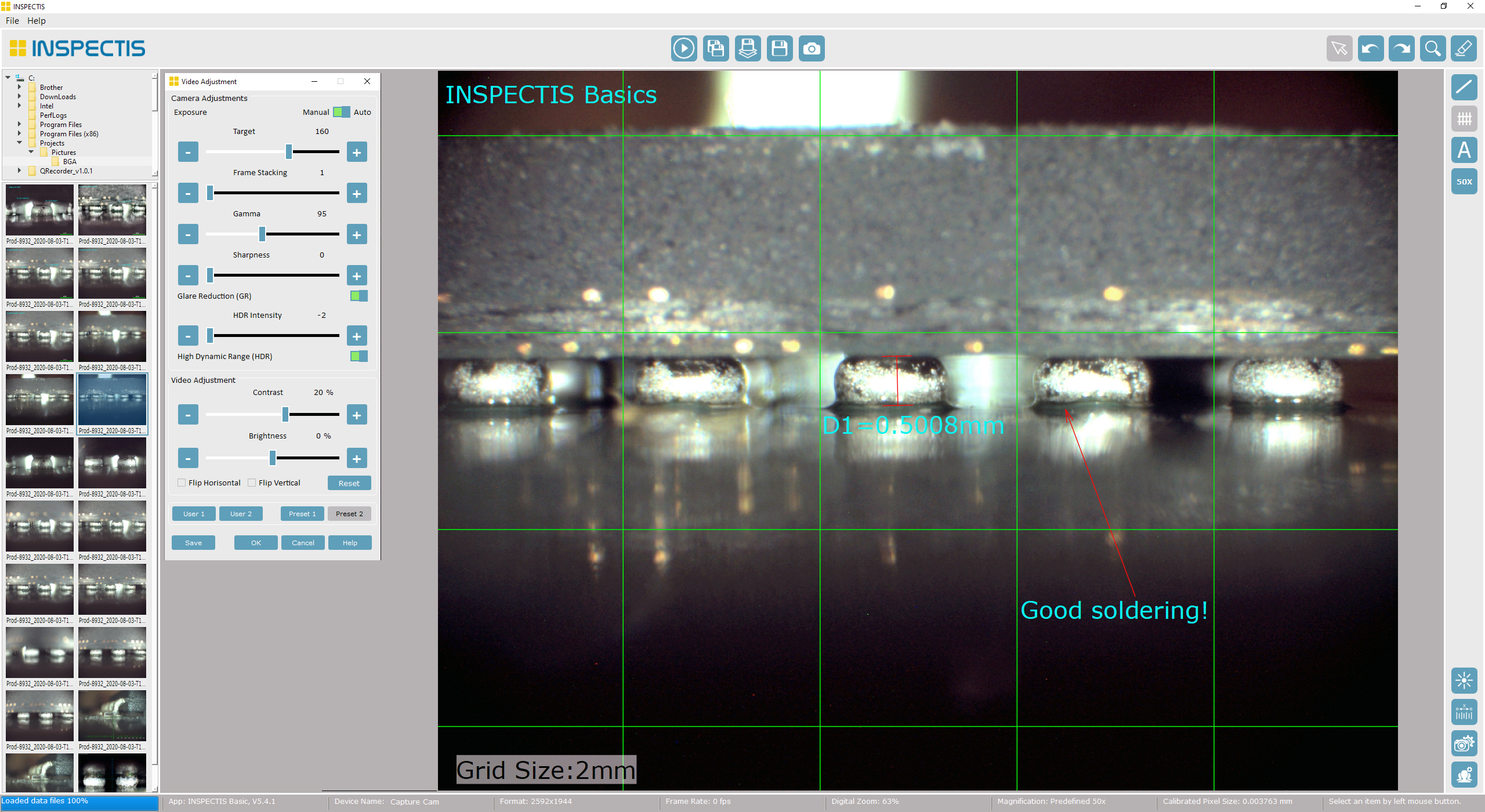

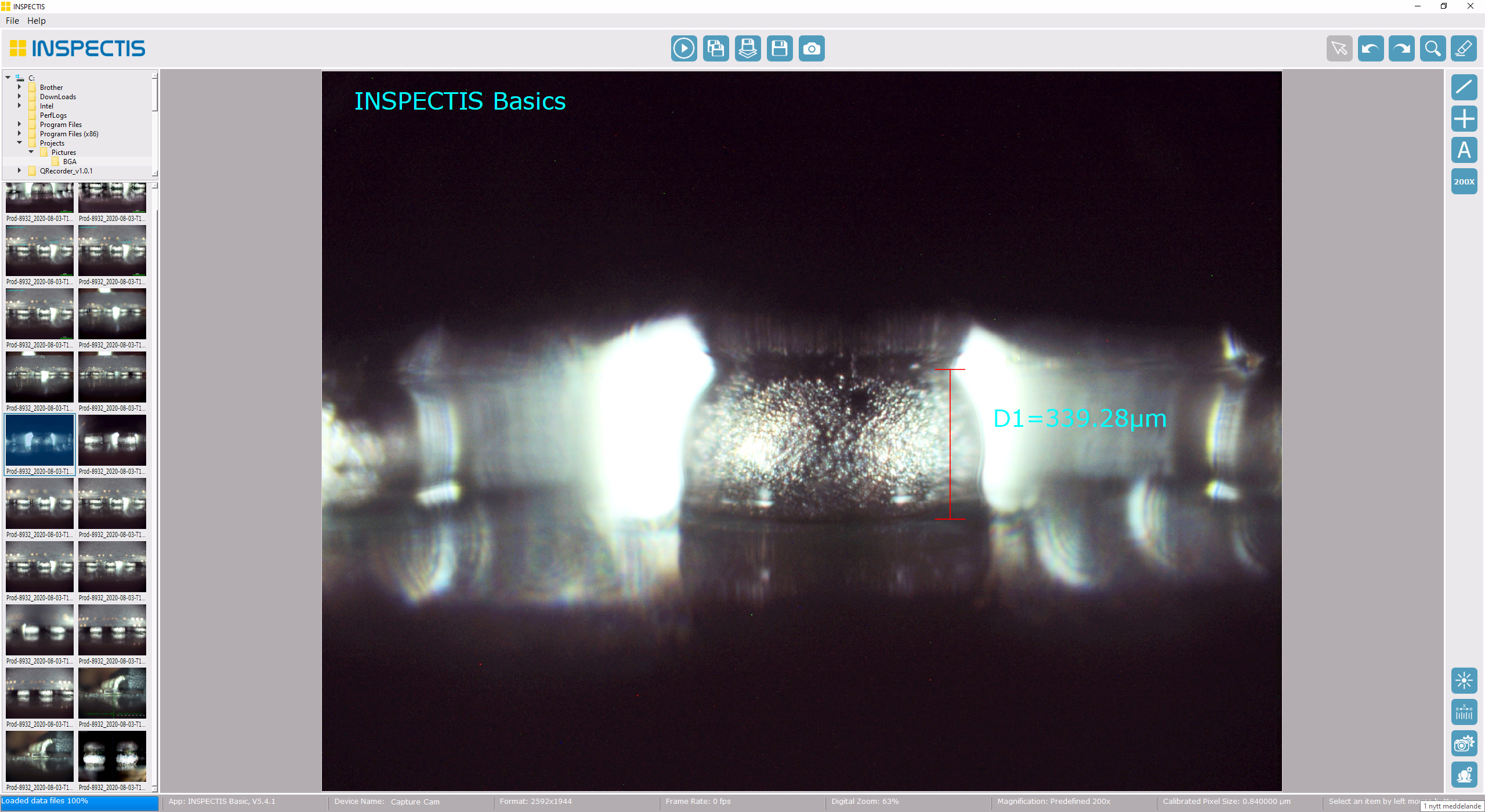

BGA solder balls viewed by Inspectis BGA inspection software

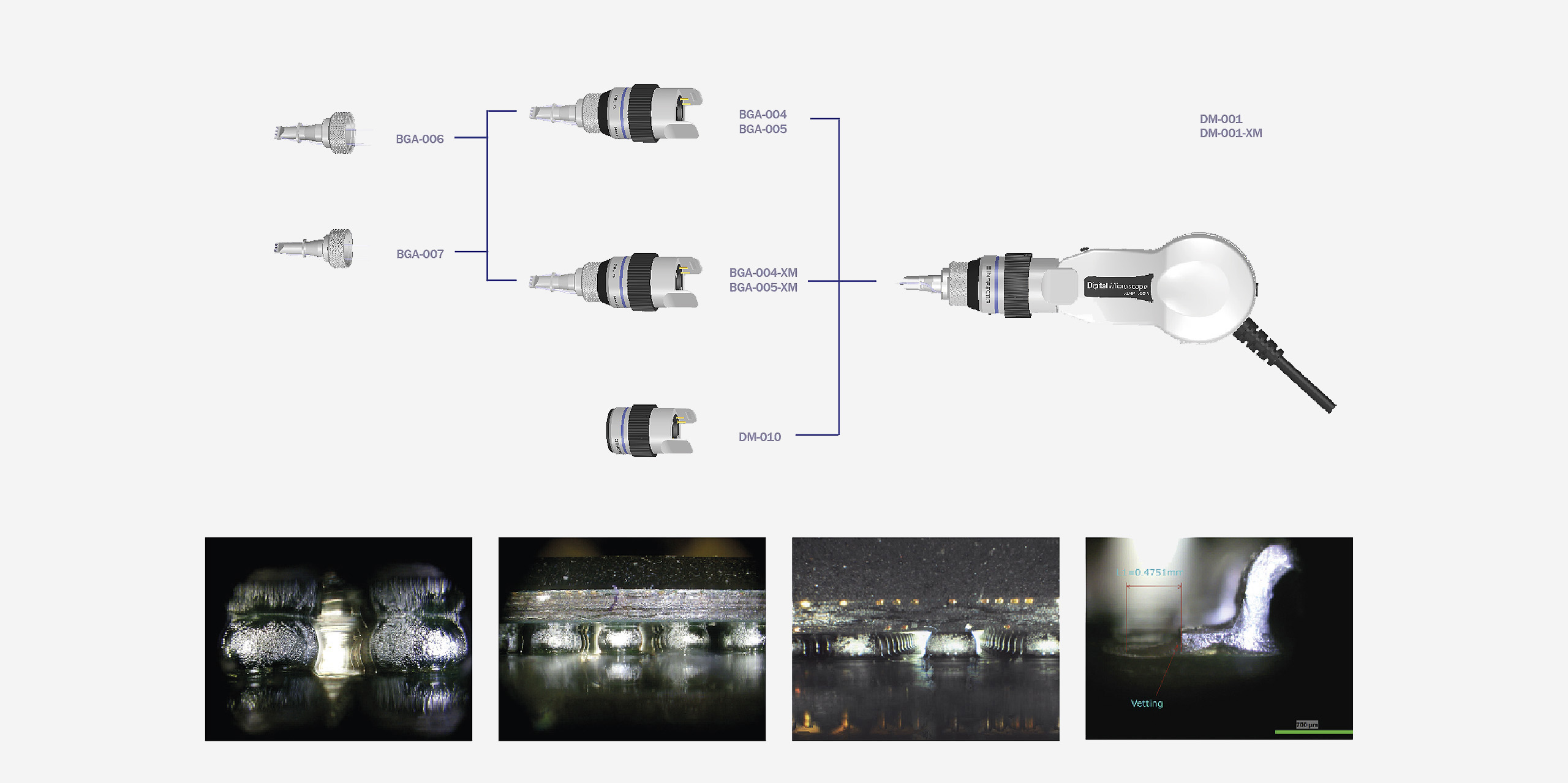

Flexible and Versatile BGA Inspection System

Thanks to its interchangeable side-view to top-view optics the Inspectis BGA system provides a flexible and versatile inspection solution for efficient use of investment budget for all post-production or R&D optical inspetion tasks.

Explore BGA Lenses & Probes

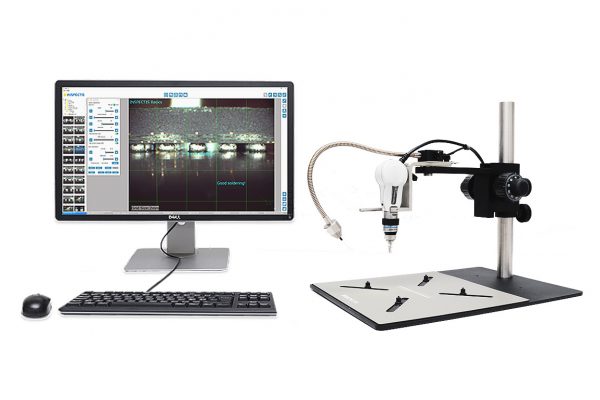

Side view BGA inspection system

Included items when you order BGA-001

  • Digital Microscope, 5MP, USB3.0 interface
  • INSPECTIS© Basics BGA Inspection software
  • Inspectis interchangeable 90º side-view BGA inspection lens
  • Fiber Optics Background Illumination Unit with High-power LED and electronic dimmer
  • Stand with Rack&Pinion, soft-touch and pivoting bracket for BGA
    microscope, standard size
  • Magnetic pegs (4x)
  • Annual Service and Support for INSPECTIS© software (one year)

Downloads

Brochure_Inspectis BGA Inspection

Download Brochure

Send download link to:

I have read and agree to the Inspectis privacy policy. And consent to receive communications *

Data sheet_Inspectis BGA Lenses and Optical Probes

Download Data Sheet

Send download link to:

I have read and agree to the Inspectis privacy policy. And consent to receive communications *

Sample-report-BGA-inspection

Download Sample Report

Send download link to:

I have read and agree to the Inspectis privacy policy. And consent to receive communications *

Inspectis Product Catalogue

Product video

Specifications

Imager 1/2.5” CMOS, Colour 5 million Pixels.
Pixel Size / Resolution 2.2 μm x 2.2 μm / 2592(H) x 1944(V) pixels
Interface USB3.0 / USB3.1 Gen 1 (backwards compatible with USB 2.0)
Video Formats @ Frame Rate 2592×1944 (5 MP) @15fps, 2000×1500 (3MP)@24fps, 1920×1080 (Full HD)@30fps
Digital Camera Control Auto/Manual Exposure, Frame Stacking, Contrast, Brightness, Gamma, Sharpness, High Dynamic Range, Auto/Manual White Balance, Flip H, Flip V.
Software INSPECTIS© BGA Basics with direct digital camera control
Preset/Recall Memories 2 factory set and 2 user definable with quick access buttons.
Preset/Recall calibrated magnifications 5 factory set and 10 user-definable calibrated magnifications with quick access buttons.
Image Capture Snap switch on device, foot-pedal or by software
Video Capture format JPG, PNG
Mount UNC 1/4″–20
Illumination Incident LED light + brush light (goose-neck) LED. Electronic light intensity control.
Stand Large base antistatic coated stand with coarse/fine precise axial rack&pinon movement, ±90° pivoting function and soft-touch probe protection mechanism.
Storage / Operating Environment -20° – +60°C / -5 ° – +40°C, 20 – 95% RH, non-condensing
Size / Weight: Basics System 400(L) x 295(W) x 385(H) mm / ~9.2 kg.
Antistatic design ESD protected with GND connection points on stand bracket and XY-stage

Optics: (Side-view BGA lens)

Magnification ~ 25x – 200x  on 24” monitor (on-screen magnification)
Working distance  ~ 0.5 – 25 mm (focusing range)
Illumination  Built-in high-power pure white LED light source through microprisms
Footprint of standard size probe  0.85 x 6.6mm on PCB (~ 1mm free area around IC package is required)

Optional accessories

BGA optical probe

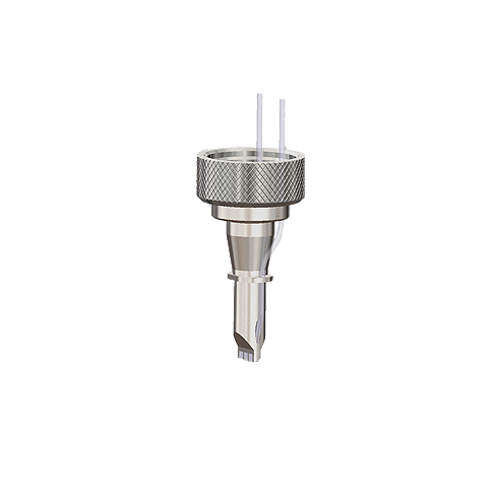

 Interchangeable 90° side-view small size optical probe

Item no. BGA-007

Optical probe for Inspectis side-view BGA inspection lenses. Robust design, made of stainless steel including specially high resolution optics and light guides. Create bright images of hidden solder joints of BGA, μBGA. FipChip, CSP, CGA components down to 40 microns stand-off.

Thickness of optical probe: 1.5 mm
Width of optical probe: 6.0 mm
Foot print of optical probe: O.7 x 6.0 mm
Required free working area: ~ 0.8 mm

This item can be ordered as an extra probe for standard BGA lens or as spare part.

Download data sheet
BGA probe

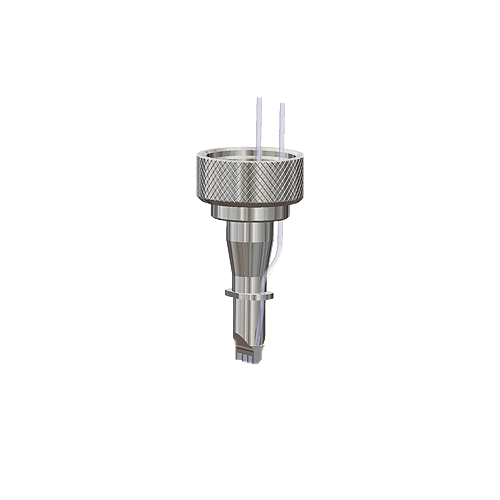

 Interchangeable 90° side-view standard optical probe (Spare part)

Item no. BGA-006

Optical probe for Inspectis side-view BGA inspection lenses. Robust design, made of stainless steel including specially high resolution optics and light guides. Create bright images of hidden solder joints of BGA, μBGA. FipChip, CSP, CGA components down to 40 microns stand-off.

Thickness of optical probe: 1.8 mm
Width of optical probe: 6.6 mm
Foot print of optical probe: O.85 x 6.6 mm
Required free working area: ~ 1.0 mm

This item can be ordered as an extra probe for small-size BGA lens or as spare part.

Download data sheet
BGA inspection

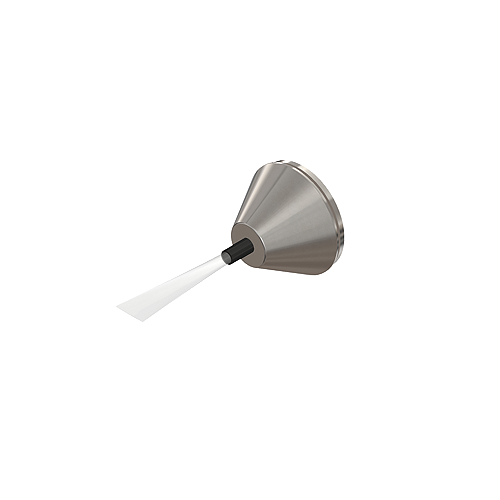

 Spare probe for fiber brush-light (Spare part)

Item no. BGA-014

Replacement probe for Fiber Optics Background Illumination

Download data sheet

More accessories:

A wide variety of accessories are available for BGA Inspection systems

Find more accessories here:
