Accesories for BGA Inspection Systems

 Interchangeable 90° side-view standard optical probe (Spare part)

Item no. BGA-006

Optical probe for Inspectis side-view BGA inspection lenses. Robust design, made of stainless steel including specially high resolution optics and light guides. Create bright images of hidden solder joints of BGA, μBGA. FipChip, CSP, CGA components down to 40 microns stand-off.

Thickness of optical probe: 1.8 mm
Width of optical probe: 6.6 mm
Foot print of optical probe: O.85 x 6.6 mm
Required free working area: ~ 1.0 mm

This item can be ordered as an extra probe for small-size BGA lens or as spare part.

 Interchangeable 90° side-view small size optical probe

Item no. BGA-007

Optical probe for Inspectis side-view BGA inspection lenses. Robust design, made of stainless steel including specially high resolution optics and light guides. Create bright images of hidden solder joints of BGA, μBGA. FipChip, CSP, CGA components down to 40 microns stand-off.

Thickness of optical probe: 1.5 mm
Width of optical probe: 6.0 mm
Foot print of optical probe: O.7 x 6.0 mm
Required free working area: ~ 0.8 mm

This item can be ordered as an extra probe for standard BGA lens or as spare part.

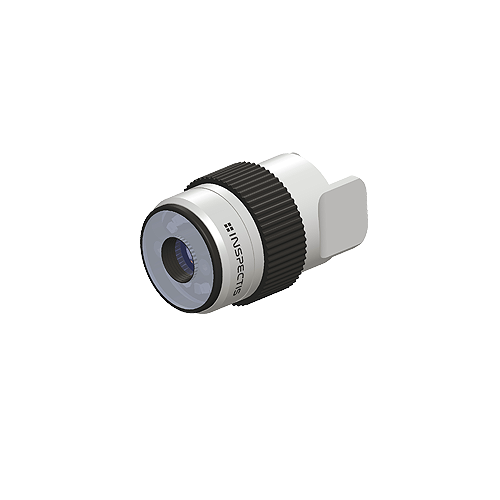

 Interchangeable 8-80x top-view varifocal lens

Item no. DM-010

Varifocal megapixel lens with built-in diffuse illumination for top-view inspection of assembled electronics boards. The 8-80x lens is simply swapped with the side-view BGA lens on the digital microscope.

Creates bright images at 5.0Mp resolution.

 Spare probe for fiber brush-light

Item no. BGA-014

Replacement probe for Fiber Optics Background Illumination.

USB Foot Switch for Inspectis Software, 1-Pedal

Item no. HD-051

USB foot switch for hands free image capture in Inspectis software. Foot switch is plugged into the USB port of computer and automatically recognized by the INSPECTIS software.

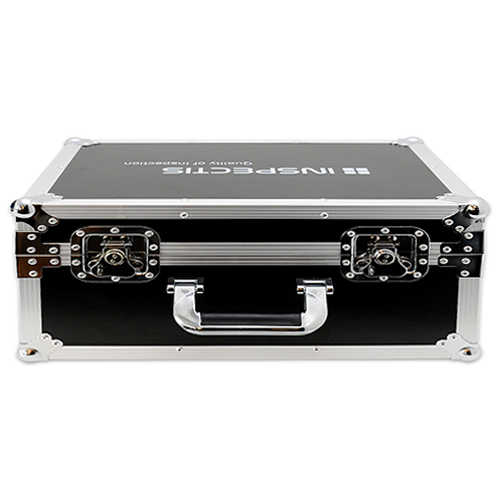

Flight Case for BGA inspection system equipment

Item no. BGA-017

Rigid flight case with specially designed foam for safe transportation of a complte BGA inspection system.
