Capillaroscopy with Basic Functions

Nailfold Video Capillarocope

Nailfold video capillaroscope system with 200x lens and basic software for non-invasive and safe morphological examination and analysis of microcirculation abnormalities related to rheumatic diseases.

Crisp Live Images of Capillaries

Thanks to it’s superior optics, advanced USB3.0 camera technolgy, and efficent illumination, Inspectis nailfold capillaroscopy microscopes create sharp and vivid images of capillaries.

Consistent and Efficient Workflow

Powerful yet easy-to-use software with image capture, measurement, counting and storage functions direclty on laptop or PC. Default file names tag and annotations linked to the image for follow up.

Cost Effective

Reliable

Easy to Use

Comprehensive and Flexible Assessment

Nailfold video capillaroscope with powerful tools meeting all the needs of internationally recognised  examination techniques are easily accessible. Assessment of saved images can be made during or after an examination. Accuracy and efficiency are assured with pre-calibrated optics.

video capillaroscope

Powerful Software with Basic Functions

Highly simplified image view, capture, object counting and distance measurement software. Tools such as direct camera control, image enhancement, digital zoom, overlay grids, linked patient notes and annotation on image are available.

An easy to use yet powerful software when Capillary image view and acquisition are primary requirements.

SOFTWARE

Quality & Support

Inspectis quality management system is certified to Medical Devices ISO 13485 and designed to ensure Capillaroscopy systems meet the required specifications for quality and safety.

Inspectis Capillaroscopy equipment as well as corporate management systems comply with regulatory requirements and marketing authorisation.

From the moment you engage with us, you can be confident of receiving the best possible assistance including product training, software upgrades and help in the unlikely event of something going wrong.

Learn more about Quality System of Inspectis

Capillaroscope Medical Devices ISO 13485

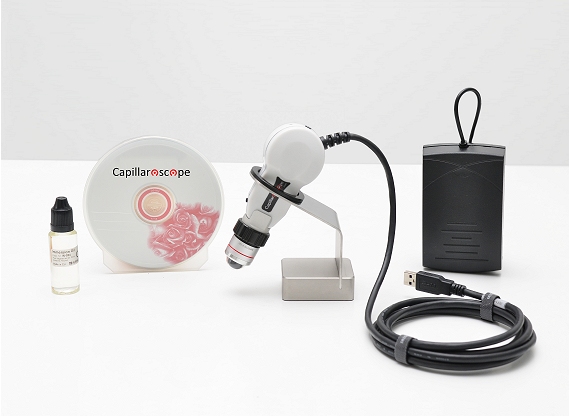

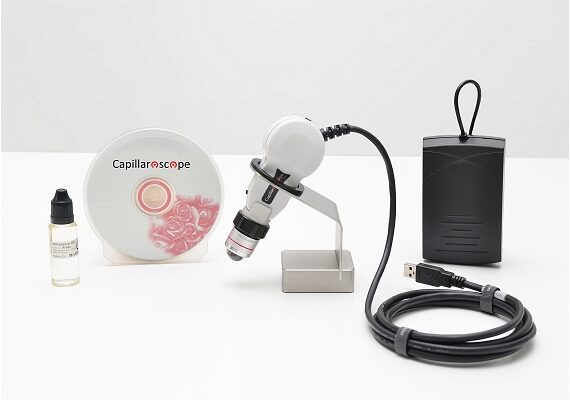

Included items when you order DM-01

  • Digital Nailfold Capillaroscope, 5MP, USB3.0
  • 200x High-resolution Lens with Built-in Illumination
  • INSPECTIS© Basics Software
  • Immersion Oil Dropper
  • Single-Pedal Foot-switch for hand-free image capture
  • Capillaroscope bench-top Holder
  • One year Service, Support and free software upgrades
  • Two years new Product Warranty

Downloads

Download CAP MiniFolderDownload System Configurations

Capillaroscopy-Sample-Report

Download Sample Report

Send download link to:

I have read and agree to the Inspectis privacy policy. And consent to receive communications *

Brochure_Digital Capillaroscope

Download Brochure

Send download link to:

I have read and agree to the Inspectis privacy policy. And consent to receive communications *

INSPECTIS-Nailfold-Capillaroscopy-Software

Download Software Brochure

Send download link to:

I have read and agree to the Inspectis privacy policy. And consent to receive communications *

Product video

Specifications

Capillaroscope

Imager 1/2.5″ Colour CMOS, 2592H x 1944V Pixels
Aspect Ratio 4:3 at 5MP and 3MP mode. 16:9 at 2MP mode
Pixel Size 2.2 x 2.2 μm
Video formats @ frame rate (max) 2592×1944 (5 MP) @ 15 fps, 2000 x 1500 (3MP) @ 22 fps,

1920 x 1080 (Full HD) @ 30 fps, 640 x 480 (binning) @ 57 fps
PC interface High speed USB3.0 or USB3.1. Backward compatible with USB2.0
Image / Video capture Soft-touch button on device, by footswitch and by software
Image / Video formats Still images in PNG, JPG. Video in AVI at 4 compression modes.
Adjustable parameters Brightness, gamma, sharpness, contrast, glare reduction and high dynamic range
Memories  2 predefined and 2 user-definable with quick access buttons
Dimensions and Weight 135 x 50 x 37 mm 205 g
Stand mount Standard Camera mount UNC 1/4″ – 20

Optics

Fix Focal Lens 200x High-resolution lens with built-in light and focus adjuster, FoV ~ 1.8 x 1.35 mm @ 3MP
Fix Focal Lens 100x (Optional) High-resolution lens with built-in light and focus adjuster, FoV ~ 3.5 x 2.6 mm @ 3MP
Fix Focal Lens 300x ( optional ) High-resolution lens with built-in light and focus adjuster, FoV ~ 1.2 x 0.9 mm @ 3MP
Verifocal Lens 15-45x ( optional ) High-resolution varifocal lens with built-in polarisation filters for reflection extinction.
Illumination Integrated pure white LED ring light, Colour Temperature 5800K (Kelvin)

Optional accessories

SOFTWARE

Software upgrade INSPECTIS© CAP Basics to INSPECTIS© CAP Pro

Item no. IN-043

Upgrade to dedicated Capillaroscopy Professional software with patient database, streamlined workflow and advanced tools for examination, analysis, archiving and reporting.

Download data sheet

100x High-resolution Lens with Built-in Illumination

Item no. IN-011

Capillaroscopy lens with high resolution optics, built-in light and 100x magnification. Useful for imaging capillaries over larger field of view.

Download data sheet

300x High-resolution Lens with Built-in Illumination

Item no. IN-013

Capillaroscopy lens with high resolution optics, built-in light and 300x magnification.

Download data sheet

15-45x Varifocal Lens with Built-in Polarised Illumination

Item no. IN-010

Dermatoscopy and low-magnification Capillaroscopy varifocal lens with polarisation optics, built-in light producing bright and high-resolution pictures for detection of skin abnormalities and early melanoma.

This lens might also be used for screening capillaries at low magnification over a larger field of view.

Download data sheet

Tip dome for 200x Lens (spare part)

Item no. IN-015

Spare part for replacement of aged skin-contact adapter of the Capillaroscopy 200x lens.

Download data sheet
Oil dropper

Immersion Oil Dropper

Item no. IN-024

20 ml immersion oil and dropper.

Download data sheet
M. Cutolo

Atlas of Capillaroscopy in Rheumatic Diseases, M. Cutolo

Item no. IN-032

Author: M Cutolo
Publisher ‏ : ‎ Elsevier (September 30, 2015)
Publication date ‏ : ‎ September 30, 2015
Language ‏ : ‎ English

Download data sheet
