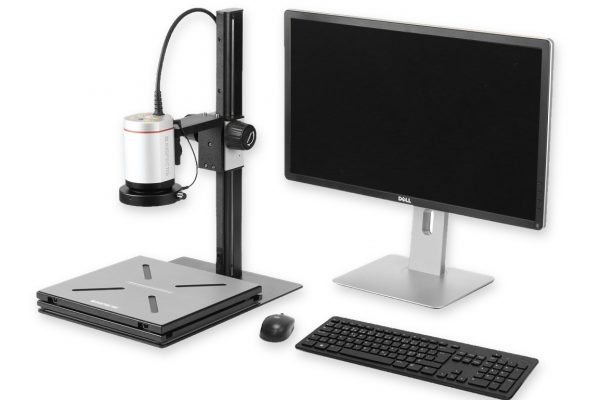

U30s Ultra HD (4k) Digital Microscope System Package

Advanced Ultra HD Optical Inspection System

Complete package including best-on-the-market Ultra High Definition 8.3 megapixel Digital Microscope with 30:1 Optical Zoom Range, swift Auto Focus, extra +10 diopter Macro Lens, Fine Focusing Track Stand, LED Ring light, large working area XY-Floating Board and poweful INSPECTIS© Pro Utility and Metrology Software.

Designed for Ergonomic Use

Inspectis Ultra HD digital microscopes provide relief to eyes, neck and shoulders through the unique ergonomic design and large free working distance. By allowing operators to sit comfortably in a good working position, their inspection tasks can be carried out more efficiently.

When you require the best

Inspectis U30s digital microscope with its superior image quality, high contrast and true colours is the best choice for High Resolution Optical Inspection, Analysis, Quality Control, R&D, Metrology, Reporting and Documentation of objects up to 720x magnification.

Ergonomic

Repeatable

Reliable

Optimized for optical inspection of fine detail

The system’s standard 30:1 zoom optics produces ~ 2 – 60x magnification o 28” monitor. With included +10 diopter attached, magnification can be zoomed up to 193x while you still can take advantage of a large filed of view at 1x zoom factor.

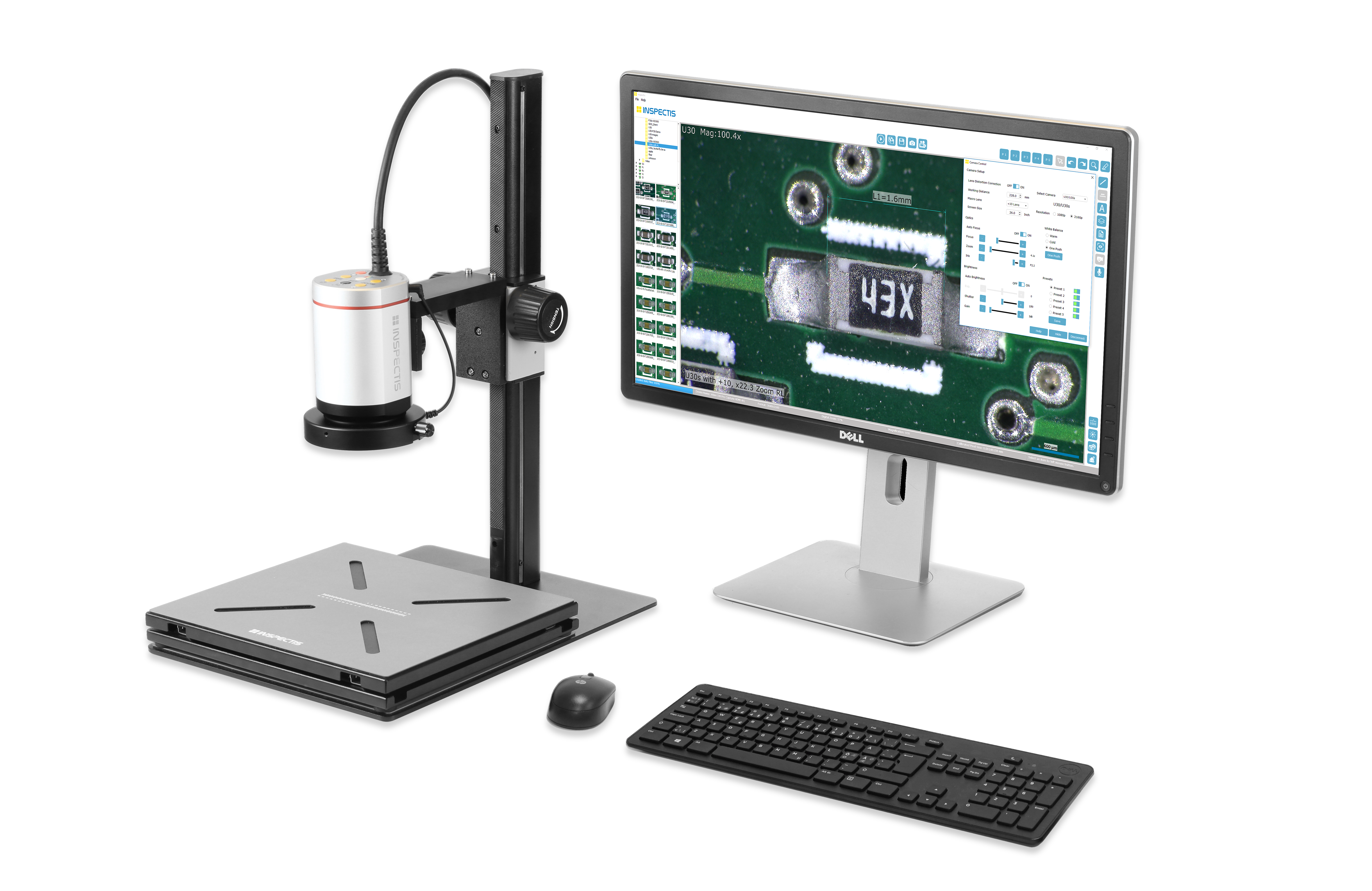

4K Digital Microscope powered by INSPECTIS©

The system is powered by INSPECTIS© Pro software. Powerful yet easy-to-use live image view, capture, analysis, metrology and reporting software.

INSPECTIS© Pro is pre-calibrated across entire zoom range of the U30s microscope and provides tools measurements, image overlays, comparison, video & audio recording, drawings, annotations, and reporting. INSPECTIS© provides direct access to camera and lens attributes like optical zoom, aperture size, shutter speed, contrast, focus and colour balance.

Precise Camera and Lens Control

INSPECTIS© provides direct access to camera and lens attributes like optical zoom, aperture size, shutter speed, contrast, focus and colour balance.

1 to 16 camera and lens configurations can be saved in memory for quick recall through P1 to P16 icons on software

Developed for Ease-of-Use

Inspectis U30s digital microscope powered by INSPECTIS© offers true ease of use with minimal interaction needed with controls and settings.

INSPECTIS© Pro is a powerful yet easy-to-use software for live image view, capture, analysis, and reporting . INSPECTIS© Pro provides tools for zoom tracking, non-contact geometrical measurements, image overlays, comparison, video recording, drawings, annotations and reporting.

All camera and lens parameters such as zoom, aperture size, brightness, focus and colour levels can be controlled by the user through graphical interface of INSPECTIS© software.

Fully configurable optical system

Inspectis 4K Advanced system can be fully adapted to your application and has a wide range of accessories. Options included:

Transmitted brightfield white illumination
Incident UV ring-light illumination
+3, +5, +28 or +56 diopter extra lenses
ESD protected housing
Through focus laser pointer
Motorised XY-stage with joystick control

Software Digital Microscope Electronics PCB

Included items when you order HD-016-KIT-ADV

Inspectis U30s, Ultra HD 2160p Modular Digital Inspection Macroscope, x30 Zoom
Macro lens +10 diopter, 67mm (replaceable with other lenses on request)
Track stand, Large Base with focusing WD 35-410mm, ESD-Protected base
XY Floating Board with magnetic pegs (4x kit)
RingLight White LED with detachable diffuser
4K HD USB3.0 Capture Pro with INSPECTIS© Pro software and USB-COM cable
Annual Service and Support for INSPECTIS© Pro (one year)

System package can also be ordered with F30s FHD digital microscope as HD-013-KIT-ADV

Downloads

Download product brochure Inspectis product diagram Brochure Inspectis systems

Product Catalogue

Download product catalogue

Send download link to:

Product video

Specifications

SYSTEM
Video Output	Ultra HD 2160p/30, switchable to Full HD 1080p/60 (by Software). HDMI type A Male connector
Imager	8.5 Mpixels. 3840(H) x 2160(V) 16:9 format. Progressive scan CMOS image sensor
Onboard Controls	Zoom, Iris, Auto Focus on/off, White Balance, 4K to Full HD format swap
Remote Control Unit (optional )	Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, White Balance, Picture Quality Mode, Display Text, Haircross overlay, Image Rotate, Image Freeze, Memory Save/Recall (2 pcs), Foot-switch, Video Output Format and Frame Rate.

OPTICS
Video Output	Ultra HD 2160p/30, switchable to Full HD 1080p/60 (by Software). HDMI type A Male connector
Imager	8.5 Mpixels. 3840(H) x 2160(V) 16:9 format. Progressive scan CMOS image sensor
Onboard Controls	Zoom, Iris, Auto Focus on/off, White Balance, 4K to Full HD format swap
Remote Control Unit (optional )	Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, White Balance, Picture Quality Mode, Display Text, Haircross overlay, Image Rotate, Image Freeze, Memory Save/Recall (2 pcs), Foot-switch, Video Output Format and Frame Rate.

Optional accessories

Macro Lens +1 Diopter, 67mm

Item no. HD-036

+1 diopter optical power close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 23%.

Download data sheet See video
