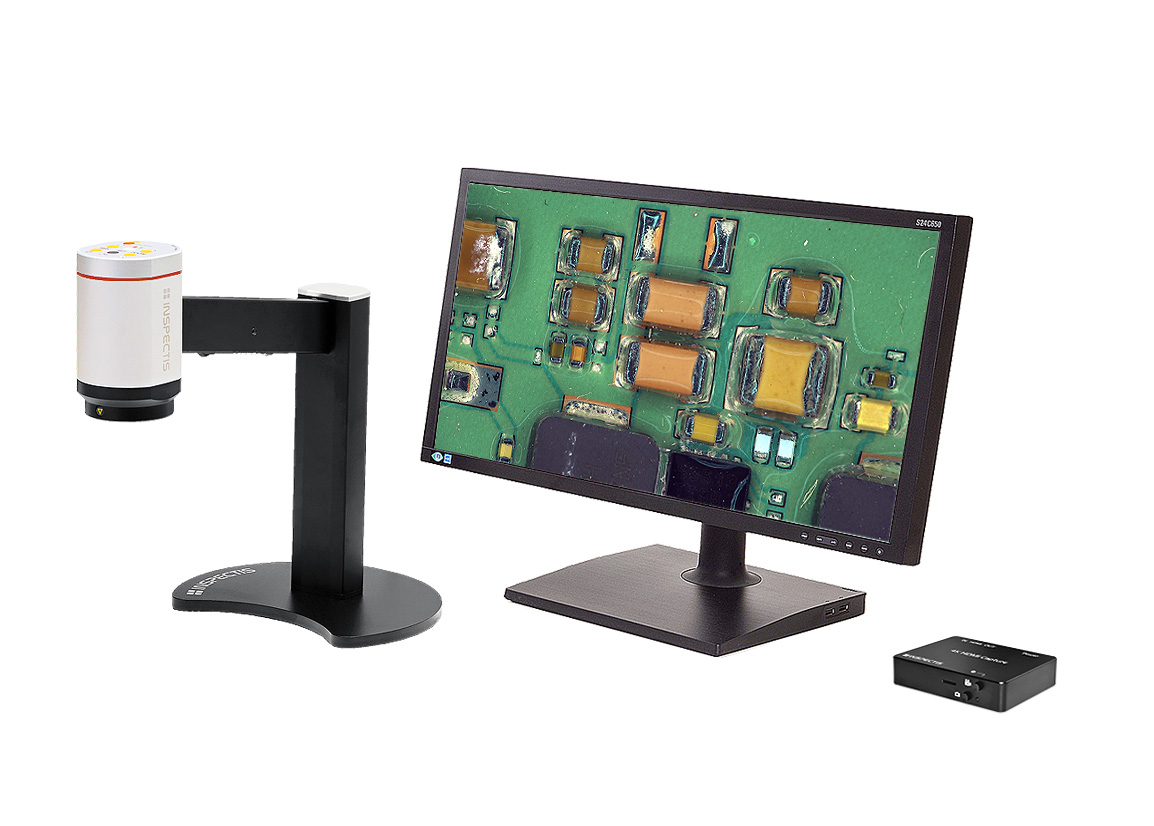

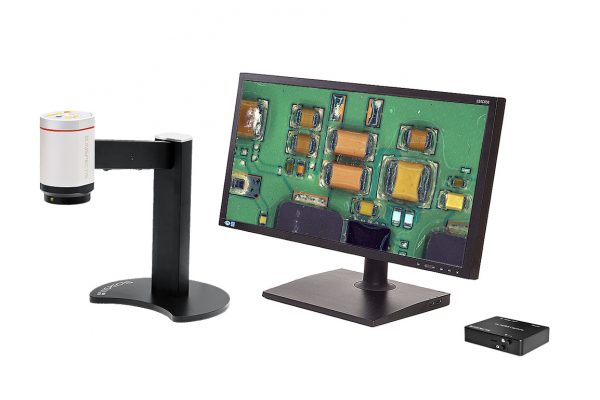

• 4K optical inspection of PCB with polariser

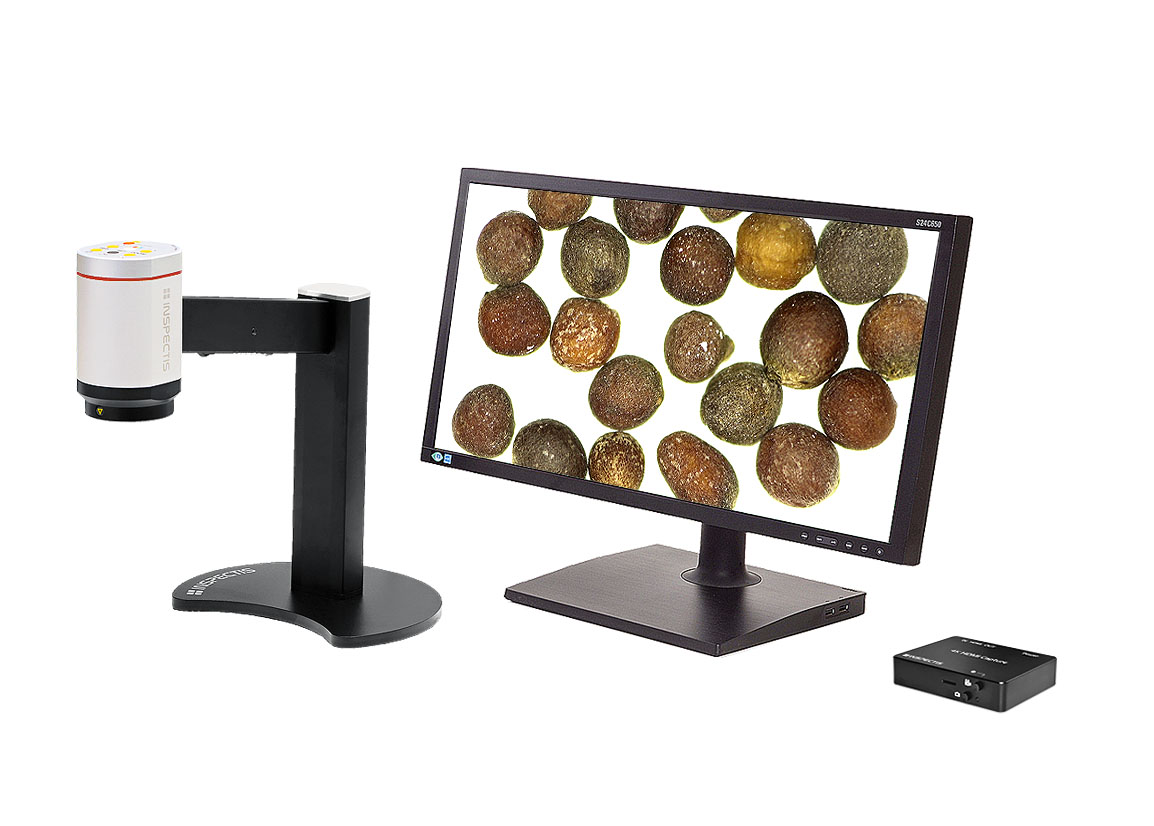

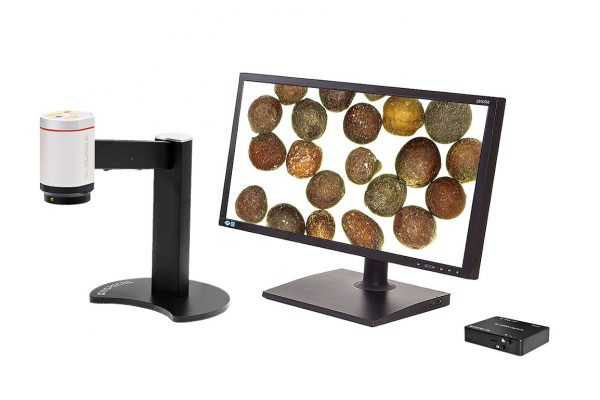

  • 4K All-in-One Dgital Microscope with image Capture Seeds

U30 System Package, All-in-One

Plug & Play

Plug & play, reliable and cost effective 4K optical inspection system with 30:1 motorised zoom, swift auto focus, integrated illumination, and robust  industry standard all-aluminium integrated stand. Allows keeping working bench clean and free.

Easy to Setup and to Use

Delivered as a complete optical inspection system with built-in oblique reflection free LED matrix light, 4K digital image capture & video recorder, and a 28″ 4K mointor alowing digital image capture at 8.5MB resolution or video recording at FHD on SD-card.

Making optical inspection enjoyable

Connect the U30 digital microscope to the UHD display via the supplied 4K HDMI capture device and take advantage of the astonishing image resolution, high contrast, and true colours at 1:30x zoom range in your optical inspection work.

Reliable

High Resolution

Simple

Premium imaging quality

Ultra HD 8.5MP live video switchable to FHD 60fps resolution with 4K image capture without need for computer. Produces superior image quality with excellent colours at entire field of view.

Highly integrated and Ergonomic

Equipped with built-in LED matrix light and incident angle adjustment for reflection free illumination.

Unique ergonomic design with durable, robust all-aluminium housing and 230 mm free working distance, allowing operators to sit comfortably in a good working position and carrying on their inspection tasks more efficiently.

U30 digital inspection microscope

Precise Camera and Lens Control

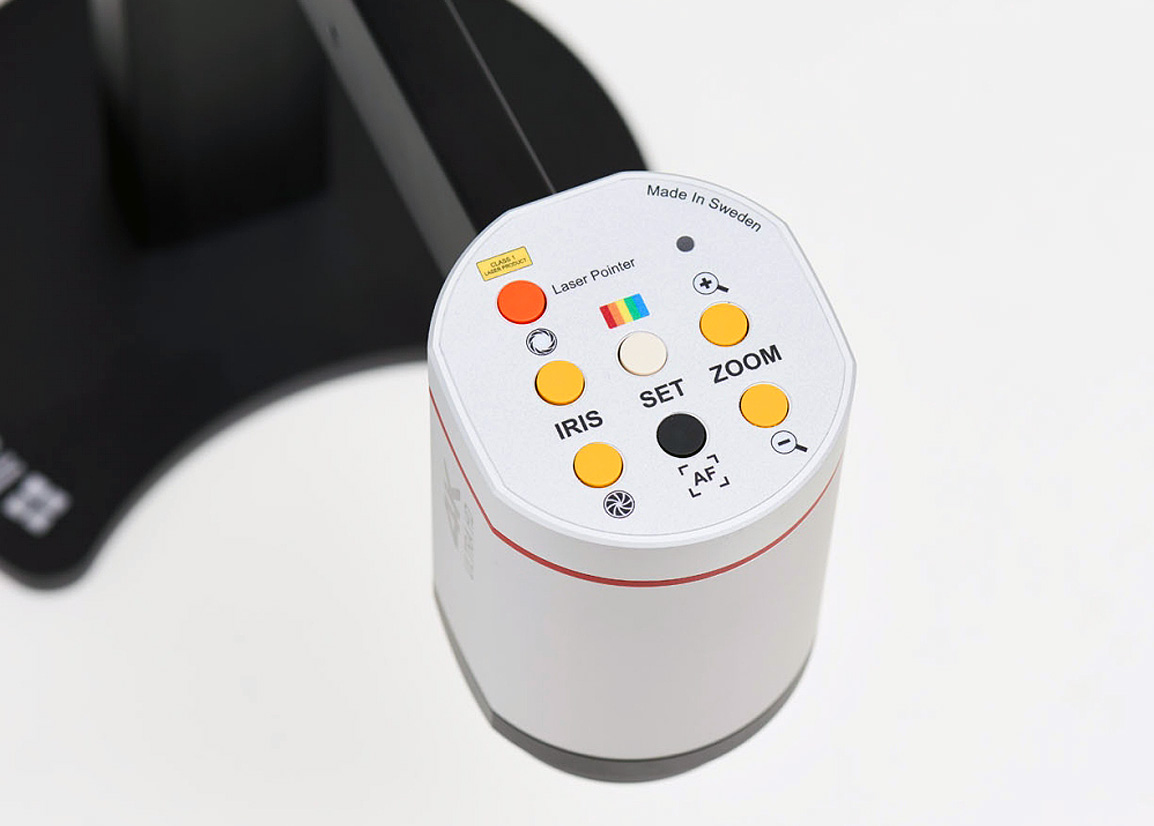

Inspectis U30s digital microscope offers true ease of use with minimal interaction needed with controls and settings. All camera and lens parameters such as zoom, aperture size, brightness, focus and colour levels can be controlled by the on-board buttons on top of the device.

U30 4K Digital Microscope Lens control

Advanced Camera and Lens Controls

When required the optional remote control allows the excellence of the imaging system to be exploited further and additional useful inspection aids to be selected.

With Advance Remote Control console, camera and lens attributes, including focus, brightness, lens aperture size, image contrast, white balance, are all controllable. Features such as the zoom factor display and crosshair overlay on live image, can be turned on. In addition 2 memory settings can be set allowing optimized settings to be saved and recalled for individual samples.

To further simplify operations selected functions can be controlled by a foot pedal.

Ultra HD 8.5MP Image Capture on SD-card

Capture still pictures at 4k 3840 x 2160 resolution or record digital video at FHD format on a Micro SD-card without need of a host computer.

Live loop through video output at 4K, 2160p format. Supplies date and time stamp on still picture and recorded video.

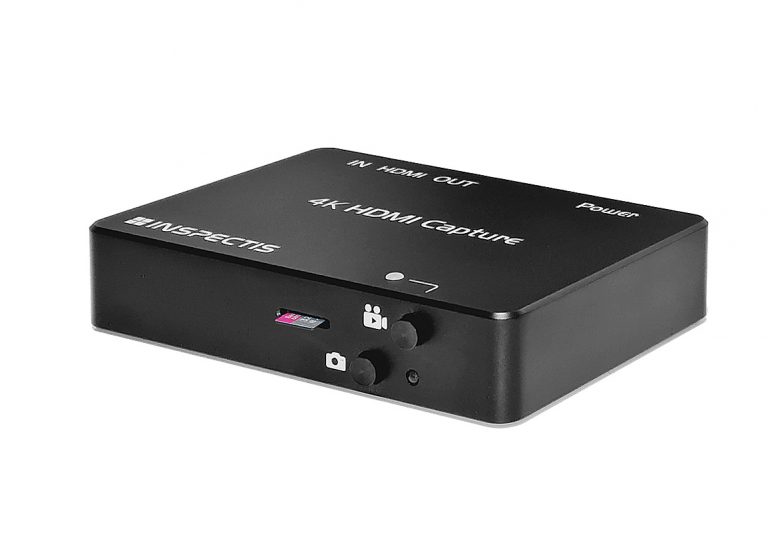

4k HDMI Image capture and video recorder

Included items when you order HD-015-KIT-CAP

  • Inspectis U30, Ultra HD 2160p Digital Inspection Microscope, x30 zoom, All-in-One
  • Inspectis Full HD External HDMI Image Capture and Video Recorder for U-microscopes (EU cable)
  • 27″-28″ 4K LED monitor

System package can also be ordered with Full HD digital microscope F30 or F35 as HD-012-KIT-CAP and HD-112-KIT-CAP

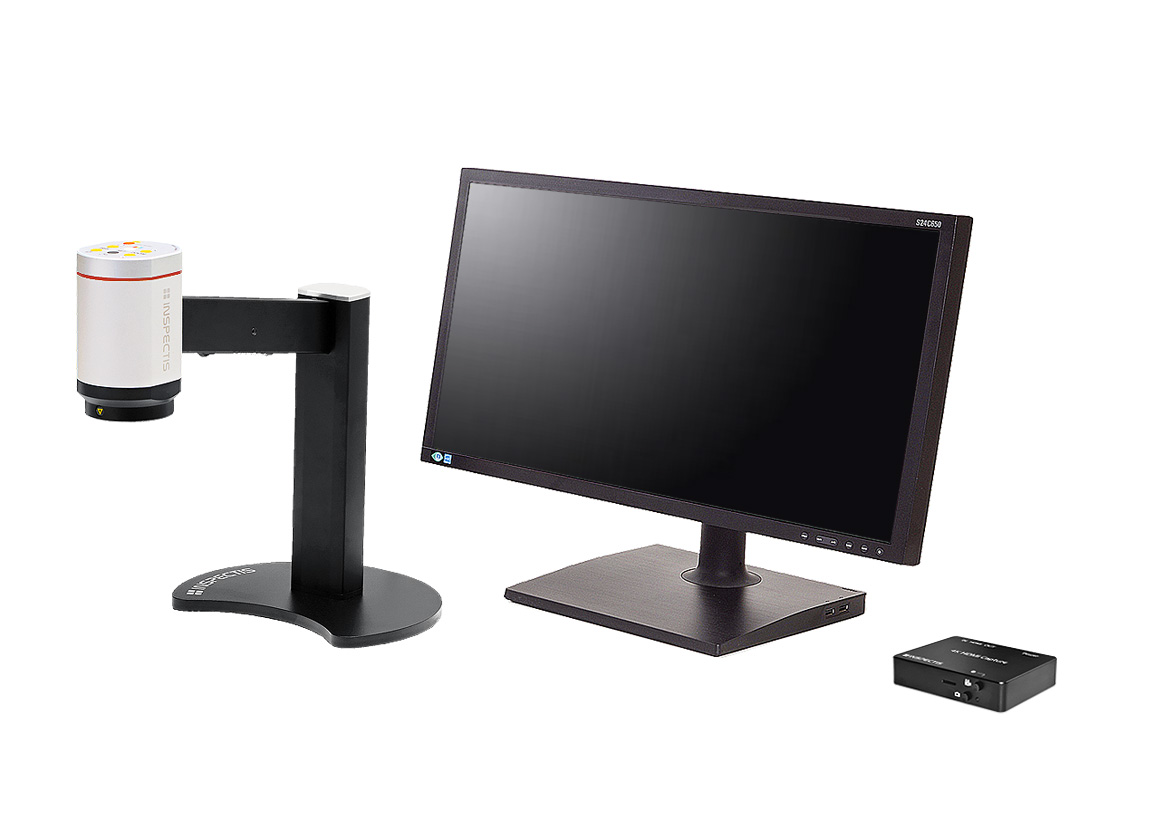

4K All-in-One Dgital Microscope system with image & video Capture

Downloads

Brochure_Inspectis-U30-U30s

Download Brochure

Send download link to:

I have read and agree to the Inspectis privacy policy. And consent to receive communications *

Download product brochureDownload Product CatalogueInspectis product diagramBrochure Inspectis systems

Product video

Specifications

System

Video Output Ultra HD 2160p/30 fps switchable to FHD 1080p/60 fps
Imager 8.5 Mpixels. 3840(H)x2160(V) 16:9 format. Progressive scan CMOS image sensor
Pixel Size (resolution) 1.62 μm x 1.62 μm
Lens Megapixel motorised 30:1 zoom with auto-focus, iris control and pre-calibrated optics
Illumination Built-in LED matrix light. Optional LED RingLight.
I/O Ports HDMI video output, 5P MiniDin power input, 8P MiniDin PC communication
Onboard Control Zoom, Iris, Auto Focus on/off, White Balance
Remote Control via Console Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, White Balance, Picture Quality Mode, Display Text, Crosshairs overlay, Image Rotate, Image Freeze, Memory Save/Recall (2 pcs), Foot-switch,
Image / Video Capture 4K HDMI Capture device with loop-through
Image / Video Capture format 4K still pictures in JPG. Full HD 60fps video record in H.264 MP4
Illumination Built-in LED matrix light. Optional LED RingLight.
Storage Environment -20° – +65°C, 20 – 95% RH, non-condensing
Operating Environment  -5 ° – +45°C, 20 – 95% RH, non-condensing
Size / Weight 200 (W) x 170 (D)x 235 (H) mm / ~ 5.2 kg.

Optional accessories

+1 diopter macro lens

Macro Lens +1 Diopter, 67mm

Item no. HD-036

+1 diopter optical power single-element close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 23%.

Download data sheet
Ring-light UV LED

RingLight UV LED including protection glass

Item no. HD-025-B

Flicker free UV LED ring light with homogeneous illumination at 365nm wavelength range. Integrated ON/OFF switch and brightness control. Ring light is powered directly via AUX output of the Inspectis Digital Microscopes or via optional power supply for compatibility with other devices.

UV-protection glasses (one pair included with kit) must be used when working with this illuminator.

Download data sheet
tilt-table

Tilt Board

Item no. HD-029

Tilt board for smooth movement of the inspection objects up to 30 degrees angle in all directions.

Working surface of the board is covered by high friction antistatic mat to keeps your inspection object in place. 4 slots are available for attaching magnetic pegs or custom made fixtures and holders.

Made of high quality antistatic coated material.

Download data sheet
