F30 Full HD Digital Inspection Microscope All-in-One

Home / All-in-One Digital Microscopes / F30 Full HD Digital Inspection Microscope All-in-One

F30, All-in-One

FHD Video Microscope Designed for Productivity

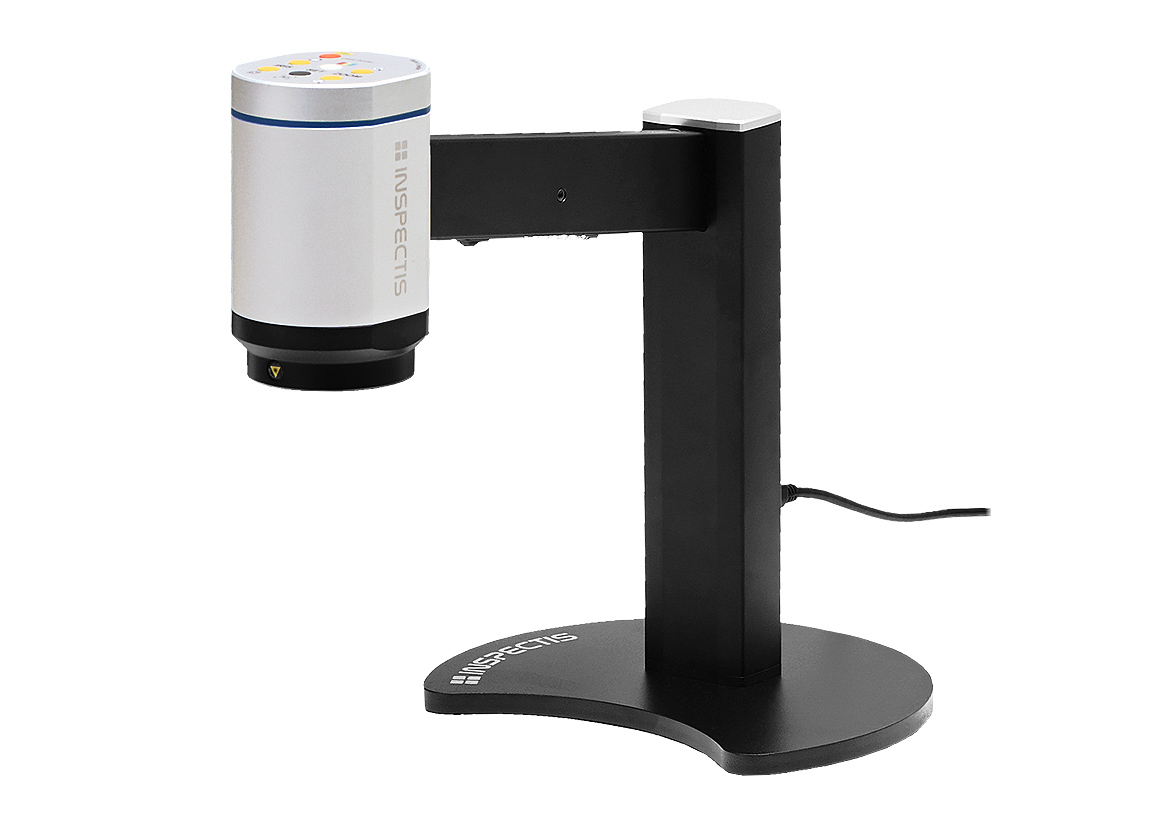

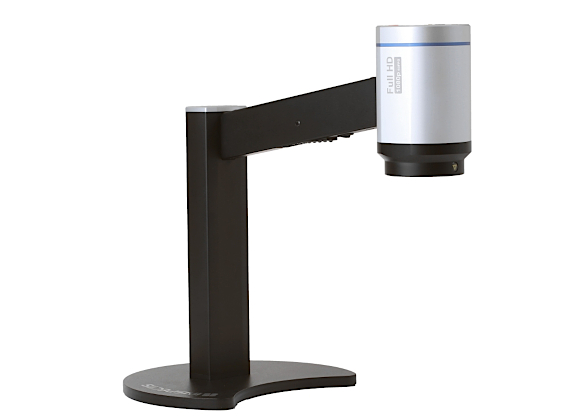

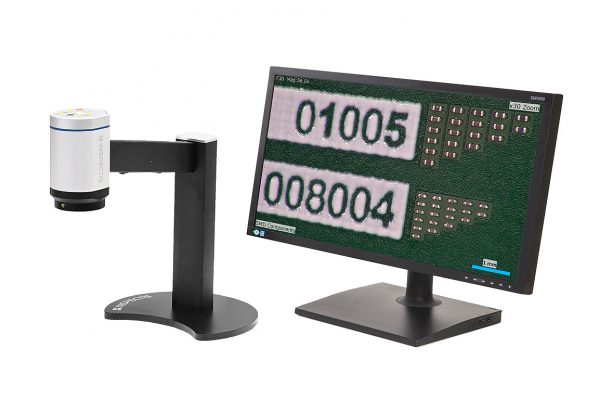

The FHD video microscope F30 from Inspectis is an all-in-one, reliable and cost effective FHD digital video inspection system with 30x optical zoom, auto focus, integrated illumination and on-board controls.

Designed for Ergonomic Use

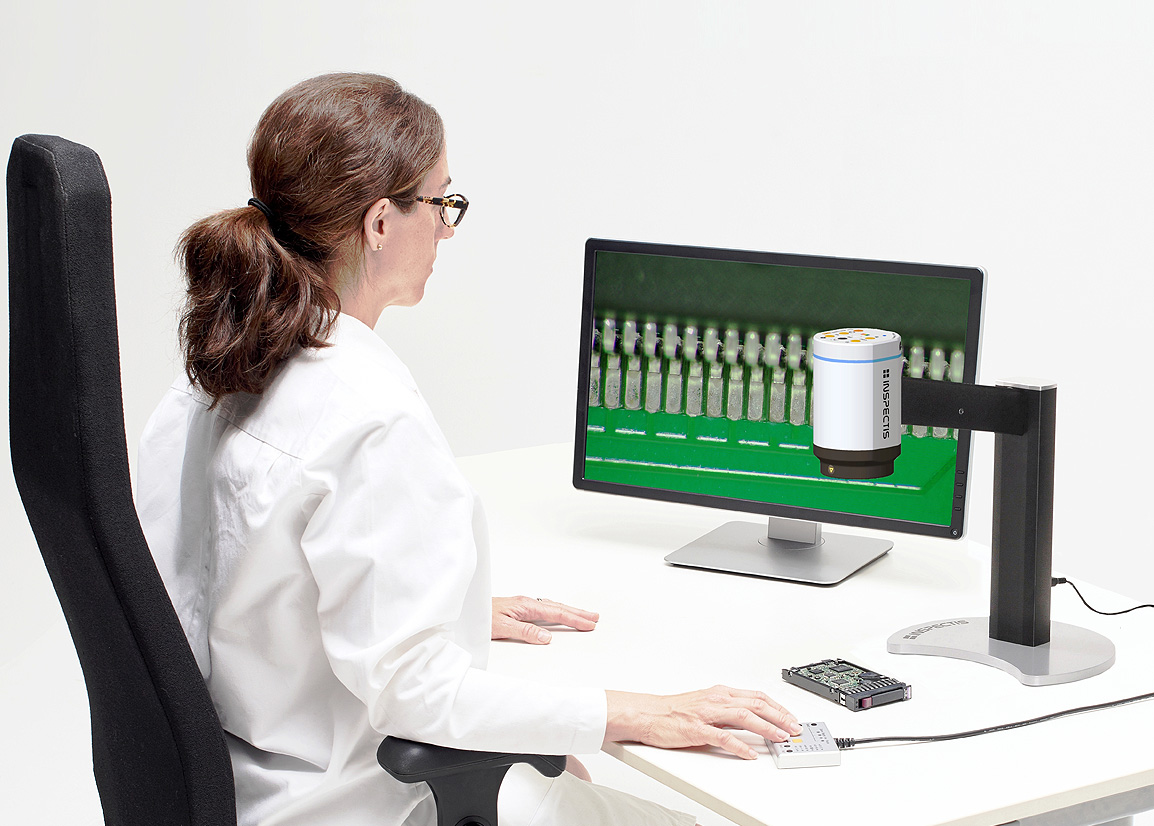

Relief to eyes, neck and shoulders is provided by Inspectis F30 via the unique ergonomic design with 230mm working distance, that allows operators to sit comfortably in a good working position and carry out their optical inspection tasks efficiently.

Plug & Play

Whether you connect the F30 FHD video microscope to a Full HD display or via Inspectis´ plug-&-play USB3.0 converter to your PC, you will take advantage of the outstanding image quality, high contrast and true colours at 1:30x zoom range for your optical inspection work.

Reliable

Low Cost

Easy to Use

Excellent Performance and Low Cost

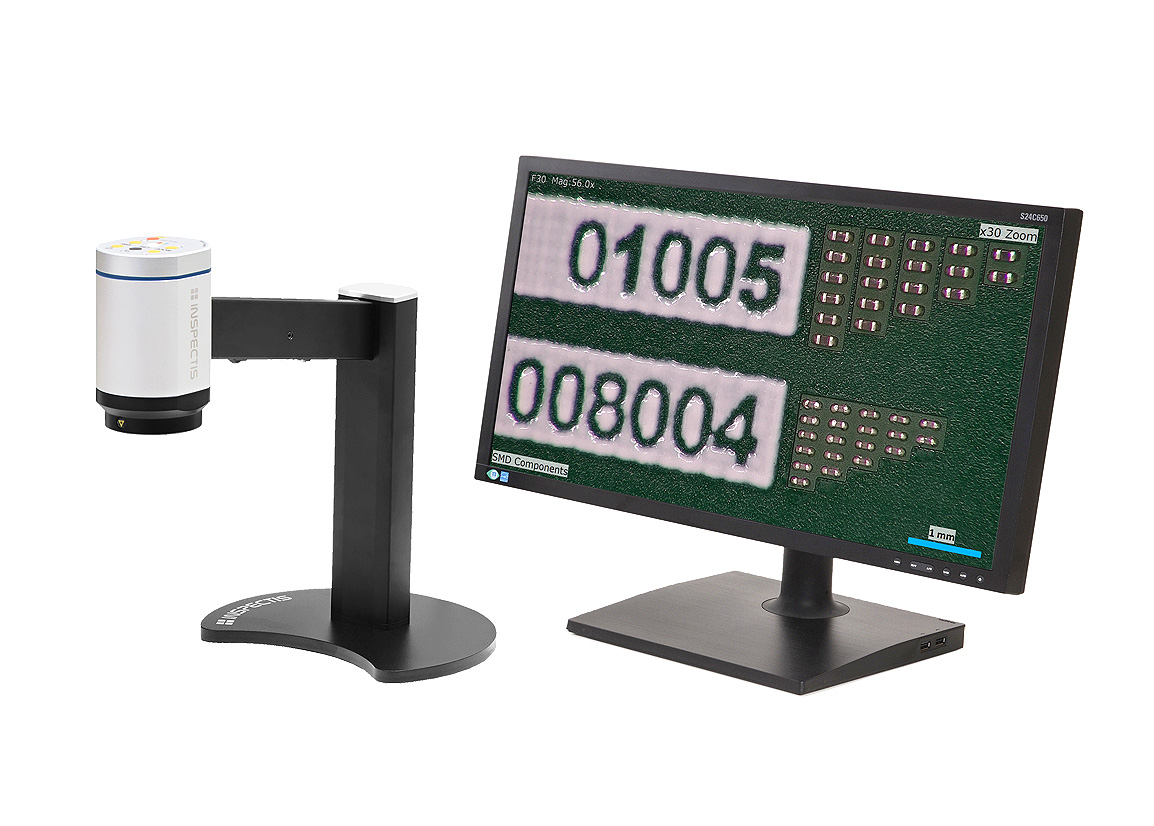

Full HD 1080p 60fps live video with sharp image and deep colours. Robust and durable design and low investment cost, suitable for most optical inspection tasks with digital video technology.

Highly integrated and Ergonomic

Equipped with built-in LED matrix light and incident angle adjustment for reflection free illumination.

Unique ergonomic design with durable, robust all-aluminium housing and 228 mm free working distance, allowing operators to sit comfortably in a good working position and carrying on their inspection tasks more efficiently.

Precise Camera and Lens Control

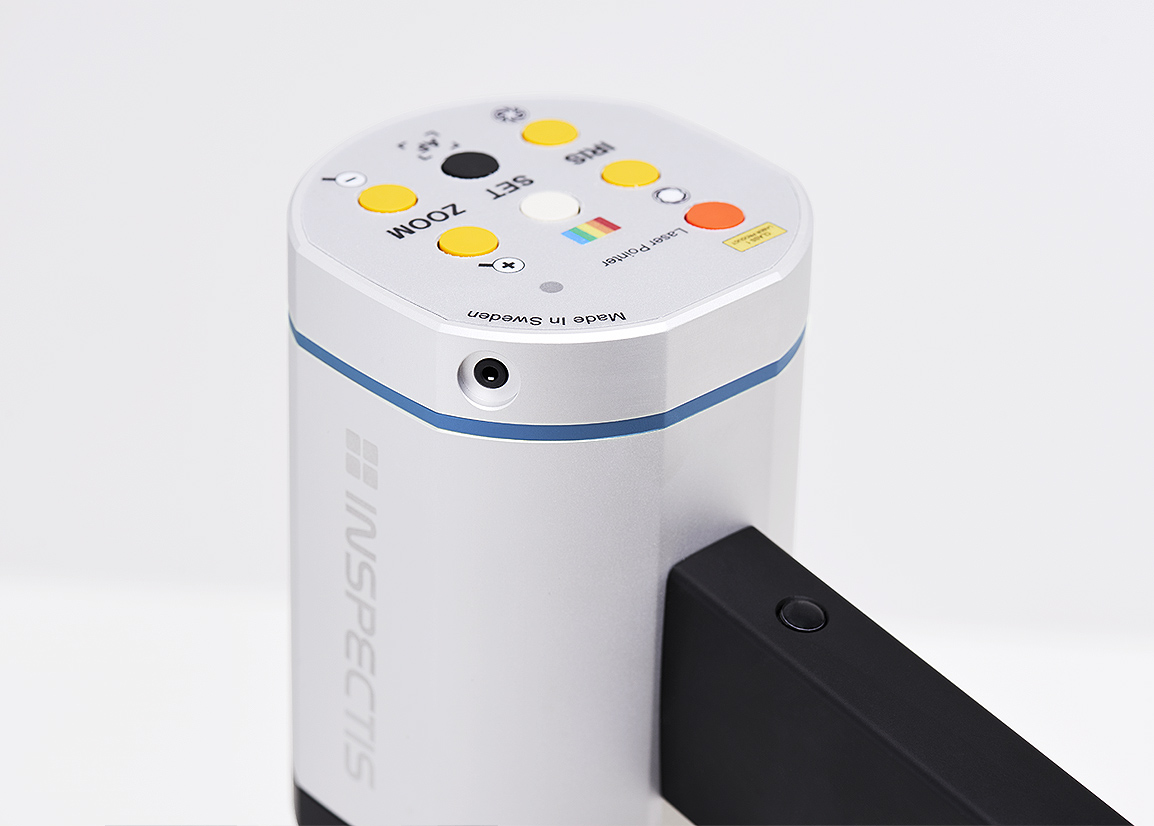

Inspectis digital microscopes offer true ease of use with minimal interaction needed with controls and settings. All camera and lens parameters such as zoom, aperture size, brightness, focus and colour levels can be controlled by the on-board buttons on top of the device.

Advanced Camera and Lens Controls

When required the optional remote control allows the excellence of the imaging system to be exploited further and additional useful inspection aids to be selected.

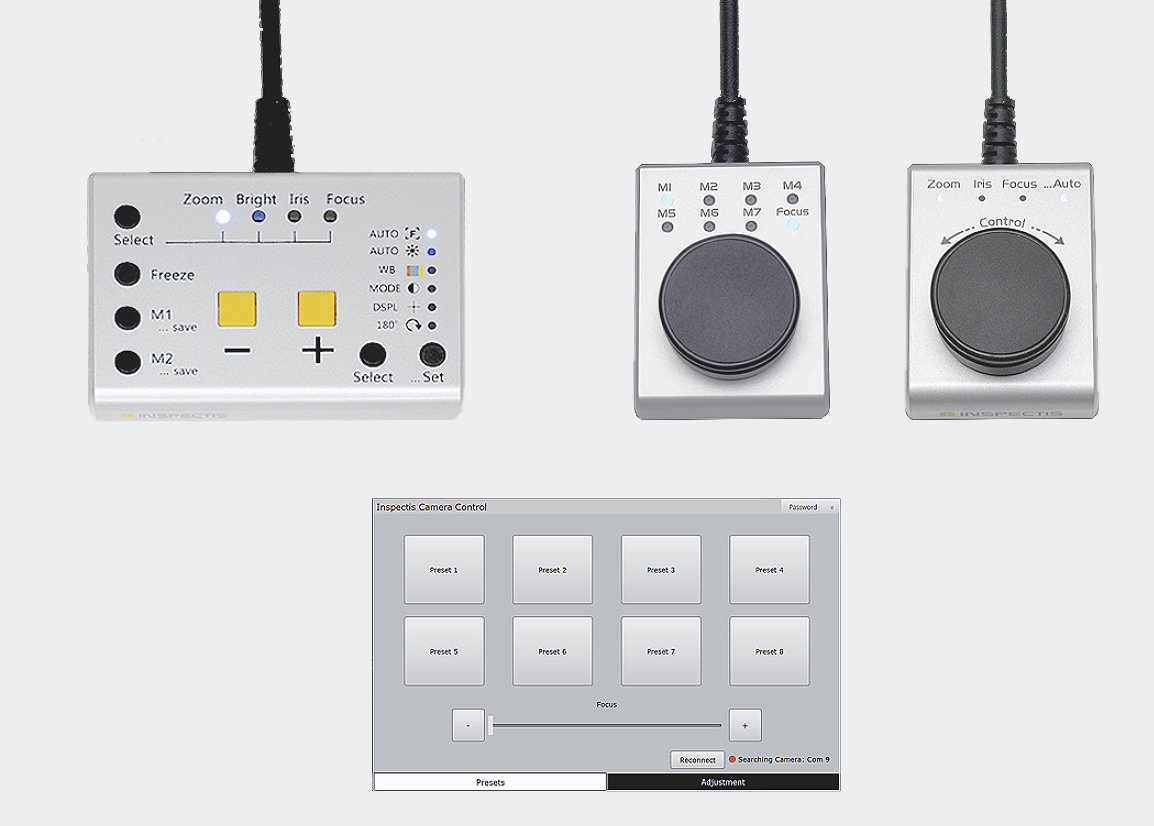

With Advance Remote Control console, camera and lens attributes, including focus, brightness, lens aperture size, image contrast, white balance, are all controllable. Features such as the zoom factor display and crosshair overlay on live image, can be turned on. In addition 2 memory settings can be set allowing optimized settings to be saved and recalled for individual samples.

To further simplify operations selected functions can be controlled by a foot pedal.

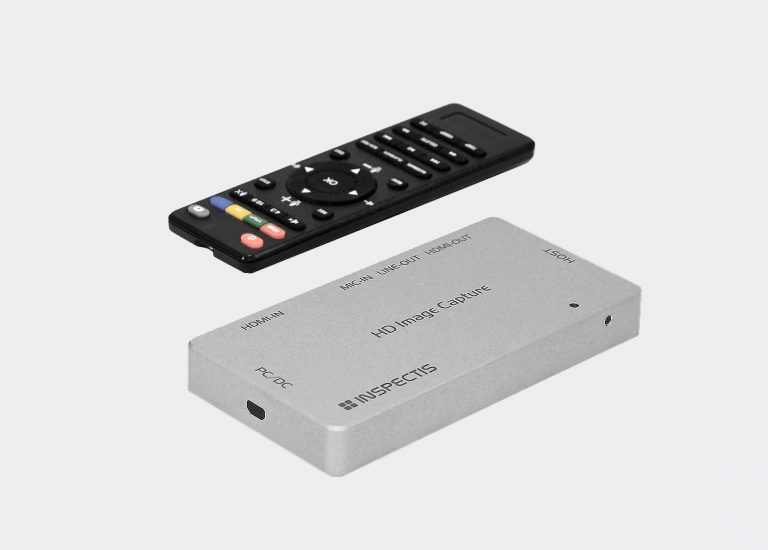

Digital Image Capture and Video Recording on USB Flash

Capture still pictures at 1920×1080 resolution or record digital video at FHD format on a USB flash memory without need of a host computer.

Live loop through video output at FHD, 1080p format.

Included items when you order HD-012

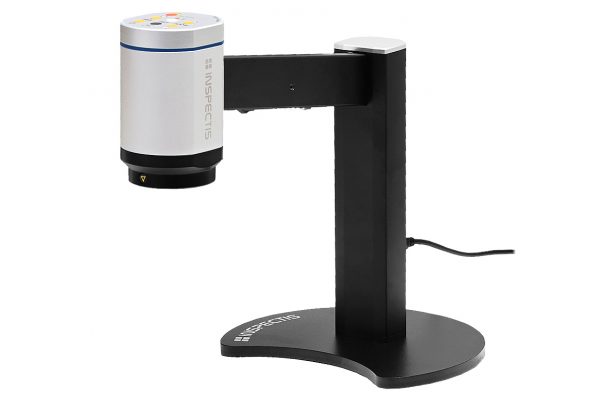

Inspectis F30, FHD 1080p Digital Inspection Microscope, x30 zoom, All-in-One
Power supply, HDMI cable and instructions manual

Downloads

Brochure_Inspectis-F30-F30s

Download Brochure

Send download link to:

Inspetctis Product Catalogue Inspectis product diagram

Specifications

System

Video Output	FHD 1080p/60 fps switchable to Full HD 1080/50p (by Remote Camera Control). HDMI type A Female connector on rear panel.
Imager	3.2M pixels. 1920(H) x 1080(V) 16:9 format progressive scan

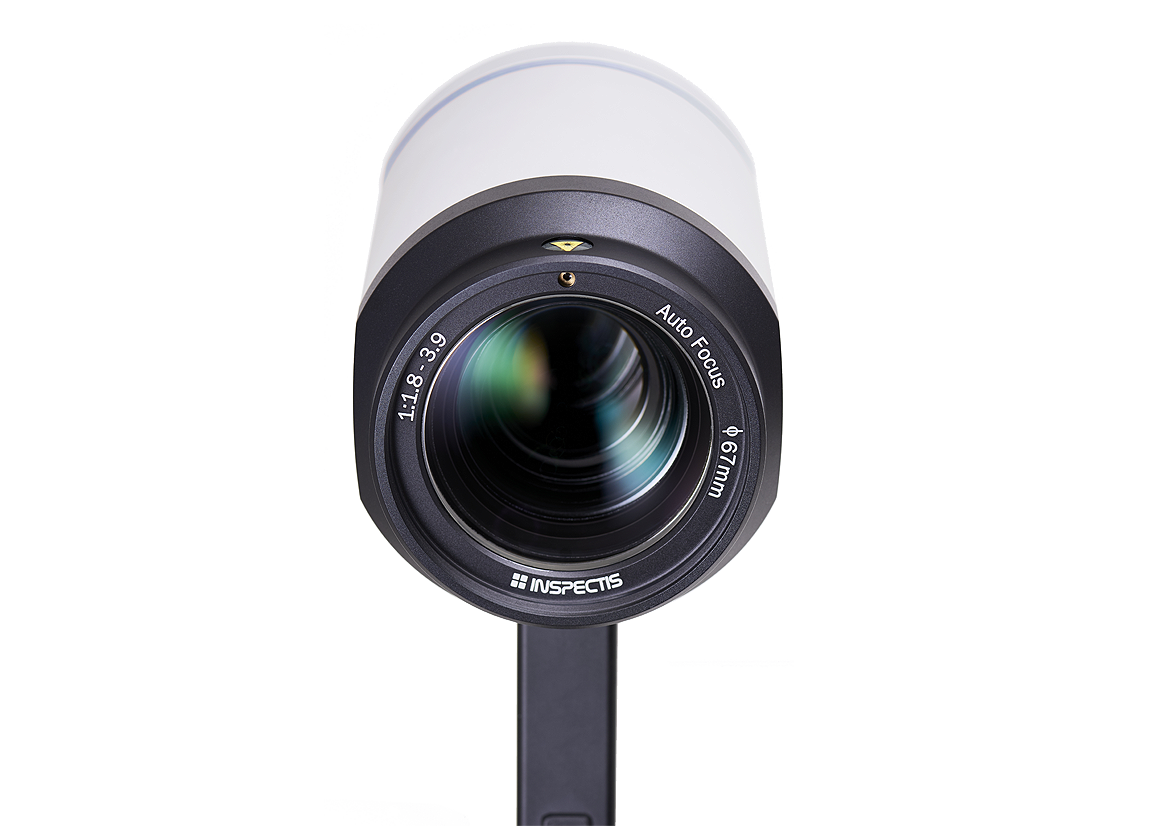

Lens	High resolution motorised 30:1 zoom with auto-focus, iris control and pre-calibrated optics
Illumination	Built-in LED matrix light. Optional LED RingLight.
I/O Ports	HDMI video output, 5P MiniDin power input, 8P MiniDin PC communication
Onboard Control	Zoom, Iris, Auto Focus on/off, White Balance
Remote Control via Console (optional)	Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, White Balance, Picture Quality Mode, Display Text, Crosshairs overlay, Image Rotate, Image Freeze, Memory Save/Recall (2 pcs), Foot-switch,
Control via Software (optional)	Zoom, Iris, Shutter-speed, Manual/Auto Brightness, Manual/Auto Focus, Contrast, White Balance, Clarity, NIR-mode, Flip H, Flip V
Illumination	Built-in LED matrix light. Optional LED RingLight.
Storage Environment	-20° – +65°C, 20 – 95% RH, non-condensing
Operating Environment	-5 ° – +45°C, 20 – 95% RH, non-condensing
Size / Weight	395 x 240 x 360 mm including metal base/ ~ 5.1 kg.

Optional accessories

Macro Lens +1 Diopter, 67mm

Item no. HD-036

+1 diopter optical power single-element close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 23%.

Download data sheet

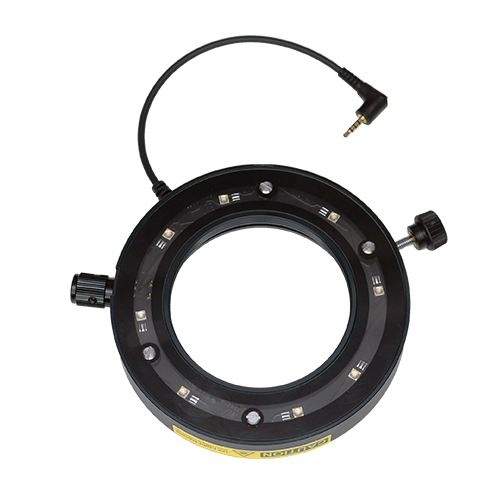

RingLight UV LED including protection glass

Item no. HD-025-B

Flicker free UV LED ring light with homogeneous illumination at 365nm wavelength range. Integrated ON/OFF switch and brightness control. Ring light is powered directly via AUX output of the Inspectis Digital Microscopes or via optional power supply for compatibility with other devices.

UV-protection glasses (one pair included with kit) must be used when working with this illuminator.

Download data sheet

Tilt Board

Item no. HD-029

Tilt board for smooth movement of the inspection objects up to 30 degrees angle in all directions.

Working surface of the board is covered by high friction antistatic mat to keeps your inspection object in place. 4 slots are available for attaching magnetic pegs or custom made fixtures and holders.

Made of high quality antistatic coated material.

Download data sheet
