4K Advanced Optical Inspection System

Home / Configured Digital Microscopes / 4K 60fps Advanced Optical Inspection System with INSPECTIS© Pro Software

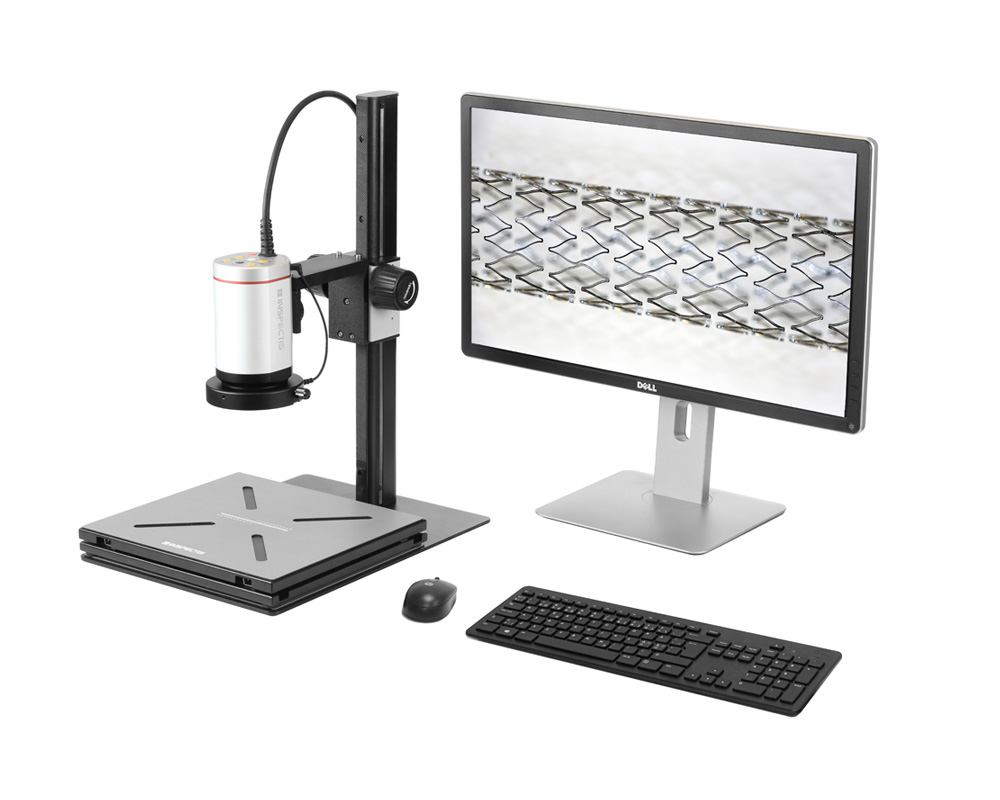

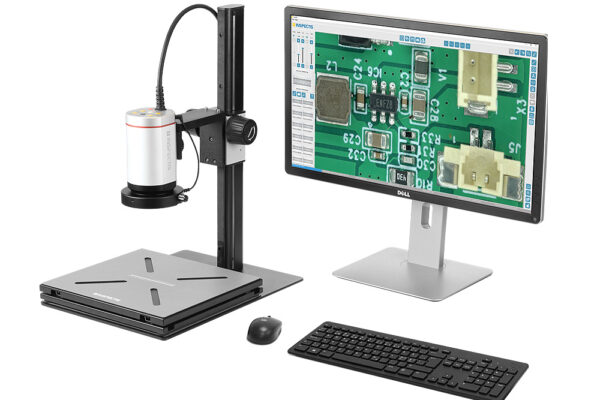

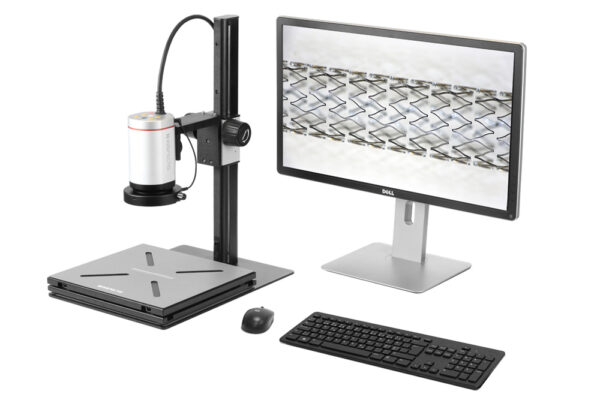

U50s 4k 60fps Digital Microscope System Package

Vivid 4K Video at 60 fps and Low Latency.

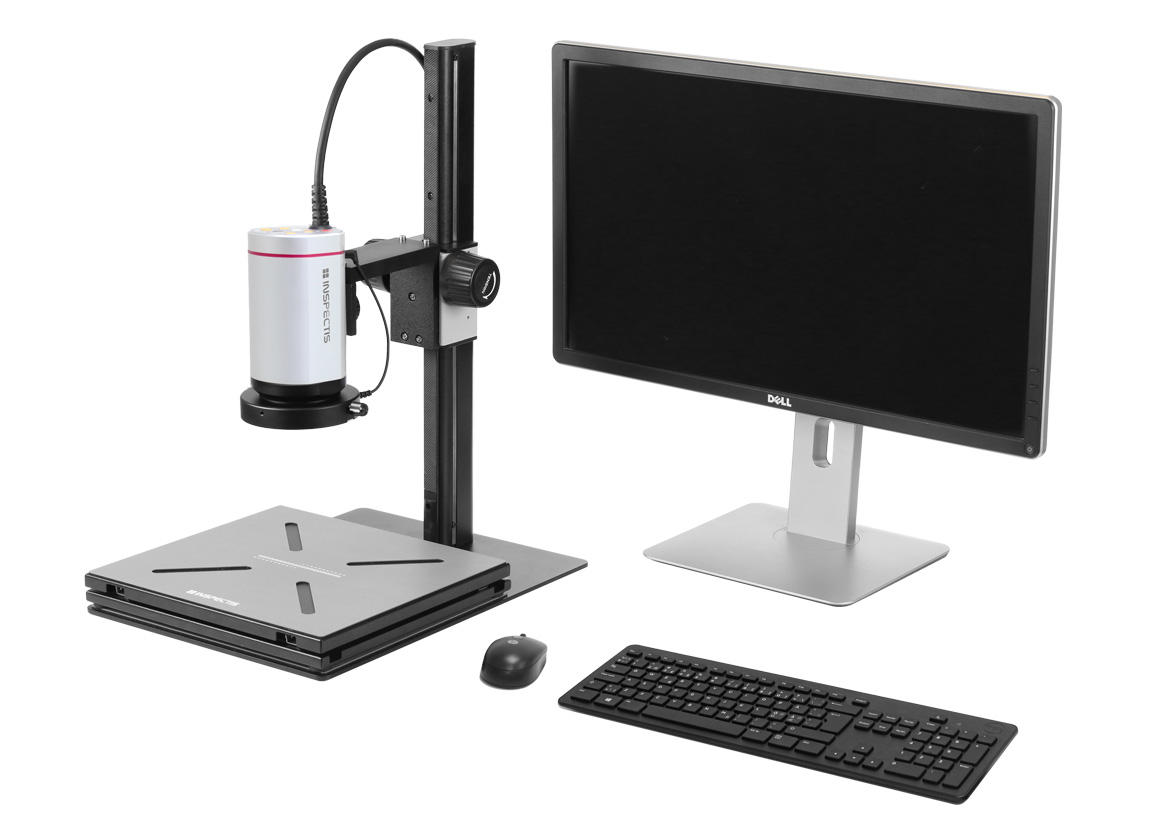

Complete package including award winner, state of the art Ultra U50s Digital Microscope with 50:1 Zoom Range, swift Auto Focus, Fine Focusing Track Stand, LED Ring light, large working area XY-Floating Board and poweful INSPECTIS© Pro Utility and Metrology Software.

Breakthrough Technology

In addition to its high frame rate, U50s sensor provides higher sensitivity and higher dynamic range than previous 4K cameras. Industry-leading 4K60 signal processing with exceptional flicker and flare reduction for best image quality.

Fast and Accurate

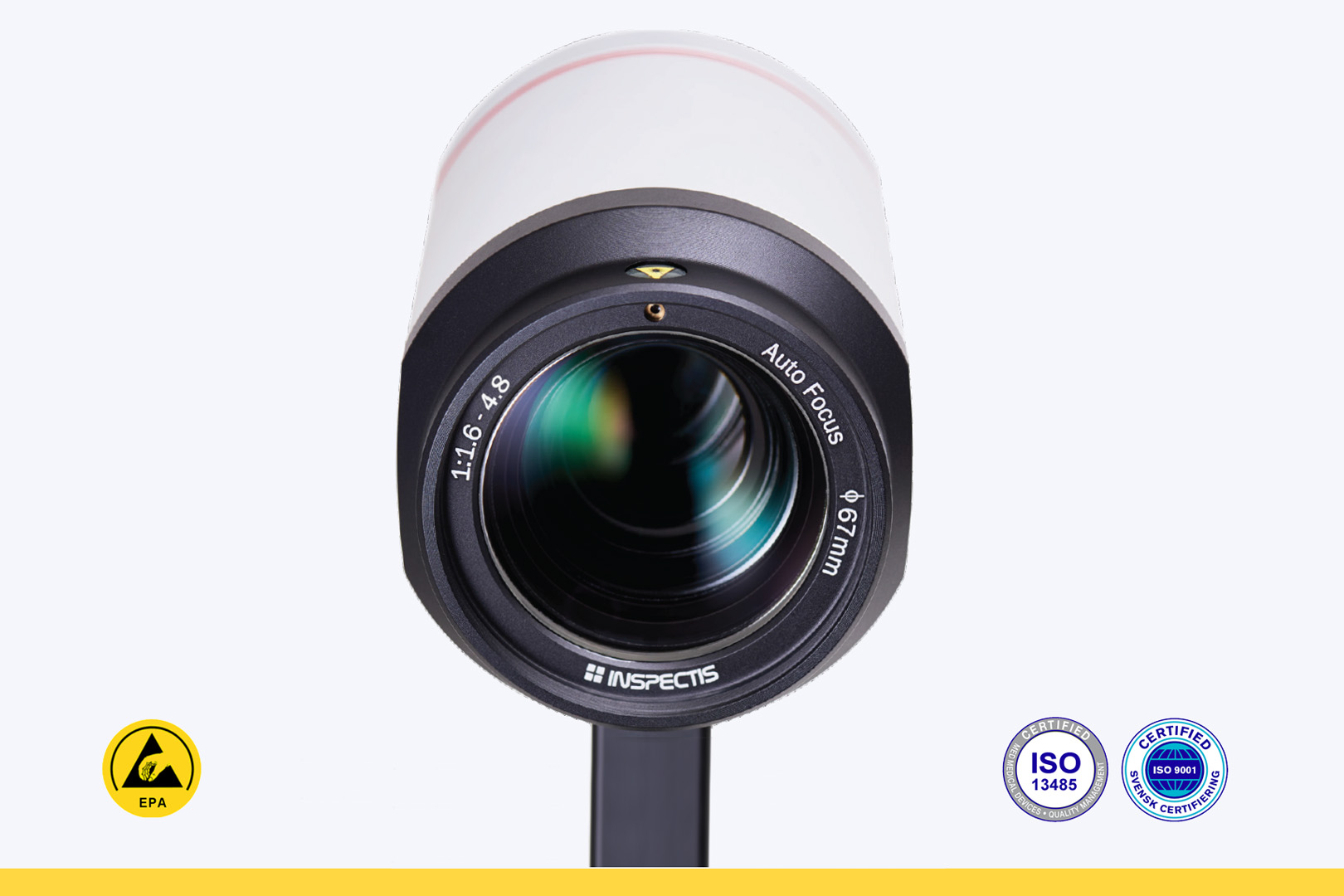

First class F1.6 – 4.8 optics. Advanced high resolution motorised zoom lens with 7-blade aperture and fast
auto-focus. 225 mm free working distance with 25:1 optical zoom and 2x digital zoom. Best choice for High Resolution Optical Inspection, Analysis, Quality Control, R&D, Metrology, Reporting and Documentation of objects up to 1730x on-screen magnification.

Ergonomic

Fast

Reliable

Superiour Optics for Inspection of Fine Details

High-resolution lens design of U50s maintains image clarity and resolution power whether you zoom in for high magnification or zoom out for a large field of view. Video’s high refresh rate maintains image coherence and stability, reduces motion blur, and provides smooth and dynamic images of especially fast-moving objects.

Optimised for Accurate Inspection of Fast Moving Objects.

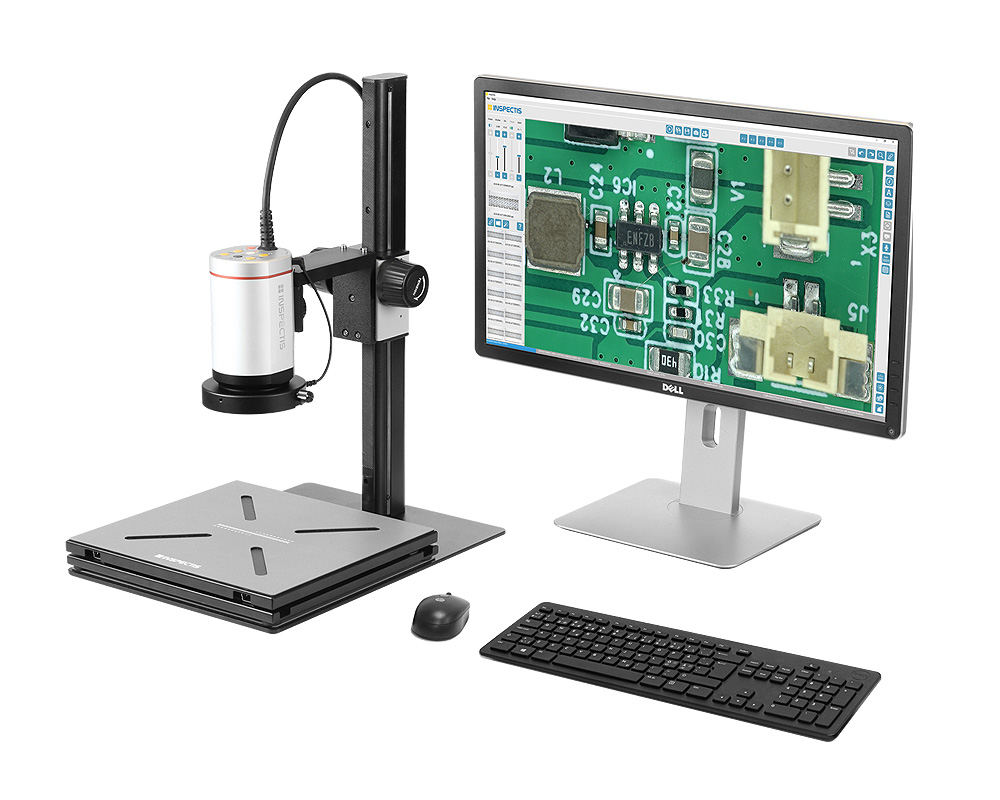

4K 60fps Digital Microscope Powered by INSPECTIS©

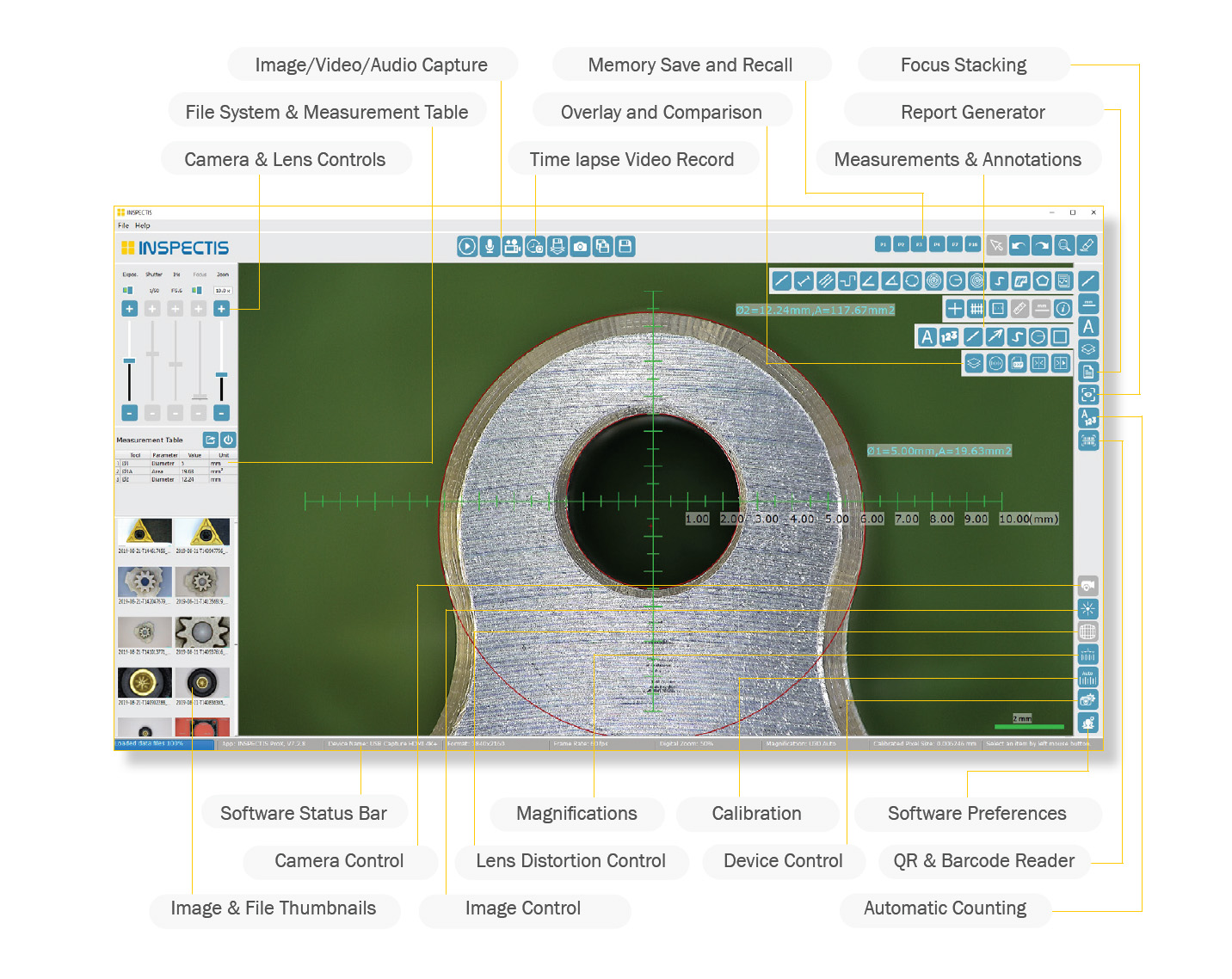

The system is powered by INSPECTIS© Pro software. Powerful yet easy-to-use live image view, capture, analysis, metrology and reporting software.

INSPECTIS© Pro is pre-calibrated across entire zoom range of the U50s microscope and provides tools measurements, image overlays, digital graticule, comparison, video & audio recording, drawings, annotations, and reporting. INSPECTIS© provides direct access to camera and lens attributes like zoom, aperture size, shutter speed, contrast, sharpness, focus and colour balance.

Upgradeable to INSPECTIS© ProX for maximum functionality.

Winner of the 2025 New Product Introductoin (NPI) Award

Colloquially referred to as the Engineer’s Choice Awards – a nod to the background and independence of the judges – the 18th annual NPI Awards recognize the U50s Digital Microscope as leading new product for electronics assembly.

Evaluation was based on following on the below criterias:

Creativity and innovation
Compatibility with existing technology
Cost-effectiveness
Design
Expected reliability
Flexibility
Expected maintainability/reparability
Performance
User-friendliness
Speed/throughput

Fully Configurable Optical System

Inspectis 4K 60fps Advanced System can be further adapted to your application and has a wide range of accessories. Options included:

Transmitted brightfield white illumination
Incident UV ring-light illumination
+1, +2, 3, +5, +10,+28 or +56 diopter extra lenses
Precision XY-stage
3m extended cable
ESD protected housing
Self-adjusting laser pointer
Hermetic sealed housing

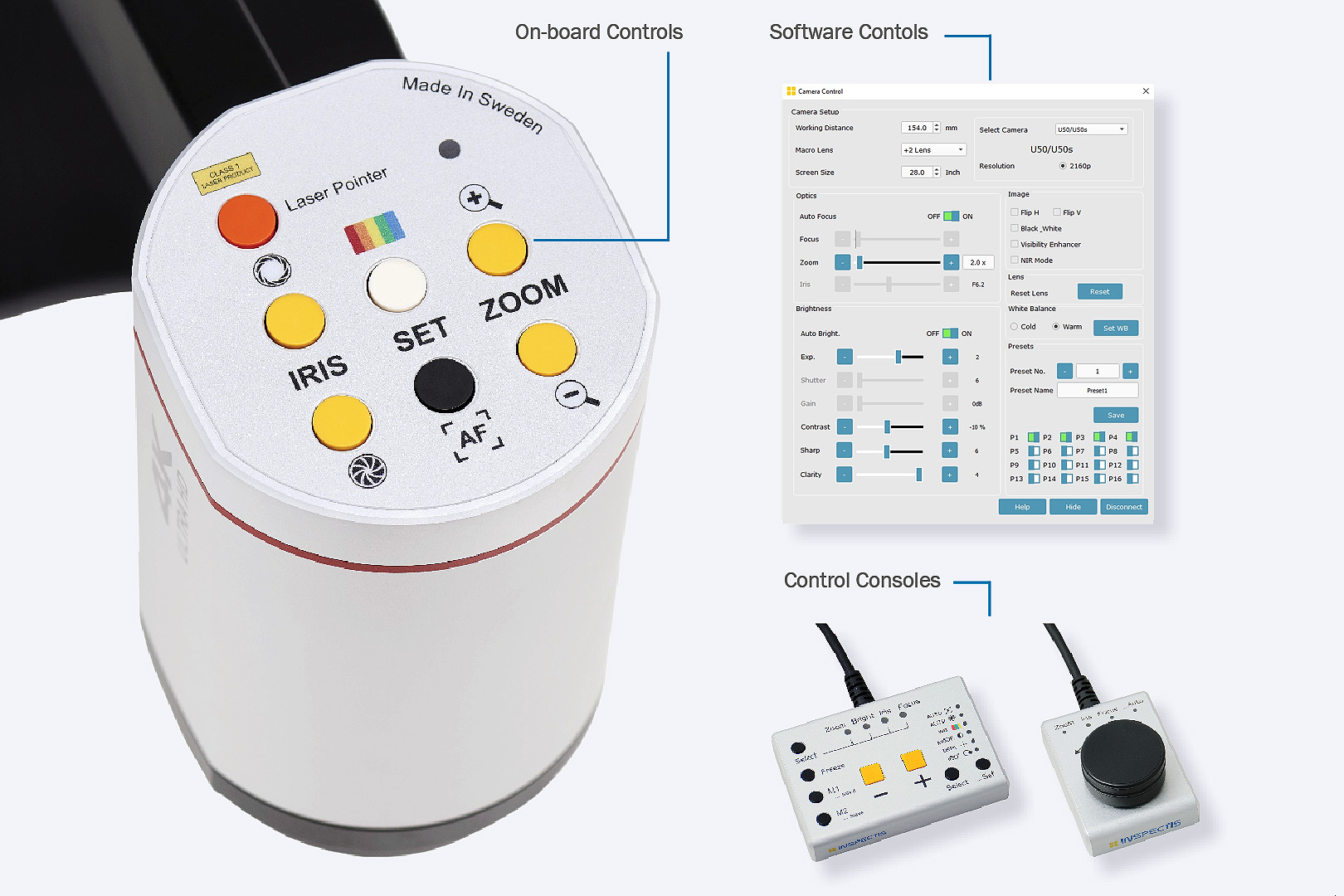

Precise Camera and Lens Control

INSPECTIS© provides direct access to camera and lens attributes like Optical Zoom, Manual/Auto Focus, Aperture Size (Iris), Shutter Speed (Exposure time), Gain, Contrast, Sharpness, Clarity and Color balance to produce the best image quality adapted to the application.

1 to 16 camera and lens configurations can be named and saved in memory for quick recall through the P1 to P16 hotkeys on the software.

Robust and Reliable

Industry grade long lasting digital microscope in robust aluminium housing. Small form factor and excellent cable management thanks to its single compound cable design.

Industrial-quality track stand with large size antistatic coated base and rack & pinion for focus and working
distance adjustment of digital microscope.

Industrial build quality inside and out. Designed and manufactured according to ISO 9001 and ISO 13485 standards.

The Last Microscope You’ll Ever Need!”

State of the art 4K 60fps camera technology
60 frame per second video with almost zero latency
Highly sensitive image sensor with wide dynamic range
Superior lens design with motorised zoom and fast auto focus
25x optical zoom and 2x extra digital zoom with 3D noise reduction
Modular system fully adaptable to different applications and environments
Single cable design for clean installation
Industrial design robust, long lasting all-aluminium housing
Small form factor not obscuring the operator view or occupy the worktable
Fully compatible with a wide range of Inspectis accessories.
Icon based INSPECTIS software with powerful video processing engine

Included items when you order HD-116-KIT-ADV

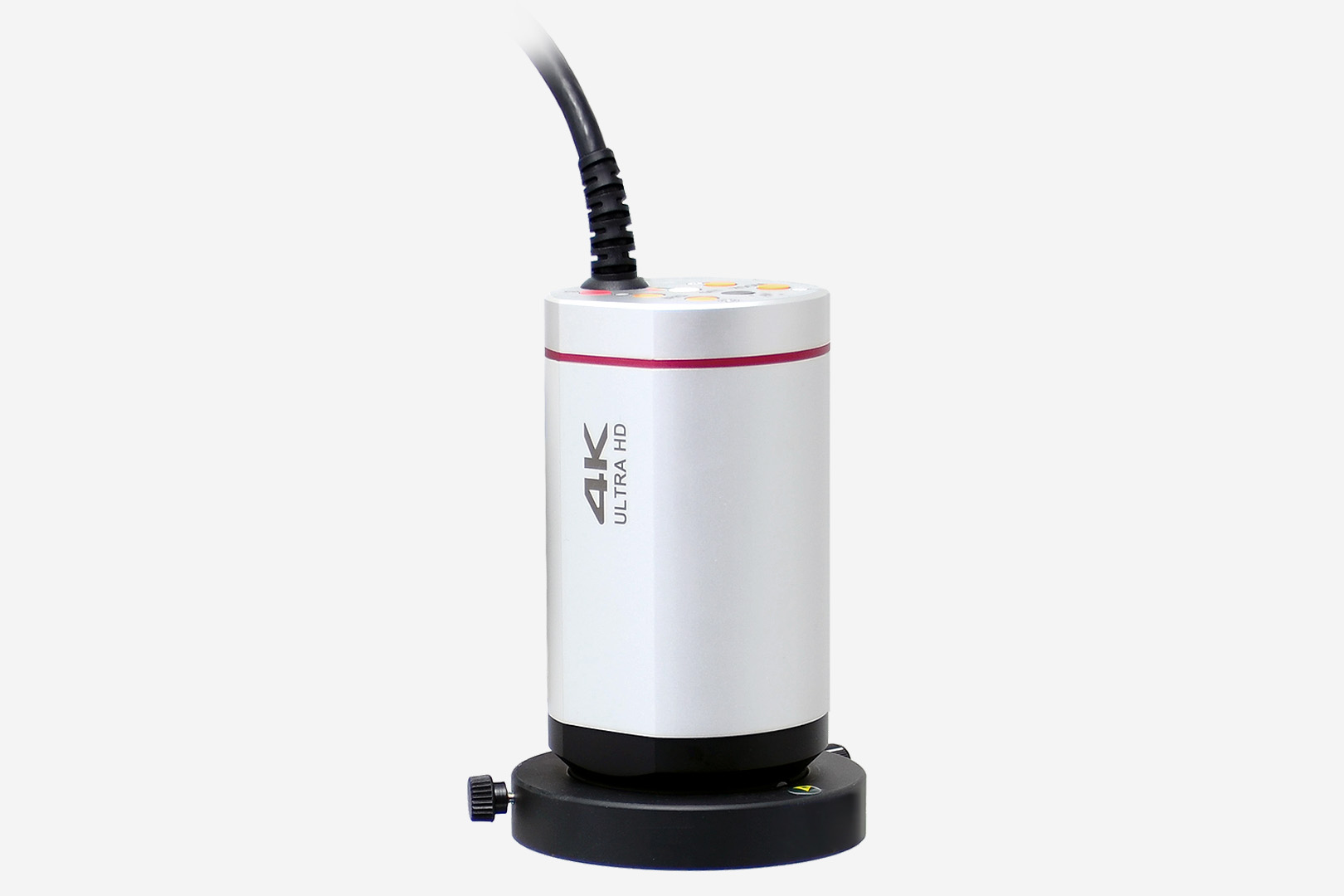

Inspectis U50s, Ultra HD 2160p, 60fps Modular Digital Macroscope, x50 Zoom
Track stand, Large Base with focusing WD 35-410mm, ESD-Protected base
XY Floating Board with magnetic pegs (4x kit)
RingLight White LED with detachable diffuser
4K USB3.2 Gen 2×2 Capture Pro with INSPECTIS© Pro software and USB-COM cable
Annual Service and Support for INSPECTIS© Pro (one year)

Downloads

U50s Brochure

Download Brochure

Send download link to:

Download Optical Data Download Product Catalogue System Reguirements for U50s

Product video

Specifications

System U50s Advanced System

Video Output	4K 2160p, 60 frames per second, 8.4Mp
Optical System	25:1 motorised zoom with auto focus and iris control, F1.6 – 4.8
Digital Zoom	2x with 3D noise reduction
Pixel Size (resolution)	2.0 μm x 2.0 μm
Magnification range	2.9x to 151x with stanard lens. Up to 1737x with +56 diopter lens on 28″ monitor
Filed of View	211mm at 1x zoom, 4.0mm at 50x zoom, 0.35mm at 50x with +56 diopter lens
Working distance	185 – 225mm with standard lens. 18mm with +56 diopter lens
I/O Ports	HDMI2.0 video output, 5P MiniDin power input, 8P MiniDin for communication.
Camera and lens control via top buttons	Zoom, Auto-brightness level, Auto Focus on/off, White Balance
Camera and lens control via software	Zoom, Manual/Auto Focus, Iris, Shutter-speed, Manual/Auto Brightness, Gain, Sharpness, Contrast, VE, White Balance, Clarity, FlipV, FlipH, NIR-mode, Memory Save/Recall (16 pcs)
PC interface	USB3.2 Gen 2×2 and PCIe Gen2 x4
Software	INSPECTIS© Pro, upgradeable to ProX
Pre-set memories	16 save/recall memories with editable names and quick access buttons
Image / Video Capture format	4K still pictures in JPG and PNG. 4K 60fps video recording in AVI with 4 selectable video compressions
Image / Video Capture	Via software. Foot-pedal (optional)
Illumination	White LED Ring Light with detachable diffuser and electronic dimmer
XY-stage	Floating board X ± 160mm Y ± 145mm travel range, Antistatic
Stand	Track stand with rack & pinion z-movement 35 – 410mm working distance range
Storage Environment	-20° – +65°C, 20 – 95% RH, non-condensing
Operating Environment	-5 ° – +45°C, 20 – 95% RH, non-condensing
Size, Weight	510 x 400 x 295 mm, 10 kg.

Optional accessories

Macro Lens +5 Diopter, 67mm

Item no. HD-039

+5 diopter optical power achromatic close-up lens attachable to the standard lens of Inspectis digital video microscopes. For higher magnification applications. Increases overall magnification of F and U microscopes by approximately 210%.

Explore other Lenses

Polarisation filter set for RingLight, 67mm

Item no. HD-024-P-U

Polarising filter set consists of a polariser which is attached on front of the LED RingLight and an analyser which is screwed on the camera lens.

For polarised light microscopy and for eliminating glare from highly reflective objects like solder joints.

Explore Illuminations and Polarisers

Dual White & UV RingLight with Dimmer and Segment Control

Item no. HD-124-WUV

Industrial grade ring light containing 32 white, and 8 high power UV LEDs arranged along two rings. For applications where sequential or independent white and UV illumination is needed. Homogenous and high-intensity light output. Integrated On/Off switch with electronic dimmer. Dedicated switches for UV and segment control.

For optimal cable management, the ring light is powered directly via the Inspectis digital microscope. Optional Diffuser filters and Polariser/Analyser filters are available for use with the ring light.

Explore Illuminations and Polarisers

Inspectis 360 degrees Rotating Viewer

Item no. HD-041

360° rotating viewer for rotating the image at 32° oblique angle by manipulating the optical path without touching the object. Designed for side view inspection of objects while both the digital microscope and the inspection object remain stationary.

Inspectis Rotating Viewer operates in both “side-view” and standard “right-angle-view” modes. Equipped with an optical lens to maintain the working distance in both operating modes without having to change the axial position of the camera.

Item no. -PX

Advanced metrology, analysis and utility software with real-time camera and lens controls. Besides metrology, analysis and documentation features, ProX provides following extra tools:

• Automatic focus stacking (Field of view extender)
• Manual focus stacking
• Time lapse video recording
• Time interval Overlay Assisted Inspection (OAI)
• Optical edge detection and DXF export
• DXF new, import, edit and export
• Drawing toolbox for DXF edit
• DXF overlay on live image
• DXF export as PNG file
• PNG overlay on live image as digital graticule
• Automatic alignment of overlaid image to live image
• Automatic rescaling of overlaid image through zoom

More accessories:

A wide variety of accessories are available for INSPECTIS digital microscopes.

Find more accessories here:
